Get a Grip: Easy IPAM Setup Guide on Windows Server

Updated: • 0 • min read
Table of Contents

Hey folks! Ever felt like managing your network’s IP addresses is a tangled mess? Well, setting up IPAM on your Windows Server can make it way easier. Think of it as your central command for all things IP. This guide will walk you through the whole shebang, from installation to actually using it. Let’s get this party started!

IPAM Setup
image just illustration

What is IPAM Anyway?

IPAM, or IP Address Management, is like a super-organized control panel for your network’s IP addresses. It lets you track who’s using what, manage your DHCP and DNS servers, and make sure everything’s playing nice with your network rules. Pretty neat, right?

Setting Up IPAM on Your Windows Server: A Step-by-Step Guide

Ready to dive in? Here’s the lowdown on how to get IPAM up and running on your Windows Server.

1. Checking the Prerequisites: Laying the Groundwork

Before we start building, let’s make sure we have the right tools. First, double-check that your server is running a compatible Windows Server version and is part of an Active Directory domain. Also, it’s a good idea to make sure your DHCP and DNS servers are already set up and humming along. Got all that? Great, let’s move on!

2. Installing IPAM: Bringing in the Big Guns

Now, let’s install IPAM itself. Here’s the play-by-play:

  1. Fire up the Server Manager Console on your Windows Server and head over to the Local Server section.
  2. Go to the Manage tab, click Add Roles and Features, and hit Next when the wizard pops up.
  3. Choose Role-based or feature-based installation, hit Next, then choose Select a Server from the server pool.
  4. Pick the server where you want to install IPAM and hit Next twice.
  5. On the Features page, scroll down and select the IP Address Management (IPAM) server feature. A new window will appear; click Add Features, then Next, and finally Install.

Pro Tip: You can also install IPAM through the command prompt with this nifty command: Install-WindowsFeature IPAM -IncludeManagementTools

Once the installation wraps up, click Close. Next up, we configure the beast!

3. Configuring IPAM: Giving it the Green Light

Now that IPAM is installed, we need to set up provisioning so it can access settings on the manager server. Here’s how:

  1. In Server Manager, select IPAM on the left and click Provision the IPAM server.
  2. Click Next, choose a database (we’re going with WID for this example), and click Next again. If you choose a different option, you’ll need to check the Create a new Schema box.
  3. Select Group-based Policy, enter a GPO prefix in the box, and click Next.
  4. Double-check everything looks good, and hit Apply to save the changes.

You should see a message saying “IPAM provisioning completed successfully.” Woohoo!

4. Configuring Server Discovery and Settings: Finding the Players

Now, let’s get IPAM acquainted with your network:

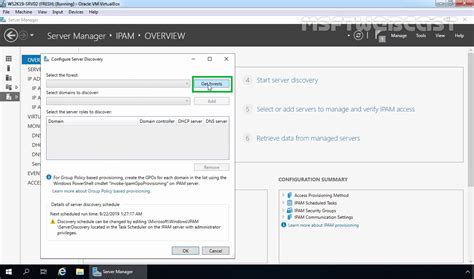

  1. On the IPAM Overview page, click Configure server discovery. In the wizard, click Get Forests, wait a bit, and click OK.
  2. Choose all the domains you want IPAM to manage from the drop-down menu and hit Apply.
  3. Back on the Overview page, click Start Server discovery to let IPAM find all the servers in those domains. Be patient; this might take a minute.

IPAM Server Discovery
image just illustration

5. Managing Servers and Settings: Taking Control

Once IPAM has rounded up the servers, let’s add them to its management roster:

  1. Click the link that says Select or Add servers to manage and verify the IPAM access. If a server’s IPAM access status is blocked (meaning the Group Policy Objects aren’t configured), open PowerShell as an administrator and run this command:
Invoke-IpamGpoProvisioning –Domain mylab.local –GpoPrefixName MYLAB_IPAM –IpamServerFqdn WS2K19-SRV02.mylab.local -DelegatedGpoUser <a href="/cdn-cgi/l/email-protection" class="__cf_email__">[email protected]</a>
  1. Open Group Policy Management and check that the IPAM GPO is under your domain.
  2. On your domain controller, open Command Prompt as an administrator and run gpupdate /force.
  3. Right-click on the server, choose Edit Server, go to the Manageability status drop-down, and select Managed > OK. Then, right-click the server again and click Retrieve server access status to refresh things.
  4. The IPAM access status should now be unblocked, which means it’s all good.
  5. Right-click the server one last time and select Retrieve All Server Data so IPAM can grab all the juicy DHCP, DNS, and other network info it needs.

Adding an IP Address to IPAM: A Quick How-To

Need to add a new IP address? Easy peasy:

  1. Open the IPAM console, go to the IP Address Space section, and choose the right IP Address block.
  2. Click Add IP address and fill in the details (the IP address itself, its status, any associated devices, etc.).
  3. Save your changes, and you’re done!

Wrapping It Up

That’s all there is to it! You’ve now got a powerful tool to manage your network’s IP addresses. Give yourself a pat on the back. We hope this guide was clear and helpful. If you have any burning questions, comments, or just want to share your experience, feel free to drop us a line below. And if you are hungry for more tech tips and tutorials, be sure to check back soon. Happy networking!
