VMware Power On Problems? "Module Monitor Mode" Error Explained

Updated: • 0 • min read
Table of Contents

VMware Power On Problems? Let’s Fix That “Module Monitor Mode” Error!

VMware Power On Problems

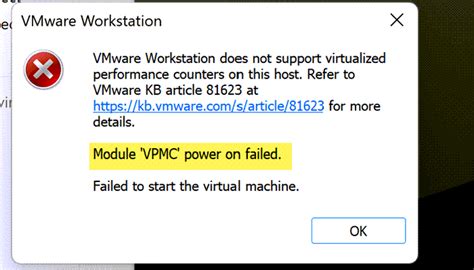

image just illustration

Ever booted up your VMware Workstation VM only to be met with a frustrating “Module Monitor Mode” error? Yeah, it’s a bummer. Basically, your virtual machine refuses to power on, leaving you scratching your head. This post dives into the nitty-gritty of this issue and offers some practical fixes. Let’s get your VMs back up and running!

Why Won’t My VM Power On?

Several things can cause a VM power-on failure. Conflicts with your hardware virtualization settings (like nested virtualization or Hyper-V), corrupted VM configuration files, or general software conflicts are the usual suspects. We’ll explore these in more detail below.

Fixing the “Module Monitor Mode” Error

Okay, let’s tackle this head-on. If you’re staring at that dreaded “Module Monitor Mode” error, try these solutions:

  1. Disable Nested Virtualization: Nested virtualization lets you run a hypervisor inside a virtual machine. Sounds cool, but it can cause conflicts, especially if your VM isn’t configured for it. Disabling this allows VMware Workstation to directly use your hardware’s virtualization capabilities without interference. Here’s how:

    • Open VMware Workstation and right-click the troublesome VM.
    • Select Settings.
    • Go to the Processor tab.
    • Uncheck Virtualize Intel VT-ex/EPT or AMD-V/RVI.
    • Click OK.

    Restart your PC and see if that did the trick. If not, keep reading!

  2. Disable Hyper-V: Hyper-V is Microsoft’s own virtualization tool. If it’s enabled, it can clash with VMware, hogging system resources. Disabling Hyper-V might just solve your problem. Follow these steps:

    • Press Win + R to open the Run dialog box.
    • Type OptionalFeatures.exe and press Enter.
    • Find Hyper-V and uncheck all its boxes.
    • Click OK and restart your PC.

  3. Disable Windows Hypervisor Platform and Virtual Machine Platform: Similar to Hyper-V, these platforms can interfere with VMware’s access to hardware virtualization. Disabling them can free up resources and get your VMs running smoothly.

    • Press Win + R.
    • Type appwiz.cpl and press Enter.
    • Click Turn Windows features on or off.
    • Scroll down and find Windows Hypervisor Platform and Virtual Machine Platform.
    • Uncheck both boxes and click OK.
    • Restart your PC.

  4. Re-import the VM: If corrupted VMX files or configuration issues are the culprits, re-importing your VM can help. This essentially resets the configuration and fixes compatibility problems.

    • Open VMware Workstation.
    • Click File > Open (or press Ctrl + O).
    • Navigate to your exported VM files.
    • Select the OVF file and click Open.
    • Follow the Import Virtual Machine Wizard, providing a name and storage location.
    • Be patient while the import completes. Once done, the VM will appear in your Virtual Machine Library.

  5. Contact VMware Support: If all else fails, it’s time to call in the experts. VMware support has access to advanced diagnostic tools and can provide personalized assistance. Visit the VMware Support Portal (support.broadcom.com) and submit a request with detailed error logs, or reach out via chat or phone for real-time help.

How to Reset Power in VMware

Sometimes a simple reset is all you need. Here’s how to reset the power option in VMware:

  • Open VMware Workstation.
  • Right-click on the VM.
  • Select Power > Reset. This restarts the guest operating system without fully shutting it down.

A Quick Recap: Accessing BIOS and Running Multiple Hypervisors

For a deeper dive into VMware, check out these helpful articles:

We’ve covered a lot of ground here, from understanding the causes of the “Module Monitor Mode” error to implementing several solutions. Hopefully, one of these fixes got your VMs back in action. If you have any questions, comments, or additional tips, feel free to share them below. We’d love to hear from you! And if you encounter other VMware challenges, come back and visit—we’re here to help!
