EAP-TLS Authentication Woes: Windows, ISE Compatibility Issues Reported

Table of Contents

Encountering failures during the Extensible Authentication Protocol-Transport Layer Security (EAP-TLS) authentication process with Cisco Identity Services Engine (ISE) can significantly disrupt network access deployment. Organizations relying on Cisco ISE for network security are particularly vulnerable when Windows machines fail to complete EAP-TLS authentication. This issue, often manifested as Event 5400 Authentication failed error, prevents users and devices from securely connecting to the network, impacting productivity and potentially compromising security protocols. Understanding the root causes and implementing effective solutions is crucial for maintaining seamless and secure network operations.

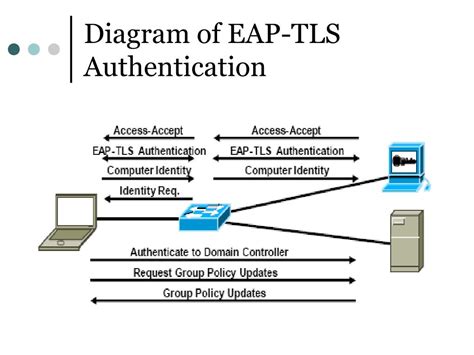

Troubleshooting EAP-TLS Authentication Failures on Windows with Cisco ISE¶

When Windows devices, particularly those running Windows 11, are unable to complete EAP-TLS authentication with Cisco ISE, the Event 5400 Authentication failed error is a common indicator. This error signals a breakdown in the authentication handshake between the Windows client and the ISE server. Addressing this issue promptly is essential to restore network connectivity and ensure consistent security posture. Several factors can contribute to this failure, ranging from misconfigured Group Policy settings to inconsistencies in certificate validation processes. Below are structured solutions to diagnose and resolve these EAP-TLS authentication challenges.

Solutions to Resolve EAP-TLS Authentication Issues¶

To effectively troubleshoot and resolve Event 5400 Authentication failed errors in EAP-TLS authentication with ISE on Windows machines, consider the following solutions. Each solution addresses a potential root cause of the authentication failure and provides steps to rectify the issue.

1] Deleting Registry Entries to Resolve Group Policy Conflicts¶

One prevalent cause of EAP-TLS authentication failures, particularly in conjunction with Group Policy, stems from incorrect or conflicting registry settings related to certificate selection. Group Policy settings are designed to manage and enforce configurations across a domain, including certificate management. However, misconfigurations can inadvertently prevent the correct Root and Intermediate certificates from being selected during the EAP-TLS process. This can lead to authentication failures as the Windows client is unable to properly validate the ISE server’s certificate.

To address this potential conflict, deleting specific registry entries can reset the certificate selection behavior and allow the system to correctly identify and utilize the necessary certificates. Before proceeding with registry modifications, it is imperative to create a backup of your registry. This backup serves as a safety net, enabling you to restore the registry to its previous state in case of unintended consequences during the deletion process.

Once a registry backup is securely created, follow these steps to delete the potentially conflicting registry entries:

1. Open Command Prompt as an administrator. This elevated access is required to make changes to system-level registry settings. To do this, search for “Command Prompt” in the Windows search bar, right-click on the “Command Prompt” result, and select “Run as administrator.”

2. Execute the following commands one by one in the elevated Command Prompt window. Each command targets a specific registry key for deletion. These keys are commonly associated with Group Policy settings and Windows SelfHost configurations that might interfere with certificate selection:

reg delete "HKCU\Software\Microsoft\Windows\CurrentVersion\Policies" /f
reg delete "HKCU\Software\Microsoft\WindowsSelfHost" /f
reg delete "HKCU\Software\Policies" /f
reg delete "HKLM\Software\Microsoft\Policies" /f
reg delete "HKLM\Software\Microsoft\Windows\CurrentVersion\Policies" /f
reg delete "HKLM\Software\Microsoft\Windows\CurrentVersion\WindowsStore\WindowsUpdate" /f
reg delete "HKLM\Software\Microsoft\WindowsSelfHost" /f
reg delete "HKLM\Software\Policies" /f
reg delete "HKLM\Software\WOW6432Node\Microsoft\Policies" /f
reg delete "HKLM\Software\WOW6432Node\Microsoft\Windows\CurrentVersion\Policies" /f
reg delete "HKLM\Software\WOW6432Node\Microsoft\Windows\CurrentVersion\WindowsStore\WindowsUpdate" /f

3. Note: During the execution of these commands, you may encounter messages indicating “ERROR: The system was unable to find the specified registry key or value.” These messages are normal and can be safely ignored. They simply mean that the particular registry key being targeted does not exist on the system. The script attempts to delete a comprehensive set of potentially problematic keys, some of which may not be present in every environment.

4. After executing all the commands, reboot your computer. A system reboot is crucial to ensure that the registry changes are properly applied and that the operating system starts with the modified registry configuration.

5. Following the reboot, attempt to re-establish the EAP-TLS connection. After deleting the potentially conflicting registry entries, the system should now be able to correctly select and utilize the Root and Intermediate certificates required for successful EAP-TLS authentication.

This solution effectively addresses scenarios where Group Policy or related registry settings are inadvertently hindering the EAP-TLS authentication process by interfering with certificate selection. By clearing these potential conflicts, you allow the Windows client to properly engage in the authentication handshake with the ISE server.

2] Updating Certificate Validation Behavior for Enhanced Security¶

Certificate validation is a cornerstone of EAP-TLS authentication, ensuring that both the client and server can trust each other’s identities. In recent Windows versions, particularly Windows 11, Microsoft has implemented significant changes to the server certificate validation logic. This standardization aims to enhance security and ensure consistent behavior across different Extensible Authentication Protocol (EAP) methods, aligning with modern security standards like WPA3-Enterprise.

In older Windows versions, including Windows 10, the certificate validation process varied across different EAP methods. This inconsistency could lead to unpredictable behavior and potential security vulnerabilities. Windows 11 introduces a unified approach to certificate validation across all EAP methods, including those used for Wi-Fi, Ethernet, and Virtual Private Network (VPN) connections. This standardized logic emphasizes stricter adherence to certificate validation best practices.

When encountering EAP-TLS authentication issues, especially in environments utilizing TLS 1.3, it is crucial to verify the certificate validation behavior and ensure compatibility. The updated validation logic in Windows 11 might expose previously overlooked issues, particularly if the RADIUS server, such as Cisco ISE, is not fully compliant or up-to-date.

To address potential certificate validation related issues, consider the following steps:

1. Ensure RADIUS Server Patching and Updates: Verify that your Cisco ISE server is running the latest recommended patch level and software version. Outdated RADIUS server software might not fully support the enhanced certificate validation requirements of Windows 11, particularly when using TLS 1.3. Consult Cisco’s documentation and support resources to obtain and apply the latest patches and updates for your ISE deployment. Patching often includes critical security fixes and compatibility improvements that can resolve authentication issues.

2. Consider Disabling TLS 1.3 (Temporarily for Troubleshooting): If updating the RADIUS server is not immediately feasible, or if you suspect TLS 1.3 compatibility issues, temporarily disabling TLS 1.3 on the server can be a troubleshooting step. TLS 1.3 is the latest version of the TLS protocol and offers enhanced security features. However, compatibility issues can sometimes arise during the initial rollout and adoption of new protocols. Disabling TLS 1.3 will force the connection to fall back to TLS 1.2, which is widely supported and well-established. If authentication succeeds with TLS 1.3 disabled, it points to a potential incompatibility or configuration issue with TLS 1.3 on either the Windows client or the ISE server. Note: Disabling TLS 1.3 should be considered a temporary troubleshooting measure. For optimal security, it is recommended to enable TLS 1.3 once compatibility issues are resolved through patching and configuration adjustments.

3. Verify Root and Intermediate Certificate Trust: Confirm that the Root and Intermediate Certificates used by the Cisco ISE server are explicitly trusted by the Windows 11 client machines. For EAP-TLS authentication to succeed, the Windows client must be able to build a valid certificate chain back to a trusted Root Certificate Authority (CA). Ensure that the necessary Root and Intermediate CA certificates are installed in the Windows Certificate Store on the client machines, specifically in the “Trusted Root Certification Authorities” and “Intermediate Certification Authorities” stores, respectively. You can use the certmgr.msc tool to manage and inspect certificates in the Windows Certificate Store. If the required certificates are missing, they need to be imported into the appropriate stores. This can be done manually or through Group Policy for domain-joined machines.

By addressing certificate validation aspects, you ensure that the Windows client and ISE server can establish a secure and trusted communication channel, which is fundamental for successful EAP-TLS authentication. Keeping the RADIUS server updated, potentially adjusting TLS protocol versions for troubleshooting, and verifying certificate trust are key steps in resolving authentication failures related to certificate validation logic.

3] Seeking Assistance from Microsoft Support¶

If the previously mentioned solutions do not resolve the EAP-TLS authentication failures and Event 5400 errors persist, it is advisable to escalate the issue to Microsoft Support. In complex scenarios, the root cause might be deeply embedded within the Windows operating system, requiring specialized expertise and diagnostic tools that Microsoft Support can provide. Microsoft Support engineers possess in-depth knowledge of Windows internals and can assist in identifying and resolving intricate issues that are not readily apparent through standard troubleshooting procedures.

To contact Microsoft Support, follow these steps:

1. Navigate to the official Microsoft Support website: support.microsoft.com. This is the primary portal for accessing Microsoft’s support resources and initiating contact with their support teams.

2. Sign in to your Microsoft Account: You will typically need to sign in with your Microsoft account to access the full range of support options and to track your support requests. Use the account associated with your organization or the one you use for managing your Windows devices.

3. Describe the Issue and Raise a Support Ticket: Once signed in, utilize the support portal to describe the EAP-TLS authentication issue you are experiencing. Be as detailed as possible in your description, including:

   • The specific error message (Event 5400 Authentication failed).
   • The Windows version and build number of the affected machines.
   • Details about your Cisco ISE environment and configuration.
   • The troubleshooting steps you have already attempted.
   • Any relevant logs or diagnostic information you have collected.

   Providing comprehensive information upfront will help Microsoft Support engineers understand the issue quickly and expedite the resolution process. The support portal will guide you through the process of creating a support ticket, which will assign a unique tracking number to your issue and allow you to communicate with the support team.

4. Engage with Microsoft Support: After raising the ticket, Microsoft Support will typically respond to your request and initiate communication. They may ask for additional information, request remote access to an affected machine for further diagnosis, or provide specific troubleshooting steps tailored to your situation. Collaborate closely with the Microsoft Support engineers, provide them with the information they request promptly, and follow their guidance to resolve the issue.

Microsoft Support is equipped to handle complex Windows-related issues and can offer solutions that might not be available through self-service troubleshooting. They can leverage advanced diagnostic tools, access internal knowledge bases, and escalate the issue to specialized teams if necessary. Seeking their assistance is a valuable step when standard troubleshooting methods prove insufficient.

Enhancing EAP-TLS with Session Resume and Understanding EAP in ISE¶

Beyond troubleshooting authentication failures, optimizing and understanding related features can further enhance the efficiency and security of EAP-TLS in conjunction with Cisco ISE. Session resume and a clear understanding of EAP within the ISE context are valuable aspects to consider.

Enabling EAP-TLS Session Resume for Improved Efficiency¶

EAP-TLS session resume is a mechanism that can significantly improve the efficiency of repeated EAP-TLS authentications. In a typical EAP-TLS authentication process, a full cryptographic handshake is performed every time a device connects to the network. This handshake involves multiple message exchanges and cryptographic computations, which can consume resources and introduce latency, especially for frequent reconnections.

Session resume, as defined in RFC 5246 (TLS 1.2) and RFC 8446 (TLS 1.3), allows the client and server to cache session information from a previous successful authentication. When a client attempts to reconnect, it can present this cached session information to the server. If the server still retains the session information, it can skip the full handshake and resume the previous session, resulting in a much faster authentication process. This reduces the overhead of repeated full handshakes, improving connection speed and reducing server load.

To enable EAP-TLS session resume in Cisco ISE, follow these steps:

1. Access the Cisco ISE Administration Interface. Log in to your ISE server using administrative credentials.

2. Navigate to Administration > System > Settings > Protocol > EAP-TLS. This path leads to the EAP-TLS protocol settings within the ISE system configuration.

3. Enable EAP TLS Session Resume: Locate the checkbox labeled Enable EAP TLS Session Resume. Tick this checkbox to activate the session resume feature for EAP-TLS.

4. Configure EAP TLS Session Timeout: After enabling session resume, you will typically see a field for EAP TLS Session Timeout. This setting defines the duration for which the ISE server will retain session information for resume. Enter the desired timeout value in this field. The appropriate timeout value depends on your network environment and security policies. A longer timeout allows for more frequent session resumes but might increase the risk if session keys are compromised. A shorter timeout is more secure but reduces the frequency of session resumes. Consider factors like user mobility, network access patterns, and security requirements when setting the timeout value.

5. Save Changes: After configuring the session resume settings, ensure you save the changes in the ISE administration interface for the settings to take effect.

Enabling EAP-TLS session resume can enhance the user experience by speeding up network reconnections and reduce the processing load on the ISE server, especially in environments with frequent authentications and re-authentications.

Understanding EAP in Cisco ISE for Secure Network Access¶

EAP, or Extensible Authentication Protocol, is a fundamental framework within Cisco ISE that provides a versatile and secure approach to network authentication. It is not a specific authentication method itself but rather a framework that supports a wide range of authentication methods. EAP’s flexibility is one of its key strengths, allowing organizations to choose the authentication method that best aligns with their security requirements, infrastructure, and user needs.

In Cisco ISE, EAP serves as the foundation for authenticating devices and users attempting to connect to the network. When a device tries to connect to a network protected by ISE, the ISE server and the device engage in an EAP exchange. This exchange involves a series of messages between the ISE server, the network access device (like a switch or wireless access point), and the connecting device. The specific messages and steps in this exchange depend on the chosen EAP method.

EAP supports numerous authentication methods, each with its own security characteristics and implementation requirements. Some commonly used EAP methods in ISE include:

• EAP-TLS: Transport Layer Security (TLS) based EAP method, considered highly secure. It uses digital certificates for mutual authentication between the client and server, providing strong encryption and identity verification. EAP-TLS is often preferred in environments requiring the highest levels of security.

• EAP-TTLS: Tunneled Transport Layer Security (TTLS) based EAP method. EAP-TTLS establishes a TLS-encrypted tunnel between the client and server. Client-side authentication within the tunnel can be performed using various methods, such as PAP, CHAP, MSCHAPv2, or EAP methods like EAP-MD5 or EAP-GTC. EAP-TTLS simplifies certificate management as only the server needs a certificate.

• PEAP: Protected Extensible Authentication Protocol (PEAP). PEAP is similar to EAP-TTLS in that it also establishes a TLS-encrypted tunnel. However, PEAP typically uses server-side certificates only, and client authentication often relies on methods like MSCHAPv2 within the secure tunnel. PEAP is widely used in enterprise environments due to its balance of security and ease of deployment.

• EAP-FAST: EAP-Flexible Authentication via Secure Tunneling (FAST) is a Cisco-proprietary EAP method. EAP-FAST aims to simplify deployment and management compared to certificate-based methods. It can use Protected Access Credentials (PACs) for authentication, which can be provisioned dynamically.

The choice of EAP method in ISE depends on factors such as security requirements, existing infrastructure, certificate management capabilities, and client device compatibility. ISE’s EAP framework allows administrators to select and configure the most appropriate authentication method for their specific environment, providing flexibility and adaptability in securing network access. Understanding the different EAP methods and their characteristics is crucial for designing and implementing effective network authentication policies within Cisco ISE.

---

By understanding and implementing these solutions and optimizations, organizations can effectively address EAP-TLS authentication challenges and enhance the security and efficiency of their network access control systems. Resolving Event 5400 errors and leveraging features like session resume are key steps in maintaining a robust and user-friendly network environment secured by Cisco ISE and EAP-TLS.
