Excel Form Controls: Your Easy Guide to Interactive Spreadsheets

Updated: • 0 • min read
Table of Contents

Hey Excel fans! Ever wished your spreadsheets were a bit more…interactive? Well, you’re in luck! Form Controls are here to transform your static sheets into dynamic powerhouses. Let’s dive into the world of Excel Form Controls and discover how to make your spreadsheets pop!

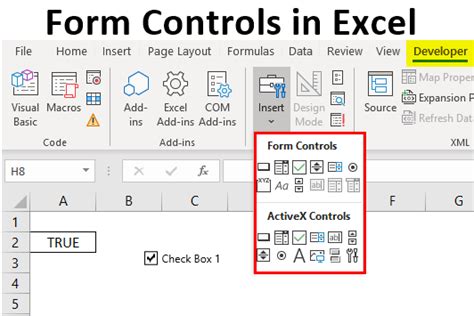

Excel Form Controls
image just illustration

What are Form Controls?

Form Controls are like little widgets you can add to your Excel sheets to make them more user-friendly. They’re perfect for selecting items from a list, running macros, or just making your data easier to navigate. Think of them as the cool interactive elements that bring your spreadsheets to life!

Types of Form Controls: A Quick Overview

There’s a whole toolbox of Form Controls waiting for you, each with its own special superpower:

  • Label: These guys are all about clarity. Use labels to add descriptive text, titles, or captions to your sheet. They’re like little signposts guiding your users.
  • Group Box: Got a bunch of related stuff? Corral it all together with a Group Box. You can even add a label to make it extra clear.
  • Button: Want to trigger a macro or perform an action with a single click? Buttons are your go-to.
  • Check Box: Give your users the power of choice! Check Boxes let them toggle options on and off. And the best part? They can select multiple boxes at once.
  • Option Button: Similar to Check Boxes, but with a twist. Option Buttons (also known as radio buttons) only allow one selection at a time. Perfect for those either/or situations.
  • List Box: Present your users with a curated list of options to choose from. It’s like a mini dropdown menu right there on your sheet.
  • Combo Box: Take the List Box to the next level! A Combo Box combines a text box with a dropdown list, giving your users the flexibility to type or select their choice.
  • Scroll Bar: Need to scroll through a range of values? The Scroll Bar has you covered.
  • Spin Button: Easily increment or decrement values like numbers, dates, or times. Just click the up or down arrows and watch the magic happen.

Creating and Using Form Controls: A Step-by-Step Guide

Ready to get hands-on? Here’s how to add these awesome controls to your spreadsheets:

Finding the Form Controls

First things first, you need to activate the Developer tab:

  1. Right-click on the Standard Toolbar.
  2. Select Customize the Ribbon.
  3. In the Excel Options dialog box, check the Developer box on the left.
  4. Click OK. The Developer tab will now appear on your menu bar.

Creating a Label

  1. On the Developer tab, click Insert in the Controls group.
  2. Select the Label control.
  3. Draw the label on your sheet using the cross-shaped cursor.
  4. Right-click the label and select Edit Text to add your descriptive text.

Creating a Button

  1. Go to the Insert tool in the Controls group.
  2. Select the Button control.
  3. Draw the button on your sheet.
  4. An Assign Macro dialog box will appear. Click OK for now. (We’ll cover macros in another tutorial!)

Creating a Check Box

  1. Go to the Insert tool and select the Check Box control.
  2. Draw the Check Box on your sheet.
  3. To rename it, right-click and select Edit Text.

Creating an Option Button

  1. In the Insert toolbox, select the Option Button control.
  2. Draw the Option Button on your sheet.
  3. To add text, right-click or double-tap and enter your text, or right-click and select Edit Text.

Creating a List Box

  1. Go to the Insert tool and select the List Box control.
  2. Draw the List Box on your sheet.
  3. Right-click and select Format Control.
  4. In the Input Range field, select the cells containing the list items.
  5. In the Cell Link field, select a cell where the selected item’s row number will be displayed.
  6. Click OK.

Creating a Combo Box

  1. Click the Insert tool and select the Combo Box control.
  2. Draw the Combo Box on your sheet.
  3. Right-click and select Format Control.
  4. In the Input Range field, select the cells containing the dropdown items.
  5. In the Cell Link field, select a cell to display the selected item’s row number.
  6. Click OK.

Creating a Scroll Bar

  1. Click Insert and select the Scroll Bar control.
  2. Draw the Scroll Bar on your sheet.
  3. Right-click and select Format Control.
  4. Select the Control tab.
  5. Choose a Cell Link to store the scroll bar’s value.
  6. Click OK.

Creating a Spin Button

  1. Click Insert and select the Spin Button control.
  2. Draw the Spin Button on your sheet.
  3. Right-click and select Format Control.
  4. Select the Control tab.
  5. Choose a Cell Link to store the spin button’s value.
  6. Click OK.

Creating a Group Box

  1. Click Insert and choose the Group Box control.
  2. Draw the Group Box on your sheet.
  3. To add a label, right-click and select Edit Text, or double-tap just outside the Group Box.

Wrapping Up

So, there you have it! A crash course in Excel Form Controls. Now go forth and transform your spreadsheets into interactive masterpieces! We’d love to hear about your experiences. Share your tips, tricks, and questions in the comments below. And don’t forget to come back for more Excel adventures!
