Master Disk Management in Windows 11: Unleashing DISKPART and FSUTIL Commands

Table of Contents

Windows 11 offers robust tools for managing your disk partitions directly within the operating system. While third-party partition management software is available, Windows includes a built-in Disk Management Tool that efficiently handles most common partitioning tasks. However, for more advanced operations or when the graphical tool falls short, the command-line utilities DISKPART and FSUTIL provide powerful alternatives. This guide will explore both the Disk Management Tool and the command-line capabilities of DISKPART and FSUTIL, empowering you to effectively manage your disk partitions in Windows 11.

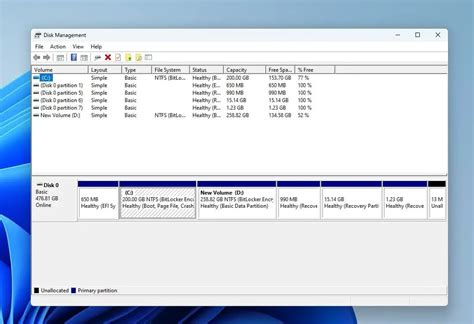

Utilizing the Built-in Disk Management Tool¶

The Disk Management Tool in Windows offers a user-friendly graphical interface for performing basic disk partitioning tasks. It is readily accessible and suitable for users who prefer a visual approach.

Accessing Disk Management¶

To launch the Disk Management Tool, follow these simple steps:

1. Right-click on the Start Menu icon.
2. Select Disk Management from the context menu that appears.

Alternatively, you can search for “Disk Management” in the Start Menu search bar and click on the Disk Management application. This will open the Disk Management window, displaying a visual representation of your disks and partitions.

Basic Partition Operations with Disk Management¶

Once Disk Management is open, you can perform several operations on your disk partitions. These are typically accessed by right-clicking on a partition in the graphical interface. Common operations include:

• Extend Volume: This option allows you to increase the size of a partition by utilizing adjacent unallocated space on the same disk. It’s important to note that you can typically only extend a partition into contiguous unallocated space immediately to its right.
• Shrink Volume: This option reduces the size of a partition, creating unallocated space from the freed space. This is useful if you want to create a new partition or expand another existing one.
• Delete Volume: This option removes a partition and its data, converting the space back to unallocated. Caution: Deleting a partition will erase all data on it. Ensure you have backed up any important data before proceeding.
• Format: This option prepares a partition for data storage by choosing a file system (like NTFS or FAT32) and assigning a drive letter. Formatting erases all existing data on the partition.
• Change Drive Letter and Paths: This allows you to assign or modify the drive letter associated with a partition, or mount it as a folder within another partition.

Limitations of Disk Management¶

While the Disk Management Tool is convenient for basic tasks, it has certain limitations:

• Merging Partitions: Disk Management does not directly support merging two existing partitions. To achieve this, you would typically need to delete one partition and then extend the other into the freed space.
• Extending to the Left: You can generally only extend a partition to the right, into contiguous unallocated space that follows it on the disk. Extending to the left or into non-contiguous space is not directly supported.
• Advanced Operations: For more complex partitioning scenarios, such as converting disk types (basic to dynamic or vice versa) or creating partitions with specific alignments, the Disk Management Tool might be insufficient.

In situations where Disk Management’s graphical interface is limited, or for users who prefer command-line control, DISKPART offers a more powerful and flexible solution.

Unleashing the Power of DISKPART¶

DISKPART is a command-line utility in Windows that provides extensive control over disk partitions and volumes. It allows you to perform all the operations available in Disk Management and much more, often with greater precision and flexibility. DISKPART is particularly valuable for scripting and automating disk management tasks.

Accessing the DISKPART Command Prompt¶

To use DISKPART, you need to open a command prompt with administrator privileges.

1. Type cmd in the Start Menu search bar.
2. Right-click on Command Prompt in the search results and select Run as administrator.
3. In the elevated command prompt window, type diskpart and press Enter.

This will launch the DISKPART command interpreter, indicated by a DISKPART> prompt.

Essential DISKPART Commands¶

DISKPART operates using a series of commands to manage disks, partitions, and volumes. Here are some of the most frequently used commands:

• list disk: This command displays a list of all disks connected to your system, along with their disk numbers, status, size, and available free space. This is the first command you should typically use to identify the disk you want to work with.
• select disk <disk number>: This command selects the disk you want to manage. Replace <disk number> with the number of the disk you identified using list disk. For example, select disk 0 selects the first disk in the list. All subsequent DISKPART commands will apply to this selected disk until you select a different one.
• list partition: After selecting a disk, this command displays a list of partitions on the selected disk, including their partition numbers, types, sizes, and drive letters.
• select partition <partition number>: This command selects a specific partition on the currently selected disk. Replace <partition number> with the partition number from the list partition output. For example, select partition 2 selects the second partition on the current disk.
• list volume: This command displays a list of all volumes (logical drives) on your system, including their volume numbers, drive letters, labels, file systems, and sizes. Volumes are often associated with partitions, but can also span multiple partitions or disks in dynamic disk configurations.
• select volume <volume number>: This command selects a specific volume. Replace <volume number> with the volume number from the list volume output. For example, select volume 3 selects the third volume.
• create partition primary [size=<size in MB>] [offset=<offset in KB>]: This command creates a primary partition on the selected disk.
  • primary specifies the partition type as primary.
  • size=<size in MB> (optional) allows you to specify the size of the partition in megabytes. If not specified, the partition will use all available contiguous free space.
  • offset=<offset in KB> (optional) allows you to specify the starting offset of the partition on the disk in kilobytes. This is typically used for advanced partitioning scenarios.
• create partition extended [size=<size in MB>] [offset=<offset in KB>]: This command creates an extended partition. Extended partitions can contain logical drives.
• create partition logical [size=<size in MB>] [offset=<offset in KB>]: This command creates a logical drive within an extended partition.
• extend [size=<size in MB>] [disk=<disk number>]: This command extends the selected volume or partition.
  • size=<size in MB> (optional) specifies the amount of space to add in megabytes. If not specified, it will extend into all available contiguous free space.
  • disk=<disk number> (optional) allows you to extend the volume or partition onto a different disk in dynamic disk configurations.
• shrink [desired=<size in MB>] [minimum=<size in MB>]: This command reduces the size of the selected volume or partition.
  • desired=<size in MB> (optional) specifies the desired amount of space to shrink by in megabytes.
  • minimum=<size in MB> (optional) specifies the minimum amount of space to shrink by. DISKPART will attempt to shrink by the desired amount, but may shrink by a smaller amount if the desired amount is not available.
• delete partition [override]: This command deletes the selected partition. Caution: This will erase all data on the partition.
  • override (optional) forces the deletion even if DISKPART encounters errors or restrictions. Use with extreme caution.
• delete volume [override]: This command deletes the selected volume. Caution: This will erase all data on the volume.
  • override (optional) forces the deletion even if DISKPART encounters errors or restrictions. Use with extreme caution.
• format fs=<file system> [label=<volume label>] [quick]: This command formats the selected partition or volume with the specified file system.
  • fs=<file system> specifies the file system, such as NTFS, FAT32, or exFAT.
  • label=<volume label> (optional) sets the volume label.
  • quick (optional) performs a quick format, which is faster but does not thoroughly check for bad sectors.
• assign letter=<drive letter>: This command assigns a drive letter to the selected volume or partition. Replace <drive letter> with the desired drive letter, such as D or E.
• remove letter=<drive letter>: This command removes the drive letter assignment from the selected volume or partition.
• active: This command marks the selected primary partition as active, making it bootable. This is typically used for partitions intended to hold an operating system.
• convert basic: Converts a dynamic disk to a basic disk.
• convert dynamic: Converts a basic disk to a dynamic disk. Note: Converting to dynamic disk is generally irreversible without data loss.
• exit: Exits the DISKPART command interpreter and returns to the standard command prompt.
• help: Displays a list of available DISKPART commands or provides help for a specific command (e.g., help create partition).

Example DISKPART Scenario: Extending a Volume¶

Let’s illustrate how to use DISKPART to extend a volume by 5GB (5000MB).

1. Open an elevated command prompt and type diskpart.
2. Type list volume to see a list of volumes and identify the volume number you want to extend. Let’s assume it’s volume 3.
3. Type select volume 3 to select volume 3.
4. Type extend size=5000 to extend the volume by 5000MB (5GB).
5. Type exit to exit DISKPART.

DISKPART will attempt to extend the selected volume using available contiguous unallocated space.

Disk Types: Basic vs. Dynamic¶

DISKPART can also manage disk types. There are two main disk types in Windows:

• Basic Disks: Basic disks are the most common type and use partition tables to organize data. They support up to four primary partitions or three primary partitions and one extended partition (which can contain multiple logical drives).
• Dynamic Disks: Dynamic disks offer more flexibility and advanced features, such as spanned volumes (volumes that span multiple disks), striped volumes (RAID 0), mirrored volumes (RAID 1), and RAID 5 volumes. Dynamic disks do not use partition tables in the traditional sense and are managed using a Logical Disk Manager (LDM) database.

Converting between basic and dynamic disks is possible using DISKPART commands like convert basic and convert dynamic. However, converting a disk to dynamic is generally irreversible back to basic without deleting all volumes and data on the disk.

FSUTIL Utility: File System and Volume Management¶

FSUTIL (File System Utility) is another powerful command-line tool in Windows that provides a wide range of commands for managing files, file systems, and volumes. While DISKPART primarily focuses on disk partitioning, FSUTIL offers deeper control over file system-related operations.

Accessing the FSUTIL Command Prompt¶

FSUTIL is accessed directly from the command prompt. You do not need to enter a separate command interpreter like DISKPART. Simply open an elevated command prompt as described earlier and type fsutil followed by the desired command and its parameters.

Useful FSUTIL Commands for Disk Management¶

While FSUTIL has many commands, some are particularly relevant to disk and volume management:

• fsutil volume diskfree <volume path>: This command displays the free space and total space for the specified volume. <volume path> can be a drive letter (e.g., D:) or a volume mount point. Example: fsutil volume diskfree C:
• fsutil volume driveletter: This command lists all drive letters and their corresponding volume names or mount points.
• fsutil volume mount: This command lists volume mount points.
• fsutil volume offline <volume path>: This command takes a volume offline, making it inaccessible. Example: fsutil volume offline D:
• fsutil volume online <volume path>: This command brings an offline volume back online, making it accessible again. Example: fsutil volume online D:
• fsutil volume dismount <volume path>: This command dismounts a volume, removing its drive letter or mount point. Example: fsutil volume dismount E:
• fsutil volume mount <volume path> <mount point>: This command mounts a volume at a specific mount point (a folder path). Example: fsutil volume mount G: C:\MountPoint
• fsutil fsinfo ntfsinfo <volume path>: This command displays detailed NTFS file system information for the specified volume, such as cluster size, file system version, and volume serial number. Example: fsutil fsinfo ntfsinfo C:
• fsutil fsinfo drives: This command lists all drive letters.
• fsutil fsinfo drivetype <drive letter>: This command determines the drive type (e.g., removable, fixed, network) for a given drive letter. Example: fsutil fsinfo drivetype D:

FSUTIL’s capabilities extend beyond basic disk management, including features for managing sparse files, reparse points, object IDs, and more advanced file system functionalities.

Caution When Using Command-Line Tools¶

Both DISKPART and FSUTIL are powerful tools, but they require careful usage. Incorrect commands can lead to data loss or system instability. Always double-check your commands and ensure you are targeting the correct disks, partitions, or volumes before executing any operations, especially those that involve deleting or formatting data. It is highly recommended to back up your important data before performing any disk management tasks using command-line utilities.

Resolving “Not Enough Space” Errors¶

Sometimes, when attempting to resize or create partitions, you might encounter the error message “There is not enough space available on the disk(s) to complete this operation.” This error can arise due to several reasons:

• Partition Limits on Basic Disks: Basic disks are limited to a maximum of four primary partitions or three primary partitions and one extended partition. If you have already reached this limit, you cannot create additional primary partitions.
• OEM Pre-installed Partitions: Many computers come with OEM (Original Equipment Manufacturer) pre-installed Windows, which often include multiple partitions for recovery, system tools, and the operating system itself. These OEM partitions can sometimes interfere with partition management operations.
• Non-Contiguous Unallocated Space: When extending a partition, the unallocated space must typically be contiguous and immediately to the right of the partition you want to extend. If the unallocated space is fragmented or not in the correct location, the operation may fail.

Possible Solutions for “Not Enough Space” Errors¶

1. Third-Party Partition Management Software: If you encounter limitations with Windows built-in tools, third-party partition management software often provides more advanced features and flexibility. These tools may be able to overcome some of the limitations of Disk Management and DISKPART, such as merging partitions or extending into non-contiguous space.
2. Deleting Less Important Partitions: If you have reached the partition limit on a basic disk, you may need to delete a less important partition to create space for a new one. Caution: Deleting a partition will erase all data on it. Back up any important data before deleting.
3. Extending the OS Partition (with Caution): If you have unallocated space due to shrinking the OS partition and cannot create a new partition, you might consider extending the OS partition back to its original size to regain the unallocated space. However, be cautious when resizing the OS partition, as errors can potentially lead to boot problems.
4. Adding External Storage: If you primarily need more storage space and are encountering partition limitations, consider adding an external USB hard disk or SSD. External storage is a simple and safe way to expand your storage capacity without modifying your internal disk partitions.
5. Converting to Dynamic Disk (Advanced): In some advanced scenarios, converting a basic disk to a dynamic disk might resolve partition limitations. Dynamic disks do not have the same partition limits as basic disks. However, converting to dynamic disk is a more complex operation and may not be suitable for all users. It is crucial to understand the implications of dynamic disks before converting, and data backup is essential.

Conclusion¶

Mastering disk management in Windows 11 involves understanding and utilizing both the graphical Disk Management Tool and the command-line utilities DISKPART and FSUTIL. While Disk Management provides a user-friendly interface for basic tasks, DISKPART and FSUTIL offer advanced control and flexibility, particularly for scripting and complex scenarios. By understanding the capabilities of these tools and exercising caution when using command-line utilities, you can effectively manage your disk partitions, optimize storage utilization, and resolve common disk management challenges in Windows 11.

Feel free to share your experiences with Disk Management, DISKPART, or FSUTIL in the comments below! Do you have any favorite commands or tips for managing disk partitions in Windows? Let’s discuss!
