Maximize Storage Efficiency: A Practical Guide to Data Deduplication on Windows Server

Updated: 20 Feb, 2025 • 0 • min read

Table of Contents

In today’s data-driven world, the volume of information that organizations need to store is constantly growing. This exponential growth puts immense pressure on storage infrastructure, leading to increased costs and management complexities. For server administrators, optimizing storage space is a critical task. One powerful tool available in Windows Server to address this challenge is Data Deduplication.

Data Deduplication, often shortened to Dedup, is a feature that significantly reduces the storage space consumed by redundant data. By identifying and removing duplicate portions of data at the block level, Dedup stores only unique data chunks, thereby minimizing storage overhead. These redundant chunks are replaced with pointers to the unique copy, maintaining data integrity without sacrificing accessibility. This process can lead to substantial storage savings, especially in environments with highly repetitive data such as virtualized infrastructures, file servers, and backup repositories.

This guide provides a practical walkthrough on how to install and configure Data Deduplication on Windows Server, enabling you to optimize your storage resources and improve overall efficiency. We will cover the installation process, configuration steps, and methods to monitor the deduplication status, ensuring you can effectively implement and manage this valuable feature.

1. Install Data Deduplication Feature¶

Before you can leverage the benefits of Data Deduplication, the feature needs to be installed on your Windows Server. Windows Server offers flexible ways to install features, and for Data Deduplication, you can utilize either the graphical user interface (GUI) through Server Manager or the command-line interface using PowerShell. Both methods achieve the same outcome, allowing you to choose the approach that best suits your administrative style and environment.

1.1. Using Server Manager¶

Server Manager provides a user-friendly interface for managing server roles and features. Installing Data Deduplication through Server Manager involves a few straightforward steps:

Open Server Manager: Locate and launch Server Manager on your Windows Server. This is typically found on the taskbar or within the Start Menu under “Windows Administrative Tools”.
Initiate Add Roles and Features Wizard: In the Server Manager dashboard, click on Manage in the top-right corner, and then select Add Roles and Features from the dropdown menu. This will launch the Add Roles and Features Wizard.
Installation Type Selection: On the Before you begin page, review the preliminary information and click Next. In the Installation Type tab, ensure Role-based or feature-based installation is selected, and click Next to proceed.
Server Selection: In the Server Selection tab, choose the target server where you want to install Data Deduplication. Typically, Select a server from the server pool is pre-selected and points to your local server. Click Next to continue.

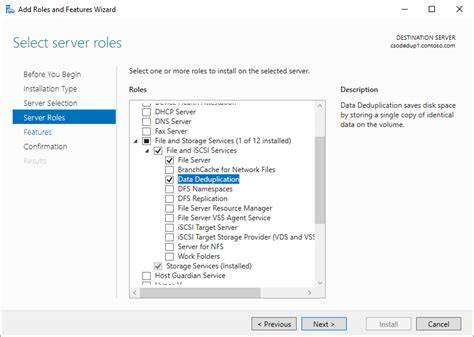

Feature Selection: Navigate to the Features tab. Scroll down the list of available features and locate Data Deduplication under File and Storage Services -> File and iSCSI Services. Tick the checkbox next to Data Deduplication.
Add Features Confirmation: When you select Data Deduplication, a pop-up window might appear asking if you want to add required features. Click on Add Features to confirm and include any dependencies.
Installation Confirmation: Click Next to review your selections in the Confirmation tab. Finally, click Install to begin the installation process. Server Manager will display a progress bar indicating the installation status.
Completion: Once the installation is complete, click Close. You might be prompted to restart the server if required, although a restart is usually not necessary for Data Deduplication installation.

1.2. Using PowerShell¶

PowerShell offers a powerful and efficient command-line alternative for installing Data Deduplication, particularly useful for automation and scripting. To install using PowerShell, follow these steps:

Open PowerShell as Administrator: Search for “PowerShell” in the Start Menu, right-click on Windows PowerShell, and select Run as administrator. This is crucial as administrative privileges are required to install Windows features.
Install Data Deduplication Feature Command: Execute the following command in the PowerShell console:
```
Install-WindowsFeature -Name FS-Data-Deduplication
```
This command utilizes the Install-WindowsFeature cmdlet, specifying FS-Data-Deduplication as the feature name for Data Deduplication. PowerShell will connect to the local server and initiate the installation.
Remote Server Installation (Optional): If you need to install Data Deduplication on a remote server, you can modify the command to target a specific server name:
```
Install-WindowsFeature -ComputerName <Server-Name> -Name FS-Data-Deduplication
```
Replace <Server-Name> with the actual hostname or IP address of the remote server. Ensure that PowerShell remoting is enabled and configured on the target server.
Verification: After the command completes successfully, Data Deduplication feature will be installed. You can verify the installation by using Server Manager or by running the Get-WindowsFeature -Name FS-Data-Deduplication PowerShell command.

2. Enable and Configure Data Deduplication for a Volume¶

Once the Data Deduplication feature is installed, the next step is to enable and configure it on the specific volume(s) where you want to optimize storage. Configuration involves defining parameters such as the usage type, file age threshold, and deduplication schedule, allowing you to tailor Dedup to your specific workload and performance requirements.

2.1. Using Server Manager¶

Server Manager provides a graphical interface to configure Data Deduplication for individual volumes:

Access File and Storage Services: Open Server Manager and click on File and Storage Services in the left navigation pane, then select Volumes.

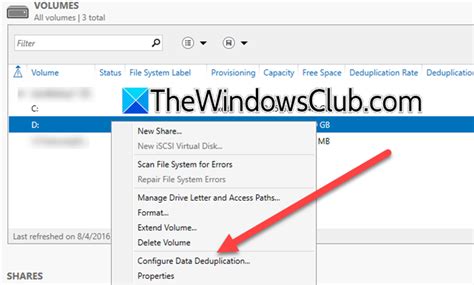

Select Target Volume: In the Volumes view, locate the volume where you want to enable Data Deduplication. Right-click on the chosen volume and select Configure Data Deduplication… from the context menu.
Data Deduplication Settings Interface: The Data Deduplication Settings dialog box will appear. Here, you can configure various parameters:
- Enable deduplication: Check the box next to Enable deduplication on volume. This activates Data Deduplication for the selected volume.
- Usage type: Choose the Usage type that best describes the data stored on the volume. Options include:
  - Default: Suitable for general-purpose file servers.
  - Virtual Desktop Infrastructure (VDI): Optimized for VDI environments with higher I/O patterns.
  - Backup: Tailored for backup workloads with larger file sizes and sequential I/O.
- Deduplicate files older than (in days): Specify the number of days files must be old before they are considered for deduplication. A common starting point is 30 days, but you can adjust this based on your data access patterns. Files that are frequently modified might not benefit as much from deduplication.
- Add exclusions: You can exclude specific file extensions or folders from deduplication. This is useful for files that should not be deduplicated for performance or application compatibility reasons. To exclude file extensions, enter them in the Custom file extensions to exclude field, separated by semicolons. To exclude folders, click Add… under Folders to exclude and browse to the folder you wish to exclude.
- Set Deduplication Schedule: Click on the Set Deduplication Schedule… button to configure when deduplication jobs will run.
  - Background Optimization: This schedule runs in the background to continuously deduplicate data. It is recommended to Enable background optimization. You can configure the Optimization schedule (e.g., daily, weekly, or custom times).
  - Throughput Optimization: This schedule is designed for more intensive deduplication processing, typically run during off-peak hours to minimize impact on production workloads. Enable throughput optimization and set a schedule for when throughput optimization should run. You can also create a second schedule for throughput optimization if needed.
Apply and OK: After configuring the desired settings, click Apply and then OK to save the changes and enable Data Deduplication on the volume.

2.2. Using PowerShell¶

PowerShell provides a command to enable and configure Data Deduplication on a volume:

Open PowerShell as Administrator: Ensure you have opened PowerShell with administrative privileges as described earlier.
Enable-DedupVolume Command: Use the Enable-DedupVolume cmdlet to enable and configure Data Deduplication. The basic syntax is:
```
Enable-DedupVolume -Volume <Volume-Path> -UsageType <Usage-Type>
```
- Replace <Volume-Path> with the drive letter or volume path (e.g., “D:”, “C:\Volume1”).
- Replace <Usage-Type> with one of the following usage types:
  - Default
  - HyperV (For Hyper-V workloads, which is similar to VDI in terms of deduplication behavior)
  - Backup
Example: To enable Data Deduplication on drive D: with the default usage type, use:
```
Enable-DedupVolume -Volume D: -UsageType Default
```
Advanced Configuration (Optional): You can use additional parameters with Enable-DedupVolume to further customize the configuration, such as -MinimumFileAgeDays to set the file age threshold and -ExcludeFolder or -ExcludeFileType to specify exclusions. Refer to the PowerShell help documentation for Enable-DedupVolume (Get-Help Enable-DedupVolume -Full) for a complete list of parameters.

3. Check Deduplication Status¶

After enabling and configuring Data Deduplication, it’s essential to monitor its status and performance to ensure it’s working effectively and achieving the desired storage savings. Windows Server provides tools to check the deduplication status, job schedules, and storage efficiency gains.

3.1. Using PowerShell¶

PowerShell offers cmdlets to retrieve detailed information about Data Deduplication status and jobs:

Get-DedupStatus: The Get-DedupStatus cmdlet provides a summary of the deduplication status for a volume. To get a concise output, simply run:
```
Get-DedupStatus -Volume <Volume-Path>
```
Replace <Volume-Path> with the drive letter or volume path you are interested in.

To get a more detailed output with all properties, use:
```
Get-DedupStatus -Volume <Volume-Path> | Format-List *
```
or the shorter alias:
```
Get-DedupStatus -Volume <Volume-Path> | fl
```
This will display information such as:
- DedupEnabled: Indicates if Deduplication is enabled on the volume.
- DedupVolumeType: Shows the usage type configured.
- SavedSpace: Displays the amount of space saved by deduplication.
- SavingsRate: Shows the percentage of space saved.
- LastOptimizationTime: Indicates the last time optimization job ran.
- LastOptimizationResult: Shows the result of the last optimization job.
Get-DedupSchedule: To view the configured deduplication schedules, use the Get-DedupSchedule cmdlet:
```
Get-DedupSchedule
```
This will list the scheduled deduplication jobs, including their names, types (Optimization, Garbage Collection, Scrubbing), and scheduled times.
Get-DedupJob: To monitor the status of currently running or recently completed deduplication jobs, use the Get-DedupJob cmdlet:
```
Get-DedupJob
```
This provides information about job status (Running, Queued, Completed, Failed), start and end times, and processed data.

3.2. Using Task Scheduler¶

The Task Scheduler in Windows Server manages scheduled tasks, including Data Deduplication jobs. You can use Task Scheduler to view schedules, manually run jobs, and check job history:

Open Task Scheduler: Search for “Task Scheduler” in the Start Menu and launch it.
Navigate to Deduplication Tasks: In the Task Scheduler, navigate to the task library by expanding Task Scheduler Library -> Microsoft -> Windows -> Deduplication.
View Schedules and Run Tasks: In the Deduplication folder, you will see the scheduled tasks for Optimization, Garbage Collection, and Scrubbing. You can view the schedules by selecting a task and checking the Triggers tab.

To manually run a task, right-click on the task and select Run. This is useful for testing or initiating deduplication outside of the scheduled times.
Check Task History: To view the history of task executions, enable history for the Deduplication tasks. Right-click on the Deduplication folder, select Properties, go to the History tab, and check Enable History. You can then view the history of task runs in the History tab of each task.

Frequently Asked Questions (FAQ)¶

What are the requirements for Data Deduplication in Windows?¶

To effectively utilize Data Deduplication in Windows Server, consider these requirements and best practices:

Operating System: Data Deduplication is available in Windows Server 2012 and later versions, including Windows Server 2016, Windows Server 2019, and Windows Server 2022.
File System: Data volumes intended for deduplication must be formatted with the NTFS file system. ReFS (Resilient File System) is not supported for Data Deduplication.
Workload Suitability: Data Deduplication is most effective for workloads with significant data redundancy. Ideal scenarios include:
- General-purpose file servers: Storing documents, media files, software distributions, and user home directories.
- Virtualized Desktop Infrastructure (VDI) servers: Environments with many similar virtual desktop images.
- Virtualization backup applications: Storing backups of virtual machines, which often contain repetitive data.
Volume Size: Microsoft recommends volumes intended for deduplication to be at least 10 GB in size. There is no strict upper limit, but performance considerations might arise with extremely large volumes depending on hardware and workload.
Server Resources: Data Deduplication consumes server resources, including CPU, memory, and disk I/O. The resource usage depends on the data volume and the intensity of deduplication jobs. Ensure your server has sufficient resources to handle the deduplication workload without impacting other critical applications.

Conclusion¶

Data Deduplication is a valuable feature in Windows Server that can significantly enhance storage efficiency and reduce storage costs. By following the steps outlined in this guide, you can effectively install, configure, and monitor Data Deduplication to optimize your storage environment. Implementing Dedup not only saves space but also contributes to a more sustainable and cost-effective IT infrastructure. Consider integrating Data Deduplication into your storage management strategy to maximize the utilization of your Windows Server storage resources.

Do you have any experiences with Data Deduplication on Windows Server? What kind of storage savings have you achieved? Share your thoughts and questions in the comments below!
