Introduction to Text Rotation in Excel¶

Microsoft Excel is a powerful tool for data management and analysis, but its capabilities extend far beyond mere number crunching. Visual presentation plays a crucial role in effectively communicating information from spreadsheets. One often overlooked yet highly valuable feature for enhancing visual clarity and aesthetic appeal is text rotation. Rotating text within cells can dramatically improve the readability and organization of your spreadsheets, especially when dealing with limited space or aiming for a more polished, professional look.

Text rotation is particularly useful in scenarios where you need to fit lengthy column headers into narrow columns, create visually distinct labels for charts and tables, or simply add a touch of design flair to your data presentations. By mastering text rotation, you can transform ordinary spreadsheets into visually engaging and easily digestible reports, dashboards, and data summaries. This technique allows you to overcome space constraints and present information in a way that is both informative and aesthetically pleasing.

Step-by-Step Guide to Rotating Text Using Preset Options¶

Excel provides several quick and easy preset options for rotating text directly from the Home tab. These presets offer a convenient way to apply common text rotation angles and orientations without delving into more complex settings. This section will guide you through the simple steps to access and utilize these preset rotation options.

Accessing the Orientation Menu¶

The gateway to rotating text in Excel is the Orientation menu, located within the Alignment group on the Home tab of the Excel ribbon. To begin, first select the cell or cells containing the text you wish to rotate. You can select a single cell by clicking on it, or select multiple cells by clicking and dragging your mouse across them. Once your desired cells are selected, navigate to the Home tab at the top of the Excel window. Look for the Alignment section, usually positioned in the middle of the ribbon. Within this group, you will find the Orientation button, typically represented by an icon depicting angled text. Clicking on this Orientation button will reveal a dropdown menu with various preset rotation options.

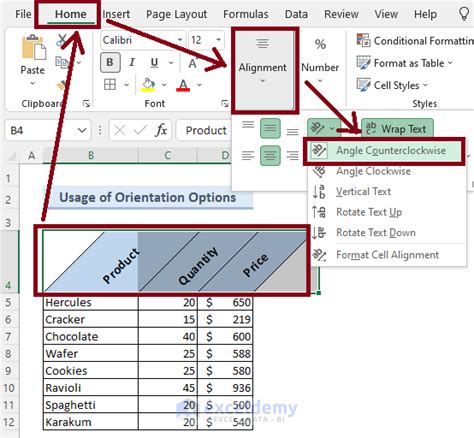

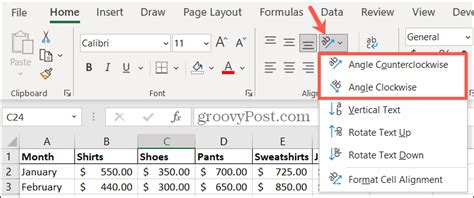

Utilizing Preset Rotation Options¶

The Orientation dropdown menu offers a range of preset rotation choices, each designed to apply a specific text orientation with a single click. Let’s explore each of these options:

• Angle Counterclockwise: This option rotates the text upwards and to the left, at a default angle of 45 degrees. It’s useful for fitting longer text into narrower columns while maintaining readability from left to right. Imagine you have column headers like “Product Category” and you want to save horizontal space. Applying “Angle Counterclockwise” will neatly arrange the text diagonally.

• Angle Clockwise: Conversely, “Angle Clockwise” rotates the text upwards and to the right, also at a 45-degree default angle. This option is suitable for scenarios similar to “Angle Counterclockwise” but with a mirrored text direction. Choosing between clockwise and counterclockwise often depends on personal preference and the overall layout of your spreadsheet.

• Vertical Text: Selecting “Vertical Text” stacks each character of the text vertically, one below the other. This option is ideal when you have extremely narrow columns and need to display text vertically to save significant horizontal space. For example, if you have column headers that are very long but the columns themselves need to be very thin, vertical text ensures all header information is visible without widening the columns.

• Rotate Text Up: “Rotate Text Up” orients the text vertically, reading from bottom to top. This option is visually striking and can be used for labels or headings where you want to emphasize vertical presentation. Think of using this for row labels where the row names are longer than the available row height.

• Rotate Text Down: “Rotate Text Down” also orients the text vertically, but in this case, it reads from top to bottom. Similar to “Rotate Text Up,” this option offers a unique visual style and can be used for specific design purposes within your spreadsheet. You might use this for column labels that you want to read downwards.

By simply selecting one of these preset options from the Orientation menu, you can instantly apply text rotation to your chosen cells, enhancing the visual organization and clarity of your Excel spreadsheet. Experiment with each option to understand how they affect the appearance of your text and choose the one that best suits your needs.

Customizing Text Rotation Manually¶

While the preset rotation options offer quick solutions for common text orientations, Excel also provides granular control over text rotation through manual customization. This allows you to specify precise rotation angles and access a wider range of alignment settings, giving you complete command over how your text appears within cells.

Accessing Format Cells Alignment¶

To unlock manual text rotation and advanced alignment options, you need to access the Format Cells dialog box and navigate to the Alignment tab. There are several ways to open the Format Cells dialog:

• Right-Click Method: Select the cell or cells you wish to format. Right-click within the selected area to open the context menu. From this menu, choose Format Cells… This will directly open the Format Cells dialog box.

• Keyboard Shortcut: Select the cell or cells. Press Ctrl + 1 (or Command + 1 on macOS). This shortcut is a fast and efficient way to access the Format Cells dialog from anywhere in Excel.

• Ribbon Access: Navigate to the Home tab on the Excel ribbon. In the Alignment group, locate the small arrow in the bottom-right corner of the group. Clicking this arrow will also open the Format Cells dialog box, automatically directed to the Alignment tab.

Once the Format Cells dialog box is open, ensure you are on the Alignment tab. This tab houses all the settings related to text alignment, orientation, and direction, including the manual text rotation controls.

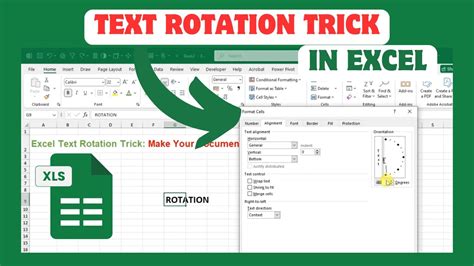

Adjusting Rotation Angle¶

Within the Alignment tab of the Format Cells dialog box, you will find the Orientation section in the bottom-right corner. This section is where you can manually adjust the text rotation angle. The Orientation control is often depicted as an arc with a pointer.

To set a specific rotation angle, you can either:

• Click and Drag the Pointer: Click on the pointer in the arc and drag it clockwise or counterclockwise to visually adjust the rotation angle. As you drag, the angle value displayed in the degree box next to the arc will update in real-time, showing you the precise angle you are setting.

• Enter a Degree Value: Alternatively, you can directly enter a specific degree value into the degree box. The rotation angle can range from -90 degrees to +90 degrees. Positive values rotate the text counterclockwise (upwards and to the left), while negative values rotate it clockwise (upwards and to the right). A value of 0 degrees represents no rotation (horizontal text).

Manual angle adjustment is particularly beneficial when you need a rotation angle other than the 45-degree default of the preset options or when you want to fine-tune the text orientation for a specific visual effect. For instance, you might want to rotate text at a subtle 15-degree angle for a slightly angled header, or at a sharper 60-degree angle for a more pronounced vertical slant. Experimenting with different angles in the Format Cells dialog allows you to achieve the precise text orientation you desire for your spreadsheet.

Advanced Alignment and Formatting Options¶

Beyond basic and manual rotation, Excel’s Format Cells dialog offers a wealth of advanced alignment and formatting options that can be used in conjunction with text rotation to further refine the visual presentation of your spreadsheets. Understanding these options allows you to create highly customized and aesthetically pleasing cell layouts.

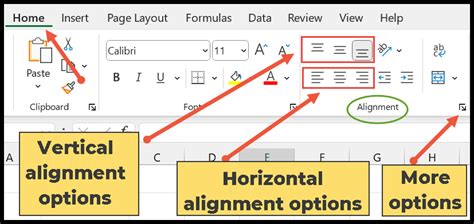

Horizontal and Vertical Alignment¶

Horizontal and vertical alignment settings dictate the position of text within a cell relative to its boundaries. When working with rotated text, these alignments become even more important for controlling how the rotated text sits within the cell and interacts with surrounding content.

• Horizontal Alignment: This setting controls the text’s position along the horizontal axis of the cell. Common options include:

  • Left (Indent): Aligns the text to the left edge of the cell. You can also specify an indent value to further push the text inwards from the left edge.
  • Center: Centers the text horizontally within the cell.
  • Right (Indent): Aligns the text to the right edge of the cell, with optional indent.
  • Fill: Repeats the text to fill the entire width of the cell.
  • Justify: Distributes the text evenly across the cell width, similar to text justification in word processors.
  • Center Across Selection: Centers the text across a range of selected cells.

• Vertical Alignment: This setting controls the text’s position along the vertical axis of the cell. Common options include:

  • Top: Aligns the text to the top edge of the cell.
  • Middle: Centers the text vertically within the cell.
  • Bottom: Aligns the text to the bottom edge of the cell.
  • Justify: Distributes the text vertically within the cell, spacing lines of text evenly.
  • Distribute: Similar to Justify, but distributes space more evenly across all lines, including single-line text.

When you rotate text, consider how horizontal and vertical alignment will affect its placement within the cell. For example, if you rotate text counterclockwise and want it to appear anchored to the bottom-left corner of the cell, you might choose “Left” horizontal alignment and “Bottom” vertical alignment. Experimenting with different combinations of horizontal and vertical alignment is crucial to achieving the desired visual layout for your rotated text.

Text Direction and Indent¶

The Alignment tab also offers settings for Text direction and Indent, which can further enhance text presentation, especially when combined with rotation.

• Text Direction: This setting allows you to control the reading order of the text within the cell. The default is “Context,” which automatically determines direction based on the first character entered. You can also explicitly set it to “Left-to-right” or “Right-to-left.” While primarily used for languages that read right-to-left, it can sometimes be used creatively with rotated text for stylistic effects.

• Indent: The indent setting, available within horizontal alignment options like “Left” and “Right,” allows you to create a margin between the text and the cell border. This can be useful for visually separating rotated text from cell borders or other cell content, improving readability and visual clarity. You can increase or decrease the indent level using the spin box provided.

By utilizing these advanced alignment and formatting options in conjunction with text rotation, you can achieve a high degree of control over the visual appearance of text in your Excel spreadsheets, creating professional, well-organized, and aesthetically pleasing data presentations.

Practical Applications of Text Rotation¶

Text rotation in Excel is not just a cosmetic feature; it has numerous practical applications that can significantly improve the usability and effectiveness of your spreadsheets. Here are some key scenarios where text rotation proves invaluable:

• Narrow Column Headers for Large Datasets: When working with extensive datasets containing numerous columns, column headers can often become lengthy. Rotating these headers, especially using “Angle Counterclockwise” or “Angle Clockwise,” allows you to significantly narrow column widths while still displaying the full header text. This is crucial for fitting more columns on screen, reducing horizontal scrolling, and enhancing the overall readability of large spreadsheets. Imagine a sales report with columns like “Customer Billing Address,” “Customer Shipping Address,” and “Product Purchase Date.” Rotating these headers can save substantial horizontal space.

• Creative Labels in Dashboards and Reports: In dashboards and reports, visual appeal is paramount. Text rotation can be employed to create visually distinct and engaging labels for charts, tables, and key metrics. Vertical text, rotated angles, and customized alignments can be used to draw attention to specific data points and enhance the overall aesthetic design of your reports. For example, you might use rotated text to label sections of a dashboard or create visually interesting chart axis labels.

• Improving Readability in Dense Spreadsheets: In spreadsheets with tightly packed data, text rotation can help improve readability by visually separating different categories of information. Rotating row or column labels can create visual breaks, making it easier to distinguish between data sections and navigate through complex spreadsheets. Consider a project management spreadsheet with numerous tasks and subtasks. Rotating task category labels can help visually group related tasks.

• Space Optimization in Printed Spreadsheets: When printing spreadsheets, space optimization is often critical. Rotating text, especially column headers, can reduce the overall width of the spreadsheet, potentially allowing it to fit onto fewer pages, saving paper and improving print layout. This is particularly useful for spreadsheets intended for physical distribution or presentations.

By strategically applying text rotation in these and other scenarios, you can transform your Excel spreadsheets from functional data grids into visually compelling and user-friendly information tools.

Conclusion¶

Mastering text rotation in Excel is a simple yet powerful technique that can significantly enhance the visual presentation and usability of your spreadsheets. From quickly applying preset rotations to fine-tuning angles and alignments manually, Excel offers a flexible suite of tools to customize text orientation. By understanding and utilizing these features effectively, you can create spreadsheets that are not only data-rich but also visually appealing, easy to read, and professionally presented. Experiment with different rotation techniques and discover how they can transform your data communication in Excel.

Feel free to share your own tips and experiences with text rotation in Excel in the comments below!
