Unlock Windows 11's Secrets: A Practical Guide to Using Event Viewer

Table of Contents

Effectively diagnosing system crashes and troubleshooting various problems in Windows 11 often requires delving into the intricate details of system logs. The Event Viewer in Windows 11 is an indispensable built-in utility designed to meticulously record system events, application logs, and security audits. This comprehensive guide is crafted to equip you with a thorough understanding of every facet of the Event Viewer, enabling you to proficiently utilize this powerful tool on your Windows 11 or Windows 10 computer. By mastering the Event Viewer, you gain the ability to proactively identify potential issues, analyze system behavior, and maintain the optimal performance of your Windows environment.

How to Open Windows Event Viewer¶

Accessing the Event Viewer in Windows 11 is straightforward, with multiple convenient methods available to suit your workflow. Whether you prefer the efficiency of the Taskbar search, the familiarity of the Start Menu, or the speed of the Run prompt, Windows 11 provides flexible options to launch this essential utility.

Opening Event Viewer Using the Taskbar Search Box¶

The Taskbar search box offers a quick and intuitive way to access applications and system tools. To open Event Viewer using this method, follow these simple steps:

1. Locate the Taskbar search box, typically situated on the left side of the taskbar, and click on it.
2. Type “event viewer” into the search box. As you type, the search function will begin to display relevant results.
3. From the list of search results, click on the “Event Viewer” application to launch it. The Event Viewer window will then appear on your screen, ready for use.

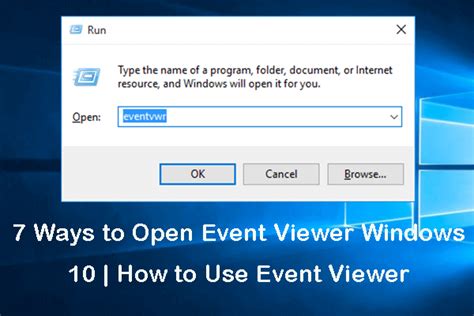

Opening Event Viewer Using the Run Prompt¶

For users who prefer keyboard shortcuts and direct commands, the Run prompt provides a rapid method to open Event Viewer. Here’s how to do it:

1. Press the Windows key + R simultaneously. This action will open the Run dialog box in the lower-left corner of your screen.
2. In the Run dialog box, type “eventvwr”. This is the command that directly executes the Event Viewer application.
3. Press the Enter key or click the “OK” button. Windows will process the command, and the Event Viewer window will promptly open, allowing you to begin your system analysis.

Understanding the Event Viewer Interface¶

Navigating the Event Viewer effectively requires familiarity with its main sections and their respective functions. The interface is logically organized to provide a clear and structured view of system events, making it easier to locate specific information and troubleshoot issues. The Event Viewer is broadly divided into four primary sections, each serving a distinct purpose in event logging and analysis.

Key Sections in Event Viewer¶

The Event Viewer is structured into four main sections, each providing a different perspective on system and application events:

• Custom Views: This section allows you to create and manage personalized views of events based on specific criteria. Custom Views are invaluable for focusing on particular types of events or issues that are relevant to your troubleshooting efforts. By applying filters, you can tailor the displayed events to show only errors related to specific applications or system components, significantly streamlining the process of identifying and addressing problems. For instance, you can create a custom view to exclusively monitor critical errors occurring within the last hour, enabling immediate attention to urgent system issues.

• Windows Logs: Considered the cornerstone of Event Viewer, the Windows Logs section contains logs generated by the Windows operating system itself. This section is crucial for diagnosing system-level problems and understanding the overall health of your Windows installation. It is further subdivided into five key categories:

  • Application: Logs events related to applications installed on your system. This includes errors, warnings, and informational events generated by software programs. Application logs are essential for troubleshooting software malfunctions, identifying compatibility issues, and monitoring application performance. For example, if an application crashes frequently, the Application log is the first place to look for error messages and clues about the cause of the crashes.
  • Security: Tracks security-related events, such as logon attempts, resource access, and privilege use. Security logs are vital for monitoring system security, detecting unauthorized access, and investigating potential security breaches. Auditing policies determine which security events are logged, allowing administrators to customize the level of security monitoring.
  • Setup: Records events related to application installation, uninstallation, and Windows updates. Setup logs are useful for troubleshooting installation failures, verifying successful updates, and understanding changes made to the system configuration during setup processes.
  • System: Contains logs related to system components and drivers, including startup, shutdown, hardware errors, and driver issues. The System log is crucial for diagnosing hardware problems, system instability, and boot failures. Events logged here often provide insights into the underlying causes of system malfunctions. For example, events related to disk errors or driver crashes can be found in the System log.
  • Forwarded Events: Aggregates events forwarded from remote computers. This section is particularly useful in networked environments where centralized event monitoring is required. Forwarded Events allow administrators to collect logs from multiple systems into a central Event Viewer for easier analysis and management.

• Applications and Services Logs: This section houses logs generated by specific applications and services, beyond those covered in the Windows Logs. It includes logs from various system services, hardware components, and specialized applications. This section provides a more granular view of events related to specific features and functionalities of the operating system and installed software. Examples of logs found here include:

  • Hardware Events: Logs related to hardware components and devices. These logs can provide information about hardware malfunctions, driver issues, and device conflicts.
  • Key Management Service: Logs events related to the Key Management Service (KMS) for volume activation. These logs are essential for managing software licensing in enterprise environments.
  • OpenSSH: Logs events from the OpenSSH service, useful for monitoring SSH connections and troubleshooting SSH-related issues.
  • Windows PowerShell: Records events related to PowerShell activities, providing an audit trail of PowerShell commands and scripts executed on the system.

• Subscriptions: This section enables you to create and manage event subscriptions, which are queries that automatically collect specific events from local or remote computers. Subscriptions are particularly useful for proactive monitoring of critical events across multiple systems. By defining specific event criteria, you can automatically gather logs related to particular errors or activities, ensuring timely detection and response to important system events. For instance, you can set up a subscription to collect all critical error events from multiple servers, providing a centralized view of system health across your network.

Event Levels and Their Significance¶

Event Viewer categorizes events into different levels to indicate their severity and importance. Understanding these levels is crucial for prioritizing events and focusing on the most critical issues. The primary event levels are:

• Critical: Indicates a severe error that could lead to system instability or data loss. Critical events require immediate attention and often signify serious problems that need to be resolved urgently. Examples include system crashes, data corruption, or critical service failures. These events are typically marked with a red icon and should be investigated promptly.

• Error: Signifies a significant problem that may impact functionality. Errors indicate that something has gone wrong, but the system or application may still be operational, albeit with reduced functionality or reliability. Error events should be investigated to prevent potential system failures or data loss. Examples include application errors, failed operations, or resource access problems. These events are usually marked with a red icon.

• Warning: Indicates a potential issue that may cause problems in the future. Warnings are less severe than errors but should still be monitored and investigated to prevent them from escalating into more serious issues. Warnings often signal potential resource constraints, configuration problems, or impending failures. Examples include low disk space, expiring certificates, or performance bottlenecks. These events are typically marked with a yellow icon.

• Information: Denotes normal operational events and successful operations. Information events are generally not indicative of problems but provide valuable context and audit trails of system activities. They are useful for tracking system behavior, monitoring successful operations, and understanding the sequence of events. Examples include system startup, successful logins, or application installations. These events are usually marked with a blue “i” icon.

• Verbose: Provides highly detailed information about operations. Verbose logging is typically used for in-depth troubleshooting and debugging. It generates a large volume of logs and is usually enabled only when detailed diagnostics are needed. Verbose events can provide granular insights into the inner workings of applications and system components. These events are usually hidden by default and may need to be enabled for specific troubleshooting scenarios.

These levels are visually represented in the Event Viewer interface, often using different icons and colors, making it easy to quickly identify the severity of each event. For instance, critical and error events are often highlighted in red, warnings in yellow, and informational events in blue.

Customizing Event Viewer Display¶

The default display of Event Viewer provides essential columns such as Level, Date and Time, Source, and Event ID. However, to gain deeper insights from the logs, customizing the displayed columns can be highly beneficial. Adding or removing columns allows you to tailor the view to focus on the specific details most relevant to your analysis.

Adding or Removing Columns in Event Viewer¶

To customize the columns displayed in Event Viewer, follow these steps:

1. Open Event Viewer: Launch the Event Viewer application using any of the methods described earlier (Taskbar search, Run prompt, or Start Menu).
2. Navigate to a Log Section: In the Event Viewer window, navigate to the specific log section you want to customize, such as Windows Logs > System or Applications and Services Logs > Hardware Events.
3. Access the “Add/Remove Columns” Option: In the right-hand pane of the Event Viewer window, locate and click on the “Actions” pane. Within the Actions pane, find and click the “View” menu, then select the “Add/Remove Columns…” option. This will open the “Add/Remove Columns” dialog box.
4. Add Columns: In the “Available columns:” list on the left side of the dialog box, select the column(s) you want to add to the display. Click the “Add >” button to move the selected column(s) to the “Displayed columns:” list on the right. You can add multiple columns in this manner.
5. Remove Columns: In the “Displayed columns:” list on the right side, select the column(s) you want to remove from the display. Click the “< Remove” button to move the selected column(s) back to the “Available columns:” list.
6. Reorder Columns: To change the order in which columns are displayed, select a column in the “Displayed columns:” list and use the “Move Up” or “Move Down” buttons to reposition it.
7. Apply Changes: Once you have added, removed, and reordered the columns as desired, click the “OK” button. The Event Viewer display will refresh to reflect your column customizations.

By strategically adding columns such as “Task Category,” “Keywords,” or “User,” you can access more granular information about each event, enhancing your ability to diagnose and resolve issues effectively. For example, adding the “Task Category” column can provide more context about the specific subsystem or component involved in an event, while “Keywords” can offer additional tags for filtering and searching.

Filtering and Searching Logs in Event Viewer¶

Event Viewer’s filtering capabilities are essential for efficiently sifting through the vast amount of logged events to pinpoint specific issues. Filtering allows you to narrow down the displayed events based on various criteria, making it easier to find relevant information and troubleshoot problems effectively.

Filtering Event Logs¶

To filter event logs in Event Viewer, follow these steps:

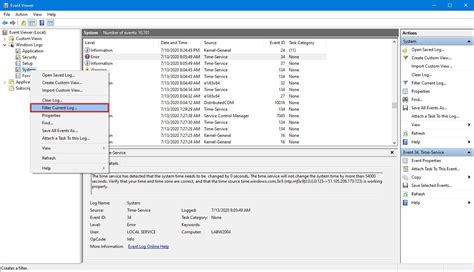

1. Open Event Viewer and Navigate to a Log Section: Launch Event Viewer and select the log section you want to filter, such as Windows Logs > System.
2. Access the “Filter Current Log” Option: In the right-hand Actions pane, click on “Filter Current Log…”. This will open the “Filter Current Log” dialog box.

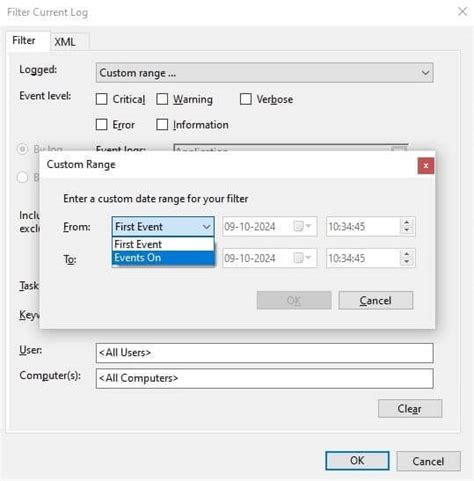

3. Define Filter Criteria: In the “Filter Current Log” dialog box, you can specify various criteria to filter events:
   • Logged: Filter events by the time they were logged. You can choose predefined time ranges like “Last hour,” “Last 24 hours,” “Last 7 days,” or specify a custom time range.
   • Event level: Select the event levels you want to include in the filtered view (e.g., Critical, Error, Warning, Information, Verbose). You can select multiple levels.
   • Event IDs: Filter events by specific Event IDs. You can enter single IDs, ranges of IDs (e.g., 100-200), or comma-separated lists of IDs.
   • Task Category: Filter events by task category, if applicable to the selected log section.
   • Keywords: Filter events by keywords associated with them.
   • User: Filter events generated by specific users or user accounts.
   • Computer: In networked environments, you can filter events from specific computers.
   • Event sources: Filter events by their source (e.g., Application Error, Microsoft-Windows-Kernel-Power).
   • Event logs: Specify which event logs to include in the filter, especially useful when filtering across multiple log sections.
   • By User: Filter events related to a specific user.
   • By computer: Filter events from a specific computer, particularly useful in networked environments.
4. Apply Filter: After setting your filter criteria, click the “OK” button. Event Viewer will apply the filter, and only events matching your specified criteria will be displayed in the log view.
5. Clear Filter: To remove the filter and view all events again, click on “Clear Filter” in the Actions pane.

By combining different filter criteria, you can create highly specific views of events, enabling you to quickly isolate and analyze the logs relevant to your troubleshooting needs. For instance, you can filter for all “Error” events logged in the “System” log within the last hour, originating from the “disk” source, to focus on recent disk-related errors.

Managing Event Logs¶

Effectively managing event logs involves tasks such as saving logs for archival or analysis, clearing logs to manage disk space, and creating custom views for focused monitoring. These management tasks are crucial for maintaining a healthy and efficient event logging system.

Saving Event Logs¶

Saving event logs is essential for archiving data, sharing logs for collaborative troubleshooting, or conducting in-depth analysis offline. Event Viewer provides options to save logs in various formats.

To save event logs, follow these steps:

1. Open Event Viewer and Navigate to a Log Section: Launch Event Viewer and select the log section you want to save, such as Windows Logs > Application.
2. Access “Save All Events As” Option: In the Actions pane, click on “Save All Events As…”. This will open the “Save As” dialog box.
3. Choose Save Location and File Name: In the “Save As” dialog box, navigate to the location where you want to save the log file. Enter a descriptive file name for the log file.
4. Select Save Format: Choose the desired save format from the “Save as type:” dropdown menu. Event Viewer supports the following formats:
   • .evtx (Event Viewer Log File): This is the native binary format for Event Viewer logs. It preserves all event properties and metadata and is the recommended format for archiving and further analysis in Event Viewer.
   • .xml (XML Files): Saves events in XML format, which is human-readable and easily parsed by other applications. XML format is suitable for sharing logs across different platforms or for programmatic analysis.
   • .csv (Comma Separated Values): Saves events in CSV format, which is compatible with spreadsheet applications like Microsoft Excel. CSV format is useful for data analysis and reporting in tabular form.
   • .txt (Text Files): Saves events as plain text. This format is the least rich in terms of data preservation but can be useful for quick text-based analysis or sharing logs in a simple text format.
5. Save the Log File: Click the “Save” button to save the event log file in the chosen format and location.

Opening Saved Event Logs¶

To open a previously saved event log file in Event Viewer:

1. Open Event Viewer: Launch the Event Viewer application.
2. Access “Open Saved Log” Option: In the Actions pane, click on “Open Saved Log…”. This will open the “Open Saved Log File” dialog box.
3. Browse and Select Log File: In the “Open Saved Log File” dialog box, navigate to the location where you saved the log file (e.g., .evtx, .xml, .csv, or .txt). Select the log file you want to open.
4. Open the Log File: Click the “Open” button. Event Viewer will open the saved log file, and you can view and analyze the events it contains as you would with live event logs.

Clearing Event Logs¶

Clearing event logs can be necessary to manage disk space or to start with a clean slate for monitoring purposes. However, exercise caution when clearing logs, as this action is irreversible and may remove valuable historical data.

To clear event logs:

1. Open Event Viewer and Navigate to a Log Section: Launch Event Viewer and select the log section you want to clear, such as Windows Logs > System.
2. Access “Clear Log” Option: In the Actions pane, click on “Clear Log…”. A confirmation dialog box will appear, prompting you to save the logs before clearing.
3. Choose Clearing Option:
   • Clear: Click “Clear” to clear the logs without saving them. This action will permanently delete all events in the selected log section.
   • Save and Clear: Click “Save and Clear…” to save a copy of the current logs before clearing them. This will open the “Save As” dialog box, allowing you to save the logs as described in the “Saving Event Logs” section. After saving, the logs will be cleared.
   • Cancel: Click “Cancel” to abort the clear log operation and return to the Event Viewer without clearing any logs.
4. Confirm Clearing: If you choose “Clear” or “Save and Clear,” Event Viewer will proceed to clear the logs as instructed.

Always consider the implications before clearing event logs, especially in production environments where historical logs may be critical for auditing, security analysis, or troubleshooting. It is often advisable to archive logs regularly rather than clearing them unless disk space constraints necessitate it.

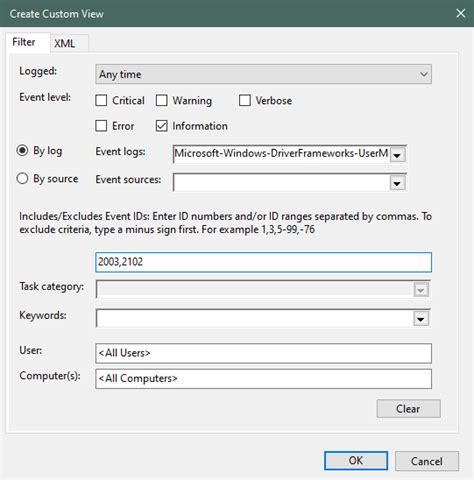

Creating Custom Views¶

Custom views in Event Viewer are powerful tools for creating tailored perspectives on event logs. They allow you to define specific filter criteria and save these settings as reusable views, making it easier to monitor specific types of events or issues on an ongoing basis.

To create a custom view, follow these steps:

1. Open Event Viewer: Launch the Event Viewer application.
2. Navigate to “Custom Views”: In the left-hand console tree, expand “Custom Views” and right-click on it. Select “Create Custom View…” from the context menu. This will open the “Create Custom View” dialog box.
3. Define Filter Criteria: In the “Create Custom View” dialog box, specify the filter criteria for your custom view. The filtering options are similar to those available in the “Filter Current Log” dialog box and include:
   • Logged: Time range for events.
   • Event level: Event severity levels (Critical, Error, Warning, Information, Verbose).
   • Event IDs: Specific Event IDs or ranges.
   • Task Category: Task categories.
   • Keywords: Event keywords.
   • Users: Specific users.
   • Computers: Specific computers (in networked environments).
   • Event sources: Event sources.
   • Event logs: Specify event logs to include in the view.
   • By log: Choose specific event logs (Application, Security, Setup, System, Forwarded Events, or specific Applications and Services Logs).
   • By source: Select specific event sources.
   • : Include all Event IDs or specify particular IDs or ranges.
4. Name and Save Custom View: After defining your filter criteria, provide a name for your custom view in the “Name:” field at the top of the dialog box. Optionally, add a description in the “Description:” field. Choose a location to save the custom view within the “Custom Views” hierarchy using the “Save in Folder:” dropdown menu.
5. Create Custom View: Click the “OK” button to create and save the custom view. The new custom view will appear under the “Custom Views” section in the console tree, using the name you provided.

Once created, you can access your custom view by clicking on its name in the “Custom Views” section. Event Viewer will then display events that match the filter criteria defined in your custom view. You can modify or delete custom views at any time by right-clicking on them and selecting “Properties” or “Delete” from the context menu.

Practical Applications of Event Viewer¶

Event Viewer is an invaluable tool for various troubleshooting and system monitoring tasks. Here are some practical applications:

Viewing Windows 11 Crash Logs¶

To investigate Windows 11 crash logs using Event Viewer:

1. Open Event Viewer: Launch the Event Viewer application.
2. Navigate to System Log: In the console tree, go to “Windows Logs” > “System”.
3. Filter for Error and Critical Events: In the Actions pane, click on “Filter Current Log…”. In the “Filter Current Log” dialog box, check the “Error” and “Critical” event levels. Click “OK” to apply the filter.
4. Examine Error Events: Review the filtered list of events. Look for events marked with a red “Error” or “Critical” icon, especially those occurring around the time of system crashes.
5. Analyze Event Details: Select an error event to view its details in the “General” and “Details” tabs in the lower pane. The “General” tab provides a human-readable description of the event, while the “Details” tab offers more technical information in XML format. Pay close attention to the “Event ID,” “Source,” and “Description” fields, as these often provide clues about the cause of the crash.
6. Correlate Events: Look for patterns or sequences of events leading up to the crash. Related events might provide additional context and help pinpoint the root cause.

By analyzing crash logs in Event Viewer, you can often identify problematic applications, drivers, or system components that are contributing to system instability.

Viewing Activity Logs in Windows 11¶

Windows 11 maintains various activity logs, and Event Viewer is a primary tool for accessing system-level activity logs. For a broader view of user activities, Windows 11 also offers the “Activity history” feature in Settings.

Accessing System Activity Logs via Event Viewer¶

To view system activity logs in Event Viewer:

1. Open Event Viewer: Launch Event Viewer.
2. Navigate to System Log: Go to “Windows Logs” > “System”.
3. Review Informational Events: System activity logs are primarily recorded as “Information” events. Review the “System” log for informational events that correspond to system activities you are interested in, such as startup, shutdown, service operations, and hardware events.
4. Filter for Specific Activities: Use the “Filter Current Log…” option to filter for specific event sources, event IDs, or keywords related to the activities you want to monitor. For example, to view startup and shutdown logs, you can filter for Event IDs 6005 (The Event log service was started) and 6006 (The Event log service was stopped).

Accessing User Activity History via Settings¶

For user-centric activity logs, Windows 11 provides the “Activity history” feature:

1. Open Settings: Press Windows key + I to open the Settings app.
2. Navigate to Privacy & security: Click on “Privacy & security”.
3. Select Activity history: In the left-hand menu, click on “Activity history”.
4. Review Activity History: In the “Activity history” settings page, you can view a timeline of your activities, such as apps used, websites visited, and files accessed. You can also manage activity history settings, such as clearing history or disabling activity collection.

While Event Viewer provides detailed system-level activity logs, the “Activity history” in Settings offers a more user-centric view of application and web browsing activities. Depending on your monitoring needs, you may use either or both of these tools to track activities in Windows 11.

By mastering the use of Event Viewer, you gain a powerful capability to diagnose system problems, monitor system health, and proactively manage your Windows 11 environment. This guide provides a comprehensive foundation for effectively utilizing this essential Windows utility.

---

Do you have any experiences using Event Viewer for troubleshooting? Share your tips and questions in the comments below!
