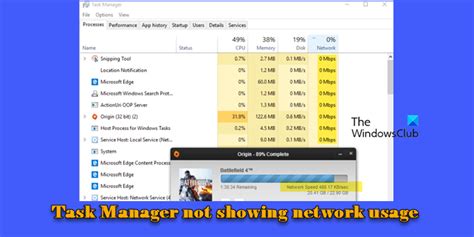

Windows 11 Task Manager: Network Usage Missing? Here's How to Fix It

Table of Contents

Is your Windows 11 Task Manager failing to display network usage, leaving you in the dark about your system’s data activity? This issue can be frustrating, especially when you need to monitor application network consumption or diagnose internet connectivity problems. Network usage in Task Manager provides crucial real-time data on the amount of data your computer sends and receives over a network. This encompasses all network activities, from browsing the internet and downloading files to background processes communicating online.

Task Manager is designed to be your system’s control center, offering insights into resource utilization, including network activity. It typically presents real-time data transfer rates for each application and process. However, sometimes, the network usage column might be inexplicably absent, or worse, it might persistently display 0% for all applications and processes, even when you know network activity is present. If you are encountering this problem, rest assured that several solutions can help you troubleshoot and restore network usage monitoring in Task Manager.

Ensuring Network Usage Visibility in Task Manager¶

Before diving into troubleshooting, it’s essential to ensure that the Network column is actually visible within the Task Manager’s Processes tab. The Task Manager is highly customizable, and columns can be added or removed to tailor the view to your needs. If the Network column is not selected, you won’t see any network usage data, regardless of whether it’s being tracked.

To check and enable the Network column, follow these simple steps:

1. Open Task Manager: Press Ctrl + Shift + Esc or right-click on the Taskbar and select Task Manager.
2. Navigate to the Processes tab: If not already selected, click on the Processes tab at the top of the Task Manager window.
3. Check Column Headers: Look at the column headers in the Processes tab. If you don’t see a “Network” column, you need to add it.
4. Right-click on Column Headers: Right-click on any of the existing column headers (like “Name,” “CPU,” “Memory,” etc.).
5. Ensure ‘Network’ is Checked: A context menu will appear with a list of available columns. Scroll through the list and find “Network.” Make sure there is a checkmark next to “Network.” If not, click on “Network” to select it.

Once the “Network” column is enabled, Task Manager should display real-time network speeds for each process. Keep in mind that the displayed speeds might have a slight delay, and if your system has minimal network activity, especially with a fast connection like Gigabit Ethernet, you might see values close to ‘0 Mbps’ or ‘0.0%’. This is normal under low network load. If you are expecting network activity but still see 0% across the board, then the issue likely requires further troubleshooting.

Troubleshooting Task Manager Network Usage Display Issues in Windows 11¶

If you’ve confirmed that the Network column is visible but Task Manager still displays 0% network usage despite active data transfer, the following solutions can help resolve the issue:

1] Check the Update Speed Option¶

Task Manager’s refresh rate is configurable. If the “Real time update speed” setting is set to “Paused,” network usage and other resource data will not update in real-time, potentially giving the impression that network usage is stuck at 0%.

To verify and adjust the update speed:

1. Open Task Manager Settings: In the Task Manager window, look for a Settings (gear) icon usually located in the bottom-left corner and click on it.
2. Locate Real time update speed: In the Task Manager Settings window, find the “Real time update speed” option.
3. Set to Normal: Ensure that the “Real time update speed” is set to Normal. Other options like “High,” “Low,” or “Paused” are also available. For real-time monitoring, “Normal” or “High” is recommended.

Setting the update speed to “Normal” ensures that Task Manager refreshes data at a regular interval, providing a near real-time view of network usage. After changing this setting, observe if network usage begins to appear in the Task Manager.

2] Uninstall Third-Party Network Monitoring Software¶

Certain third-party network monitoring or optimization software, such as Killer Networking Suite or similar applications, can interfere with Task Manager’s ability to accurately report network usage. These programs often install network filtering drivers to prioritize traffic and manage bandwidth. These drivers can sometimes conflict with Windows’ native network monitoring capabilities, leading to Task Manager displaying incorrect or zero network usage.

To check if third-party software is the culprit:

1. Identify Recently Installed Software: Consider if you’ve recently installed any network management or optimization software.
2. Temporarily Disable or Uninstall: Try temporarily disabling or, ideally, uninstalling the suspected software.
3. Restart Your Computer: After uninstalling, restart your computer to ensure the software and its drivers are completely removed.
4. Check Task Manager: After the restart, open Task Manager and see if network usage is now displayed correctly.

If uninstalling the third-party software resolves the issue, it indicates a conflict. You might need to choose between using the third-party software and having accurate network usage reporting in Task Manager, or explore alternative software that doesn’t cause this conflict.

3] Disable Conflicting Drivers¶

Even if you don’t have dedicated network monitoring software, certain types of drivers, particularly network filter drivers like Network Lightweight Filter (NWF) or Network Filter Driver, can be installed by various applications and might interfere with Task Manager. These drivers are often associated with network management, VPN, or security software.

To disable potentially conflicting drivers:

1. Open Control Panel: Search for “Control Panel” in the Start Menu and open it.
2. Navigate to Network and Sharing Center: Go to Network and Internet > Network and Sharing Center.
3. Access Network Adapter Properties: Click on your active network connection (e.g., Ethernet or Wi-Fi). In the Network Status window that appears, click Properties.
4. Examine Network Items: In the network connection properties window, you’ll see a list labeled “This connection uses the following items.” Scroll through this list and look for any third-party network filter drivers. They might have names related to network optimization, VPNs, or firewalls.
5. Uncheck Suspect Drivers: Uncheck the boxes next to any third-party network filter drivers you suspect might be causing the conflict.
6. Click OK and Restart: Click OK to save changes and restart your computer.
7. Check Task Manager: After restarting, check Task Manager to see if network usage is now being displayed.

Disabling these drivers might affect the functionality of the software that installed them. If this resolves the Task Manager issue and you need the functionality of the disabled drivers, you may need to investigate alternative software or driver configurations.

4] Activate the Windows NDU (Network Data Usage)¶

The NDU (Network Data Usage) driver is a core Windows system driver responsible for monitoring and collecting network usage data. Task Manager and other Windows features rely on NDU to display network activity. In some cases, especially after installing certain software or due to system misconfigurations, the NDU driver might be disabled.

To reactivate the Windows NDU driver:

1. Open Command Prompt as Administrator: Search for “cmd” in the Start Menu, right-click on “Command Prompt,” and select “Run as administrator.”
2. Execute Command: In the elevated Command Prompt window, type or paste the following command and press Enter:


   sc config ndu start=auto



   This command configures the NDU service to start automatically on system boot.
3. Reboot Your PC: Restart your computer for the changes to take effect.
4. Check Task Manager: After the reboot, open Task Manager and verify if network usage is now being displayed.

If activating NDU resolves the issue, it indicates that the driver was disabled, possibly by other software. If activating NDU causes problems with other software that might have intentionally disabled it, you might need to investigate the compatibility between these programs. If you need to disable NDU again for compatibility reasons, you can use the command sc config ndu start=disabled in an elevated Command Prompt and reboot.

5] Run Network and Internet Troubleshooter¶

Windows includes built-in troubleshooters designed to automatically diagnose and fix common problems. The Network and Internet troubleshooter can identify and resolve issues with network adapters, connection settings, and network services that are essential for network monitoring.

To run the troubleshooter:

1. Open Settings App: Press Win + I to open the Windows Settings app.
2. Navigate to Troubleshoot: Go to System > Troubleshoot > Other troubleshooters.
3. Run Network and Internet Troubleshooter: Find “Network and Internet” in the list of troubleshooters and click the Run button next to it.
4. Follow On-Screen Instructions: The troubleshooter will scan your system for network problems and attempt to fix them automatically. Follow any on-screen prompts and wait for the troubleshooting process to complete.
5. Restart Your Computer: Once the troubleshooter finishes, restart your computer.
6. Check Task Manager: After the restart, open Task Manager and see if network usage is now displayed.

The Network and Internet troubleshooter can often resolve underlying network service issues that might be preventing Task Manager from correctly displaying network usage data.

6] Reinstall Network Adapter Driver¶

Corrupted or outdated network adapter drivers can cause a wide range of network problems, including issues with network monitoring. Reinstalling the network adapter driver forces Windows to reset and reload the driver, potentially resolving driver-related issues that are affecting network usage reporting in Task Manager.

To reinstall the network adapter driver:

1. Open Device Manager: Press Win + X and select Device Manager from the menu, or search for “Device Manager” in the Start Menu.
2. Expand Network adapters: In Device Manager, expand the Network adapters category.
3. Uninstall Device: Right-click on your network adapter (it will likely be named based on your adapter type, e.g., “Intel(R) Wi-Fi 6 AX201” or “Realtek PCIe GbE Family Controller”). Select Uninstall device.
4. Delete Driver Software: In the uninstall confirmation dialog, check the box that says “Delete the driver software for this device” (if available and if you are confident in your ability to reinstall the driver). Click Uninstall.
5. Reboot the PC: Restart your computer. During the reboot, Windows will automatically attempt to reinstall the default driver for your network adapter.
6. Check Task Manager: After the reboot, open Task Manager and see if network usage is now displayed.

If the automatic driver reinstallation doesn’t resolve the issue, or if you want to ensure you have the latest driver, you can manually download the latest driver from your network adapter manufacturer’s website (e.g., Intel, Realtek, Broadcom). Run the downloaded driver installer and follow the on-screen instructions.

7] Check for Windows Updates¶

Keeping your Windows 11 system up to date is crucial for stability and bug fixes. Sometimes, issues like Task Manager not displaying network usage can be caused by operating system bugs that are resolved in later updates.

To check for and install Windows Updates:

1. Open Settings App: Press Win + I to open the Windows Settings app.
2. Navigate to Windows Update: Go to Windows Update in the Settings menu.
3. Check for updates: Click the Check for updates button. Windows will scan for available updates and download and install them.
4. Restart Your Computer: After updates are installed, you will likely be prompted to restart your computer. Restart your system to complete the update process.
5. Check Task Manager: After the reboot, open Task Manager and see if network usage is now displayed.

Installing the latest Windows updates can resolve various system issues and is a good general troubleshooting step when encountering unexpected behavior in Windows.

Monitoring Overall Network Speed and Detailed Process Data¶

While the Processes tab in Task Manager provides a process-centric view of network usage, Task Manager also offers other ways to monitor network activity.

• Performance Tab for Overall Speed: To check your overall network speed, switch to the Performance tab in Task Manager. Select Ethernet or Wi-Fi in the left-hand sidebar, depending on your connection type. This will display graphs and statistics for your overall network interface, showing send and receive speeds.

• Resource Monitor for Detailed Data: For more in-depth, real-time data on network activity for individual processes and services, click the three-dot icon in the top-right corner of the Performance screen and select Resource Monitor. Resource Monitor provides a more detailed breakdown of network usage by process, along with TCP connections, listening ports, and network activity graphs.

Displaying Network Status on the Taskbar¶

For quick access to network status information, you can display the network icon directly on your taskbar.

To enable the network status icon on the taskbar:

1. Open Settings App: Press Win + I to open the Windows Settings app.
2. Navigate to Taskbar Settings: Go to Personalization > Taskbar.
3. Taskbar Items: Under the “Taskbar items” section, find the Network toggle and ensure it is switched On.

If the network icon is still not visible, it might be hidden in the system tray overflow. Click the Up Arrow (or “Show hidden icons”) on the taskbar to see additional icons. If the network status icon remains missing, restarting Windows Explorer or reinstalling your network adapter driver might be necessary.

By following these troubleshooting steps, you should be able to restore network usage monitoring in your Windows 11 Task Manager and gain better insights into your system’s network activity. If you continue to experience issues, consider seeking further technical support or consulting online forums for more specialized solutions.

Do you have any other tips or solutions for resolving Task Manager network usage issues? Share your experiences and insights in the comments below!
