Browser's Network Partitioning: A Powerful Anti-Tracking Feature Explained

Table of Contents

Web browsers employ caching mechanisms to enhance the speed and efficiency of website loading. When you visit a website, certain files are downloaded and stored locally on your computer. Upon subsequent visits, the browser retrieves these files from the local cache, resulting in faster page load times and a smoother browsing experience. However, this shared cache system has been exploited for user tracking purposes, raising privacy concerns.

The Shared Cache and Tracking Mechanisms¶

A shared cache, by its very nature, is accessible to multiple websites. This means that files downloaded from different websites are stored in a common location. While this facilitates efficient resource loading, it also opens a pathway for websites and advertising networks to track user activity across the web. Certain files within the cache are unique to specific websites. By probing the cache, websites can determine if a user has previously visited a particular site or other sites that use the same tracking mechanisms.

This tracking can manifest in several ways. For instance, a website or advertising system can attempt to download specific resources and then check the local cache to see if those resources are already present. If the resources are found, it indicates that the user has visited a website that utilizes those resources. This information can then be used to create trackers and serve personalized advertisements. Furthermore, this shared cache mechanism can facilitate cross-site tracking, even in scenarios where users attempt to block traditional tracking methods like cookies.

Network Partitioning: An Anti-Tracking Solution¶

To address the privacy vulnerabilities associated with shared caches, modern web browsers like Chrome, Edge, and Firefox have implemented a feature called Network Partitioning. This anti-tracking mechanism fundamentally changes how browser caching works, significantly limiting the ability of websites to track users through the cache.

In essence, network partitioning isolates the cache for each website. Instead of a single, shared cache, each website is given its own dedicated storage area or partition. This means that files downloaded from one website are stored separately from files downloaded from other websites. This partitioning prevents websites from accessing or probing the cache of other websites, effectively eliminating the shared cache as a cross-site tracking vector.

How Network Partitioning Works¶

Network partitioning achieves this isolation through the use of a Network Isolation Key. When a resource is cached, it is associated with a unique key that determines its partition. This key is composed of several elements, ensuring that resources are truly isolated based on their origin. The key typically includes:

• Top-level website: This refers to the main website in the browser’s address bar.
• Current-frame site: In cases where content is embedded within frames (like iframes), this identifies the site of the frame.
• URL of the resource: This is the specific address of the file being cached.

By combining these elements, the Network Isolation Key becomes highly specific. A cached resource can only be accessed if the requesting context matches all components of the key. This effectively prevents a website from accessing resources cached by or for another website. Unless a website has the exact same Network Isolation Key, it cannot retrieve a cached file. This mechanism ensures that the browser’s cache is partitioned at a granular level, providing robust protection against cross-site tracking attempts that rely on shared cache access.

For example, consider two websites, websiteA.com and websiteB.com. Without network partitioning, if websiteA.com downloads an image named tracker.png, and websiteB.com tries to check if tracker.png is in the cache, it could potentially determine if the user has visited websiteA.com. With network partitioning, however, the tracker.png downloaded by websiteA.com is stored in a partition specific to websiteA.com. When websiteB.com attempts to access the cache, it can only access its own partition, and thus will not find the tracker.png from websiteA.com. This isolation is crucial for preventing cross-site tracking.

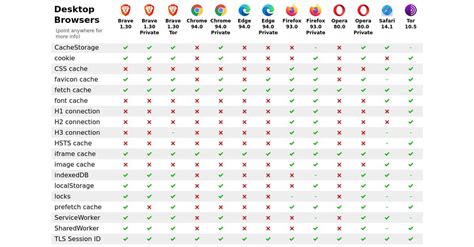

Browser-Specific Implementations¶

While the concept of network partitioning is standardized, different browsers may implement it with slight variations. These variations primarily pertain to the specific components used to construct the Network Isolation Key.

Chrome and Edge¶

In Chrome and Edge, the Network Isolation Key typically uses the top-level scheme://eTLD+1 and frame scheme://eTLD+1. eTLD+1 refers to the effective top-level domain plus one additional part. For example, for subdomain.example.com, the eTLD+1 is example.com. The scheme refers to protocols like http:// or https://. This means that the partitioning in Chrome and Edge is based on the scheme and the eTLD+1 of both the top-level website and any frames within it. This approach provides a robust level of isolation while considering the complexities of modern web pages with embedded content.

Safari¶

Safari employs a slightly different approach, primarily focusing on the top-level eTLD+1 for network partitioning. Safari’s implementation is deeply integrated with its Intelligent Tracking Prevention (ITP) system. ITP is a suite of privacy-enhancing features in Safari that aim to reduce cross-site tracking. Network partitioning in Safari works in conjunction with ITP to further limit tracking capabilities. By partitioning the cache based on the top-level domain, Safari ensures that websites cannot easily access cached resources from other domains, enhancing user privacy.

Firefox¶

Firefox’s implementation of network partitioning is also based on the top-level scheme://eTLD+1, similar to Chrome and Edge. Firefox is also exploring the inclusion of a second key component, potentially mirroring Chrome’s approach of including frame information in the key. This indicates an ongoing evolution and refinement of network partitioning strategies across different browsers, with a common goal of enhancing user privacy and preventing cross-site tracking through cache manipulation.

It is important to note that while there are slight variations in implementation details, the fundamental principle of network partitioning remains consistent across these major browsers: isolating the cache on a per-site basis to prevent cross-site tracking.

Network Partitioning as a Default Feature¶

A significant advantage of network partitioning is that it is typically enabled by default in modern browsers. Users generally do not need to manually configure or activate this feature. This “privacy by default” approach is crucial for widespread adoption and effectiveness. By making network partitioning a standard browser behavior, it ensures that a large number of users benefit from this anti-tracking protection without needing to be technically savvy or actively seek out privacy settings. This default enablement underscores the commitment of browser developers to enhance user privacy and security in the face of evolving tracking techniques.

Conclusion¶

Network partitioning represents a significant advancement in browser-based anti-tracking measures. By isolating website caches, it effectively closes a critical loophole that allowed for cross-site user tracking. This feature enhances user privacy by limiting the ability of websites and advertising networks to monitor user browsing activity through shared cache exploitation. While subtle differences exist in how various browsers implement network partitioning, the core functionality and the privacy benefits remain consistent. This technology plays a vital role in creating a more private and secure browsing experience. For those interested in a deeper technical understanding, further reading on the specific implementation details is recommended.

Feel free to share your thoughts and questions about network partitioning in the comments below!
