Mastering Disk Management: Offline/Online Drives in Windows 11 Explained

Table of Contents

Managing disk drives effectively is crucial for maintaining a healthy and organized Windows 11 system. One key aspect of disk management is understanding how to take a disk drive offline or bring it back online. When a disk is offline, it becomes inaccessible to the operating system, essentially hiding it from File Explorer and preventing any data access. This state can be useful for various maintenance or troubleshooting scenarios. Conversely, bringing a disk online makes it available for use, allowing you to access files and folders, and perform other disk operations. This guide will walk you through the methods to manage disk offline/online status in Windows 11.

It’s important to note that while you can take most data disks offline, the system disk (the one Windows is installed on) cannot be taken offline while the system is running. Attempting to do so for the system disk will not be successful. This functionality is primarily intended for secondary hard drives, portable disks, and USB drives connected to your computer. Furthermore, the process of taking a disk offline or online is immediate, without any warning prompts. Therefore, ensure you are selecting the correct disk before proceeding. Rest assured, taking a disk offline or bringing it online does not delete or wipe any data from the drive. Your files and folders remain intact throughout this process.

Methods to Take a Disk Drive Offline or Bring it Online¶

Windows 11 provides several built-in tools to manage disk online/offline status. You need administrator privileges on your Windows 11/10 PC to utilize these methods. Let’s explore four native approaches:

1. Using the Settings app
2. Using the Command Prompt
3. Using the Disk Management tool
4. Using Windows Terminal

Let’s delve into each method with detailed, step-by-step instructions.

1] Take a Disk Drive Offline or Bring it Online Using the Settings App¶

The Settings app in Windows 11 offers a user-friendly graphical interface for managing various system settings, including disk management. Here’s how to take a disk offline using the Settings app:

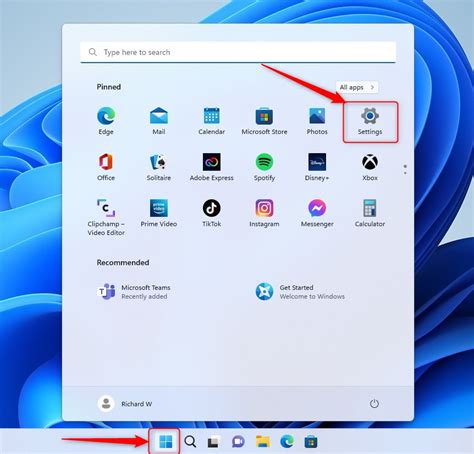

1. Open the Settings App: Right-click on the Start button on your taskbar. From the context menu that appears, select Settings.

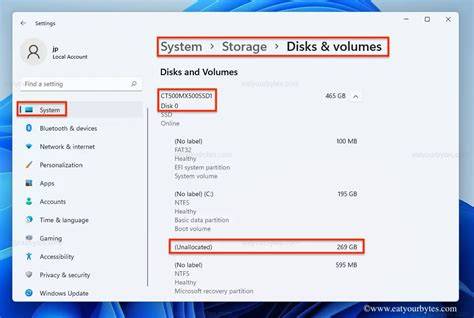

2. Navigate to Disk & volumes: In the Settings window, click on System, and then select Storage. On the Storage page, click on Advanced storage settings to expand more options, and then click on Disk & volumes.

3. Select a Disk: You will now see a list of all connected disks on your system. Identify the disk you want to take offline. Remember, you cannot take your primary system disk offline. Click on the Properties button associated with the chosen disk.

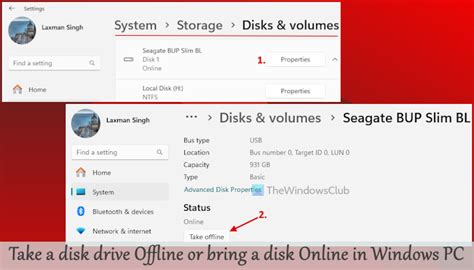

4. Take Offline: On the Disk Properties page, locate the Status section. You will see a Take offline button. Click this button to immediately take the selected disk offline.

After clicking “Take offline,” the disk will be set to offline status. The Settings app window might close automatically after a short delay, indicating the operation is complete. The disk will no longer be accessible through File Explorer.

To bring the disk back online using the Settings app, repeat steps 1-3 to access the Disk Properties page for the offline disk. In the Status section, you will now see a Bring online button. Click this button, and the disk will immediately become online and accessible again.

2] Take a Disk Offline or Bring it Online Using the Command Prompt Window¶

The Command Prompt provides a text-based interface to interact with your Windows system. It’s a powerful tool for system administrators and advanced users who prefer command-line operations. Here’s how to manage disk online/offline status using Command Prompt:

1. Open Command Prompt as Administrator: Click in the Windows search bar (usually located on the taskbar) and type cmd. In the search results, you will see “Command Prompt.” Right-click on it and select Run as administrator. You will be prompted to allow administrative privileges; click Yes.

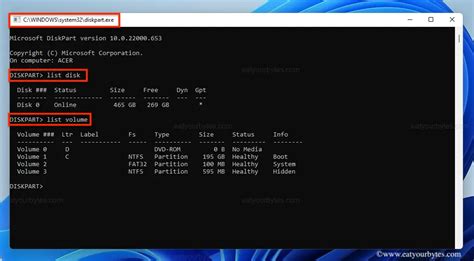

2. Launch DiskPart: In the Administrator Command Prompt window, type diskpart and press Enter. This command launches the Disk Partition utility, a command-line tool for managing disks and partitions.

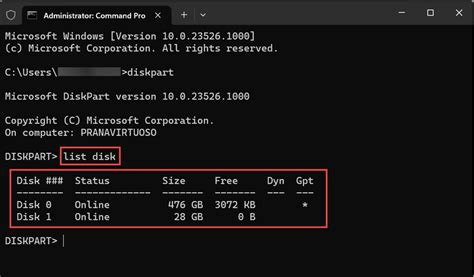

3. List Disks: Next, type list disk and press Enter. DiskPart will display a list of all disks connected to your computer. This list includes disk numbers (Disk 0, Disk 1, etc.), their status (Online or Offline), size, and available free space. Identify the disk number you want to manage based on its size or other identifying information.

4. Select the Disk: Type select disk DiskNumber, replacing DiskNumber with the actual disk number you noted from the list disk command. For example, if you want to take Disk 1 offline, type select disk 1 and press Enter. DiskPart will confirm the disk selection with a message like “Disk 1 is now the selected disk.”

5. Take Disk Offline: To take the selected disk offline, type offline disk and press Enter. DiskPart will process the command and display a confirmation message: “DiskPart successfully offlined the selected disk.”

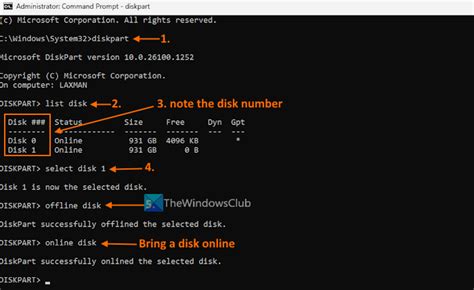

To bring the disk back online using Command Prompt, follow steps 1-4 to select the same disk again. Then, instead of offline disk, type online disk and press Enter. DiskPart will bring the disk online and display the message: “DiskPart successfully onlined the selected disk.”

3] Turn Off a Hard Disk or Bring a Disk Online Using the Disk Management Tool¶

Disk Management is a graphical utility in Windows that provides a comprehensive view of all disks and partitions on your system. It allows you to perform various disk-related tasks, including taking disks offline and bringing them online.

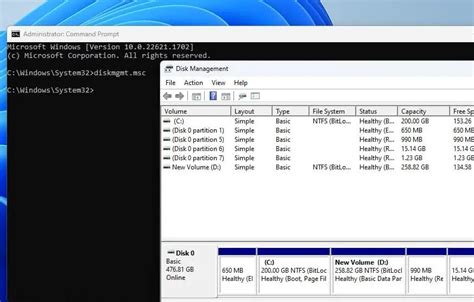

1. Open Disk Management: Right-click on the Start button, or press Win + X keys together to open the Power User Menu. From this menu, select Disk Management. Alternatively, you can search for “Disk Management” in the Windows search bar and open it from the search results.

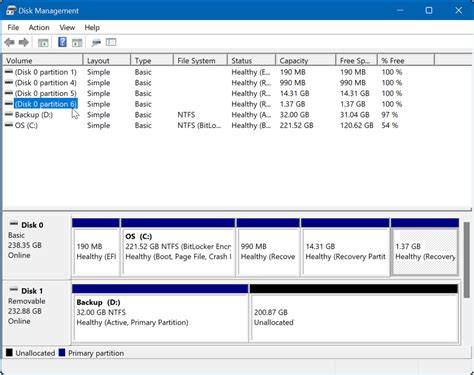

2. Locate the Disk: In the Disk Management window, you will see a graphical representation of your disks at the bottom. Identify the disk you want to manage. Disks are typically labeled as Disk 0, Disk 1, Disk 2, etc. and are visually represented with partitions and volumes.

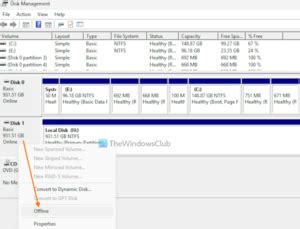

3. Take Offline: Right-click on the disk number label (e.g., “Disk 1”) of the disk you want to take offline. From the context menu, select Offline.

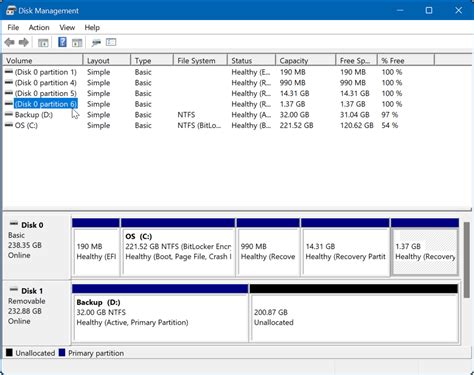

After selecting “Offline,” the disk will immediately be taken offline. In Disk Management, the disk icon will change to indicate its offline status, and it might display a message such as “Offline (Policy).” This message simply confirms the disk is offline due to a policy setting, which in this case, you initiated.

4. Bring Online: To bring the disk back online, right-click again on the disk number label of the offline disk in Disk Management. This time, in the context menu, select Online.

The disk will instantly return online, and its status in Disk Management will update accordingly. The disk and its volumes will become accessible again through File Explorer.

4] Take a Hard Disk Offline or Bring a Disk Online Using Windows Terminal¶

Windows Terminal is a modern terminal application for command-line tools like Command Prompt and PowerShell. It offers a tabbed interface and more advanced features compared to the traditional Command Prompt. Here’s how to manage disk online/offline status using Windows Terminal with PowerShell:

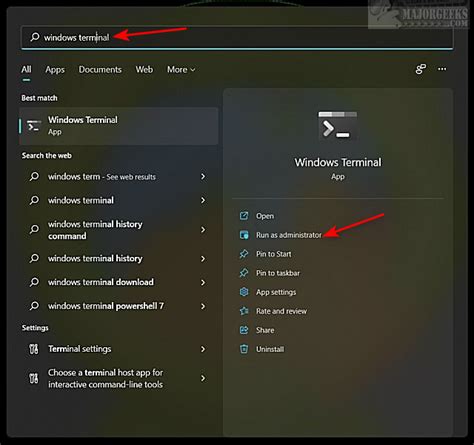

1. Open Windows Terminal as Administrator: Right-click on the Start button and select Windows Terminal (Admin). Grant administrative permissions when prompted.

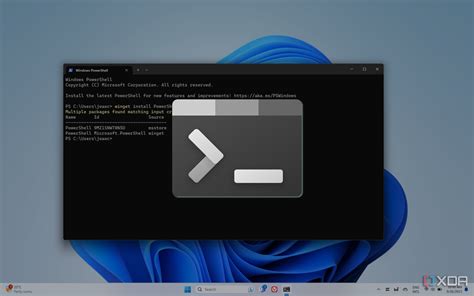

2. Open a PowerShell Tab: By default, Windows Terminal might open with a PowerShell tab. If not, click the ”+” (Add new profile) button and select Windows PowerShell to open a new PowerShell tab.

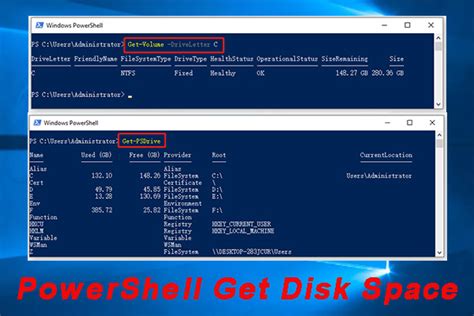

3. List Disks with PowerShell: In the PowerShell tab, type the command Get-Disk and press Enter. This PowerShell cmdlet retrieves information about the disks connected to your system. The output will include disk numbers (Number), health status (HealthStatus), operational status (OperationalStatus - showing Online or Offline), and other disk details. Identify the disk number you want to manage.

4. Take Disk Offline with PowerShell: To take a disk offline, use the command Set-Disk -Number DiskNumber -IsOffline $true, replacing DiskNumber with the actual disk number from the Get-Disk output. For instance, to take Disk 1 offline, type Set-Disk -Number 1 -IsOffline $true and press Enter.

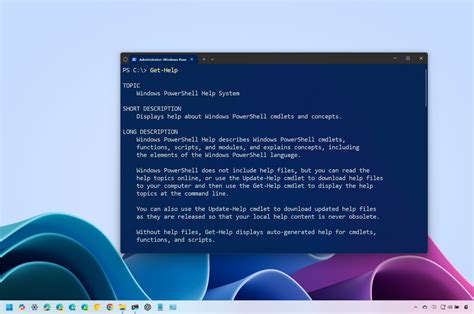

5. Bring Disk Online with PowerShell: To bring the disk back online later, use the command Set-Disk -Number DiskNumber -IsOffline $false, again replacing DiskNumber with the correct disk number. For example, to bring Disk 1 online, type Set-Disk -Number 1 -IsOffline $false and press Enter.

Understanding Disk Online/Offline Status¶

What Does it Mean to Bring a Disk Online?¶

Bringing a disk online signifies making it accessible and functional within the operating system. When a disk is online, Windows recognizes it, assigns drive letters to its partitions (if applicable), and allows read and write operations. You can access existing volumes, create new volumes, and utilize the stored data. By default, when you connect a new disk to your Windows system, it is automatically brought online and made ready for use. However, in scenarios where a disk is intentionally or unintentionally set offline, you must explicitly bring it online to regain access.

How to Make a Disk Partition Online?¶

While this article focuses on bringing entire disks online or offline, it’s relevant to understand partition management as well. If you are looking to create or manage partitions on a disk, the Disk Management tool is particularly useful.

To create a new partition (or volume, as it’s often called in Disk Management) on a hard disk:

1. Open Disk Management.
2. Locate the Unallocated space on the disk where you want to create a partition. Unallocated space is represented as a grey area in Disk Management.
3. Right-click on the Unallocated space and select New Simple Volume….
4. The New Simple Volume Wizard will appear. Click Next.
5. Specify the size for the new volume in megabytes (MB). You can use the default maximum size to use all unallocated space or specify a smaller size. Click Next.
6. Assign a drive letter to the new volume from the dropdown list, or accept the default assigned letter. Click Next.

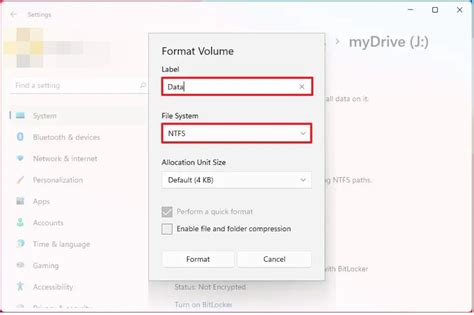

7. In the Format Partition step, choose file system settings (NTFS is generally recommended for Windows). You can keep the default settings for most options. You can also enter a Volume label to give your partition a name. Check the Perform a quick format box for faster formatting. Click Next.
8. Review your settings in the Completing the New Simple Volume Wizard screen, and click Finish to create the partition.

Disk Management will format the unallocated space and create the new partition, assigning the drive letter you selected. The new volume will now be online and accessible in File Explorer.

By mastering these methods for managing disk online/offline status, you gain greater control over your storage devices in Windows 11, enabling you to perform maintenance, troubleshooting, and data management tasks more effectively.
