Safely Convert Dynamic Disk to Basic Without Data Loss: A NIUBI Partition Editor Guide

Table of Contents

This guide explains how to convert a Dynamic Disk to a Basic Disk without data loss using NIUBI Partition Editor. NIUBI Partition Editor is a software designed for managing disk partitions and volumes on Windows 11/10 PCs. It provides a user-friendly interface to modify disk structures directly within the operating system, eliminating the need for complex manual adjustments.

Understanding Dynamic and Basic Disks¶

Before proceeding with the conversion, it’s crucial to understand the differences between Dynamic and Basic Disks and determine which type best suits your needs.

Basic Disk: Simplicity and Compatibility¶

Basic disks are the traditional disk management structure in Windows. They utilize primary and extended partitions to organize data.

• Simplicity: Basic disks are straightforward to set up and manage, making them ideal for most users.
• Compatibility: They are compatible with all Windows operating systems and are generally supported by other operating systems as well.
• Partitions: Basic disks use partitions, which are fixed-size containers for file systems.
• Limitations: Basic disks have limitations in terms of flexibility for advanced storage configurations, such as spanning volumes across multiple disks.

Dynamic Disk: Flexibility and Advanced Features¶

Dynamic disks offer a more flexible, volume-based system for data management. They are designed for advanced storage needs and configurations.

• Flexibility: Dynamic disks can create volumes that span multiple physical disks. This allows for greater storage capacity and management.
• Advanced Features: They support advanced features like spanned, striped, and mirrored volumes, which enhance performance and fault tolerance.
• Volumes: Dynamic disks use volumes instead of partitions. Volumes are more flexible and can be resized and extended more easily than partitions on basic disks.
• Complexity: Dynamic disks are more complex to manage compared to basic disks, and compatibility issues can arise with older operating systems or dual-boot configurations.

Basic Disk vs. Dynamic Disk: Which is Better?¶

For general use on most desktop and laptop computers, a basic disk is often the better choice due to its simplicity and compatibility. Dynamic disks are more advantageous for users with advanced storage requirements, such as servers or workstations needing high-performance, fault-tolerant storage configurations. If you are unsure which disk type you need, a basic disk is generally a safer and easier option.

Converting Dynamic Disk to Basic Disk Without Data Loss¶

NIUBI Partition Editor provides a safe and efficient way to convert Dynamic Disks to Basic Disks without losing any data. This conversion is particularly useful when you need to simplify your disk management, resolve compatibility issues, or prepare a disk for use in a system that does not fully support dynamic disks.

The free edition of NIUBI Partition Editor includes the dynamic-to-basic conversion feature. The software is designed to be user-friendly, providing a step-by-step process that is easy to follow, even for users who are not experts in disk management. Furthermore, NIUBI Partition Editor incorporates data protection technologies to minimize the risk of data loss during the conversion process.

Step-by-Step Guide: Converting Dynamic Disk to Basic Using NIUBI Partition Editor¶

Follow these steps to convert your dynamic disk to a basic disk using NIUBI Partition Editor Free Edition:

Step 1: Download and Install NIUBI Partition Editor

First, download NIUBI Partition Editor Free Edition from the official website. Ensure you are downloading from a reputable source to avoid malware. Once downloaded, run the installer and follow the on-screen instructions to install the software on your Windows 11/10 PC. The installation process is straightforward and typically takes only a few minutes.

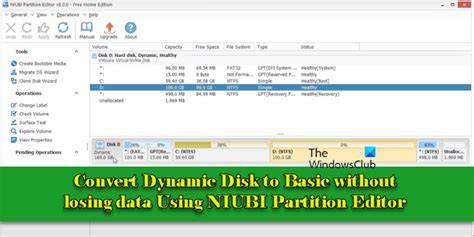

Step 2: Launch NIUBI Partition Editor and Select Dynamic Disk

After installation, launch NIUBI Partition Editor. The main interface will display all disks and partitions/volumes on your system. Identify the dynamic disk that you want to convert to a basic disk. Dynamic disks are typically labeled as ‘Dynamic’ in the disk map within the NIUBI Partition Editor interface.

Step 3: Initiate the Conversion Process

Right-click on the dynamic disk you selected in the previous step. From the context menu that appears, choose the option ‘Convert to Basic Disk’. This action will initiate the conversion wizard.

Step 4: Confirm the Conversion

A confirmation window will pop up, prompting you to confirm your decision to convert the dynamic disk to a basic disk. Carefully review the prompt to ensure you have selected the correct disk. Click ‘OK’ to proceed. NIUBI Partition Editor will then prepare for the conversion process by locking the volumes on the dynamic disk. This is a safety measure to ensure data integrity during the conversion.

Step 5: Apply the Changes

After confirming the conversion, you will see the pending operation listed in the ‘Pending Operations’ section, usually located in the bottom left corner of the NIUBI Partition Editor interface. To execute the conversion, click the ‘Apply’ button, which is typically found at the top left corner of the application window.

Step 6: System Reboot and Pre-OS Environment

Clicking ‘Apply’ will trigger a system reboot because the dynamic to basic disk conversion is often performed in a pre-OS environment to ensure system stability and prevent conflicts with running operating system processes. Two prompts will appear, asking for confirmation to proceed with the reboot. Click ‘OK’ on both prompts. Ensure you have closed all other applications on your system before clicking ‘Confirm’ to avoid any data loss from unsaved work.

Your computer will now restart and boot into a pre-OS environment. This environment is typically a simplified interface, often appearing as a black screen with minimal text, indicating that NIUBI Partition Editor is performing the disk conversion outside of the regular Windows operating system.

Step 7: Disk Conversion Process

In the pre-OS environment, NIUBI Partition Editor will automatically start the process of converting your dynamic disk to a basic disk. It is crucial to ensure that your system remains powered on and is not interrupted during this process. The conversion duration can vary depending on the size of the disk and the amount of data. Typically, it takes only a few seconds to minutes to complete. A progress bar or message might be displayed on the screen to indicate the status of the conversion.

Step 8: Boot into OS and Verify Conversion

Once the conversion is complete, your computer will automatically reboot back into the Windows operating system. After the system has started, you can verify that the dynamic disk has been successfully converted to a basic disk. You can do this in two ways:

• Using NIUBI Partition Editor: Launch NIUBI Partition Editor again. Check the disk map in the main interface. The disk that was previously labeled as ‘Dynamic’ should now be labeled as ‘Basic’.
• Using Windows Disk Management: Alternatively, you can use the built-in Windows Disk Management tool. To access it, right-click on the Start button and select ‘Disk Management’. In Disk Management, locate the disk you converted. It should now be listed as ‘Basic’ instead of ‘Dynamic’.

Important Notes and Considerations:

• Supported Disk Types: NIUBI Partition Editor supports various disk types, including internal/external hard disk drives, Hyper-V, VMware virtual disks, all types of Hardware RAID arrays, and USB flash drives. This broad compatibility makes it a versatile tool for different storage environments.
• Supported Volume Types: NIUBI Partition Editor Free Edition can only convert dynamic disks that contain Simple or Mirrored Volumes. If your dynamic disk contains other volume types, such as Spanned, Striped, or RAID-5 volumes, you will need to use a more advanced partition management tool that supports these complex volume types. Consider alternatives like EaseUS Partition Master or AOMEI Partition Assistant for such cases.
• Disk Size Limitation (Free Edition): The free edition of NIUBI Partition Editor has a limitation and can only manage disks up to 16TB in size. For disks larger than 16TB, you may need to consider a paid version or another tool.
• Post-Conversion Changes: After converting a dynamic disk to a basic disk, your partitions will reside on a basic disk structure. You will lose access to dynamic disk features unless you reconfigure the disk back to dynamic. Consider whether you need dynamic disk features before proceeding with the conversion.
• Data Backup: Always ensure you have a complete backup of all important data before attempting any disk conversion or partitioning operations. While NIUBI Partition Editor is designed to be safe, unexpected issues can occur, and having a backup is crucial for data protection.
• 1-Second Rollback (Pro Edition): For enhanced data protection, NIUBI Partition Editor Professional Edition includes a unique 1-Second Rollback technology. This feature can quickly revert the system to its previous state in case of any errors during partitioning or conversion operations. If data safety is a primary concern, consider upgrading to the Pro edition.

Key Features of NIUBI Partition Editor¶

Besides converting dynamic disks to basic disks, NIUBI Partition Editor offers a wide array of disk management features. These features are designed to simplify disk partitioning and management tasks, making them accessible to both novice and advanced users. Here is a summary of the key features available in the free edition:

1. Resize/Move Volume:

   • Allows you to adjust partition sizes by shrinking or extending allocated space.
   • Enables moving partitions to reorganize disk space layout.
   • Uses a drag-and-drop interface for intuitive operation.

2. Merge Volumes:

   • Combines two adjacent partitions into a single larger partition.
   • Performs merging without data loss, ensuring data integrity.

3. Copy Volume:

   • Clones a single partition to another location.
   • Useful for data backup or migrating data to a new or larger disk.

4. Delete Volume:

   • Removes an entire partition from the disk.
   • Frees up disk space for reallocation or repurposing.

5. Change Drive Letter:

   • Modifies the drive letter assigned to a partition (e.g., changing from D: to E:).
   • Helps in organizing and managing drive assignments.

6. Convert to FAT32:

   • Converts NTFS partitions to the FAT32 file system.
   • Useful for compatibility with older systems or specific applications.

7. Hide Volume:

   • Makes a partition invisible in File Explorer.
   • Protects data from unauthorized access by hiding the partition.
   • Hidden volumes can be unhidden to regain access.

8. Convert to Primary:

   • Changes a partition type from logical to primary.
   • Allows partitions to be bootable and directly accessible by the OS.

9. Volume Defragment:

   • Optimizes volume performance by defragmenting files.
   • Reorganizes fragmented files into contiguous blocks, improving data access speed.

10. Explore Volume:

    • Allows browsing the contents of a partition directly from NIUBI Partition Editor.
    • Provides a quick way to view files and folders within a partition.

11. Set Active:

    • Marks a partition as the active partition for booting the operating system.
    • Essential for setting up bootable partitions.

12. Set Read-only Attribute:

    • Marks a partition as read-only to prevent accidental or unauthorized file modifications.
    • Enhances data security by restricting write access.

13. Initialize Disk:

    • Prepares a new or unrecognized hard drive for use.
    • Sets up a partition table, allowing the disk to be formatted and used.

14. Clone Disk Wizard:

    • Quickly clones an entire disk to another disk.
    • Simplifies OS and data migration to a new disk.

15. Create Volume:

    • Sets up a new storage partition on a disk.
    • Allows defining partition size, file system, and other parameters.

16. Format Volume:

    • Prepares an existing volume for use by erasing data and setting up a file system.
    • Makes a volume ready for storing new files.

17. Change Label:

    • Alters the name or label of a partition or volume.
    • Improves partition identification and organization.

18. Convert to GPT Disk:

    • Converts a disk from MBR to GPT partition scheme.
    • Enables support for larger disks (over 2TB) and modern systems.

19. Check Volume:

    • Scans a volume for file system errors and inconsistencies.
    • Helps in maintaining file system integrity and preventing data corruption.

20. Convert to Logical:

    • Changes a Primary partition to a Logical partition.
    • Useful for overcoming the primary partition limit on MBR disks.

21. Surface Test:

    • Examines the physical surface of a disk for bad sectors or errors.
    • Helps in identifying potential hardware issues.

22. Wipe Volume:

    • Completely erases all data on a volume by overwriting it multiple times.
    • Ensures data cannot be recovered, enhancing data security before disposal or repurposing.

23. View Properties:

    • Displays detailed information and parameters of a disk or partition.
    • Provides comprehensive disk and partition details.

24. Clean Up Disk:

    • Removes all partitions and un-initializes a disk.
    • Prepares a disk to be used as new or for complete repurposing.

These features collectively make NIUBI Partition Editor a comprehensive tool for managing disk partitions and volumes effectively and safely.

Reactivating Invalid Dynamic Disk¶

In some cases, a dynamic disk may become invalid due to various issues. Here’s how to attempt to reactivate an invalid dynamic disk without data loss using the DiskPart utility in Windows:

1. Open Command Prompt as Administrator:

   • Press the Windows key, type cmd, right-click on ‘Command Prompt’, and select ‘Run as administrator’.

2. Start DiskPart Utility:

   • In the Command Prompt window, type diskpart and press Enter. This will launch the DiskPart command-line tool.

3. List Disks:

   • Type list disk and press Enter. This command will display all disks connected to your system, along with their disk numbers.

4. Select the Invalid Disk:

   • Identify the disk number of the invalid dynamic disk from the list.
   • Type select disk X (replace X with the actual disk number) and press Enter. For example, if the invalid disk is Disk 1, type select disk 1.

5. Bring Disk Online:

   • Type online disk and press Enter. This command attempts to bring the selected disk online, which may reactivate the dynamic disk and make it accessible again.

After executing these commands, check Disk Management to see if the dynamic disk has been reactivated and is functioning correctly. If this method does not work, further troubleshooting or professional data recovery services might be necessary.

---

We hope this guide has been helpful in understanding how to convert dynamic disks to basic disks safely using NIUBI Partition Editor and manage your disk partitions effectively. If you have any questions or experiences to share, please feel free to leave a comment below!
