Surface Connectivity: A Quick Guide to SIM Card Installation & Data Setup

Updated: • 0 • min read
Table of Contents

Ensuring your Surface device remains connected is crucial for productivity and accessibility, especially when on the move. For Surface Pro with LTE Advanced, Surface Go with LTE Advanced, and Surface Pro X models, cellular data connectivity is facilitated through the use of a nano SIM card. This guide provides a comprehensive walkthrough on how to install a SIM card and configure a data connection on your Surface device, operating on Windows 11 and Windows 10.

Inserting a SIM Card into Your Surface Device

The process of inserting a SIM card varies slightly depending on your specific Surface model. Below are detailed instructions for Surface Pro with LTE Advanced, Surface Go with LTE Advanced, and Surface Pro X.

Surface Pro with LTE Advanced

The Surface Pro with LTE Advanced (specifically the 5th Generation) features a SIM card tray discreetly located beneath the kickstand. Follow these steps to install your nano SIM:

  1. Begin by placing your Surface Pro (5th Gen) with LTE Advanced face down on a soft, clean surface to protect the screen. Gently open the kickstand, which is identifiable by the Microsoft logo on its back.

  2. Locate the SIM ejector tool. This tool is typically included within the packaging of your Surface Pro, often found attached to the instruction card inside the box.

  3. Identify the SIM card tray on your Surface Pro. It is positioned near the bottom-right corner, underneath the kickstand when opened.

  4. Carefully insert the SIM ejector tool into the small pinhole on the SIM card tray. Apply gentle but firm pressure until the SIM card tray ejects slightly. Avoid using excessive force to prevent damage. Once ejected, remove the SIM ejector tool and store it safely for future use.

  5. Pull the SIM card tray out from the slot completely, handling it with care. Keep the tray oriented face-up as you remove it to avoid accidentally dropping or misaligning the components.

  6. Place your nano SIM card into the SIM card tray. Ensure the SIM card is face up and properly aligned within the tray. Crucially, match the small notch on the corner of the SIM card with the corresponding notch in the SIM card tray. This ensures a correct fit. The logo or text on the SIM card should be facing upwards when correctly positioned.

  7. Gently slide the filled SIM card tray back into the SIM card slot. The small hole on the SIM card tray should be oriented towards the bottom-right corner as you insert it. The tray should slide in smoothly and click into place when fully inserted. Do not force the tray if you encounter resistance; instead, remove it and re-check the SIM card alignment.

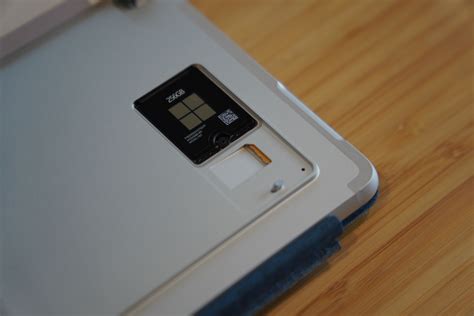

Surface Pro SIM Card Installation

Surface Go with LTE Advanced

Installing a SIM card in the Surface Go with LTE Advanced is similar to the Surface Pro. Here are the steps:

  1. Position your Surface Go with LTE Advanced so that the screen is facing you. Rotate the device so that the left edge is towards you. The SIM card tray is located on this left edge.

  2. Retrieve the SIM ejector tool from your Surface Go packaging, typically found with the instruction materials.

  3. Insert the SIM ejector tool into the small hole on the SIM card tray located on the left edge. Gently press until the SIM card tray pops out slightly. Remove the ejector tool and keep it in a secure place.

  4. Carefully pull the SIM card tray out of the slot. Maintain the face-up orientation as you remove it.

  5. Place the nano SIM card into the SIM card tray, ensuring it is face up. Align the notches on the SIM card and the tray to ensure a proper fit. The printed side of the SIM card should be facing upwards.

  6. Slide the SIM card tray back into the slot until it clicks securely into place. The insertion should be smooth; avoid forcing it. If it doesn’t slide in easily, re-examine the SIM card placement and alignment.

Surface Pro X

The Surface Pro X features a slightly different SIM card installation method, utilizing a SIM door. Here’s how to install your SIM card:

  1. Lay your Surface Pro X screen-down on a stable surface. Open the kickstand to reveal the SIM door, which is located underneath the kickstand hinge.

  2. Use the SIM ejector tool (included with your Surface Pro X) to open the SIM door. Insert the tool into the small hole on the SIM door and gently press to detach it. The SIM door is hinged and will swing open.

  3. Push your nano SIM card directly into the SIM card slot. You will hear or feel a click when it is properly inserted and locked into place.

  4. Close the SIM door by sliding it back into its position and then pressing down gently until it clicks shut. Ensure it is securely closed.

  5. After physically installing the SIM, you may need to configure it in Windows settings. Navigate to Start > Settings > Network & Internet > Cellular. Under “Use this SIM for cellular data”, select SIM1 to activate your newly installed SIM.

  6. To verify connectivity, check the taskbar. Select the Network icon to ensure your mobile operator is listed, indicating a successful connection.

Setting up a Data Connection on Your Surface Device

Once the SIM card is physically installed, the next step is to configure the data connection on your Surface device. The process is similar for Surface Pro X, Surface Pro with LTE Advanced, and Surface Go with LTE Advanced, but Surface Pro X offers additional flexibility with eSIM functionality.

Surface Pro X and Surface Pro with LTE Advanced

Surface Pro X provides two primary methods for establishing a cellular data connection: using a physical nano SIM or utilizing the embedded SIM (eSIM). Surface Pro with LTE Advanced primarily uses a physical nano SIM.

1] Using a Physical SIM and Data Plan from Your Mobile Operator

This is the most common method for cellular connectivity.

  1. First, ensure you have an active data plan. Contact your mobile operator to subscribe to a new data plan or add a data plan to your existing mobile account.

  2. Insert the nano SIM card into your Surface Pro X or Surface Pro with LTE Advanced, following the installation steps outlined earlier.

  3. Once the SIM is inserted, activate it through Windows settings. Go to Start > Settings > Network & Internet > Cellular. Select SIM1 from the dropdown menu under “Use this SIM for cellular data”. Windows will typically detect and configure the connection automatically.

2] Using eSIM and the Mobile Plans App (Surface Pro X Only)

Surface Pro X is equipped with an eSIM, offering an alternative to physical SIM cards.

  1. To use eSIM for the first time, you must be connected to Wi-Fi. Open the Mobile Plans app, which is pre-installed on Windows.

  2. Follow the on-screen prompts within the Mobile Plans app. The app will guide you through the process of adding your device to an existing mobile operator account or signing up for a new data plan directly through the app. Microsoft provides detailed guidance on using the Mobile Plans app, which can be helpful during this process.

  3. Switching between Data Plans: If you have both a physical SIM plan and an eSIM plan active, you can easily switch between them. Navigate to Start > Settings > Network & Internet > Cellular. Under “Use this SIM for cellular data”, choose either SIM1 (for the physical SIM) or eSIM to select your preferred data plan.

Surface Go with LTE Advanced

Surface Go with LTE Advanced uses a single nano SIM card for cellular data connectivity.

  1. Ensure you have an activated nano SIM card and a data plan from your mobile operator. Contact your provider to set this up if you haven’t already.

  2. Install the nano SIM card into your Surface Go with LTE Advanced as described in the SIM installation steps.

  3. To confirm your cellular connection, navigate to Start > Settings > Network & Internet > Cellular. This section will display your cellular network status and connection details, indicating whether you are successfully connected to the mobile network.

By following these guidelines, you can easily install a SIM card and set up a data connection on your Surface Pro with LTE Advanced, Surface Go with LTE Advanced, or Surface Pro X, ensuring you stay connected wherever you are.
