Troubleshooting SMB2 Error: Solutions for Windows 11/10 Users

Updated: 23 Mar, 2025 • 0 • min read

Table of Contents

Server Message Block (SMB) is an essential network file-sharing protocol, enabling read and write operations across network devices. It is particularly prevalent in environments where users access Linux-based servers. SMB2 represents the latest iteration of this protocol, succeeding the older SMB 1 and incorporating significant security enhancements. Notably, SMB 1’s vulnerabilities made it susceptible to modern ransomware attacks, prompting Microsoft to disable it by default in Windows 11 and 10.

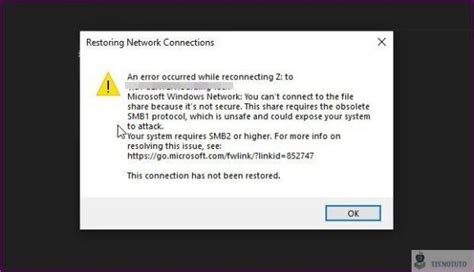

Users attempting to share files or resources may encounter the following error message indicating an SMB protocol issue:

This share requires the obsolete SMB1 protocol, which is unsafe and could expose your system to attack. Your system requires SMB2 or higher.

This error signifies that the system or device you are trying to connect to requires the more secure SMB2 protocol, while your current configuration might be lacking or misconfigured. Let’s explore how to ensure your Windows 11 or 10 system is correctly set up to utilize SMB2.

Checking SMB2 Protocol Capability on Windows 11/10¶

Before proceeding with enabling SMB2, it’s prudent to verify if your Windows system inherently supports the SMB2 protocol. This quick check will confirm compatibility and guide subsequent steps.

Begin by pressing the Windows key + X simultaneously. This action will open the Power User menu, providing access to various system utilities.
From the Power User menu, select Windows PowerShell (Admin). This will launch PowerShell with administrative privileges, necessary for executing system-level commands.
In the PowerShell window, type the following command precisely as shown and press Enter:
```
Get-SmbServerConfiguration | Select EnableSMB2Protocol
```
This command queries the SMB server configuration and specifically requests the status of the EnableSMB2Protocol setting.
After executing the command, PowerShell will display an output message. Look for the line indicating EnableSMB2Protocol. If the value is True, as illustrated in the example below, it confirms that your PC is already capable of running the SMB2 protocol.
```
EnableSMB2Protocol
------------------
True
```
Conversely, if the output shows False, your system may not have SMB2 enabled, or there might be an issue preventing its activation. In such cases, proceed to the next section to enable SMB2.

Troubleshooting SMB2 Error

Enabling SMB2 Protocol on Windows 11/10¶

If the previous check indicated that SMB2 is not enabled, or if you are encountering SMB2-related errors, you will need to explicitly enable the protocol. There are two primary methods to accomplish this: using the Control Panel’s graphical interface or utilizing PowerShell commands for a more direct approach.

Method 1: Enabling SMB2 via Control Panel¶

The Control Panel offers a user-friendly graphical interface to manage Windows features, including SMB protocol support.

Start by pressing the Windows key + I combination to open the Settings app. This is the central hub for system configurations in Windows 11 and 10.
Within the Settings app, locate the search bar, typically situated at the top. Type “Control Panel” and select the Control Panel result from the suggestions. This will launch the classic Control Panel interface.
In the Control Panel, click on Programs. This option leads to settings related to software installation, uninstallation, and Windows features.
Under the Programs menu, find and select Turn Windows features on or off, usually located under the larger heading “Programs and Features”. Clicking this will open the “Windows Features” dialog box.
The “Windows Features” dialog box presents a list of optional Windows components that can be enabled or disabled. Scroll through the list and locate the entry labeled SMB 1.0/CIFS File Sharing Support. Check the box next to this option to enable it. While it might seem counterintuitive to enable SMB 1.0 when aiming for SMB2, enabling SMB 1.0 can sometimes be a prerequisite or a part of the process for ensuring SMB2 functionality, particularly when upgrading from older configurations.
After selecting SMB 1.0/CIFS File Sharing Support, click OK to confirm your selection. Windows will then proceed to install the necessary files for the selected feature. This process might take a few moments as Windows configures the system.
Once the installation is complete, you will be prompted to Restart your computer. It is crucial to reboot your system for the changes to take full effect and for SMB2 support to be properly activated.

Method 2: Enabling SMB2 via PowerShell Command¶

For users comfortable with command-line interfaces, PowerShell provides a faster and more direct method to enable SMB2.

Open Windows PowerShell as an Administrator. You can do this by searching for “PowerShell” in the Start Menu, right-clicking on “Windows PowerShell”, and selecting “Run as administrator”.
In the elevated PowerShell window, type the following command exactly and press Enter:
```
Set-SmbServerConfiguration -EnableSMB2Protocol $true
```
This command directly sets the EnableSMB2Protocol configuration to $true, effectively enabling SMB2 on the server component of your Windows system.
After executing this command, PowerShell will typically return to the command prompt without any confirmation message if the command was successful. To ensure the change is applied, it’s recommended to restart your computer. While not always strictly necessary for this specific command, a reboot ensures that all services and components fully recognize and utilize the newly enabled SMB2 protocol.

Both of these methods, whether using the Control Panel’s graphical interface or the PowerShell command, will effectively enable SMB2 support on your Windows 11 or 10 system, resolving the “Your system requires SMB2 or higher” error and ensuring secure and efficient file sharing capabilities.

Understanding SMB in Windows¶

To fully appreciate the significance of SMB2 and troubleshooting related errors, it’s helpful to understand the fundamental nature of SMB itself.

SMB (Server Message Block), also known as Common Internet File System (CIFS) in some contexts, is a network protocol primarily designed for file sharing. It allows applications running on a computer to request file and print services from server programs on other computers within a network. In essence, SMB acts as the language that computers use to share files, printers, and other resources over a network.

Any application or process needing to access or share files across a network relies on the SMB protocol to communicate with server programs. This communication involves sending requests for services, such as opening, reading, writing, creating, or deleting files.

How SMB Operates¶

SMB functions as a client-server interaction protocol. This means that one computer acts as the client, requesting services, while another computer acts as the server, providing those services.

When a client computer needs to access a shared resource (like a file or folder) located on a server, it sends an SMB request to the server. The server, upon receiving the request, processes it and responds to the client, either granting access to the resource or denying it based on permissions and configurations.

Through this client-server interaction, SMB enables users to perform various file operations across a network, including:

Creating new files and folders on shared network locations.
Modifying existing files, such as editing documents or updating data.
Deleting files and folders from network shares.
Reading the content of files stored on network shares.
Browsing through shared folders and directories.

This functionality makes SMB essential for collaborative work environments, shared storage solutions, and any scenario where multiple users or systems need to access and manage files across a network.

Consequences of Disabling SMB¶

Disabling the SMB protocol, especially in environments where it is actively used for file sharing and network resource access, can have significant and disruptive consequences. If an IT administrator decides to disable SMB, the impact can be widespread and affect various aspects of network operations.

The primary and most immediate consequence of disabling SMB is the breakdown of file sharing and network resource access. Users will be unable to access shared files, folders, printers, and other resources that rely on SMB for communication. This can severely hinder productivity and disrupt workflows that depend on network file access.

Specifically, disabling SMB can lead to:

Denial of access to shared resources: Users will receive errors when attempting to access network shares, preventing them from opening files or folders stored on servers or other shared systems.
Authentication failures: SMB is often involved in user authentication for network resource access. Disabling it can lead to authentication failures, preventing users from logging into network services or accessing domain resources.
Application malfunctions: Many applications and services rely on SMB for network communication and file access. Disabling SMB can cause these applications to malfunction or fail to operate correctly.
Impact on legacy systems: Older systems and devices might exclusively rely on SMB 1.0 for network communication. Disabling SMB entirely (including SMB 1.0, 2.0, and 3.0) can render these legacy systems unable to participate in network file sharing.

In essence, disabling SMB without careful planning and consideration can severely disrupt network operations and user productivity. It is generally recommended to avoid disabling SMB unless there are compelling security reasons and alternative file-sharing solutions are in place. Instead of disabling SMB altogether, focusing on securing and updating SMB configurations, such as ensuring SMB2 or SMB3 is enabled and SMB 1.0 is disabled, is a more prudent approach to mitigate security risks while maintaining essential network file-sharing functionality.

If you found these troubleshooting steps helpful or have further questions about SMB protocols, feel free to leave a comment below!
