Unlock Excel's Power: A Step-by-Step Guide to Pivot Tables and Charts

Table of Contents

Pivot tables in Microsoft Excel are a powerful tool for data analysis. They allow you to summarize and reorganize large datasets, making it easier to extract meaningful insights and patterns. Instead of manually sorting and filtering data or writing complex formulas, pivot tables provide an interactive way to explore your information and create dynamic reports. This guide will walk you through the process of creating both pivot tables and pivot charts to effectively analyze your data.

Understanding Pivot Tables¶

What are Pivot Tables?¶

Pivot tables are an advanced feature within Excel that enable you to summarize and analyze data without writing formulas. They dynamically reorganize and summarize selected columns and rows of data in a spreadsheet or database table to obtain a desired report. The “pivot” aspect refers to the ability to rotate or pivot the table’s row and column headings to look at your data from different perspectives. This makes it incredibly versatile for exploring trends, patterns, and relationships within your data.

Why Use Pivot Tables?¶

Pivot tables offer several advantages over traditional data analysis methods in Excel:

• Efficiency: They automate the process of summarizing data, saving you considerable time and effort compared to manual calculations or complex formulas.
• Flexibility: You can easily rearrange and restructure the pivot table by dragging and dropping fields, allowing for dynamic exploration of data from various angles.
• Interactive Analysis: Pivot tables are interactive. You can filter, sort, and drill down into your data to gain deeper insights in real-time.
• Data Integrity: Pivot tables do not alter your original data source. They create a summary view, ensuring the integrity of your raw data remains intact.
• Reporting: They are excellent for creating concise and visually appealing reports and dashboards, making it easy to communicate data insights to others.

Imagine you have a large dataset of sales information, including dates, product categories, regions, and sales amounts. Using pivot tables, you can quickly answer questions like:

• What are the total sales for each product category?
• Which region has the highest sales?
• What is the sales trend over different months?
• How do sales of specific product categories vary across regions?

Trying to answer these questions manually would be time-consuming and prone to errors. Pivot tables simplify this process dramatically.

Creating a Pivot Table in Excel¶

Let’s walk through the step-by-step process of creating a pivot table in Excel. For this example, we’ll assume you have a dataset with student marks across different subjects.

Step 1: Prepare Your Data¶

Before creating a pivot table, ensure your data is well-structured. This means:

• Column Headers: Your data should have clear and descriptive column headers in the first row. These headers will become the field names in your pivot table.
• Consistent Data: Each column should contain a consistent type of data (e.g., numbers, text, dates).
• No Blank Rows or Columns within the Data Range: Avoid blank rows or columns within your data as it might disrupt the pivot table creation.

For our student marks example, the data might look something like this:

Student Name	Subject	Marks
Alice	Math	85
Bob	Math	78
Alice	Science	92
Bob	Science	88
Charlie	Math	70
Charlie	Science	75
Alice	English	90
Bob	English	80
Charlie	English	82

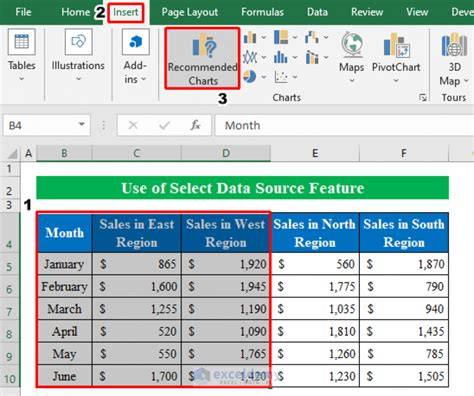

Step 2: Select Your Data Range¶

1. Click on any cell within your data range. Excel is usually intelligent enough to automatically detect the entire data range if you click within it.
2. Alternatively, you can manually select the entire range of cells including the column headers. Click and drag from the top-left cell to the bottom-right cell of your data.

Step 3: Insert a Pivot Table¶

1. Go to the Insert tab on the Excel ribbon.
2. In the Tables group, click on PivotTable.

Step 4: Choose PivotTable Location¶

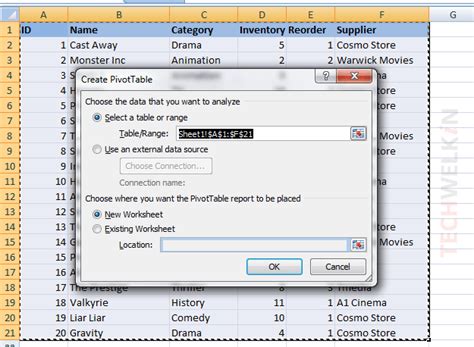

A Create PivotTable dialog box will appear.

• Choose the data source: By default, Excel will have automatically selected your data range in the “Table/Range” field. Verify that the range is correct. If you selected the range manually, it will be displayed here.

• Choose where to place the PivotTable:

  • New Worksheet: This is the default and generally recommended option. It creates a new worksheet to house your pivot table, keeping your original data separate.
  • Existing Worksheet: If you choose this option, you need to specify a location within an existing worksheet where you want to place the pivot table. Be sure to select an empty area to avoid overwriting any existing data.

  For most cases, selecting New Worksheet is the best choice.

3. Click OK in the Create PivotTable dialog box.

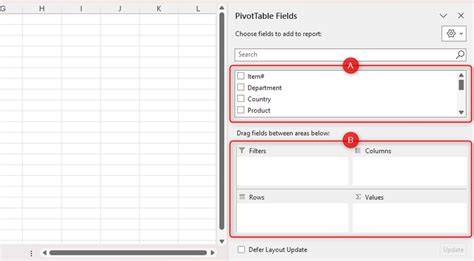

Step 5: Building Your Pivot Table - Field List¶

Excel will create a new worksheet (if you chose “New Worksheet”) and display an empty pivot table structure on the left side of the sheet. On the right side, you will see the PivotTable Fields pane. This pane lists all the column headers from your data source as “fields.”

The PivotTable Fields pane is divided into two main sections:

• Fields Section (Top): Lists all the column headers (fields) from your data source.
• Areas Section (Bottom): Four areas where you can drag and drop fields to structure your pivot table:
  • Filters: Fields placed here are used to filter the entire pivot table, allowing you to focus on specific subsets of data.
  • Columns: Fields placed here become column headings in your pivot table.
  • Rows: Fields placed here become row labels in your pivot table.
  • Values: Fields placed here are the data that will be summarized in the pivot table. Typically, these are numeric fields that you want to sum, average, count, etc.

Step 6: Analyzing Data with Pivot Tables¶

To start analyzing your data, drag and drop fields from the Fields Section into the Areas Section.

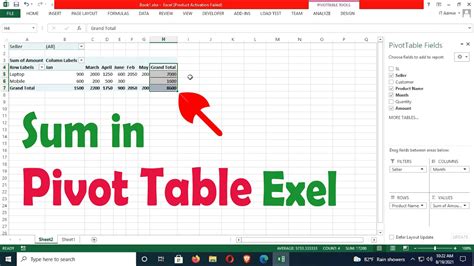

Example: Sum of Student Marks per Subject

Let’s say we want to find the total marks for each subject.

1. Drag the Subject field from the Fields Section to the Rows area. The unique subjects (Math, Science, English) will now appear as row labels in your pivot table.
2. Drag the Marks field from the Fields Section to the Values area. By default, Excel will summarize numeric fields using the Sum function. The pivot table will now display the sum of marks for each subject.

Example: Sum of Student Marks per Student

To find the total marks for each student:

1. Remove the Subject field from the Rows area (simply drag it back to the Fields Section or uncheck it in the list).
2. Drag the Student Name field to the Rows area.
3. Ensure the Marks field is still in the Values area.

Now, the pivot table will show the total marks for each student.

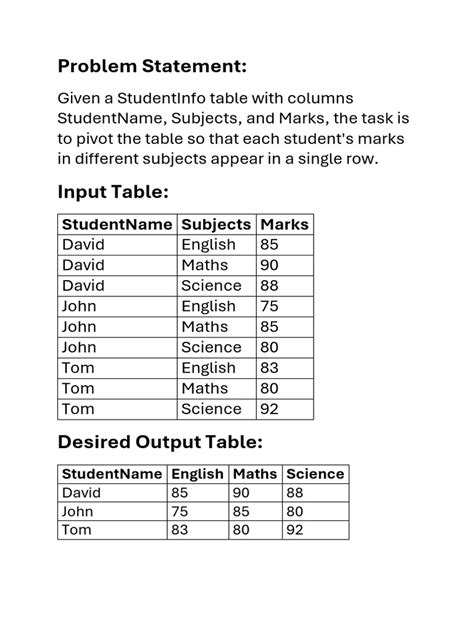

Example: Marks per Subject and Student

To see marks broken down by both subject and student:

1. Drag Subject to the Columns area.
2. Drag Student Name to the Rows area.
3. Ensure Marks is in the Values area.

This will create a cross-tabulation, showing each student’s marks for each subject, along with grand totals for rows and columns.

You can experiment with dragging different fields to different areas to explore your data in various ways.

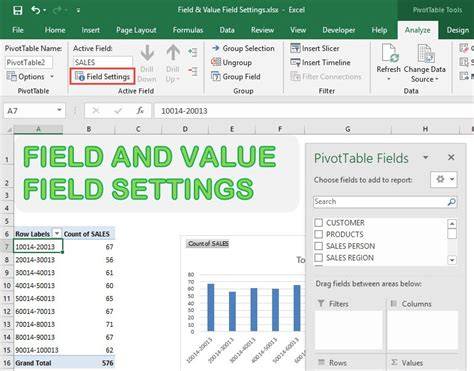

Customizing Value Field Settings¶

By default, numeric fields in the Values area are summed. However, you can change the summarization function and number formatting.

1. In the Values area of the PivotTable Fields pane, click on the dropdown arrow next to the Marks field (or whichever value field you are working with).
2. Select Value Field Settings…

3. In the Value Field Settings dialog box:

   • Summarize value field by: Choose a different function from the list (e.g., Average, Count, Max, Min, etc.) if you don’t want to sum the values.
   • Show values as: Allows you to display values as percentages, differences from base items, etc.
   • Click the Number Format… button to change the number format (e.g., decimal places, currency, percentages).

4. Click OK to apply the changes.

Advanced Pivot Table Features¶

Pivot tables offer many more advanced features to enhance your data analysis.

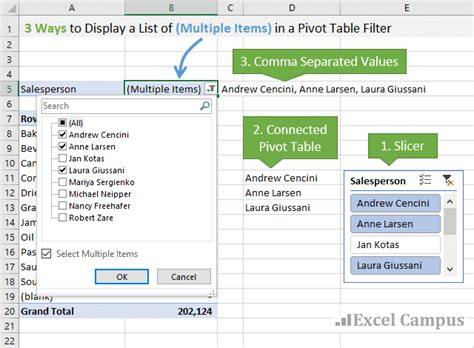

Filtering Data in Pivot Tables¶

Filters allow you to focus on specific subsets of your data.

1. Drag a field (e.g., Subject) to the Filters area in the PivotTable Fields pane.
2. A filter dropdown will appear above your pivot table. Click the dropdown arrow.
3. You can select specific items to filter by (e.g., select only “Math” to see data only for math).
4. You can also choose (Select Multiple Items) to select more than one filter criteria.

Grouping Data in Pivot Tables¶

Grouping is useful for categorizing data into logical groups. For example, you can group dates by month, quarter, or year, or group numerical ranges into bins.

1. Group Dates: If you have a date field in your pivot table rows or columns, right-click on any date in the pivot table. Select Group…. In the Grouping dialog box, choose the desired grouping levels (e.g., Months, Years).
2. Group Numbers: If you have a numerical field, you can group it into ranges. Right-click on a number in the pivot table, select Group…. In the Grouping dialog box, specify the starting value, ending value, and the “By” value (the size of each group).

Calculated Fields in Pivot Tables¶

Calculated fields allow you to create new fields based on formulas using existing fields in your data source.

1. Go to the PivotTable Analyze tab on the ribbon (this tab appears when you select a cell within the pivot table).
2. In the Calculations group, click on Fields, Items, & Sets, and then select Calculated Field….
3. In the Insert Calculated Field dialog box:
   • Name: Enter a name for your calculated field.
   • Formula: Enter a formula using the fields from the “Fields” list. For example, if you had “Sales” and “Cost” fields, you could create a “Profit” field with the formula =Sales-Cost.
4. Click Add and then OK. The new calculated field will appear in your Fields Section and can be used in your pivot table like any other field.

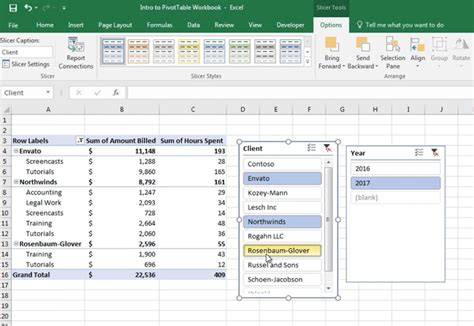

Slicers for Interactive Filtering¶

Slicers provide a visual and interactive way to filter pivot table data.

1. Go to the PivotTable Analyze tab.
2. In the Filter group, click on Insert Slicer.
3. In the Insert Slicers dialog box, check the fields you want to create slicers for (e.g., Subject, Student Name).
4. Click OK. Slicer buttons will appear for each selected field. Click on the buttons to filter your pivot table data interactively. You can select multiple items in a slicer by holding down the Ctrl key while clicking.

Creating Pivot Charts in Excel¶

Pivot charts are dynamic charts that are directly connected to pivot tables. When you change the structure or filters of a pivot table, the associated pivot chart automatically updates to reflect those changes. This provides a powerful way to visualize your pivot table data.

Step 1: Select Your Pivot Table¶

Click on any cell within your existing pivot table. You must have a pivot table created before you can create a pivot chart.

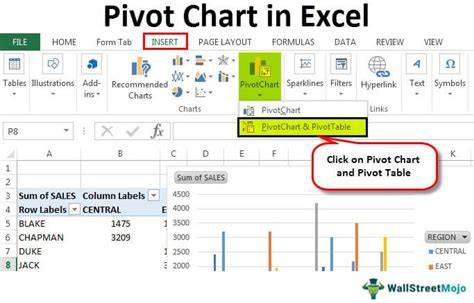

Step 2: Insert a Pivot Chart¶

1. Go to the PivotTable Analyze tab on the ribbon.
2. In the Tools group, click on PivotChart. Alternatively, you can go to the Insert tab, and in the Charts group, click on PivotChart.

Step 3: Choose Chart Type¶

The Insert Chart dialog box will appear, displaying various chart types (Column, Line, Pie, Bar, etc.).

1. Select the chart type that best represents your pivot table data. For comparing categories, Column charts or Bar charts are often suitable. For showing trends over time, Line charts are a good choice. For showing proportions, Pie charts or Doughnut charts can be used.
2. Choose a chart subtype if needed.
3. Click OK.

Excel will insert a pivot chart based on your pivot table data. The chart will be dynamically linked to the pivot table.

Step 4: Customizing Your Pivot Chart¶

You can customize your pivot chart just like any other chart in Excel:

• Chart Elements: Use the Chart Elements button (the “+” icon next to the chart) to add or remove chart elements like titles, axis labels, legends, data labels, and gridlines.
• Chart Styles and Colors: Use the Chart Styles and Chart Colors options in the Chart Design tab to change the visual appearance of your chart.
• Chart Filters: Pivot charts have their own filter panes, similar to pivot tables. You can use these to filter the data displayed in the chart directly.

Benefits of Pivot Charts¶

• Dynamic Visualization: Pivot charts are dynamically linked to their pivot tables, providing real-time updates as you change the pivot table structure or filters.
• Interactive Exploration: Pivot charts inherit the interactivity of pivot tables. Slicers and filters applied to the pivot table also affect the pivot chart, and vice versa.
• Data Storytelling: Pivot charts make it easier to visualize data patterns and trends, helping you to tell a compelling story with your data.
• Dashboard Creation: Pivot charts are ideal for creating interactive dashboards that provide a visual summary of key data insights.

Conclusion¶

Pivot tables and pivot charts are essential tools for anyone working with data in Excel. They empower you to efficiently summarize, analyze, and visualize large datasets without the need for complex formulas or manual calculations. By mastering these features, you can unlock deeper insights from your data and make more informed decisions. Experiment with different pivot table layouts, chart types, and customization options to fully leverage their power.

Do you have any questions about creating pivot tables or pivot charts in Excel? Share your thoughts and questions in the comments below!
