Unlocking EFI: Understand and Identify System Partitions on Windows 11

Table of Contents

Have you ever encountered the term EFI System Partition (ESP) while managing your Windows system and wondered about its purpose? This article aims to demystify the EFI partition, explaining its role, how to identify it, its contents, and the implications of deleting it. Understanding the EFI partition is crucial for anyone managing their Windows system, especially when dealing with disk partitions or system troubleshooting. Let’s delve into the world of EFI and system partitions in Windows 11.

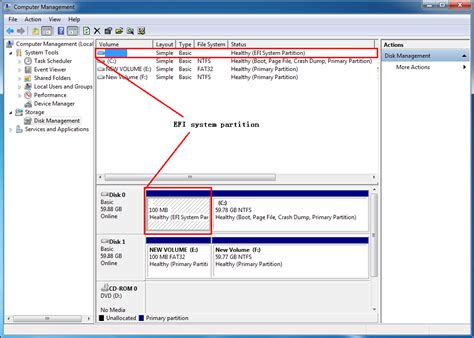

What is EFI Partition in Windows?¶

EFI stands for Extensible Firmware Interface, and the EFI System Partition (ESP) is a partition on a data storage device, typically a hard disk drive (HDD) or solid-state drive (SSD). It is used by computer systems adhering to the UEFI (Unified Extensible Firmware Interface) standard. Think of UEFI as the modern replacement for the traditional BIOS (Basic Input/Output System). The EFI partition is an integral part of the UEFI boot process.

When you power on your computer, the UEFI firmware is the first software to run. It then loads files stored on the ESP to initiate the operating system installed on your system, along with various system utilities. The ESP acts as a storage hub for essential boot files. It typically contains boot loaders, kernel images, device drivers needed during startup, and other system utilities that are crucial for the pre-boot environment before the operating system fully loads.

The EFI partition is usually a relatively small partition, often around 100 MB in size, and it is formatted with the FAT32 file system. This partition is specifically designated to house all the necessary applications and data required for the Windows startup process. While normally hidden from regular users to prevent accidental modification, the EFI system partition can be accessed using specific commands in Windows, such as mountvol /s.

How to Identify EFI System Partition in Windows 11/10?¶

Due to its critical role in system boot, the EFI partition is intentionally hidden from File Explorer to prevent accidental user interference. However, there are several Windows tools and third-party utilities that allow you to identify the EFI partition. It’s important to exercise caution when working with these tools and avoid deleting the EFI partition unless you have a clear understanding of the consequences. Before making any changes to partitions, it is strongly recommended to create a system image backup to safeguard your data and system configuration.

Here are common methods to identify the EFI partition:

• Windows Disk Management Tool
• Diskpart Tool
• Third-Party Disk Tools

Let’s explore each method in detail.

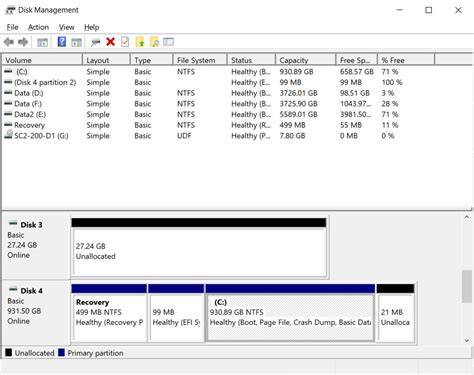

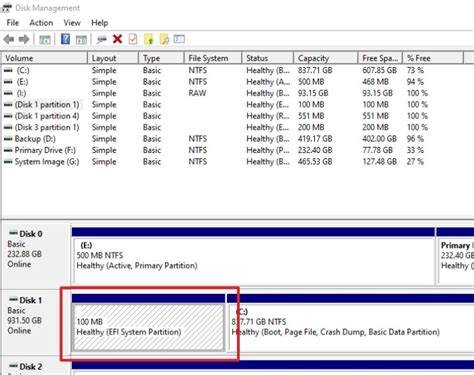

1] Using Disk Management Tool in Windows¶

The Disk Management tool is a built-in Windows utility designed for managing disk partitions and volumes. It provides a graphical interface to perform tasks such as renaming, resizing, creating, deleting, and formatting partitions. Disk Management allows you to manage your hard disks without needing to reboot your system for basic operations. You can also use it to convert disk types (like MBR to GPT), change drive letters, and initialize new disks.

To identify the EFI partition using Disk Management, follow these steps:

1. Press Windows key + R to open the Run dialog box.
2. Type diskmgmt.msc and press Enter. This command launches the Disk Management tool.
3. In the Disk Management window, look for partitions listed without a drive letter and with the label EFI System Partition or System Partition.
4. Typically, the EFI partition will be a small partition, around 100MB to 500MB in size, and formatted as FAT32. It will also often be marked as a System partition under the “Type” column.

By examining the partition details in Disk Management, you can easily identify the EFI partition based on its label, size, and file system.

2] Using Diskpart Tool¶

Diskpart is a powerful command-line utility for disk partitioning in Windows. It offers more advanced functionalities compared to Disk Management and is particularly useful for technical users. Diskpart allows you to manage disks, partitions, and volumes using text commands. You can create, delete, format, and modify partitions, including those on hard drives and USB drives.

To use Diskpart to identify the EFI partition, follow these steps:

1. Open Command Prompt as Administrator. You can do this by typing cmd in the Windows search bar, right-clicking on “Command Prompt”, and selecting “Run as administrator”.
2. In the Command Prompt window, type diskpart and press Enter. This will launch the Diskpart command interpreter.
3. Type list volume and press Enter. This command displays a list of all volumes (partitions) available on your computer.
4. Examine the output. Look for a volume that has:
   • Label as “System” or “EFI”.
   • Fs (File System) as “FAT32”.
   • Info column might indicate “Hidden” or “System”.
5. The EFI partition is usually assigned a volume number in the list. Take note of this number if you need to perform further operations on it using Diskpart.

Diskpart provides a text-based method to identify the EFI partition, which can be particularly useful in scripting or when graphical tools are not available.

3] Using Third-party Tools¶

Besides the built-in Windows tools, several third-party disk partitioning software options offer enhanced features and user-friendly interfaces for managing partitions, including identifying EFI partitions. These tools often provide more detailed information and easier navigation compared to Disk Management or Diskpart. Two popular examples are Paragon Partition Manager and GParted.

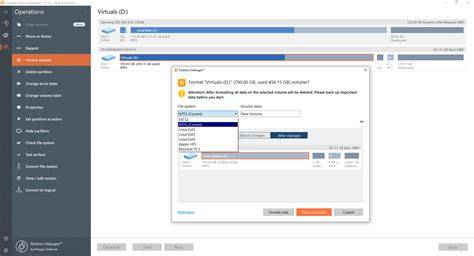

Paragon Partition Manager

Paragon Partition Manager is a comprehensive disk management tool that offers both free and paid versions. It allows you to organize hard drives, resize partitions, recover lost partitions, and perform various other disk-related tasks. It typically provides a visually intuitive interface for identifying partitions.

To locate the EFI partition using Paragon Partition Manager:

1. Download and install Paragon Partition Manager (Free or Paid version).
2. Launch the software. It will scan and display all connected drives and partitions in a graphical format.
3. Identify the primary drive where Windows is installed.
4. Look for a small partition, usually around 100MB to 500MB in size.
5. Select the partition and examine its properties. Paragon Partition Manager usually labels the EFI partition clearly as “EFI System Partition” or similar in the partition details.

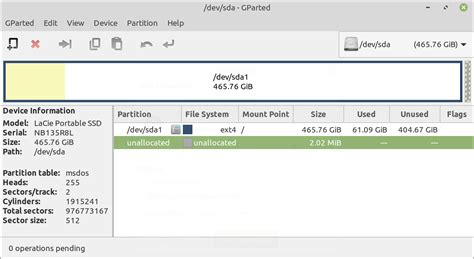

GParted

GParted (GNU Partitioned Editor) is a free and open-source partition editor. It is a powerful tool for graphically managing disk partitions. GParted is often used in Linux environments but also has a live CD/USB version that can be used to manage partitions on Windows systems.

To identify the EFI partition using GParted:

1. Download the GParted Live CD/USB ISO image and create a bootable USB drive or CD.
2. Boot your computer from the GParted Live media.
3. GParted will launch and display a graphical representation of your disk partitions.
4. Look for a small partition formatted as FAT32.
5. GParted usually labels the EFI partition with the “boot” flag and “esp” flag. You can also check the partition information for details that indicate it’s an EFI System Partition.

Third-party tools like Paragon Partition Manager and GParted offer user-friendly ways to identify EFI partitions, often providing more visual clarity and detailed partition information compared to built-in Windows tools.

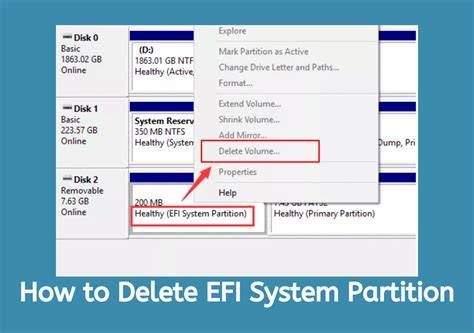

Should I Delete the EFI Partition?¶

No, you should generally never delete the EFI Partition unless you have a very specific reason and fully understand the consequences. The EFI partition is crucial for your operating system to boot. It contains the boot files necessary to start Windows. Deleting it is akin to removing the foundation upon which your operating system relies to start.

If you delete the EFI partition, your computer will likely fail to boot into Windows. You might encounter errors during startup, or the system might not even power on correctly. Deletion should only be considered in very specific scenarios, such as when you are completely wiping a drive for repurposing, or when you are intentionally reinstalling the operating system and creating a new partition layout. Even in these cases, caution is advised.

Deleting the EFI partition is generally not recommended and should only be done by advanced users who understand the boot process and have a backup or recovery plan in place. Accidental deletion can lead to system unbootability and data loss.

How Can I Delete the EFI Partition in Windows?¶

While deleting the EFI partition is strongly discouraged for most users, it is technically possible using the Diskpart command-line utility. Diskpart provides the necessary commands to manage partitions, including deletion. However, exercise extreme caution and ensure you have a valid backup or recovery plan before proceeding. Deleting the EFI partition can render your system unbootable.

Here are the steps to delete the EFI partition using Diskpart:

1. Open Command Prompt as Administrator.
2. Type diskpart and press Enter to launch Diskpart.
3. Type list disk and press Enter. This command lists all disks connected to your computer. Identify the disk number that contains the EFI partition you want to delete. Be absolutely certain you select the correct disk.
4. Type select disk # (replace # with the disk number identified in the previous step) and press Enter. This selects the disk you want to work with.
5. Type list partition and press Enter. This command lists all partitions on the selected disk. Identify the partition number that corresponds to the EFI partition. It will usually be of Type: System and relatively small in size.
6. Type select partition # (replace # with the partition number of the EFI partition) and press Enter. This selects the EFI partition.
7. Warning: This is the point of no return. Double-check that you have selected the correct EFI partition.
8. Type delete partition override and press Enter. The override command is often necessary to force deletion of system partitions.

After executing these commands, the EFI partition will be deleted. Your system will likely become unbootable after this operation. Only proceed with these steps if you are absolutely sure about what you are doing and have a way to recover your system, such as a Windows installation media or recovery drive.

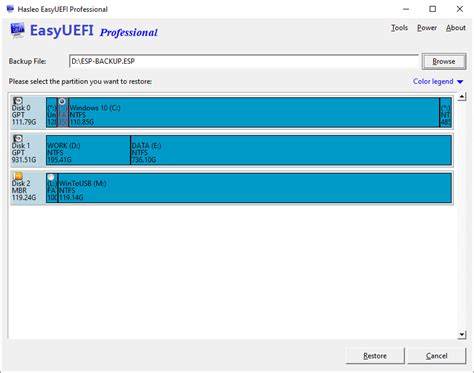

How Do I Restore The EFI Partition?¶

If you have accidentally deleted the EFI partition or need to rebuild it due to corruption, it is possible to restore it using the command prompt and Windows installation media or a recovery disk. The process involves creating a new EFI partition and then copying the necessary boot files to it.

Here are the step-by-step instructions to restore the EFI partition:

1. Boot from Windows Installation Media or Recovery Disk: Insert your Windows installation USB drive or DVD, or a Windows recovery drive, and boot your computer from it. You might need to change the boot order in your BIOS/UEFI settings to boot from the USB or DVD drive.
2. Open Command Prompt: Once you boot from the installation media, navigate to the “Repair your computer” option, then “Troubleshoot”, and finally “Command Prompt”. This will open a command prompt in the Windows Recovery Environment (WinRE).

3. Use Diskpart to Prepare Space:

   • Type diskpart and press Enter.
   • Type list disk and press Enter to list disks. Identify the disk where you want to restore the EFI partition.
   • Type select disk # (replace # with the disk number) and press Enter.
   • Type list partition and press Enter. Identify a partition on the disk that has free space that can be shrunk to create space for the EFI partition.
   • Type select partition # (replace # with the partition number you want to shrink) and press Enter.
   • Type shrink desired=100 (or a larger size if needed, in MB) and press Enter. This command shrinks the selected partition to create unallocated space for the EFI partition.

4. Create the EFI Partition:

   • Type create partition efi size=100 (or the size you desire) and press Enter. This creates a new EFI partition in the unallocated space.
   • Type format quick fs=fat32 and press Enter. This formats the new partition as FAT32, which is required for the EFI partition.
   • Type assign letter=h (or any available drive letter) and press Enter. This assigns a drive letter to the newly created EFI partition, making it accessible. You can choose any letter that is not currently in use.
   • Type exit and press Enter to exit Diskpart.

5. Copy Boot Files and Create BCD Store:

   • Use the bcdboot command to copy the necessary boot files from your Windows installation to the newly created EFI partition and create a Boot Configuration Data (BCD) store.
   • Type bcdboot C:\windows /s H: /f UEFI and press Enter. Replace C:\windows with the actual path to your Windows installation directory if it’s different, and H: with the drive letter you assigned to the EFI partition. The /f UEFI option specifies that you are creating UEFI boot files.

6. Reboot:

   • Type exit and press Enter to exit the command prompt.
   • Click “Continue” or “Restart your PC” to reboot your computer normally.

After these steps, your system should be able to boot from the restored EFI partition. If you still encounter boot issues, you might need to further troubleshoot boot configuration using tools like bootrec in the Windows Recovery Environment.

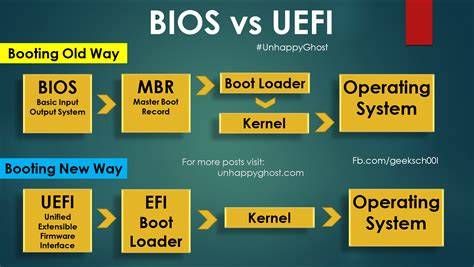

What Is The Difference Between EFI And MBR?¶

MBR (Master Boot Record) and EFI (Extensible Firmware Interface) represent different approaches to managing bootable disks and system startup processes. MBR is an older standard, while EFI is the modern successor, primarily associated with UEFI firmware.

Here are key differences:

• Boot Process: MBR uses BIOS firmware, which reads the MBR boot sector to start the boot process. EFI (UEFI) uses the EFI System Partition (ESP) and UEFI firmware to initiate the boot process. UEFI is generally faster and more efficient.
• Disk Size Support: MBR has limitations and can only support disks up to 2TB in size. EFI/UEFI, using GPT (GUID Partition Table), supports much larger disk sizes, exceeding 2TB.
• Partition Limits: MBR supports a maximum of four primary partitions. To overcome this, you need to use extended partitions and logical drives, which can be more complex. GPT, used with UEFI, supports a significantly larger number of partitions (theoretically up to 128 primary partitions in Windows).
• Firmware Dependency: MBR is tightly coupled with BIOS firmware. EFI is platform-independent and part of the UEFI standard, which is designed to replace BIOS. UEFI offers more features and flexibility.
• Security Features: UEFI often includes security features like Secure Boot, which helps prevent malware from loading during the boot process. MBR/BIOS lacks these advanced security features.
• Boot Mode: Systems using MBR typically boot in “Legacy BIOS” mode or “CSM (Compatibility Support Module)” mode in UEFI BIOS. Systems using EFI/GPT boot in UEFI mode.

In summary, EFI/UEFI with GPT is the modern standard that offers advantages in terms of disk size support, partition flexibility, boot speed, and security compared to the older MBR/BIOS system.

Does Upgrading To EFI Offer Any Benefits?¶

Yes, upgrading to EFI (UEFI) offers several benefits, especially for modern systems:

• Faster Boot Times: UEFI generally boots faster than BIOS, as it streamlines the boot process and can initialize hardware components more efficiently.
• Support for Large Disks: UEFI with GPT is necessary to support hard drives and SSDs larger than 2TB, which is a common requirement for modern storage devices.
• More Partitions: GPT allows for a significantly greater number of primary partitions compared to MBR, offering more flexibility in disk partitioning.
• Modern Hardware Support: UEFI is designed to work with modern hardware and technologies, providing better compatibility and performance.
• Enhanced Security: UEFI includes security features like Secure Boot, which helps protect against boot-level malware and ensures that only signed and trusted bootloaders and operating systems can be loaded.
• Improved Power Management: UEFI can offer more efficient system and power management, contributing to better energy efficiency and potentially longer battery life in laptops.
• Graphical Interface: UEFI often provides a more user-friendly graphical interface for BIOS settings compared to the text-based BIOS setup of older systems.

Upgrading to EFI/UEFI is generally recommended for modern systems to take advantage of these benefits and ensure compatibility with current and future hardware and software technologies.

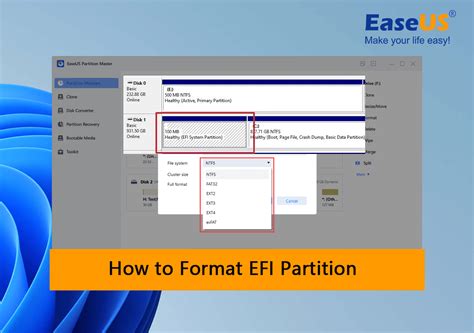

Does Windows 11 Need An EFI-based Partition To Upgrade?¶

Yes, Windows 11 requires a UEFI-based system and therefore an EFI partition to function. Windows 11 is designed to operate exclusively with UEFI firmware and is not compatible with legacy BIOS or Compatibility Support Module (CSM) mode in UEFI BIOS for the primary boot method.

Key requirements related to EFI and Windows 11 include:

• UEFI Firmware: Your system’s motherboard must have UEFI firmware. Most modern computers manufactured in recent years come with UEFI firmware.
• GPT Partition Style: The system disk where Windows 11 is installed must use the GPT (GUID Partition Table) partition style. GPT is the partitioning scheme associated with UEFI.
• EFI System Partition (ESP): A properly configured EFI System Partition (ESP) is essential for Windows 11 to boot. This partition must be formatted as FAT32 and contain the necessary boot files.
• Secure Boot: Windows 11 strongly encourages or, in some cases, requires Secure Boot to be enabled. Secure Boot is a UEFI feature that helps enhance security by verifying the digital signatures of boot components.

If your system is currently running in legacy BIOS mode or using MBR partitioning, you will likely need to convert to UEFI and GPT before upgrading to Windows 11. Windows 11’s reliance on UEFI is part of Microsoft’s push for improved security, performance, and compatibility with modern hardware.

In conclusion, understanding the EFI partition is essential for managing and troubleshooting Windows systems, especially Windows 11. While it is usually best left untouched, knowing how to identify, manage, and restore it can be invaluable in certain situations. Remember to always exercise caution and back up your data before making changes to system partitions.

If you have any questions or experiences with EFI partitions, feel free to share them in the comments below!
