Windows Server Failover Cluster: A Step-by-Step Guide to High Availability

Table of Contents

Ensuring high availability and reliability for critical applications and services is paramount in today’s demanding IT environments. Creating a Failover Cluster in Windows Server is a robust solution to achieve this, providing continuous service even in the event of server failures. This comprehensive guide will walk you through the process of setting up a failover cluster in Windows Server, from the initial prerequisites to the final quorum configurations. This tutorial is applicable across various Windows Server versions, including 2022, 2019, 2016, 2012 R2, and 2012, ensuring broad applicability for your infrastructure needs.

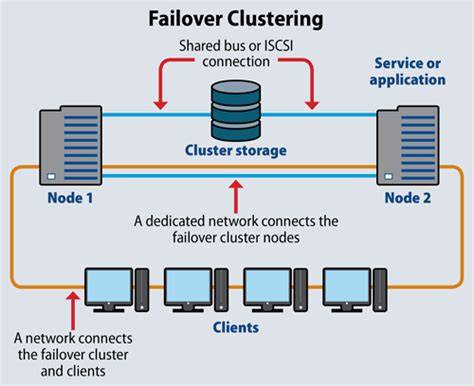

Understanding Failover Clusters in Windows Server¶

A Failover Cluster in Windows Server is essentially a group of independent servers, known as nodes, working collaboratively to enhance the availability of applications and services. These servers are interconnected and configured to provide redundancy. In a failover cluster, if one server experiences a failure, another server in the cluster automatically and seamlessly takes over its workload. This automated transition is known as failover, and it is designed to minimize downtime and maintain uninterrupted service delivery to users.

The primary goal of a failover cluster is to ensure high availability. High availability means that services are accessible to users with minimal interruption. By distributing workloads across multiple servers and providing automatic failover capabilities, clusters significantly reduce the risk of service outages. This is crucial for businesses that rely on continuous operation of their IT systems.

Failover clusters are particularly beneficial for critical applications such as databases, file servers, and virtual machines. In such scenarios, even a brief period of downtime can lead to significant business disruptions, data loss, and financial repercussions. By implementing a failover cluster, organizations can safeguard against these risks and ensure business continuity.

Creating a Failover Cluster in Windows Server: A Step-by-Step Procedure¶

To establish a failover cluster within your Windows Server environment, a structured approach is necessary. The process involves several key stages, each critical to the successful deployment and operation of the cluster. Below is a detailed step-by-step procedure to guide you through the entire process.

1. Meet the Prerequisites
2. Install the Failover Clustering Feature
3. Validate the Configuration
4. Create the Failover Cluster
5. Configure Cluster Quorum Settings

Let’s delve into each of these steps to understand the actions required at each stage of the failover cluster creation process.

1] Meet the Prerequisites¶

Before initiating the failover cluster setup, it is essential to ensure that your systems meet specific prerequisites. These prerequisites are foundational for the proper functioning and stability of the cluster. Verifying these requirements beforehand will prevent potential issues and ensure a smooth deployment process.

• Up-to-date Windows Operating Systems: All servers intended to be part of the failover cluster must be running a compatible and updated version of the Windows Server operating system. It is recommended to use the latest service packs and updates to benefit from the latest features, security enhancements, and bug fixes. Consistent operating system versions across all nodes are crucial for cluster stability and compatibility.

• Network Interfaces: Each server within the cluster requires multiple network interfaces for segregated network traffic.

  • Production Network Interface: This interface is dedicated to handling client traffic and communication related to the applications and services hosted on the cluster. It is the primary network path for users accessing the cluster resources.
  • Cluster Network Interface: This dedicated network is exclusively for inter-node communication within the cluster. It handles cluster heartbeat signals, synchronization, and other internal cluster operations. Isolating cluster traffic on a separate network enhances security and performance.
  • iSCSI Network Interface (Optional but Recommended): If you are utilizing iSCSI for shared storage, a dedicated network interface for iSCSI traffic is highly recommended. Separating iSCSI traffic improves storage performance and reduces potential network congestion on other networks.

• Microsoft Active Directory Domain Membership: All servers that will participate in the failover cluster must be joined to the same Microsoft Active Directory domain. Active Directory provides centralized authentication, authorization, and management for the cluster nodes. Domain membership is crucial for cluster security and simplified administration.

• Shared Storage Accessibility: All servers in the cluster must have visibility and access to the shared storage device. This shared storage is the foundation for highly available applications and data within the cluster. Ensure that the shared storage is properly configured and presented to each server in Disk Management. The servers should recognize the shared storage and be able to access it.

Meeting these prerequisites is a critical initial step. Thoroughly verifying each requirement ensures that the underlying infrastructure is correctly set up for a successful failover cluster deployment.

2] Install the Failover Clustering Feature¶

Once the prerequisites are confirmed, the next step is to install the Failover Clustering feature on each server that will be a node in the cluster. This feature is essential for enabling the failover clustering functionality in Windows Server. You can install this feature using either the Server Manager GUI or PowerShell.

Installing Failover Clustering Feature using Server Manager¶

1. Open Server Manager: Launch Server Manager on each server node. Server Manager is the primary management console in Windows Server.

2. Navigate to Add Roles and Features: In the Server Manager dashboard, click on “Manage” in the top right corner, and then select “Add Roles and Features” from the dropdown menu. This action will initiate the Add Roles and Features Wizard.

3. Proceed Through Wizard: Click “Next” on the “Before you begin” page of the wizard. Select “Role-based or feature-based installation” on the “Installation Type” page and click “Next”. Choose the target server on the “Server Selection” page (which should be the local server by default) and click “Next”.

4. Skip Server Roles: On the “Server Roles” page, click “Next” without selecting any roles. The Failover Clustering feature is a feature, not a role.

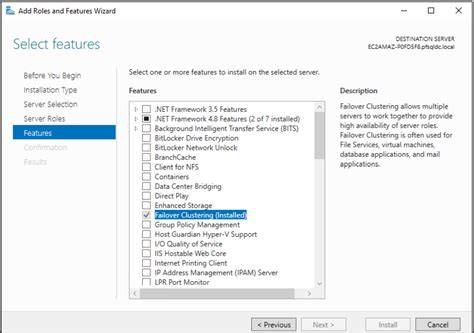

5. Select Failover Clustering Feature: On the “Features” page, locate “Failover Clustering” in the list of available features. Check the box next to “Failover Clustering”. A pop-up window might appear asking to add required features; click “Add Features” to confirm.

6. Complete Installation: Click “Next” on the “Confirmation” page and then click “Install” to begin the installation process. Wait for the installation to complete. Once the installation is successful, click “Close”.

Installing Failover Clustering Feature using PowerShell¶

PowerShell provides a command-line alternative for installing the Failover Clustering feature, which can be more efficient, especially when deploying clusters across multiple servers.

1. Open PowerShell as Administrator: Open PowerShell with administrative privileges on each server node. To do this, right-click on the PowerShell icon and select “Run as administrator”.

2. Execute Install-WindowsFeature Command: Type the following command and press Enter:

   Install-WindowsFeature -Name Failover-Clustering -IncludeManagementTools


   • Install-WindowsFeature: This is the PowerShell cmdlet used to install Windows features.
   • -Name Failover-Clustering: Specifies the name of the feature to be installed, which is “Failover-Clustering”.
   • -IncludeManagementTools: This parameter ensures that the management tools for Failover Clustering, such as the Failover Cluster Manager, are also installed. This is essential for managing and configuring the cluster later.

3. Reboot the Server: After the command execution is complete, it is crucial to reboot the server for the installation to finalize and for the Failover Clustering feature to become fully operational. You can reboot the server using the PowerShell command:

   Restart-Computer


Repeat either the Server Manager or PowerShell installation process on every server intended to be part of the failover cluster. Consistency in feature installation across all nodes is vital for cluster functionality.

3] Validate the Configuration¶

After installing the Failover Clustering feature on all nodes, the next critical step is to validate the cluster configuration. Validation ensures that the servers, network, storage, and other components are correctly configured and compatible for forming a failover cluster. This validation process identifies potential configuration issues before the cluster is created, preventing problems later on.

1. Launch Failover Cluster Manager: Open Server Manager on one of the cluster nodes. From the “Tools” menu in the top right corner, select “Failover Cluster Manager”. This will open the Failover Cluster Manager console.

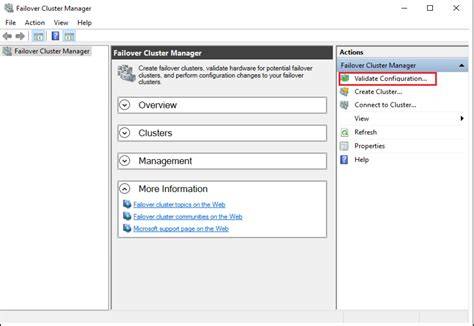

2. Initiate Validation: In the Failover Cluster Manager, in the “Actions” pane on the right-hand side, click on “Validate Configuration…”. This action launches the Validate a Cluster Wizard.

3. Select Servers to Validate: On the “Before You Begin” page, click “Next”. On the “Select Servers or Nodes” page, enter the names of all the servers you intend to include in the failover cluster. You can type the names separated by commas or click “Browse” to select them from Active Directory. After adding all servers, click “Next”.

4. Choose Validation Tests: On the “Testing Options” page, you have two choices:

   • Run all tests (recommended): This option runs all available validation tests, ensuring a comprehensive check of the configuration. It is the recommended option for most scenarios.
   • Run only tests I select: This option allows you to choose specific tests to run. Use this option if you have specific areas of concern or if you want to expedite the validation process in a well-understood environment. For a first-time setup or for thoroughness, “Run all tests” is advised.

   Select “Run all tests (recommended)” and click “Next”.

5. Review Validation Results: The wizard will now run a series of tests, checking various aspects of the configuration, including network settings, storage connectivity, system configuration, and more. Once the tests are complete, the “Summary” page will display the results.

6. Analyze the Report: Click on the “View Report…” button to open a detailed HTML report of the validation results. Carefully review the report for any warnings or errors.

   • Successes (Green Checkmarks): Indicate that the tests passed successfully.
   • Warnings (Yellow Exclamation Marks): Suggest potential issues that might affect cluster performance or resilience. Warnings should be investigated and addressed if possible, although they may not necessarily prevent cluster creation.
   • Failures (Red Cross Marks): Indicate critical issues that must be resolved before creating the cluster. Failures will likely prevent the cluster from functioning correctly.

   Address any errors and warnings identified in the validation report. Common issues include network configuration problems, storage connectivity issues, or software inconsistencies. Rectify these issues before proceeding to the next step.

7. Create Cluster from Validation Report (Optional): If the validation is successful or if you have addressed any critical issues, the “Summary” page of the validation wizard provides an option: “Create the cluster now using the validated nodes”. If you check this box and click “Finish”, the wizard will automatically proceed to create the failover cluster using the validated servers. Alternatively, you can uncheck this option and create the cluster later using the Failover Cluster Manager.

4] Create the Failover Cluster¶

After successfully validating the configuration, the next step is to create the failover cluster itself. This process involves defining the cluster name, assigning an IP address, and specifying the nodes that will be part of the cluster. You can create the cluster using the Failover Cluster Manager GUI or through PowerShell commands.

Creating a Failover Cluster using Failover Cluster Manager¶

1. Launch Failover Cluster Manager: If it’s not already open, launch Failover Cluster Manager. Open Server Manager, go to “Tools”, and select “Failover Cluster Manager”.

2. Initiate Cluster Creation: In the Failover Cluster Manager, in the “Actions” pane on the right-hand side, click on “Create Cluster…”. This will start the Create Cluster Wizard.

3. Before You Begin: Click “Next” on the “Before You Begin” page.

4. Select Servers: On the “Select Servers” page, enter the names of the servers you want to include in the cluster. You can type the names separated by commas or use the “Browse” button to select them from Active Directory. These should be the same servers you validated in the previous step. Click “Next”.

5. Validation Warning (If Skipped Validation): If you chose not to run validation before creating the cluster, the wizard will display a warning recommending validation. It is strongly advised to run validation before proceeding. You can click “Yes” to run the validation tests at this point, or “No” to proceed without validation (not recommended for production environments). If you choose to validate now, follow the validation steps described earlier. If you choose to proceed without validation, be aware of potential issues that might arise later.

6. Access Point for Administering the Cluster: On the “Access Point for Administering the Cluster” page, you need to specify the cluster name and IP address.

   • Cluster Name: Enter a unique name for the failover cluster. This name will be used to manage and access the cluster. Choose a descriptive and easily recognizable name.
   • IP Address: Assign a static IP address to the cluster. This IP address will be used for cluster management and for clients to access cluster resources. Ensure that the IP address is available on your network and is not in use by any other device. Select the network adapter to associate with this IP address if you have multiple networks.

7. Confirmation: Review the cluster settings on the “Confirmation” page. Verify the cluster name and the nodes that will be added to the cluster. Click “Next” to begin the cluster creation process.

8. Cluster Creation Progress: The wizard will now create the failover cluster. This process may take a few minutes. You can monitor the progress on the “Creating Cluster” page.

9. Completion: Once the cluster creation is complete, the “Summary” page will display the results. Review the summary and click “Finish”. The Failover Cluster Manager will now display the newly created cluster in the console.

Creating a Failover Cluster using PowerShell¶

PowerShell offers a command-line method to create a failover cluster, which can be more efficient and scriptable, especially for automated deployments.

1. Open PowerShell as Administrator: Open PowerShell with administrative privileges on one of the server nodes.

2. Execute New-Cluster Command: Use the New-Cluster cmdlet to create the cluster. A basic command structure is as follows:

   New-Cluster -Name <ClusterName> -Node <Node1>,<Node2> -StaticAddress <ClusterIPAddress>


   • New-Cluster: This is the PowerShell cmdlet used to create a new failover cluster.
   • -Name <ClusterName>: Replace <ClusterName> with the desired name for your cluster. For example, -Name WFCCluster01.
   • -Node <Node1>,<Node2>: Replace <Node1>,<Node2> with the names of the servers that will be part of the cluster, separated by commas. For example, -Node SRV01,SRV02.
   • -StaticAddress <ClusterIPAddress>: Replace <ClusterIPAddress> with the static IP address you want to assign to the cluster. For example, -StaticAddress 192.168.1.100.

   For example, to create a cluster named “WFC2019” with nodes “SRV2019-WFC1” and “SRV2019-WFC2” and a static IP address of “172.21.237.3”, the command would be:

   New-Cluster -Name WFC2019 -Node SRV2019-WFC1,SRV2019-WFC2 -StaticAddress 172.21.237.3


   This command will create the cluster with the specified name, nodes, and IP address. PowerShell will automatically perform validation tests before creating the cluster.

3. Verify Cluster Creation: After the command completes successfully, you can verify the cluster creation by opening Failover Cluster Manager and connecting to the newly created cluster. You should see the cluster name, nodes, and cluster resources listed in the console.

Once the cluster is created, you can view it in the Failover Cluster Manager. Navigate to the “Nodes” section to see the member servers and to “Storage > Disks” to view the available shared storage.

5] Configure Cluster Quorum Settings¶

After creating the failover cluster, the final crucial step is to configure the cluster quorum settings. Quorum is essential for maintaining cluster health and ensuring that the cluster can function reliably, especially in failure scenarios. Quorum determines the number of nodes that must be online and communicating for the cluster to remain operational.

For most production environments, configuring a quorum witness is highly recommended. A quorum witness is an additional resource that provides a vote in quorum calculations. This helps the cluster to survive node failures more effectively, especially in scenarios with an even number of nodes where a simple majority might not be sufficient.

1. Open Failover Cluster Manager: Launch Failover Cluster Manager.

2. Access Quorum Configuration: In the Failover Cluster Manager, right-click on the cluster name in the left-hand pane. From the context menu, hover over “More Actions” and then select “Configure Cluster Quorum Settings…”. This will launch the Configure Cluster Quorum Wizard.

3. Before You Begin: Click “Next” on the “Before You Begin” page.

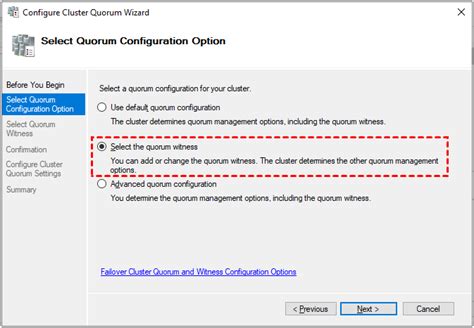

4. Select Quorum Option: On the “Select Quorum Option” page, choose “Select the quorum witness”. Click “Next”.

5. Select Quorum Witness: On the “Select Quorum Witness” page, you have options for the type of quorum witness:

   • Configure a file share witness: This option uses a file share on a separate server as the quorum witness. This is a common and recommended option for many scenarios.
   • Configure a disk witness: This option uses a dedicated disk in the shared storage as the quorum witness. Less common in modern setups compared to file share witness.
   • Configure a cloud witness: This option uses Azure Blob Storage as the quorum witness. Suitable for clusters deployed in or integrated with Azure.
   • No quorum witness: Not recommended for production environments as it reduces fault tolerance.

   For this example, let’s configure a file share witness. Select “Configure a file share witness” and click “Next”.

6. Configure File Share Witness: On the “Configure File Share Witness” page:

   • Enter the file share path: Type the UNC path to a file share that will be used as the witness. This file share should be accessible by all nodes in the cluster and should ideally be located on a server separate from the cluster nodes for increased resilience. For example, \\ServerName\ShareName.
   • Click “Next”.

7. Confirmation: Review the quorum settings on the “Confirmation” page. Verify the file share path. Click “Next” to apply the quorum configuration.

8. Completion: On the “Summary” page, review the results and click “Finish”. The quorum settings are now configured for your failover cluster.

After configuring the quorum, the shared storage disks will be available for use as data storage within the cluster. You can now proceed to configure clustered roles (such as File Server, SQL Server, Hyper-V, etc.) to make applications and services highly available within the newly created failover cluster.

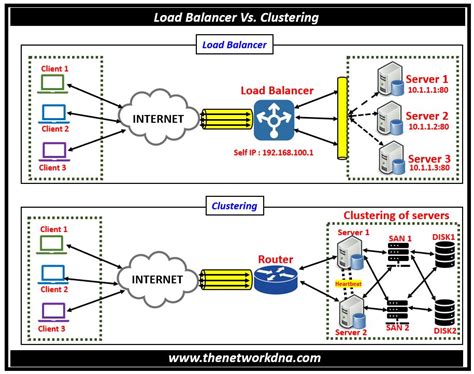

Load Balancer vs. Failover Cluster: Key Differences¶

While both load balancers and failover clusters are designed to enhance application availability and reliability, they operate on fundamentally different principles and address different aspects of high availability. Understanding their differences is crucial for choosing the right solution for your specific needs.

Load Balancer:

• Purpose: Primarily designed to distribute incoming network traffic across multiple servers. The goal is to optimize performance, improve responsiveness, and prevent any single server from being overwhelmed by excessive traffic.
• Operation: A load balancer acts as a traffic director, sitting in front of a group of servers (often called a server farm or server pool). It intercepts client requests and distributes them to the available servers based on a chosen algorithm (e.g., round robin, least connections, etc.).
• High Availability Mechanism: Load balancers contribute to high availability by ensuring that if one server in the pool fails, traffic is automatically redirected to the remaining healthy servers. This prevents service interruption due to individual server failures.
• Focus: Performance optimization and traffic distribution are the primary focus. High availability is a secondary benefit derived from traffic distribution and health monitoring.
• Use Cases: Web applications, application servers, and any service that experiences high traffic volume and needs to distribute load for performance and resilience.

Failover Cluster:

• Purpose: Designed to provide high availability for applications and services by ensuring continuous operation even if one or more servers fail. The focus is on redundancy and failover capabilities.
• Operation: A failover cluster consists of multiple servers (nodes) working together as a single system. One or more nodes actively run applications and services, while other nodes stand by as passive backups. If an active node fails, a passive node automatically takes over its workload (failover).
• High Availability Mechanism: High availability is achieved through redundancy and automatic failover. If a server fails, another server in the cluster immediately takes over, minimizing downtime and ensuring service continuity.
• Focus: Service continuity and fault tolerance are the primary focus. Performance optimization is not the primary goal, although clusters can sometimes improve performance by distributing workloads across nodes in active/active configurations.
• Use Cases: Critical applications that require near-zero downtime, such as databases, file servers, virtual machines, and business-critical services where any interruption is unacceptable.

Key Differences Summarized:

Feature	Load Balancer	Failover Cluster
Primary Goal	Performance Optimization & Traffic Distribution	High Availability & Service Continuity
Operation	Traffic distribution across servers	Redundancy and automatic failover between servers
Failure Handling	Redirects traffic away from failed servers	Server takes over workload of failed server
Focus	Performance, Scalability	Fault Tolerance, Reliability
Typical Use Cases	Web applications, high-traffic services	Critical applications, databases, file servers

In essence, load balancers distribute traffic for performance and availability, while failover clusters provide redundancy and automatic failover for continuous service operation. They can also be used in conjunction; for example, a load balancer can distribute traffic across multiple failover clusters to achieve both scalability and high availability.

Hopefully, this guide has provided you with a comprehensive understanding of how to create and configure a Failover Cluster in Windows Server. By following these steps, you can significantly enhance the availability and resilience of your critical applications and services.
