Master Excel's Advanced Filter: Extract, Analyze, and Organize Your Data Efficiently

Table of Contents

• Understanding the Power of Advanced Filter¶
• Step-by-Step Guide: Using Advanced Filter in Excel¶
• Filtering for Unique Records Only¶
• Important Considerations Before Using Filter Features¶
• Conclusion¶

Microsoft Excel offers a powerful built-in feature known as Advanced Filter that extends beyond the capabilities of basic filtering. While standard filters allow for quick column-based data selection, Advanced Filter provides the ability to extract, analyze, and organize data based on complex criteria across multiple columns. This tool is invaluable for users who need to sift through large datasets and pinpoint specific information efficiently.

Understanding the Power of Advanced Filter¶

Unlike the standard filter which operates directly within the dataset columns, Advanced Filter allows users to define specific criteria in a separate range within the worksheet. This separation enables the creation of intricate filtering rules that can include:

• Complex conditions: Filter data based on “AND” and “OR” logic across multiple columns simultaneously.
• Extraction to a different location: Copy the filtered results to another area of the worksheet or even a different worksheet, leaving the original data untouched.
• Unique records: Extract only unique records from a dataset, eliminating duplicates.

Advanced Filter is particularly useful when dealing with datasets that require nuanced queries beyond simple “equal to,” “greater than,” or “less than” conditions within a single column. It empowers users to perform sophisticated data analysis directly within Excel without resorting to complex formulas or programming.

Step-by-Step Guide: Using Advanced Filter in Excel¶

Let’s illustrate the practical application of Advanced Filter with a step-by-step example using employee data. Imagine a dataset containing information about employees, including their usual hours worked, education level in years, yearly earnings, gender, and state. Our goal is to filter this data based on specific criteria for both male and female employees.

Scenario Criteria:

We want to filter employee data based on the following conditions:

For Male Employees:

• Usual Hours Worked: Exactly 40 hours
• Education: Exactly 13 years of education
• Yearly Earnings: Greater than $35,000
• Gender: Male
• State: Alaska

For Female Employees:

• Usual Hours Worked: Greater than 35 hours
• Education: Greater than 12 years of education
• Yearly Earnings: Greater than $12,000
• Gender: Female
• State: Alaska

Notice that these conditions represent an “OR” scenario – we want to retrieve data that meets either the male criteria or the female criteria. Within each condition set (male and female), the criteria are linked with “AND” logic – all criteria must be met for a record to be included.

1. Preparing the Criteria Range¶

To utilize Advanced Filter, the first crucial step is to set up a criteria range. This range is where you define the conditions for filtering. It must be located above or separate from your original dataset.

Steps to create the criteria range:

Related: loading

1. Copy Column Headers: In your Excel sheet, insert two blank rows above your dataset. Copy the column headers from your dataset (e.g., “Usual Hours Worked,” “Education in Years,” “Yearly Earnings,” “Gender,” “State”) and paste them into the first of the newly inserted rows. These headers in the criteria range must exactly match the headers in your data range.

2. Enter Criteria: Below the column headers in the criteria range, you will enter your filtering conditions. Each row in the criteria range represents a separate set of conditions linked by “OR” logic. Conditions within the same row are linked by “AND” logic.

   Based on our scenario, we will set up the criteria range as follows:

   Row 1 (Criteria Headers): Usual Hours Worked | Education in Years | Yearly Earnings | Gender | State
   Row 2 (Male Criteria): 40 | 13 | >35000 | Male | Alaska
   Row 3 (Female Criteria): >35 | >12 | >12000 | Female | Alaska

   Here’s how it should visually appear in your Excel sheet:

   Column Header	Usual Hours Worked	Education in Years	Yearly Earnings	Gender	State
   Criteria Range
   Usual Hours Worked	Education in Years	Yearly Earnings	Gender	State
   40	13	>35000	Male	Alaska
   >35	>12	>12000	Female	Alaska
   Data Range
   …	…	…	…	…

   Explanation of Criteria Syntax:

   • Exact Match: To specify an exact match, simply enter the value. For example, 40 in “Usual Hours Worked” means we are looking for employees who work exactly 40 hours.
   • Greater Than: Use > followed by the value. For example, >35000 in “Yearly Earnings” means we are looking for earnings greater than $35,000.
   • Less Than: Use < followed by the value.
   • Greater Than or Equal To: Use >= followed by the value.
   • Less Than or Equal To: Use <= followed by the value.
   • Not Equal To: Use <> followed by the value.
   • Wildcards: You can use wildcards like * (for any sequence of characters) and ? (for any single character) for text-based criteria.

2. Applying the Advanced Filter¶

Once the criteria range is set up, you can apply the Advanced Filter to your dataset.

Steps to apply Advanced Filter:

1. Select Data Range: Click on any cell within your original dataset. This ensures that Excel automatically detects your data range.

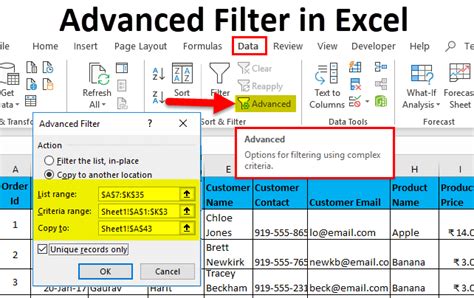

2. Open Advanced Filter Dialog: Go to the “Data” tab in the Excel ribbon. In the “Sort & Filter” group, click on “Advanced.” This will open the “Advanced Filter” dialog box.



3. Configure Advanced Filter Settings:

   • Action: Choose the desired action.

     • “Filter the list, in-place”: This option filters the original dataset directly, hiding rows that do not meet the criteria.
     • “Copy to another location”: This option copies the filtered results to a different location, leaving the original data unchanged. For this example, let’s assume you want to filter in place. Select “Filter the list, in-place.”

   • List range: Excel should automatically detect your data range if you clicked a cell within the dataset before opening the dialog. Verify that the “List range” is correct, encompassing your entire dataset (including headers). If not, manually select your data range.

   • Criteria range: Click in the “Criteria range” box. Then, select the criteria range you prepared earlier, including the header row and all rows containing criteria (in our example, rows with column headers and the two rows of criteria – Male and Female).

   • Copy to (Optional): This option is only active if you selected “Copy to another location” in the “Action” section. Specify the top-left cell where you want the filtered data to be copied.

   • Unique records only (Optional): Check this box if you want to extract only unique records, eliminating duplicates from the filtered results.

4. Click “OK”: After configuring all settings, click “OK” in the “Advanced Filter” dialog box. Excel will apply the filter based on your criteria.



Excel will now filter your dataset, displaying only the rows that meet either the male or female criteria defined in your criteria range. Rows that do not satisfy any of the conditions will be hidden.

Filtering for Unique Records Only¶

Advanced Filter can also be used to extract a list of unique records from a dataset. This is particularly useful when you want to eliminate duplicates and obtain a distinct list of items.

Steps to extract unique records:

1. Select Data Range: Click on any cell within your dataset.
2. Open Advanced Filter Dialog: Go to “Data” > “Advanced.”
3. Action: Choose either “Filter the list, in-place” (to filter unique records in the original location) or “Copy to another location” (to copy unique records to a new location).
4. List range: Verify or select your data range.
5. Criteria range: Leave this field blank if you want to extract unique records from the entire dataset. If you only want unique records based on specific criteria, you can still define a criteria range as described earlier.
6. Unique records only: Check the “Unique records only” box.
7. Click “OK”: Excel will filter or copy only the unique records based on your selections.

Important Considerations Before Using Filter Features¶

To ensure that your filter operations work correctly and efficiently, keep the following points in mind:

• No Blank Rows in Data Range: Ensure that there are no blank rows within your dataset. Blank rows can cause Excel to misinterpret the data range, potentially skipping data below the blank row during filtering.
• Consistent Column Headers: The first row of your data range is treated as the header row. Column headers should be in the first row, and data should begin from the subsequent rows.
• Matching Criteria Headers: When using Advanced Filter with a criteria range, the column headers in the criteria range must exactly match the column headers in your data range, including spelling and spacing. Inconsistencies will prevent the filter from working correctly.
• Data Type Consistency: Ensure that the data type in your criteria matches the data type in the corresponding column of your dataset. For example, if you are filtering a numerical column, ensure your criteria values are also numerical.
• Clear Filters: After using filters, especially “Filter in-place,” remember to clear the filters when you no longer need them. You can clear filters by going to “Data” > “Clear” in the “Sort & Filter” group. This will restore the visibility of all rows in your dataset.

Conclusion¶

Excel’s Advanced Filter is a powerful tool for data manipulation and analysis. By mastering its features, you can efficiently extract, analyze, and organize data based on complex criteria, significantly enhancing your productivity when working with large datasets in Excel. Whether you need to filter data in place, copy filtered results, or extract unique records, Advanced Filter provides the flexibility and control necessary for sophisticated data management.

What complex conditions have you used with Advanced Filter to analyze your data? Share your experiences and questions in the comments below!
