Mastering Dotted Lines in GIMP: A Step-by-Step Guide for Perfect Dashed Strokes
GIMP (GNU Image Manipulation Program) stands out as a powerful, open-source image editing software, offering a vast array of features that simplify and enhance design and editing tasks. Among its versatile capabilities, the creation of dotted lines holds particular significance for adding visual interest to artwork, especially in advertising and design projects where unique elements are key to capturing attention. Understanding how to draw dotted lines in GIMP can significantly elevate your designs, providing a distinctive touch that sets your work apart.
How to Draw a Dotted Line in GIMP¶
Lines are fundamental components of all artwork, serving as the foundational building blocks of visual creations. Enhancing lines, therefore, is crucial for any designer or digital artist. The ability to create dotted lines not only refines linear elements but also extends to shaping dotted outlines for various forms, adding a layer of sophistication and creativity to your designs.
To create dotted lines, circles, and shapes with dotted outlines using GIMP, follow these comprehensive steps:
- Open a New File in GIMP
- Locate the Menu Bar
- Use the Paths Tool to Draw the Line
- Edit the Default Color and Weight
- Set the Stroke Path Options
- Select the Style and Make Line Dotted
- Save the File
Let’s delve into each step in detail to ensure a clear understanding of the process.
1. Open a New File in GIMP¶
Begin by launching GIMP, the free image editing software, on your computer. Once GIMP is open, initiate a new document to start your project. You can easily create a new document by navigating to the File menu located in the menu bar at the top of the GIMP interface. From the dropdown menu, select New. Alternatively, for a quicker approach, you can use the keyboard shortcut Ctrl + N (Command + N on macOS).
Upon selecting ‘New’, the ‘Create a New Image’ dialog box will appear. This dialog box allows you to customize the parameters of your new document, such as width, height, resolution, and background color. Carefully consider the requirements of your project and input the desired settings. Once you have configured the document options to your preference, click the OK button to confirm your choices and open the blank canvas, ready for your design work.
2. Locate the Menu Bar¶
Familiarizing yourself with the GIMP interface is crucial for efficient workflow. The menu bar is a horizontal strip typically located at the very top of the GIMP window, just below the title bar. This menu bar is your primary access point to a wide range of GIMP’s functionalities, organized into categories such as File, Edit, Select, View, Image, Layer, Colors, Tools, Filters, Windows, and Help.
Understanding the layout of the menu bar and knowing where to find specific commands will significantly speed up your design process. For creating dotted lines, you will primarily interact with the ‘Tools’ and ‘Edit’ menus within this bar. Take a moment to explore the different menus and their sub-options to get a better grasp of GIMP’s organizational structure. This initial familiarization will prove invaluable as you progress through the steps of creating dotted lines and beyond.
3. Use the Paths Tool to Draw the Line¶
The Paths tool in GIMP is instrumental in creating precise lines and curves, which are essential for making dotted lines. You can access the Paths tool in several ways. Firstly, look at the toolbox, usually positioned on the left side of your GIMP window. The icon for the Paths tool resembles a Bezier curve or a pen nib. Click on this icon to activate the Paths tool.
Alternatively, you can access the Paths tool through the top menu bar. Click on Tools, then navigate down to Paths in the dropdown menu. A keyboard shortcut is also available for quick access: simply press the B key on your keyboard to directly select the Paths tool.
Once the Paths tool is active, click on your canvas to set the starting point of your line. Then, move your cursor to where you want the line to end and click again to set the endpoint. A straight line, or path segment, will be drawn between these two points. For more complex paths, you can continue clicking to add more points and create curves. For the purpose of creating a simple dotted line, two points will suffice. Remember, the initial line will appear with GIMP’s default settings, which you will customize in the subsequent steps.
4. Edit the Default Color and Weight¶
After creating your path using the Paths tool, the next step is to customize its appearance. By default, GIMP applies a standard color and line weight to paths, which may not align with your design requirements. To adjust these properties, you need to access the Stroke Path dialog.
Navigate to the top menu bar and click on Edit. From the dropdown menu, select Stroke Path. This action will open the ‘Stroke Path’ dialog box, presenting you with various options to modify the visual characteristics of your path.
Within the Stroke Path dialog, you will find options to change the line width and color. To adjust the line width, look for the ‘Line width’ field, typically displayed with a numerical value and a unit of measurement (like pixels - px). You can increase or decrease this value to make your line thicker or thinner, respectively. For color modification, you might need to adjust the foreground color in your toolbox. The Stroke Path tool generally uses the current foreground color. Ensure your foreground color is set to your desired color before proceeding to the next step. Modifying these settings at this stage allows you to establish the basic visual properties of your line before converting it to a dotted line.
5. Set the Stroke Path Options¶

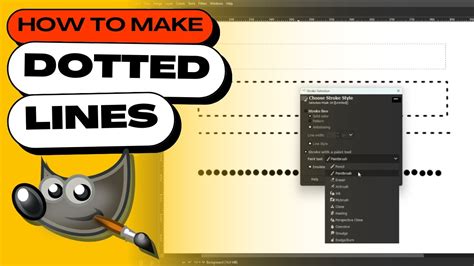

With the Stroke Path dialog box still open from the previous step, you will now focus on configuring the options that will transform your solid line into a dotted line. Within the Stroke Path dialog, locate the ‘Stroke Line’ section. By default, ‘Solid color’ is usually selected, indicating a continuous, unbroken line.
To create a dotted line, you need to change this setting. Look for and select the ‘Stroke with a paint tool’ option. Selecting this option expands the dialog to reveal further settings related to paint tools. You will typically see a dropdown menu that allows you to choose which paint tool GIMP should use to stroke the path. For basic dotted lines, the ‘Paintbrush’ tool is a suitable and commonly used option. Ensure that ‘Paintbrush’ or a similar basic paint tool is selected in this dropdown menu. This selection is crucial as it tells GIMP to apply the characteristics of the chosen paint tool to the path, which we will further customize to achieve the dotted effect.
6. Select the Style and Make Line Dotted¶
After selecting ‘Stroke with a paint tool’ and choosing a paint tool like ‘Paintbrush’, the next critical step is to define the style of the stroke to achieve the dotted line effect. Within the Stroke Path options, look for the ‘Line Style’ section. This section might be collapsed by default, so you may need to click on it to expand and reveal the line style options.
Once expanded, you will find settings related to dashes and dots. Locate the ‘Dash preset’ dropdown menu within the ‘Line Style’ options. Click on this dropdown to open a list of pre-defined dash and dot patterns. Scroll through the list to find options that resemble dotted lines. GIMP provides various dot patterns, often distinguished by the size and spacing of the dots. Select a dot pattern that best suits your desired aesthetic.
After choosing your preferred dot pattern from the ‘Dash preset’ list, review all your settings in the Stroke Path dialog to ensure they are as intended. Once satisfied, click the Stroke button located at the bottom of the dialog box. This action applies the selected stroke style, transforming your path into a dotted line on the canvas. Observe the result to confirm that the dotted line meets your expectations. You can always undo (Ctrl+Z) and re-adjust the Stroke Path options if needed.
7. Save the File¶
Once you are satisfied with your dotted line and any other edits you have made to your image in GIMP, it is crucial to save your work. To save your file, navigate to the File menu in the top menu bar and click on Export As. This option is generally recommended as it allows you to save your image in various file formats suitable for different purposes, such as PNG for web graphics with transparency or JPEG for photographs.
In the ‘Export Image’ dialog box that appears, choose a suitable file name for your project and select the desired file format from the dropdown menu. Select a destination folder on your computer where you want to save the file. After setting the file name, format, and destination, click the Export button to save your image.
For projects that you intend to edit further in GIMP, it is also advisable to save your work in GIMP’s native format, XCF. This format preserves layers, paths, and other editing information, allowing for non-destructive editing in the future. To save in XCF format, go to File > Save As and ensure the file format is set to XCF. Regular saving throughout your editing process is a good practice to prevent loss of work due to unexpected issues.
How do I move a path in GIMP?¶
Moving a path in GIMP after it has been created is a straightforward process, allowing for adjustments to the path’s position within your composition. To move a path, first, ensure that you have the Paths tool selected. You can activate it from the toolbox or by pressing the ‘B’ key.
Once the Paths tool is active, the key to moving a path is using the Alt key (Option key on macOS). Press and hold the Alt key, then click anywhere on the path you wish to move. While still holding down the Alt key and the mouse button, drag the path to the desired new location on your canvas. As you drag, the entire path will move as a single unit. Release the mouse button when the path is positioned correctly. This method allows for precise repositioning of paths without altering their shape or form, giving you flexibility in your design workflow.
How do I give a path a color in GIMP?¶
Assigning color to a path in GIMP is an integral part of the process of making lines and shapes visible and stylistically consistent with your design. Paths themselves are essentially outlines and are not visible until they are stroked. To give a path color, you need to use the Stroke Path function, which we used earlier to create dotted lines.
First, ensure your path is created using the Paths tool. Then, set your desired foreground color using the color picker in the toolbox. The foreground color is the color that will be applied when you stroke the path.
Next, navigate to Edit > Stroke Path from the top menu bar. In the Stroke Path dialog box, under the ‘Stroke Line’ section, ensure that ‘Stroke with a paint tool’ is selected. Choose a paint tool like ‘Paintbrush’ from the dropdown. The color applied will be the current foreground color you set. If you wish to use a different color, you must change the foreground color before stroking the path. After confirming your settings in the Stroke Path dialog, click Stroke. This action will render the path with the selected foreground color, making it visible on your image. Remember, you can adjust the color at any time by changing the foreground color and re-stroking the path.
Creating dotted lines in GIMP is a valuable skill that enhances the visual appeal and creativity of your digital artwork. By following these detailed steps, you can effectively incorporate dotted lines into your designs, adding a unique and professional touch. Experiment with different dot patterns, line weights, and colors to explore the full potential of dotted lines in your projects.
Now that you’ve learned how to master dotted lines in GIMP, we encourage you to try it out and see how this technique can elevate your designs. Feel free to share your experiences and creations in the comments below! What creative projects will you use dotted lines for?
