Mastering Static IPs: A Step-by-Step Guide for Windows 11 Users

Updated: • 0 • 10 min read

Experiencing network connection issues with DHCP configuration can make identifying your IP address a complex task. Utilizing a Static IP Address is beneficial as it mitigates IP address conflicts among networked devices and facilitates their streamlined management. This guide provides a comprehensive walkthrough on assigning a static IP address on a Windows 11 computer, and also covers Windows 10 for broader applicability.

Understanding Static vs. Dynamic IPs

In typical setups, routers automatically assign IP addresses to devices like PCs using Dynamic Host Configuration Protocol (DHCP). This is convenient for instant network connectivity, eliminating the need for manual IP configuration for each new device. However, DHCP comes with a drawback: a device’s IP address can change periodically.

For scenarios involving consistent file sharing, printer sharing, or setting up Port forwarding, a static IP address becomes essential. Let’s explore four methods to configure a static IP:

  1. Via Control Panel
  2. Via Windows Settings
  3. Using PowerShell
  4. Using Command Prompt

1. Setting a Static IP Address via Control Panel

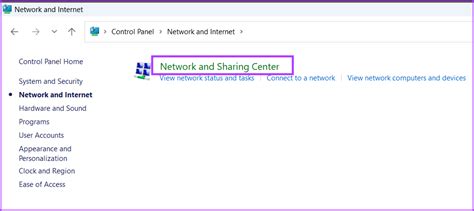

The Control Panel offers a traditional interface to manage system settings, including network configurations. This method is well-established and provides a visual, step-by-step approach to setting a static IP.

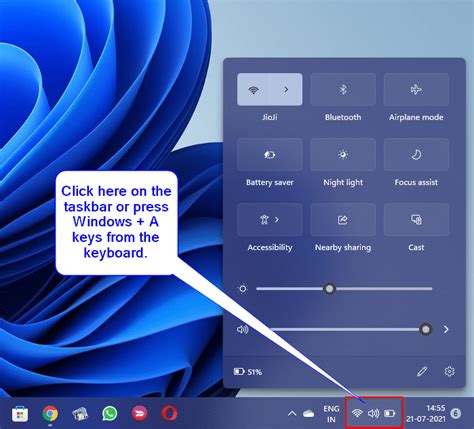

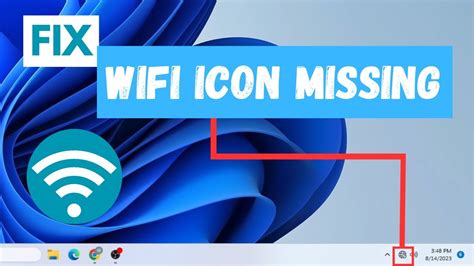

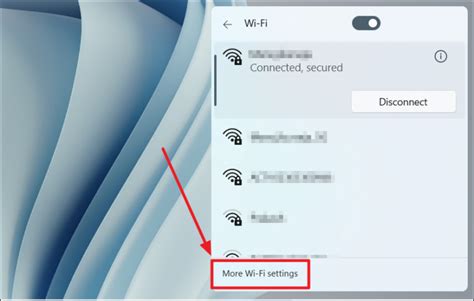

  1. Begin by right-clicking the network or Wi-Fi icon located in the Windows Taskbar. This icon is usually in the bottom-right corner of your screen.

    Network Icon Taskbar

  2. From the context menu that appears, select Open Network and Internet settings. This option is usually the second one in the list and will lead you to the network settings panel.

    Open Network and Internet settings

  3. In the Network & Internet settings window, navigate to the Wi-Fi or Ethernet section depending on your connection type. Scroll down to find the Related Settings section. Within this section, click on the Change adapter options link.

    Change adapter options

  4. Clicking “Change adapter options” will open a new window displaying the Network Connections section of the Control Panel. This window lists all your network adapters.

    Network Connections Control Panel

  5. Identify the network connection for which you want to set a static IP address. This could be your Wi-Fi adapter or your Ethernet adapter. Right-click on the chosen network connection and select Properties from the context menu.

    Network Adapter Properties

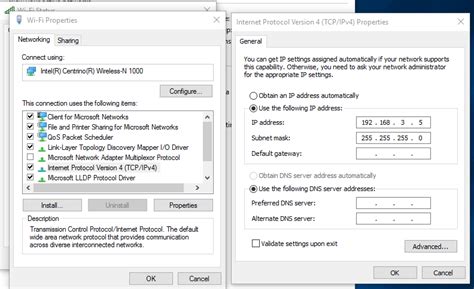

  6. In the network adapter’s Properties window, under the Networking tab, locate and select Internet Protocol Version 4 (TCP/IPv4). Once selected, click the Properties button below the list.

    TCP IPv4 Properties

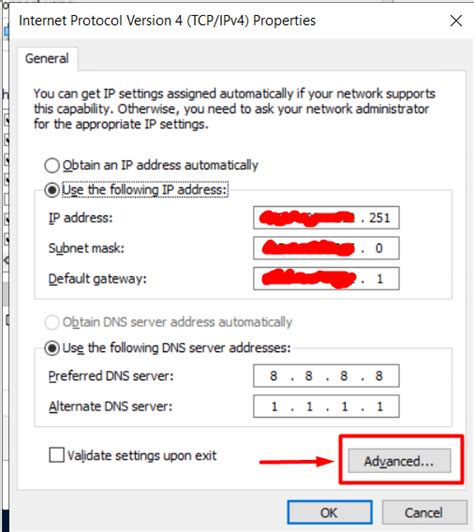

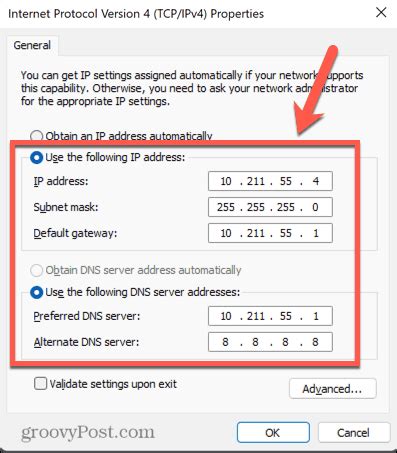

  7. In the Internet Protocol Version 4 (TCP/IPv4) Properties window, switch the radio button from “Obtain an IP address automatically” to Use the following IP address. This activates the fields where you can manually enter your static IP information.

    Use the following IP address

  8. Now, you need to fill in the following fields with information relevant to your network configuration.

    • IP address: This is the static IP address you want to assign to your computer. You can find a suitable IP address using the ipconfig /all command in Command Prompt.
    • Subnet Mask: For most home networks, the subnet mask is typically 255.255.255.0. This defines the network size.
    • Default Gateway: This is usually your router’s IP address, which acts as the gateway to the internet. You can often find this information on your router’s configuration page or by using ipconfig /all.

  9. Optionally, you can also configure Preferred DNS server and Alternate DNS server addresses. Using public DNS servers like Google’s (8.8.8.8 and 8.8.4.4) or Cloudflare’s (1.1.1.1 and 1.0.0.1) can sometimes improve browsing speed and reliability.

  10. Before finalizing, it is recommended to check the Validate settings upon exit option. This prompts Windows to test your new IP configuration to ensure it is working correctly and to detect any potential conflicts.

  11. If all the entered information is correct, click the OK button to save the changes in the TCP/IPv4 Properties window. Then, close the network adapter’s properties window by clicking Close. Your static IP address configuration via Control Panel is now complete.

2. Assign Static IP Address via Settings

The Settings app in Windows 11 and Windows 10 provides a modern interface for system configurations, offering an alternative to the Control Panel for setting static IPs. The steps are slightly different between Windows 11 and Windows 10, so we will cover both.

Windows 11

Windows 11’s Settings app offers a streamlined approach to network configuration. This method is user-friendly and integrates well with the overall Windows 11 experience.

  1. Right-click the Windows button on the Taskbar. This is the Start button, usually located at the far left of the taskbar. From the menu that appears, select Settings. Alternatively, you can press the Windows key + I simultaneously to directly open the Settings app.

    Windows Settings Button

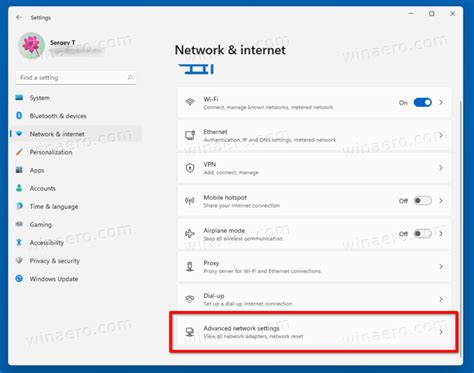

  2. In the Settings app, select Network & Internet from the side panel on the left. This section manages all network-related settings.

    Network and Internet Settings Windows 11

  3. In the Network & Internet section, choose either Wi-Fi or Ethernet depending on your connection type. Then, select your current network connection, which is the network you are currently connected to.

    Select Wi-Fi Connection Windows 11

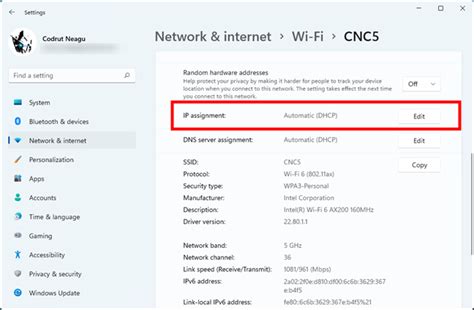

  4. On the network connection details page, scroll down until you find the IP assignment entry. Next to “IP assignment,” click the Edit button.

    IP Assignment Edit Button Windows 11

  5. An IP settings window will pop up. Click the drop-down arrow under “Edit IP settings” and select the Manual option. This will allow you to manually configure the IP settings.

    Manual IP Settings Windows 11

  6. Under Manual IP settings, toggle the switch next to IPv4 to the On position. This enables IPv4 configuration.

    IPv4 Toggle On Windows 11

  7. Now, you can set your static IP address and related network information.

    • IP address: Enter your desired static IP address.
    • Subnet prefix length: This is equivalent to the subnet mask. If your subnet mask is 255.255.255.0, the subnet prefix length is 24.
    • Default Gateway: Enter your router’s IP address.
    • Preferred DNS server and Alternate DNS server: Configure your DNS server addresses as needed.

  8. Once you have entered all the necessary information, click Save to apply the changes. Your Windows 11 system is now configured to use a static IP address.

Windows 10

The process for setting a static IP address via Settings in Windows 10 is very similar to Windows 11, with minor interface differences.

Related: loading

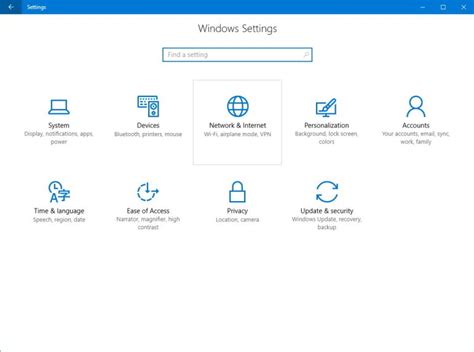

  1. Click the Settings icon in the Start Menu or Action Center. Alternatively, press Windows key + I. Choose the Network & Internet tab in the Settings window.

    Network and Internet Settings Windows 10

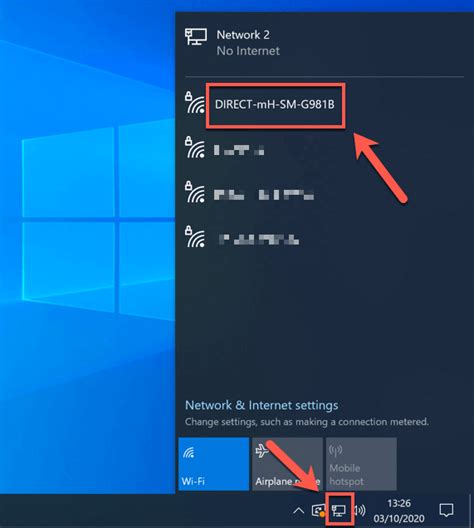

  2. Select either Wi-Fi or Ethernet from the left sidebar, depending on your connection. Then, click on your current connection, which is the name of the network you are connected to.

    Select Wi-Fi Connection Windows 10

  3. Scroll down to the IP settings section and click the Edit button.

    IP Settings Edit Button Windows 10

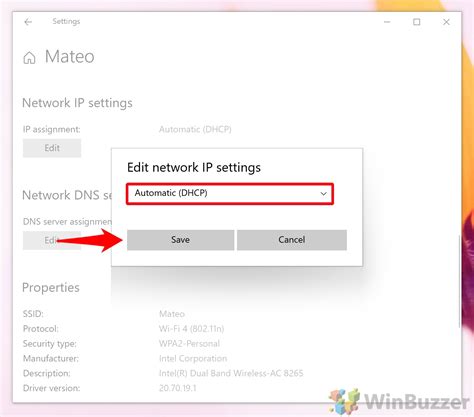

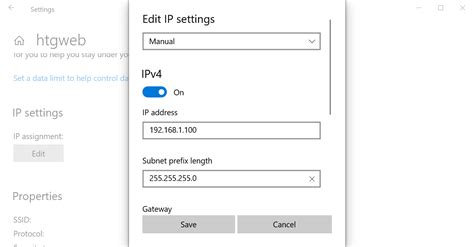

  4. In the IP settings window, click the drop-down arrow under “Edit IP settings” and select Manual.

    Manual IP Settings Windows 10

  5. Turn on the IPv4 toggle switch.

    IPv4 Toggle On Windows 10

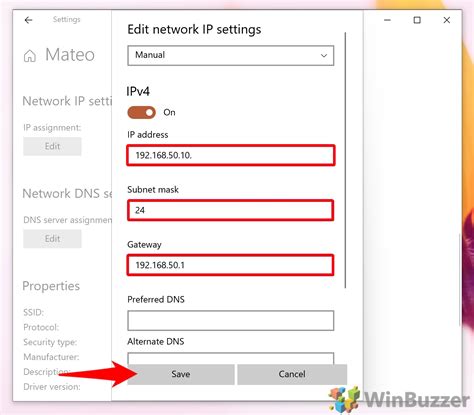

  6. Enter your static IP address, Subnet prefix length (subnet mask), Default Gateway address, and Preferred DNS address. Remember that a subnet mask of 255.255.255.0 corresponds to a subnet prefix length of 24.

  7. Click Save to apply the static IP configuration. Your Windows 10 machine is now set to use a static IP.

3. Assigning Static IP Address via PowerShell

PowerShell provides a command-line interface for system administration, offering a more efficient and scriptable way to configure a static IP address. This method is particularly useful for IT professionals and advanced users who prefer command-line operations.

  1. Open PowerShell as an Administrator. To do this, type “PowerShell” in the Windows search bar, right-click on “Windows PowerShell,” and select Run as administrator.

    Run PowerShell as Administrator

  2. In the elevated PowerShell prompt, enter the following command to view your current network configuration and press Enter:

    Get-NetIPConfiguration

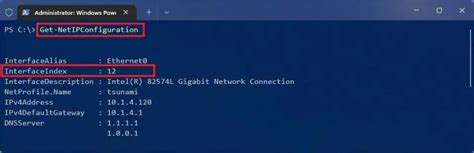

    This command will display detailed information about your network adapters and their current IP settings.

    Get-NetIPConfiguration Output

  3. From the output of Get-NetIPConfiguration, note down the following information for the network adapter you wish to configure:

    • InterfaceIndex: This is a numerical identifier for your network adapter.
    • IPv4Address: Your current dynamic IP address (if assigned).
    • IPv4DefaultGateway: Your current default gateway address.
    • DNSServer: Your current DNS server address.

  4. After gathering this information, use the following command to set a static IP address. Replace the placeholder values with your actual network details and desired static IP configuration. Press Enter to execute the command.

    New-NetIPAddress -InterfaceIndex <YourInterfaceIndex> -IPAddress <YourStaticIPAddress> -PrefixLength <SubnetPrefixLength> -DefaultGateway <YourDefaultGateway>

    For example:

    New-NetIPAddress -InterfaceIndex 15 -IPAddress 192.168.29.34 -PrefixLength 24 -DefaultGateway 192.168.29.1
    • Replace <YourInterfaceIndex> with the InterfaceIndex you noted earlier.
    • Replace <YourStaticIPAddress> with the static IP address you want to assign.
    • Replace <SubnetPrefixLength> with the subnet prefix length (e.g., 24 for a subnet mask of 255.255.255.0).
    • Replace <YourDefaultGateway> with your default gateway address.

  5. Next, set the DNS server address using the following command. Replace <YourInterfaceIndex> with your network adapter’s InterfaceIndex and <YourDNSServerAddress> with your desired DNS server address. Press Enter.

    Set-DnsClientServerAddress -InterfaceIndex <YourInterfaceIndex> -ServerAddresses <YourDNSServerAddress>

    For example, to use Google’s public DNS server:

    Set-DnsClientServerAddress -InterfaceIndex 15 -ServerAddresses 8.8.8.8,8.8.4.4

    You can specify multiple DNS server addresses separated by commas.

  6. Once you have executed these commands, the static IP configuration is set. You can verify the changes by running Get-NetIPConfiguration again. Type exit and press Enter to close the PowerShell prompt.

4. Assign a Static IP Address using Command Prompt

Command Prompt is another command-line interface in Windows, similar to PowerShell but with a different set of commands. It also provides a way to set a static IP address using the netsh command. This method is straightforward and widely compatible with different Windows versions.

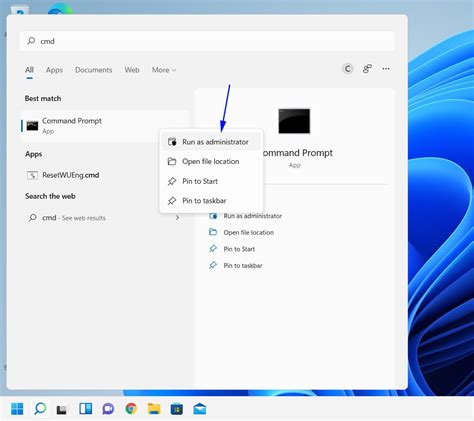

  1. Open Command Prompt as an Administrator. Type “cmd” in the Windows search bar, right-click on “Command Prompt,” and select Run as administrator.

    Run Command Prompt as Administrator

  2. In the elevated Command Prompt window, use the netsh interface ip set address command to set a static IP address. The basic syntax is:

    netsh interface ip set address name="<YourInterfaceName>" static <StaticIPAddress> <SubnetMask> <DefaultGateway>
    • Replace <YourInterfaceName> with the name of your network adapter. You can find this name in the Network Connections Control Panel (as shown in Method 1) or by using the command ipconfig /all in Command Prompt. Common names are “Ethernet” or “Wi-Fi”.
    • Replace <StaticIPAddress> with the static IP address you want to assign.
    • Replace <SubnetMask> with your subnet mask (e.g., 255.255.255.0).
    • Replace <DefaultGateway> with your default gateway address.

    For example, if your interface name is “Ethernet0”, you want to set the IP address to 192.168.1.10, the subnet mask to 255.255.255.0, and the default gateway to 192.168.1.1, the command would be:

    netsh interface ip set address name="Ethernet0" static 192.168.1.10 255.255.255.0 192.168.1.1

  3. To set a DNS server address, use the netsh interface ip set dns command. The syntax is:

    netsh interface ip set dns name="<YourInterfaceName>" static <DNSServerAddress> primary
    • Replace <YourInterfaceName> with your network adapter name.
    • Replace <DNSServerAddress> with your preferred DNS server address.

    For example, to set Google’s primary DNS server:

    netsh interface ip set dns name="Ethernet0" static 8.8.8.8 primary

    To add an alternate DNS server, use the add keyword instead of static and specify index=2:

    netsh interface ip add dns name="Ethernet0" <AlternateDNSServerAddress> index=2

    For example, to set Google’s alternate DNS server:

    netsh interface ip add dns name="Ethernet0" 8.8.4.4 index=2

  4. After running these commands, your static IP and DNS settings are configured. Type exit and press Enter to close the Command Prompt.

Understanding Static IP Connections

A static IP address, as the name suggests, is an IP address that is fixed and does not change. Once a device is assigned a static IP, its number typically remains constant unless the device is decommissioned or the network architecture is significantly altered. Static IPs are primarily used by servers and critical network equipment that require consistent accessibility.

Uses of Static IPs

Static IP addresses offer several advantages, particularly for network services and remote access:

  • Reliable Remote Access: Static IPs facilitate easier and more reliable remote access. This is crucial for working remotely using Virtual Private Networks (VPNs) or other remote access software. The consistent IP address ensures stable connections.
  • Consistent Communication: Static IPs enhance the reliability of communication services, such as Voice over Internet Protocol (VoIP) for teleconferencing and video communications. A fixed IP address reduces the chances of connection disruptions due to IP address changes.
  • Hosting Services: If you are hosting a website, email server, or game server from your network, a static IP is often required. It allows users to consistently access your services at the same address.
  • Network Device Accessibility: Static IPs make it easier to manage and access network devices like printers, network-attached storage (NAS) devices, and security cameras. You can rely on a fixed address to reach these devices.

In summary, while dynamic IPs are suitable for general internet browsing and typical home network use, static IPs are indispensable for scenarios requiring consistent accessibility, remote management, and hosting services. Choosing between static and dynamic IPs depends on your specific network needs and usage patterns.

Feel free to share your experiences or questions about setting static IPs in the comments below! Which method do you find most convenient?
