Maximize Storage Efficiency: Optimizing Drive Usage in Windows 11 Storage Spaces

Updated: • 0 • 9 min read

Optimize Drive Usage in Storage Spaces

In the realm of data management within Windows 11, Storage Spaces provides a robust and flexible solution for pooling physical drives into a single, virtual storage entity. This technology not only simplifies storage management but also offers resilience and scalability. When you expand your Storage Space by adding new drives, Windows 11 is designed to automatically distribute data across all available drives to maximize space utilization. However, there are scenarios where manual intervention becomes necessary to ensure optimal drive usage within your Storage Spaces. This article delves into the methods for optimizing drive usage in Windows 11 Storage Spaces, ensuring your storage is efficiently managed and performing at its peak.

Understanding the Need for Drive Optimization in Storage Spaces

Storage Spaces in Windows 11 is a powerful feature that allows you to group multiple physical drives together into a storage pool. From this pool, you can create storage spaces, which are essentially virtual drives. These virtual drives offer benefits like increased capacity, data redundancy, and simplified management.

When a new drive is added to an existing Storage Space, ideally, the system should redistribute the data to balance the load and utilize the new capacity effectively. Windows 11 often provides an option to “Optimize drive usage” automatically during drive addition, ensuring data is spread across all drives. However, if this option was not selected, or if drives were added before a pool upgrade, the data may not be optimally distributed. This can lead to some drives being significantly fuller than others, potentially impacting performance and not fully leveraging the total storage capacity.

Optimizing drive usage in Storage Spaces is the process of re-balancing the data distribution across all drives in the pool. This process ensures that data is evenly spread, maximizing space utilization and potentially improving performance by reducing bottlenecks on heavily loaded drives. It’s a crucial maintenance task to keep your Storage Spaces running efficiently, especially after adding new drives or making significant changes to your storage configuration.

Methods to Optimize Drive Usage in Windows 11 Storage Spaces

Windows 11 provides multiple avenues to initiate the drive optimization process for Storage Spaces. Whether you prefer graphical interfaces or command-line tools, there is a method to suit your preference. Below, we explore three primary methods to optimize drive usage: using the Settings app, leveraging the Control Panel, and employing PowerShell commands. Each method offers a straightforward approach to ensure your storage pool is balanced and performing optimally.

1. Optimizing Drive Usage via the Settings App

The Settings app in Windows 11 offers a user-friendly interface for managing various system configurations, including Storage Spaces. This method is ideal for users who prefer a graphical approach and find navigating menus intuitive. The Settings app provides a clear and visual way to access and initiate the optimization process.

To optimize drive usage through the Settings app, follow these steps:

  1. Open the Settings App: Begin by pressing the Windows key + I simultaneously. This action will directly open the Settings application, providing access to system-wide configurations.

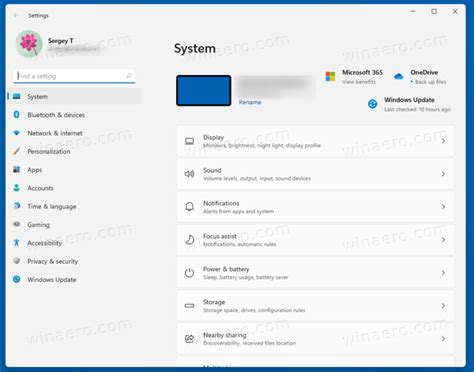

    Open Settings App

  2. Navigate to System Settings: Within the Settings app, click on the System category. This section houses settings related to display, sound, notifications, power, and, importantly, storage.

  3. Access Storage Settings: In the System settings menu, locate and click on Storage. The Storage settings page provides an overview of your storage devices and management options, including Storage Spaces.

  4. Manage Storage Spaces: Scroll down the Storage settings page until you find and click the Advanced storage settings dropdown menu. Expand this menu and then click on Storage Spaces. This action will take you to the Storage Spaces management interface.

  5. Expand the Storage Pool: You will see a list of your Storage Pools. Click on the chevron (>) next to the storage pool you wish to optimize. This expands the pool to show details and available actions.

  6. Initiate Optimization: Within the expanded storage pool details, locate and click the Optimize drive usage button. This button is typically found near the storage pool capacity information. Clicking this button will initiate the drive usage optimization process.

  7. Wait for Completion: Once you click “Optimize,” the process will commence. A progress indicator may be displayed, although sometimes it runs in the background. Be aware that optimization can take some time, especially for large storage pools or slower drives. During this time, you may experience a slight decrease in system performance as data is being moved.

Important Note: The optimization process can temporarily impact system performance as data is being redistributed. It is advisable to initiate optimization during periods of low system usage to minimize any potential disruption. While you can cancel the optimization process if needed, it’s generally recommended to allow it to complete to ensure optimal storage utilization.

Once the optimization process is complete, you can close the Settings app. Your Storage Space should now have a more balanced data distribution across all drives.

2. Optimizing Drive Usage via the Control Panel

For users who are more accustomed to the traditional Windows interface or prefer using the Control Panel, this method provides an alternative route to optimize Storage Space drive usage. The Control Panel, while gradually being phased out in favor of the Settings app, still retains access to many system management tools, including Storage Spaces.

Related: loading

Here’s how to optimize drive usage using the Control Panel:

  1. Open the Run Dialog: Press Windows key + R simultaneously to open the Run dialog box. This is a quick way to launch applications or commands directly.

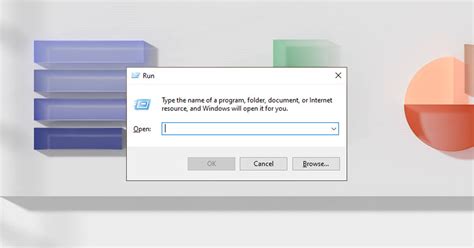

    Run Dialog Box

  2. Open Control Panel: In the Run dialog box, type control and press Enter. This command will launch the Control Panel application.

  3. Change View Settings: In the Control Panel window, locate the “View by” dropdown menu, typically in the top right corner. Change the view from “Category” to either “Large icons” or “Small icons”. This change will display all Control Panel items in an icon-based grid, making it easier to find “Storage Spaces.”

  4. Access Storage Spaces: Locate and click on the Storage Spaces icon within the Control Panel items. This will open the Storage Spaces management window.

  5. Identify and Select the Storage Pool: In the Storage Spaces window, you will see a list of your storage pools. Identify the storage pool you want to optimize and click on the “Change settings” link associated with that pool. You may be prompted by User Account Control (UAC); click “Yes” to proceed.

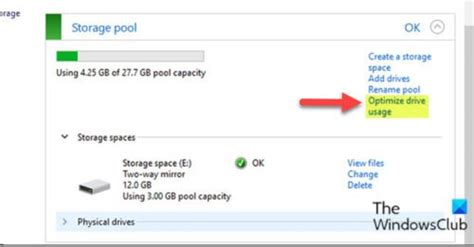

  6. Initiate Optimization: In the settings for the selected storage pool, you should find a link labeled “Optimize drive usage”. Click on this link. Then, click the “Optimize drive usage” button in the subsequent window that appears. This action will start the optimization process for the chosen storage pool.

  7. Wait for Completion: Similar to the Settings app method, the optimization process will take time to complete. Allow the process to run uninterrupted until it finishes. Avoid performing resource-intensive tasks on your computer during optimization to minimize performance impact.

Once the optimization is complete, you can close the Control Panel. Your Storage Space will now benefit from a more balanced distribution of data across its constituent drives.

3. Optimizing Drive Usage Using PowerShell

For advanced users or those who prefer command-line interfaces, PowerShell offers a powerful and efficient method to manage Storage Spaces, including optimizing drive usage. PowerShell provides granular control and allows for scripting and automation of storage management tasks.

To optimize drive usage via PowerShell, follow these steps:

  1. Open PowerShell as Administrator: Press Windows key + X to open the Power User Menu (or right-click on the Start button). From the menu, select “Windows PowerShell (Admin)” or “Terminal (Admin)”. It is crucial to run PowerShell as an administrator for Storage Spaces management commands to execute correctly. Click “Yes” if prompted by User Account Control (UAC).

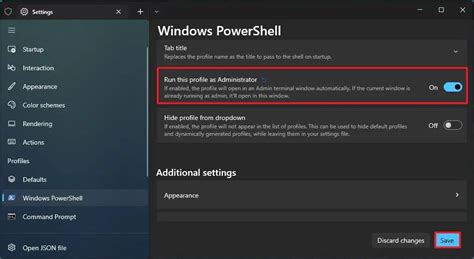

    PowerShell Admin

  2. Retrieve Storage Pool Information: In the elevated PowerShell console, type the following command and press Enter:

    Get-StoragePool

    This command retrieves information about all Storage Pools on your system. Examine the output and note down the “FriendlyName” of the Storage Pool you want to optimize. The FriendlyName is a user-defined name that identifies your storage pool.

  3. Initiate Optimization Command: Once you have the FriendlyName, type the following command into the PowerShell window, replacing <Name> with the actual FriendlyName you noted in the previous step, and press Enter:

    Optimize-StoragePool -FriendlyName "<Name>"

    For example, if your Storage Pool’s FriendlyName is “MyStoragePool,” the command would be:

    Optimize-StoragePool -FriendlyName "MyStoragePool"

    This command instructs PowerShell to initiate the drive optimization process for the specified Storage Pool.

  4. Wait for Completion: PowerShell will execute the optimization command. There may not be a visual progress bar in the PowerShell console, but the process will run in the background. Optimization time depends on the size of the storage pool and drive speeds.

  5. Exit PowerShell: After allowing sufficient time for optimization to complete (especially for large pools), you can close the PowerShell window by typing exit and pressing Enter, or simply closing the window.

PowerShell offers a scriptable and efficient way to optimize Storage Spaces drive usage, particularly useful for administrators managing multiple systems or needing to automate storage maintenance tasks.

Best Practices for Storage Space Optimization

To maintain optimal performance and efficiency of your Storage Spaces, consider these best practices related to drive optimization:

  • Regular Optimization After Drive Additions: Whenever you add new physical drives to your Storage Space, it is highly recommended to perform drive optimization soon after. This ensures that the newly added capacity is effectively utilized and data is evenly distributed across all drives, including the new ones.

  • Scheduled Optimization (If Necessary): While Storage Spaces are designed to be self-managing to a degree, if you notice performance degradation or uneven drive usage over time, consider performing optimization periodically. However, frequent optimization is generally not required under normal usage conditions.

  • Monitor Storage Pool Health: Regularly check the health status of your Storage Pools and physical drives using the Settings app, Control Panel, or PowerShell. Address any reported issues promptly, such as drive failures or warnings, as these can impact performance and data availability.

  • Optimize During Low Usage Periods: As optimization can be resource-intensive, it is best to initiate the process during periods of low system activity. This minimizes any potential performance impact on active tasks. Consider running optimization overnight or during scheduled maintenance windows.

  • Understand Storage Space Types: Different Storage Space layouts (Simple, Mirror, Parity) have varying performance and redundancy characteristics. Choose the layout that best suits your needs and usage patterns. Optimization behavior might also subtly differ depending on the storage space type.

  • Consider Drive Types and Speeds: For optimal performance, it is generally recommended to use drives of similar types and speeds within a Storage Pool. Mixing significantly different drive types (e.g., SSDs and HDDs) might lead to performance imbalances even after optimization.

Conclusion

Optimizing drive usage in Windows 11 Storage Spaces is a vital maintenance task to ensure efficient storage utilization and maintain optimal performance. Whether you choose the user-friendly Settings app, the familiar Control Panel, or the powerful PowerShell, the process is straightforward and can significantly benefit your storage system. By regularly optimizing your Storage Spaces, especially after expanding your storage capacity, you can ensure that your data is distributed effectively, maximizing both space and performance. Implementing these methods and best practices will contribute to a robust and efficient storage infrastructure within your Windows 11 environment.

Have you optimized your Storage Spaces in Windows 11? Which method do you find most convenient? Share your experiences and tips in the comments below!
