Maximize Your Drive: A Professional Guide to Allocating Unallocated Space in Windows 11/10

Updated: • 0 • 13 min read

Unallocated space on your hard drive, as seen in Disk Management, represents storage capacity that Windows cannot currently utilize. Imagine it as an extra room in your home that exists but remains inaccessible. While the system recognizes its presence, location, and size, it remains unusable until properly allocated. This guide will provide a professional walkthrough on how to effectively use unallocated drive space within Windows 10 and 11. By allocating this space, you can either create new storage volumes or expand existing ones, thereby optimizing your drive’s capacity and organization.

Understanding Partition Types

To effectively utilize unallocated space, it is crucial to understand the types of partitions you can create within Windows. These partitions determine how Windows organizes and accesses data on your drive. Choosing the right partition type depends on your specific needs and how you intend to use the allocated space. Windows offers several volume types to manage your unallocated space effectively, each serving different purposes:

Simple Volumes

Simple volumes are the most common type of partition, representing a basic, independent drive within your system. They function as a single, contiguous unit of storage, typically assigned a drive letter like D:, E:, or F:. Simple volumes are ideal for general storage needs, such as installing applications, storing documents, or creating personal file repositories. Most PC users are familiar with simple volumes as they are the default partition type created when setting up a new hard drive or partitioning unallocated space for standard usage.

Spanned Volumes

Spanned volumes offer a way to combine unallocated space from two or more physical hard drives into a single logical volume. This is useful when you have multiple drives with small amounts of unallocated space and wish to create a larger volume without purchasing a new, larger drive. When data is written to a spanned volume, it first fills up space on one physical disk and then continues onto the next disk in the span. While it increases storage capacity, spanned volumes do not offer performance benefits and are more susceptible to data loss if one of the physical drives fails, as data is spread across multiple disks.

Striped Volumes

Striped volumes, also known as RAID 0, are designed to enhance disk performance by distributing data evenly across two or more physical drives. This “striping” of data allows for faster read and write speeds as multiple drives work in parallel to access data. Striped volumes are particularly beneficial for tasks that require high disk I/O, such as video editing, gaming, or running virtual machines. However, similar to spanned volumes, striped volumes also carry a higher risk of data loss. If one drive in the striped set fails, all data across the entire volume is typically lost, as data is fragmented and dependent on all drives functioning correctly. You require at least two unallocated spaces on separate physical drives to create a striped volume.

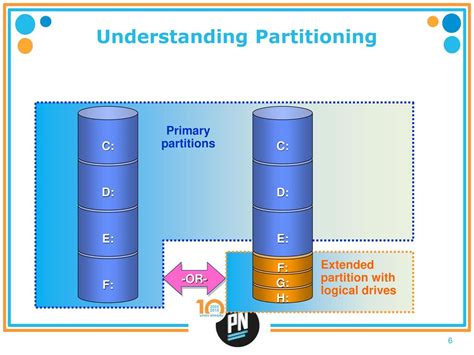

Understanding Partition Types

Creating a New Simple Volume from Unallocated Space

To transform unallocated space into usable storage, you can create a new simple volume. This process involves using the Disk Management tool in Windows and following a straightforward wizard. By creating a new volume, you essentially format and assign a drive letter to the unallocated space, making it accessible for storing files and applications.

Here are the steps to create a new simple volume:

  1. Access Disk Management: Right-click on the Windows Start button (WinX Menu) and select Disk Management from the menu. This will open the Disk Management console, displaying all connected drives and their partitions.

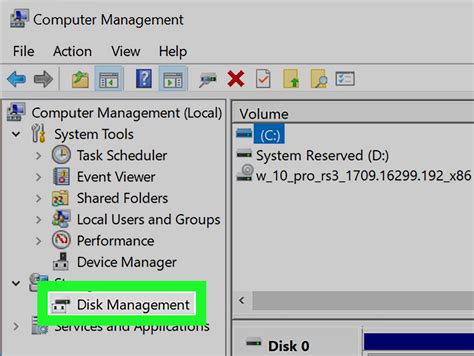

    Access Disk Management

  2. Locate Unallocated Space: In Disk Management, identify the unallocated space. It will be represented as a grey bar with the label “Unallocated” and will show the size of the available space.

  3. Initiate New Simple Volume Wizard: Right-click on the unallocated space you wish to use. From the context menu, select New Simple Volume…. This action launches the New Simple Volume Wizard, guiding you through the volume creation process.

  4. Welcome and Size Specification: The New Simple Volume Wizard will appear. Click Next to proceed. In the “Specify Volume Size” screen, you can define the size of the new volume in megabytes (MB). The default size will be the maximum available unallocated space. You can choose to use the entire unallocated space or specify a smaller size. If you choose a smaller size, the remaining space will remain unallocated and can be used later. Click Next after setting the size.

  5. Assign Drive Letter or Path: In the “Assign Drive Letter or Path” screen, you can assign a drive letter to the new volume (e.g., E:, F:, G:). You can either select a suggested drive letter or choose one from the dropdown list. Alternatively, you can mount the volume as an empty folder in an existing NTFS volume, though assigning a drive letter is more common for new storage volumes. Click Next after making your selection.

  6. Format Partition: The “Format Partition” screen allows you to configure the file system and volume label. Choose NTFS as the file system, which is the standard and recommended file system for Windows. Enter a descriptive Volume label (name) for the new drive to easily identify it in File Explorer (e.g., “Data Drive”, “New Storage”). You can leave the “Allocation unit size” as default. The “Perform a quick format” option is checked by default and is recommended for faster formatting. Unchecking it will perform a full format, which takes longer but can be useful for thoroughly checking the disk for errors. Click Next to continue.

  7. Completing the New Simple Volume Wizard: The final “Completing the New Simple Volume Wizard” screen displays a summary of your chosen settings. Review these settings to ensure they are correct. If you are satisfied, click Finish to create the new volume. If you need to make changes, click Back to return to previous screens. Clicking Cancel will stop the volume creation process.

  8. Formatting and Completion: Windows will now format the newly created volume. The time taken for formatting depends on the size of the volume and whether a quick or full format was selected. During formatting, Disk Management will show the status as “Formatting” in the Status column. Once formatting is complete, the unallocated space will be transformed into a new, functional volume with the assigned drive letter and volume label, ready for use.

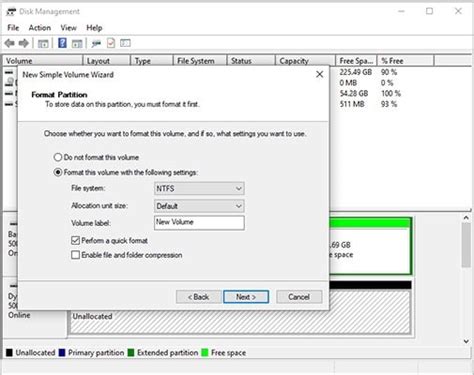

Creating a New Simple Volume

Extending an Existing Volume with Unallocated Space

Another effective way to utilize unallocated space is by extending an existing volume. This process merges unallocated space into an adjacent volume, increasing its total storage capacity. Extending a volume is particularly useful when you are running out of space on a specific drive and have unallocated space available on the same physical disk. This eliminates the need to create a new drive and allows you to seamlessly increase the size of your existing storage.

Follow these steps to extend an existing volume:

  1. Open Disk Management: Access the Disk Management console by right-clicking the Start button and selecting Disk Management.

  2. Select Volume to Extend: In Disk Management, identify the volume you want to extend. Important: The unallocated space must be directly adjacent to the right of the volume you intend to extend. If there are other partitions between the volume and the unallocated space, you will not be able to extend the volume directly using Disk Management.

  3. Initiate Extend Volume Wizard: Right-click on the volume you wish to extend. From the context menu, select Extend Volume…. This will launch the Extend Volume Wizard.

  4. Welcome to the Extend Volume Wizard: The Extend Volume Wizard will appear. Click Next to proceed.

  5. Select Disks: In the “Select Disks” screen, you will see the available disks and the amount of unallocated space that can be used to extend the selected volume. Typically, if the unallocated space is adjacent, it will be automatically selected and displayed under “Disks selected”. You can adjust the amount of space to extend by in the “Size of extend in MB” box. The default value is usually the entire available unallocated space, which is generally recommended. You can choose to use less than the total unallocated space, leaving the remainder unallocated for other purposes. Click Next after selecting the size.

  6. Completing the Extend Volume Wizard: The final “Completing the Extend Volume Wizard” screen will display a summary of the operation, showing the disk and the amount of space to be added. Review the information and click Finish to extend the volume. Clicking Back allows you to modify your choices, and Cancel will stop the extension process.

  7. Volume Extension and Completion: Disk Management will now extend the selected volume using the unallocated space. Once the process is complete, the Disk Management console will reflect the increased size of the extended volume. The drive letter and existing data on the volume remain unchanged; only the capacity of the volume is increased.

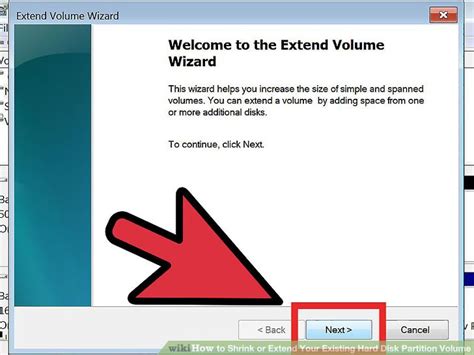

Extending an Existing Volume

Important Note on Power Supply:

Before initiating either the creation of a new volume or the extension of an existing volume, ensure your device has a stable power supply. For laptops, it is crucial to have them plugged into a power source throughout the process. This prevents interruptions in case of power outages. While laptop batteries can provide backup power, it is best to avoid relying on battery power alone during disk operations. For desktop computers, consider using an Uninterruptible Power Supply (UPS) to safeguard against power loss. Power interruptions during disk partitioning or formatting can lead to data corruption or damage to the drive, potentially resulting in data loss or system instability.

Utilizing Unallocated Space on SSDs

The process of using unallocated space on Solid State Drives (SSDs) is virtually identical to that of traditional Hard Disk Drives (HDDs). SSDs, while differing in technology, are managed by Windows Disk Management in the same way as HDDs. You can create new simple volumes or extend existing volumes on SSDs using the same steps outlined above.

To access Disk Management on an SSD:

  1. Computer Management: Right-click on the “This PC” icon (or “Computer” in older Windows versions) in File Explorer’s left panel and select Manage. In Windows 11, you might need to click “Show more options” to see the “Manage” option in the context menu.
  2. Disk Management within Computer Management: In the Computer Management window, navigate to the left pane and under “Storage,” click on Disk Management. This will open the Disk Management console, displaying your SSD and any unallocated space present.

From this point, follow the same steps for creating a new simple volume or extending an existing volume as described for HDDs. The performance benefits of SSDs are not directly affected by partitioning in the same way as HDDs. However, proper partitioning can still help with organization and system management on SSDs.

Related: loading

Converting Free Space to Unallocated Space

Free space within a partition is simply unused space within an already formatted and accessible volume. Unallocated space, on the other hand, is space on the hard drive that is not part of any partition and is therefore inaccessible to the operating system. To convert free space to unallocated space, you need to shrink an existing partition. This process reduces the size of a volume, effectively creating unallocated space from the previously free space.

Here’s how to change free space to unallocated space:

  1. Open Disk Management: Launch the Disk Management console.
  2. Shrink Volume: Right-click on the partition that contains free space you wish to convert to unallocated space. Select Shrink Volume… from the context menu.
  3. Enter Shrink Amount: In the “Enter the amount of space to shrink in MB” dialog box, specify the amount of space you want to shrink from the selected partition. This amount will be converted to unallocated space. Ensure that the “Enter the amount of space to shrink in MB” value is less than or equal to the “Size of available shrink space in MB” value displayed.
  4. Shrink and Create Unallocated Space: Click Shrink. Disk Management will reduce the size of the selected partition and create unallocated space immediately to the right of it. This unallocated space can then be used to create a new volume or extend another existing partition.

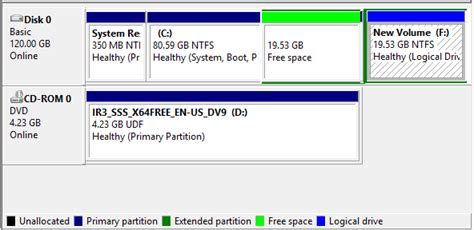

Converting Free Space to Unallocated Space

Pros and Cons of Hard Drive Partitioning

Partitioning a hard drive offers several advantages in terms of organization, security, and system management. However, it also comes with certain drawbacks that should be considered. Understanding these pros and cons is crucial for making informed decisions about partitioning your hard drives.

Pros of Partitioning:

Feature Description
Operating System Isolation Separating the OS and program files onto different partitions can optimize system performance and stability.
Improved Organization Partitioning allows for better data organization, enabling users to group related files and programs together for easier access and management.
Multi-Boot Setup Partitioning is essential for setting up multi-boot environments, allowing users to install and run multiple operating systems on the same computer.
Data Protection Isolating files on separate partitions can enhance data protection. If one partition becomes corrupted or requires reformatting, other partitions remain unaffected.
Efficient Backups Partitioning enables image backups of only the operating system and installed software, reducing backup size and time.

Cons of Partitioning:

Feature Description
Reduced Total Storage Partitioning slightly reduces the total usable storage space on the drive due to partition table overhead.
HDD Performance Impact On HDDs, frequent data access across different partitions can slightly reduce performance due to increased seek times (SSDs are less affected).
Capacity Limitations Partitioning can prevent using the entire disk capacity for a single large folder, file, or application, as storage is divided among partitions.

Resolving “Extend Volume” Option Greyed Out Issues

Occasionally, users may find that the “Extend Volume…” option is greyed out when they attempt to extend a volume in Disk Management. This issue typically arises due to specific conditions that prevent the extension process from being available. Understanding these conditions is key to troubleshooting and resolving the problem.

Common Reasons for Greyed Out “Extend Volume” Option:

  1. No Adjacent Unallocated Space: The most common reason is the lack of contiguous unallocated space immediately to the right of the volume you intend to extend. Disk Management’s Extend Volume feature requires the unallocated space to be directly adjacent to the target volume on the right side. If any other partition exists between the volume and the unallocated space, the extend option will be disabled.

  2. File System Limitations: The volume you are trying to extend must be formatted with the NTFS or RAW file system. The FAT32 file system does not support volume extension via Disk Management.

  3. Partition Type Restrictions: Basic disks and partitions are required for volume extension in Disk Management. Dynamic disks have different management methods and may not support extension in the same way.

  4. Logical Partition Limits: In some older systems or configurations using MBR partition schemes, there might be limitations on the number of logical partitions within an extended partition, which could indirectly affect the ability to extend volumes.

Resolving Greyed Out Extend Option:

  • Verify Unallocated Space Adjacency: Ensure that the unallocated space is directly to the right of the volume you want to extend in Disk Management. If partitions are in the way, you may need to use third-party partition management software to move or remove intermediate partitions (with caution and proper backups).

  • File System Check: Confirm that the volume you are extending is formatted with NTFS. If it is FAT32, you will need to convert it to NTFS (data conversion may be required and should be done with backups).

  • Disk Type: Verify that you are working with basic disks. Dynamic disks are managed differently and require specific dynamic disk management procedures.

  • Third-Party Software: If Disk Management limitations are preventing volume extension (e.g., non-adjacent unallocated space), consider using reputable third-party partition management software. These tools often offer more flexible options for moving, resizing, and merging partitions, allowing you to rearrange partitions to make unallocated space adjacent for extension.

Extend Volume Greyed Out

By understanding how to allocate unallocated space, you can effectively manage your storage in Windows 10 and 11, optimizing drive capacity and organization to suit your needs. Whether you choose to create new volumes or extend existing ones, these techniques empower you to take full control of your disk space.

Do you have any questions or experiences with allocating unallocated space in Windows? Share your thoughts and comments below!
