Secure Boot DBX Update Failure: Revoking Microsoft PCA 2011 (Event ID 1798)

Table of Contents

• Understanding Event ID 1798¶
• Resolving Event ID 1798¶
• What is Secure Boot DBX Update?¶
• Importance of Secure Boot¶

Event ID 1798 is logged in Windows systems when the Secure Boot DBX update process encounters a specific scenario: an attempt to revoke the Microsoft Windows Production PCA 2011 certificate. This event, while seemingly an error, often indicates that your system’s security mechanisms are functioning as intended. It’s triggered when the system tries to add the Microsoft Windows Production PCA 2011 certificate to the DBX (Forbidden Signature Database). This particular certificate is considered older and less robust compared to the more current UEFI CA 2023 certificate. Understanding the context of this event requires knowledge of Secure Boot, DBX, and the role of certificates in system security.

Understanding Event ID 1798¶

Event ID 1798, in essence, is not an error that signifies a system malfunction or vulnerability. Instead, it’s a notification that the system’s security protocols are actively working to prevent potential security lapses. The core issue revolves around the DBX list, which is a critical component of UEFI Secure Boot. DBX stands for Database of Forbidden Signatures. It’s a list of digital signatures that are explicitly prohibited from being loaded during the system boot process. This mechanism is crucial for preventing the execution of potentially malicious or compromised software during startup, even before the operating system fully loads.

The purpose of Secure Boot is to ensure that only trusted and verified software is allowed to execute during the boot process. This trust is established through digital signatures. Every piece of boot software, from the UEFI firmware itself to boot loaders and drivers, is digitally signed by a trusted authority. Secure Boot checks these signatures against a database of allowed signatures (DB) and forbidden signatures (DBX). If a signature is found in the DB, the software is allowed to run. If it’s in the DBX, or if no valid signature is found, the software is blocked.

Event ID 1798 arises when the system attempts to update the DBX by adding the Microsoft Windows Production PCA 2011 certificate to it. This action is taken because this certificate is now considered less secure and could potentially be exploited. The system, in its effort to maintain a secure environment, flags this attempt as a notable event, logging it as Event ID 1798. It’s important to recognize that this event usually means the automatic security update mechanism is working to keep your system secure by preventing the use of outdated and potentially vulnerable certificates.

While Event ID 1798 itself isn’t harmful, it can indirectly suggest that your system might be relying on outdated security certificates. This doesn’t necessarily mean your system is immediately at risk, but it highlights the importance of keeping your system firmware and security certificates up to date. Resolving this event and ensuring the system uses the latest security measures often involves updating your PC firmware and ensuring the presence of the Windows UEFI CA 2023 certificate in the allowed database (DB).

Resolving Event ID 1798¶

Addressing Event ID 1798 primarily involves ensuring your system is using the most current and secure boot firmware and certificates. The recommended approaches to resolve this event center around updating your PC firmware and verifying the presence of the Windows UEFI CA 2023 certificate. Both of these methods aim to strengthen your system’s secure boot process and mitigate any potential risks associated with outdated certificates.

Here are the two primary methods to address Event ID 1798:

1. Update PC Firmware
2. Add Windows UEFI CA 2023 to DB

It is crucial to ensure you are logged in with an administrator account to perform these actions, as they involve system-level changes.

Method 1: Update PC Firmware¶

Updating your PC firmware is a comprehensive approach to resolving Event ID 1798 and maintaining overall system security. Firmware updates are essentially software updates for your computer’s hardware, including the UEFI firmware which manages the Secure Boot process. These updates often include the latest secure boot certificates, updated DBX lists, and other crucial security enhancements. By updating your firmware, you ensure that your system is running on the most current security foundation provided by your hardware manufacturer.

Firmware updates are typically distributed through Windows Update as optional updates. Here’s a step-by-step guide on how to update your PC firmware through Windows Settings:

1. Open Windows Settings: Access the Settings application by clicking on the Start Menu and selecting the “Settings” icon (gear icon). Alternatively, you can press the Windows key + I shortcut.

2. Navigate to Windows Update: In the Settings window, locate and click on “Windows Update” in the left-hand pane.

3. Access Advanced Options: Within the Windows Update settings, find and click on “Advanced options”. This section contains settings related to update delivery and optional updates.

4. Open Optional Updates: In the Advanced options menu, select “Optional updates”. This will display a list of optional updates available for your system, including driver updates and firmware updates.

5. Check for Firmware Updates: Look for a firmware update listed under Optional Updates. It may be listed under a category like “Firmware” or under your system manufacturer’s name. If a firmware update is available, select the checkbox next to it.

6. Download and Install: Once you have selected the firmware update, click the “Download & install” button. Windows will then download and install the firmware update.

7. Restart Your PC: After the download and installation process is complete, you will likely be prompted to restart your computer. It is essential to restart your PC to apply the firmware update completely. The system may reboot automatically during the firmware update process.

After the firmware update is installed and your system has restarted, the Event ID 1798 issue should be resolved. Updating the firmware ensures that your system’s Secure Boot mechanism is equipped with the latest certificates and security protocols, including the updated DBX and potentially the inclusion of UEFI CA 2023.

Method 2: Add Windows UEFI CA 2023 to DB¶

Another method to address Event ID 1798 involves manually adding the Windows UEFI CA 2023 certificate to the DB (Database of Allowed Signatures). The Windows UEFI CA 2023 certificate is the updated and more secure successor to the Microsoft Windows Production PCA 2011 certificate. By ensuring this newer certificate is in the DB, you are explicitly allowing software signed with it to boot, while the system’s security measures will continue to block software signed with the older, less secure certificate that is being revoked (Microsoft Windows Production PCA 2011).

This method involves using the Registry Editor, a powerful tool for modifying system settings. Caution: Incorrectly modifying the registry can cause serious system problems. It is highly recommended to back up your registry before making any changes.

Here are the steps to add Windows UEFI CA 2023 to the DB using Registry Editor:

Related: loading

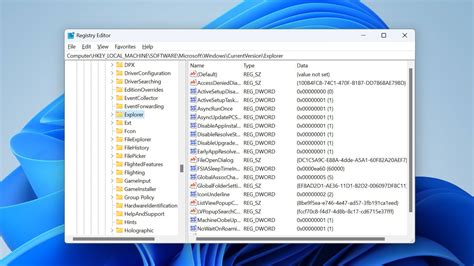

1. Open Registry Editor: Press the Windows key, type “regedit”, and select “Registry Editor” from the search results. You may be prompted to allow the app to make changes to your device; click “Yes”.

2. Navigate to the SecureBoot Key: In the Registry Editor window, navigate to the following path using the left-hand pane:

   HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecureBoot



   You can navigate by expanding the folders in the left pane or by pasting the path directly into the address bar of the Registry Editor.

3. Find the AvailableUpdates Entry: Within the SecureBoot key, locate the entry named AvailableUpdates. This entry is typically of type REG_DWORD.

4. Modify AvailableUpdates Value Data: Double-click on the AvailableUpdates entry to open its Edit DWORD (32-bit) Value dialog box.

5. Change Value Data to 0x40: In the “Value data” field, enter 40 (in hexadecimal) or 64 (in decimal). Hexadecimal 0x40 is often used in technical contexts related to Secure Boot and UEFI. Ensure the “Base” is set to “Hexadecimal” or “Decimal” accordingly.

6. Save Changes: Click “OK” to save the changes to the AvailableUpdates value.

7. Reboot Your PC: Close the Registry Editor and restart your computer. Rebooting is essential for the changes to the Secure Boot settings to be applied.

After your PC restarts, the DB update, including the addition of Windows UEFI CA 2023, should be applied. This method directly influences the Secure Boot database, ensuring that the system recognizes and trusts the updated certificate authority.

Important Considerations:

• Registry Backup: Before making any changes in the Registry Editor, it is strongly advised to create a backup of your registry. This allows you to restore your registry to its previous state if something goes wrong. In the Registry Editor, go to File > Export, choose a location and filename, and click “Save”.

• Administrator Rights: Both methods require administrator privileges. Ensure you are logged in to an administrator account before attempting these steps.

What is Secure Boot DBX Update?¶

The Secure Boot DBX update is a critical security mechanism designed to enhance the protection of systems against boot-level attacks. DBX stands for Forbidden Signature Database. This database contains a list of digital signatures representing software (UEFI modules, drivers, boot loaders, etc.) that are no longer trusted and should be blocked from execution during the boot process.

When a security vulnerability is discovered in a specific piece of boot software or a signing certificate is compromised, a DBX update is issued. This update adds the digital signature of the vulnerable or compromised software to the DBX. As a result, when Secure Boot checks the signatures of boot components during startup, any component whose signature matches an entry in the DBX will be prevented from loading.

The purpose of the DBX update is to proactively prevent attackers from exploiting known vulnerabilities in boot software to bypass security measures and load untrusted or malicious software. By maintaining an up-to-date DBX, systems can effectively block known threats at the earliest stages of the boot process, before the operating system even starts.

The update process for the DBX is typically managed by the operating system and the UEFI firmware. Windows, for example, regularly receives and applies DBX updates through Windows Update. These updates are crucial for maintaining a strong security posture against evolving threats.

Event ID 1798, in the context of DBX updates, often signals an attempt to revoke an older, less secure certificate like Microsoft Windows Production PCA 2011. While the event itself might seem like a failure notification, it’s often an indication that the system is actively attempting to update the DBX and enhance security by preventing the use of outdated certificates.

Importance of Secure Boot¶

Secure Boot is a fundamental security feature integrated into modern UEFI firmware. Its primary purpose is to ensure that only trusted and digitally signed software is allowed to run during the boot process. This is a critical defense mechanism against malware and other cyber threats that attempt to compromise a system at its most vulnerable stage – during startup.

Here’s why Secure Boot is necessary and important:

• Protection Against Boot-Level Malware: Traditional antivirus software typically starts after the operating system has loaded. Boot-level malware, also known as bootkits or rootkits, can infect the system before the operating system and security software even start. Secure Boot acts as the first line of defense, preventing unauthorized software from loading at this critical stage.

• Ensuring System Integrity: By verifying the digital signatures of boot components (firmware, UEFI drivers, boot loaders, operating system kernel), Secure Boot ensures the integrity of the entire boot process. It prevents tampering or modification of these critical components by unauthorized entities.

• Preventing Unauthorized Operating Systems: In environments where system control is paramount, Secure Boot can be configured to only allow booting of specific, authorized operating systems. This can be important in corporate or regulated environments to prevent users from booting into unapproved or potentially insecure operating systems.

• Mitigating Firmware Attacks: Modern malware is increasingly targeting firmware to establish persistent and difficult-to-detect infections. Secure Boot, when combined with other firmware security measures, helps to protect against such attacks by verifying the integrity of the firmware itself and preventing the execution of malicious code within the firmware environment.

• Building a Chain of Trust: Secure Boot establishes a “chain of trust” starting from the hardware level up to the operating system. Each component in the boot process verifies the signature of the next component before allowing it to execute. This chain of trust ensures that the entire boot process is secure and trustworthy.

While Secure Boot is a powerful security feature, it’s not a silver bullet. It’s one component of a comprehensive security strategy. It works best when combined with other security measures like antivirus software, firewalls, and regular security updates. However, Secure Boot provides a crucial layer of protection at the very foundation of the system, making it significantly more difficult for attackers to compromise a system at the boot level.

Have you encountered Event ID 1798 on your system? Were these troubleshooting steps helpful in resolving the issue? Share your experiences and questions in the comments below!
