Troubleshooting AutoCAD Installation Failures on Windows 11: A Comprehensive Guide

Updated: • 0 • min read
Table of Contents

AutoCAD stands as a premier design and drafting software globally, yet users occasionally encounter installation obstacles on Windows systems. These issues can manifest after upgrading from Windows 10 to Windows 11 or during a fresh installation. This article provides detailed solutions to address situations where AutoCAD encounters installation failures on Windows 11.

Resolving AutoCAD Installation Issues on Windows 11

If you are experiencing difficulties installing AutoCAD on Windows 11, the following solutions are designed to guide you through the troubleshooting process and resolve the problem effectively.

  1. Verify System Requirements Compatibility
  2. Disable Unicode UTF-8 Beta Feature
  3. Reinstall Autodesk Desktop Licensing Service
  4. Validate Date, Time, and Timezone Settings
  5. Temporarily Disable Antivirus Software
  6. Reinstall .NET Framework
  7. Perform a Clean Boot Installation

Let us delve into each of these solutions in detail to ensure a successful AutoCAD installation.

1] Verify System Requirements Compatibility

Check System Requirements

Prior to initiating the installation of AutoCAD, it is critical to confirm that your computer hardware specifications align with the minimum and recommended system requirements stipulated by Autodesk. Inadequate hardware resources are a common cause of installation failures and suboptimal software performance. The system requirements for AutoCAD on Windows are outlined below:

Requirement Specification
Operating System Windows 11/10 (64-bit)
Processor 3+ GHz
Memory (RAM) 16 GB
Display Resolution 1920 x 1080 or higher
Graphics Card 4 GB GPU with 106 GB/s Bandwidth, DirectX 12
Disk Space 10 GB Free Disk Space
.NET Framework Version 4.8 or later

To ascertain your system specifications, follow these steps:

  1. Press Windows Key + R to open the Run dialog box.
  2. Type dxdiag and press Enter or click OK. This command will launch the DirectX Diagnostic Tool.
  3. In the DirectX Diagnostic Tool window, you will find tabs providing comprehensive information about your system, including:
    • System tab: Details about your operating system, processor, and memory (RAM).
    • Display tab: Information about your graphics card, monitor resolution, and DirectX version.

Compare your system specifications against the recommended requirements. If your system falls short in any area, particularly in processor speed, RAM, or graphics card capabilities, consider upgrading your hardware to meet the necessary standards. Insufficient resources can lead to installation errors and hinder AutoCAD’s performance. Ensuring your system meets these requirements is a foundational step in resolving installation issues.

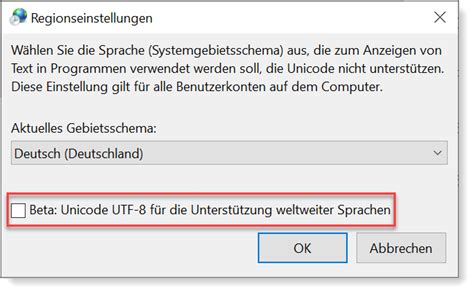

2] Disable Unicode UTF-8 Beta Feature

Disable Unicode UTF-8 Beta

Windows 11 includes a beta feature designed to enhance application compatibility by utilizing Unicode UTF-8 encoding for worldwide language support. While intended to broaden compatibility, this feature has been reported to interfere with certain applications, including AutoCAD, particularly during the installation process, as well as during file saving, exporting, and e_Transmit operations. Disabling this feature can often resolve installation problems.

To disable the “Beta: Use Unicode UTF-8 for worldwide language support” feature, adhere to these instructions:

  1. Open the Control Panel. You can search for “Control Panel” in the Windows search bar.
  2. Navigate to Clock and Region. Under this category, click on Region to open the Region settings.
  3. In the Region window, switch to the Administrative tab.
  4. Under the “Language for non-Unicode programs” section, click on Change system locale….
  5. In the “Region Settings” dialog, locate the checkbox labeled Beta: Use Unicode UTF-8 for worldwide language support. Uncheck this box to disable the feature.
  6. Click OK to apply the changes and then OK again to close the Region window.
  7. Restart your computer for the changes to take effect.

After restarting your system, attempt to reinstall AutoCAD. Disabling this beta feature eliminates a potential conflict that might be preventing successful installation.

3] Reinstall Autodesk Desktop Licensing Service

Reinstall Autodesk Licensing Service

The Autodesk Desktop Licensing Service is crucial for managing the licensing of Autodesk software products, including AutoCAD. If this service becomes corrupted or encounters issues, it can impede the installation and operation of AutoCAD. Reinstalling the Autodesk Desktop Licensing Service can rectify licensing-related installation failures.

Follow these steps to reinstall the Autodesk Desktop Licensing Service:

  1. Open File Explorer.
  2. Navigate to the default installation directory of the Autodesk Licensing Service. Typically, this is located at: C:\Program Files (x86)\Common Files\Autodesk Shared\AdskLicensing.
  3. Within the AdskLicensing folder, locate the uninstall.exe file.
  4. Right-click on uninstall.exe and select Run as administrator. This will initiate the uninstallation process of the Autodesk Desktop Licensing Service. Follow any on-screen prompts to complete the uninstallation.
  5. Once the service is uninstalled, you need to download the latest version of the Autodesk Licensing Service. Visit the official Autodesk website or search for “Autodesk Licensing Service download” on your preferred search engine. A direct link is often available on Autodesk support pages.
  6. Download the latest installer for the Autodesk Licensing Service from the Autodesk website.
  7. Run the downloaded installer and follow the on-screen instructions to install the Autodesk Licensing Service.
  8. After reinstalling the licensing service, restart your computer.
  9. Attempt to run the AutoCAD setup again to install the software.

Reinstalling the Autodesk Desktop Licensing Service ensures that you have a fresh and properly functioning licensing component, which is essential for a successful AutoCAD installation.

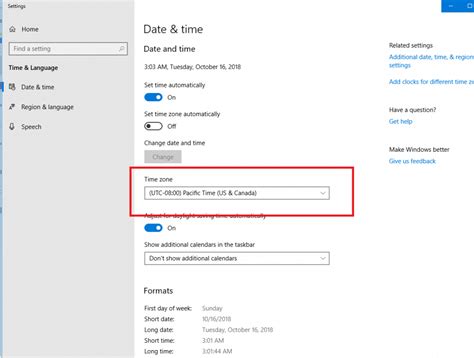

4] Validate Date, Time, and Timezone Settings

Check Date Time Timezone Settings

Incorrect date, time, or timezone settings on your Windows 11 system can sometimes interfere with software installations, including AutoCAD. AutoCAD relies on these settings for various processes, and discrepancies can lead to installation errors. Verifying and correcting these settings is a straightforward troubleshooting step.

To check and adjust your date, time, and timezone settings, proceed as follows:

  1. Open the Settings app. Press Windows Key + I to open Settings directly.
  2. Click on Time & Language.
  3. Select Date & time from the left-hand menu.
  4. Review your current date and time. If they are incorrect, manually set them to the correct values.
    • To set the time manually, toggle off Set time automatically and then click the Change button next to “Set date and time manually”.
    • To set the date manually, use the same “Set date and time manually” interface.
  5. Verify your Time zone. Ideally, the Set time zone automatically option should be enabled, which automatically detects and sets your timezone based on your location. If it is disabled or if the timezone is incorrect, ensure that Set time zone automatically is toggled on. If you prefer to set it manually or if automatic setting is not working correctly, choose the correct timezone from the dropdown menu.

After verifying and correcting your date, time, and timezone settings, attempt to rerun the AutoCAD installation. Accurate time settings are often more critical for software licensing and online activation processes.

5] Temporarily Disable Antivirus Software

Disable Antivirus Software

Antivirus software and firewalls are designed to protect your system from malicious software. However, in some instances, they can mistakenly flag legitimate software installations, such as AutoCAD, as potential threats and block the installation process. Temporarily disabling your antivirus software can help determine if it is interfering with the AutoCAD installation.

To temporarily disable your antivirus software:

  1. Locate the antivirus software icon in the system tray (usually in the bottom right corner of your taskbar).
  2. Right-click on the antivirus icon.
  3. Look for options such as “Disable protection,” “Turn off antivirus,” or similar, depending on your antivirus software. Select the option to temporarily disable it. You might be prompted to choose a duration for disabling; select a period long enough to complete the AutoCAD installation.
  4. If you are using Windows Defender Firewall, you can also temporarily disable it. Search for “Windows Defender Firewall” in the Windows search bar and open it. Click on “Turn Windows Defender Firewall on or off” in the left panel. Select “Turn off Windows Defender Firewall (not recommended)” for both private and public networks and click OK. Remember to re-enable the firewall after installation.

Caution: Disabling your antivirus software and firewall makes your system vulnerable to threats. Only disable them temporarily and re-enable them immediately after you have completed the AutoCAD installation and verified that it is working correctly.

After disabling your antivirus software, retry the AutoCAD installation. If the installation proceeds successfully, it indicates that your antivirus software was indeed interfering. You may need to configure exceptions in your antivirus software to allow AutoCAD to install and run without interruptions in the future.

6] Reinstall .NET Framework

Reinstall NET Framework

AutoCAD relies on the Microsoft .NET Framework to function correctly. If the .NET Framework installation on your system is corrupted or incomplete, it can lead to AutoCAD installation failures. Reinstalling the .NET Framework can resolve issues related to missing or corrupted framework components.

To reinstall the .NET Framework, follow these steps:

  1. Open the Control Panel.
  2. Navigate to Programs.
  3. Click on Programs and Features.
  4. In the “Programs and Features” window, click on Turn Windows features on or off in the left sidebar.
  5. In the “Windows Features” dialog, you will see a list of Windows components. Locate the entries for .NET Framework 3.5 (including .NET 2.0 and 3.0) and .NET Framework 4.8 Advanced Services (or the latest version available).
  6. Uncheck the boxes next to both .NET Framework 3.5 (including .NET 2.0 and 3.0) and .NET Framework 4.8 Advanced Services. Click OK. Windows will uninstall these .NET Framework components.
  7. Restart your computer when prompted to complete the uninstallation process.
  8. After restarting, reopen the “Windows Features” dialog (repeat steps 1-4).
  9. Check the boxes next to .NET Framework 3.5 (including .NET 2.0 and 3.0) and .NET Framework 4.8 Advanced Services again to reinstall them. Click OK. Windows will now reinstall the .NET Framework components. You may need an internet connection for Windows to download the necessary files.
  10. Restart your computer again after the reinstallation is complete.

After reinstalling the .NET Framework and restarting your system, attempt to install AutoCAD once more. A clean installation of the .NET Framework can resolve many compatibility and installation issues.

7] Install AutoCAD in Clean Boot State

Install AutoCAD in Clean Boot

A Clean Boot environment starts Windows with a minimal set of drivers and startup programs. This helps eliminate software conflicts that occur when you install a program in a normal Windows environment. If third-party applications or services are interfering with the AutoCAD installation, performing a Clean Boot can provide a clean environment for installation.

To perform a Clean Boot in Windows 11 and install AutoCAD:

  1. Press Windows Key + R to open the Run dialog.
  2. Type msconfig and press Enter or click OK to open the System Configuration utility.
  3. In the System Configuration window, go to the Services tab.
  4. Check the box labeled Hide all Microsoft services at the bottom left of the window. This is important to prevent disabling essential Microsoft services.
  5. Click the Disable all button. This will disable all remaining third-party services.
  6. Switch to the Startup tab in the System Configuration window.
  7. Click Open Task Manager.
  8. In Task Manager, under the Startup tab, you will see a list of startup items. Disable each startup item by selecting it and clicking Disable in the bottom right corner of the Task Manager window.
  9. Close Task Manager and go back to the System Configuration window.
  10. Click Apply and then OK in the System Configuration window.
  11. Click Restart when prompted to restart your computer in Clean Boot State.

After your computer restarts in Clean Boot State, attempt to install AutoCAD. If the installation is successful in this environment, it indicates that one of the disabled third-party services or startup programs was causing the conflict.

To identify the conflicting application:

  1. After successful installation, revert to normal boot by re-enabling services and startup programs incrementally, restarting your computer after each set of re-enabling, to identify which service or program is causing the conflict with AutoCAD.
  2. Once identified, you can either uninstall the conflicting software or configure it to coexist with AutoCAD.

To revert to normal boot after troubleshooting:

  1. Open System Configuration again (msconfig).
  2. On the General tab, select Normal startup.
  3. Go to the Services tab, uncheck Hide all Microsoft services, and click Enable all.
  4. Go to the Startup tab and click Open Task Manager, then Enable all startup items.
  5. Click OK in System Configuration and Restart your computer.

By following these troubleshooting steps, you should be able to identify and resolve the issues preventing AutoCAD from installing on your Windows 11 system.

Why is my AutoCAD not installing?

AutoCAD installation failures can stem from various underlying causes. Common reasons include:

  • System Requirement Mismatch: Your computer’s specifications may not meet the minimum requirements for AutoCAD, particularly in terms of processing power, RAM, graphics capabilities, or available disk space.
  • .NET Framework Issues: A corrupted, missing, or incompatible .NET Framework installation is a frequent cause, as AutoCAD relies heavily on this framework.
  • Software Conflicts: Interference from other software, including antivirus programs, firewalls, or other applications, can block the installation process.
  • Licensing Service Problems: Issues with the Autodesk Desktop Licensing Service can prevent successful installation and software activation.
  • Unicode UTF-8 Beta Feature: As mentioned earlier, this feature can sometimes cause conflicts during AutoCAD installation and operation.
  • Incorrect System Settings: Inaccurate date, time, or timezone settings can also lead to installation errors.

Addressing these potential issues through the troubleshooting steps outlined above should resolve most AutoCAD installation problems.

Why is AutoCAD not working on Windows 11?

If AutoCAD is installed but not functioning correctly on Windows 11, the reasons can be similar to installation failures, or they may arise post-installation. Common causes for AutoCAD not working properly include:

  • System Incompatibility: Although installed, your system may still be under-spec for optimal performance, leading to crashes or errors during operation.
  • Driver Issues: Outdated or incompatible graphics card drivers are a frequent cause of AutoCAD performance problems and crashes, especially on a new operating system like Windows 11. Ensure your graphics drivers are updated to the latest versions recommended by the manufacturer.
  • .NET Framework or Licensing Service Issues: Problems that arise after installation can still be related to the .NET Framework or the Autodesk Licensing Service. Reinstalling these components can sometimes resolve post-installation issues as well.
  • Software Conflicts: Newly installed software or updates to existing software post-AutoCAD installation might create conflicts that affect AutoCAD’s functionality.
  • Corrupted Installation: Although installation seemed successful, some files might have been corrupted during the process. Reinstalling AutoCAD might be necessary in such cases.

To resolve AutoCAD not working issues, ensure your system meets the recommended specifications, update your graphics drivers, check for software conflicts, and consider reinstalling both AutoCAD and its prerequisite components like the .NET Framework and Licensing Service.

If you continue to experience issues after trying these solutions, consider reaching out to Autodesk support for further assistance.

We encourage you to share your experiences and any additional troubleshooting tips in the comments below. Your insights can be valuable to other users facing similar AutoCAD installation challenges.
