Troubleshooting Blue Screen Errors: 0x0000007A, 0x00000077, 0x000000F4 on Windows

Updated: • 0 • 12 min read

Troubleshooting Blue Screen Errors

Blue Screen of Death (BSOD) errors, also known as stop errors, are critical system failures in Windows operating systems that can halt your work abruptly and lead to potential data loss. Among the various BSOD error codes, 0x0000007A, 0x00000077, and 0x000000F4 are commonly encountered, often appearing unexpectedly during prolonged computer usage, system startup, or at seemingly random times. These errors signal serious underlying issues that require immediate attention to restore system stability and prevent recurrence. Understanding the causes and effective troubleshooting methods for these specific error codes is crucial for maintaining a healthy and functional Windows environment.

Understanding Blue Screen Errors 0x0000007A, 0x00000077, and 0x000000F4

These specific blue screen errors, while distinct in their codes, often point to fundamental problems related to hardware, software, or the interaction between them. It’s important to recognize that a BSOD is not just a minor inconvenience; it’s a system’s way of signaling that it has encountered a problem it cannot resolve on its own and needs to shut down to prevent further damage. Let’s briefly touch upon what each of these error codes generally indicates before diving into solutions.

  • Error 0x0000007A (KERNEL_DATA_INPAGE_ERROR): This error often indicates a problem with the system’s memory management when trying to read requested data from the paging file into memory. It can be caused by bad sectors on the hard drive, faulty RAM, a corrupted page file, or even virus infections. Essentially, Windows cannot access a critical piece of data it needs to function.

  • Error 0x00000077 (KERNEL_STACK_INPAGE_ERROR): Similar to 0x0000007A, this error also relates to reading data into memory, but specifically, it points to an issue when trying to read the kernel stack from the paging file. The kernel stack is a vital area of memory used by the operating system kernel. Causes are often similar to 0x0000007A, including hard drive issues, RAM problems, or file system corruption.

  • Error 0x000000F4 (CRITICAL_OBJECT_TERMINATION): This error signifies that a critical system process or thread has unexpectedly terminated. This can happen due to various reasons, such as driver malfunctions, corrupted system files, or hardware failures, particularly related to the hard drive or power supply. It is a more general error indicating a severe system instability.

Fix Blue Screen Errors 0x0000007A, 0x00000077, 0x000000F4

When facing these blue screen errors in Windows 11 or Windows 10, a systematic approach to troubleshooting is essential. The following suggestions offer a range of diagnostic and corrective actions, starting with simpler software-based solutions and progressing to more involved hardware checks. Remember to perform these steps methodically and test your system after each step to see if the issue is resolved.

1. Run Blue Screen Troubleshooter

Blue Screen Troubleshooter Windows

Windows includes a built-in Blue Screen Troubleshooter that can automatically diagnose and sometimes fix common causes of BSOD errors. This is often the easiest first step and can resolve issues related to recent updates or system settings.

How to Run Blue Screen Troubleshooter:

  1. Open the Settings app. You can do this by pressing the Windows key + I.
  2. Navigate to System and then select Troubleshoot.
  3. Click on Other troubleshooters.
  4. Find Blue Screen in the list and click the Run button next to it.
  5. The troubleshooter will automatically start diagnosing your system for potential blue screen error causes. Follow any on-screen instructions provided by the troubleshooter.
  6. Once the troubleshooting process is complete, it will report if it found any problems and if it was able to fix them. Restart your computer to see if the blue screen error is resolved.

While the Blue Screen Troubleshooter is not a guaranteed fix, it’s a quick and safe way to address common software-related issues that might be triggering these errors.

2. Run Check Disk (ChkDsk)

Check Disk Command Prompt

Since errors 0x0000007A and 0x00000077 are often related to hard drive issues, running the Check Disk utility (ChkDsk) is a crucial step. ChkDsk scans your hard drive for file system errors and bad sectors, attempting to repair them. This can resolve data inpage errors and improve hard drive health.

How to Run ChkDsk:

  1. Open Command Prompt as an administrator. To do this, type “cmd” in the Windows search bar, right-click on “Command Prompt,” and select “Run as administrator.”
  2. In the Command Prompt window, type the following command and press Enter:
    chkdsk /f /r
    • /f parameter tells ChkDsk to fix any errors it finds.
    • /r parameter tells ChkDsk to locate bad sectors on the drive and recover readable information. This process includes the functionality of /f.
  3. You will be prompted to schedule the disk check to run at the next system restart because the drive is in use. Type Y and press Enter to confirm.
  4. Restart your computer. ChkDsk will run before Windows starts. This process can take a significant amount of time, especially for larger drives, so be patient and let it complete.
  5. After ChkDsk finishes and your system restarts, check if the blue screen errors persist.

Running ChkDsk regularly can help maintain the health of your hard drive and prevent file system related errors that can lead to BSODs.

3. Rollback or Update Device Drivers

Device Drivers Windows

Faulty or outdated device drivers, especially those related to your hard disk drive (HDD) or solid-state drive (SSD), can be a significant cause of blue screen errors. Drivers are essential software components that allow your operating system to communicate with hardware. If these drivers are corrupted, incompatible, or outdated, they can lead to system instability and BSODs.

How to Rollback Device Drivers:

Rolling back a driver reverts it to a previous version, which can be helpful if a recent driver update is causing problems.

  1. Open Device Manager. Right-click on the Start button and select “Device Manager,” or search for “Device Manager” in the Windows search bar.
  2. Expand the category of the device you suspect is causing the issue (e.g., “Disk drives” for HDD/SSD drivers, “Display adapters” for graphics drivers, etc.).
  3. Right-click on the specific device and select Properties.
  4. Go to the Driver tab.
  5. If the “Roll Back Driver” button is available (not grayed out), click it.
  6. Follow the on-screen prompts to complete the rollback process.
  7. Restart your computer.

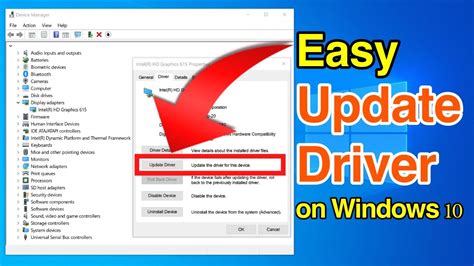

How to Update Device Drivers:

Updating to the latest drivers can fix bugs and compatibility issues that might be causing BSODs.

  1. Open Device Manager (as described above).
  2. Expand the device category.
  3. Right-click on the device and select Update driver.
  4. Choose “Search automatically for drivers”. Windows will search for and install the latest drivers if available.
  5. Alternatively, you can choose “Browse my computer for drivers” if you have downloaded the latest driver from the manufacturer’s website.
  6. Follow the on-screen prompts and restart your computer after updating the drivers.

It is particularly important to ensure that your storage controller drivers (for HDD/SSD) are up to date, as these directly interact with the hard drive and memory, both of which are implicated in errors 0x0000007A and 0x00000077.

4. Run Memory Diagnostics

Windows Memory Diagnostics Tool

Faulty RAM (Random Access Memory) is a common culprit behind blue screen errors, especially those related to data inpage and kernel stack errors. The Windows Memory Diagnostics tool is designed to test your computer’s RAM for problems.

How to Run Memory Diagnostics:

  1. Type “memory diagnostics” in the Windows search bar and select “Windows Memory Diagnostic”.
  2. You will be presented with two options:
    • Restart now and check for problems (recommended): This option will restart your computer immediately and run the memory test before Windows starts.
    • Check for problems the next time I start my computer: This option will schedule the memory test to run the next time you restart your computer.
  3. Choose the first option “Restart now and check for problems (recommended)”.
  4. Your computer will restart and boot into the Windows Memory Diagnostics tool. The tool will automatically perform a standard memory test. You can press F1 to change test options, such as switching to a more comprehensive test.
  5. Let the test complete. This may take some time.
  6. Once the test is finished, your computer will automatically restart and boot back into Windows.
  7. After logging in, the memory diagnostic test results should appear in the notification area. You can also find the results in the Event Viewer under “Windows Logs” -> “System”. Look for an event with the source “MemoryDiagnostics-Results.”

If the Memory Diagnostics tool finds errors, it indicates that you may have faulty RAM modules. In this case, you might need to replace the problematic RAM module(s).

Related: loading

5. Further BSOD Troubleshooting Steps

If the above steps haven’t resolved the blue screen errors, there are additional, more advanced troubleshooting steps you can consider. These often require a deeper understanding of system configuration and hardware.

  • System File Checker (SFC): Corrupted system files can cause various issues, including BSODs. The System File Checker tool can scan for and repair corrupted system files. Open Command Prompt as administrator and run the command sfc /scannow.

  • Check for Overheating: Overheating components, especially the CPU and GPU, can lead to system instability and BSODs. Ensure your computer’s cooling system is working correctly. Clean dust from fans and heat sinks, and monitor CPU and GPU temperatures using monitoring software.

  • Power Supply Issues: An insufficient or failing power supply can cause unpredictable system behavior, including BSODs, especially error 0x000000F4. If you suspect power issues, consider testing with a known good power supply or consulting a technician.

  • BIOS/UEFI Update: In some rare cases, outdated BIOS or UEFI firmware can cause hardware compatibility issues leading to BSODs. Check your motherboard manufacturer’s website for BIOS/UEFI updates and instructions on how to update. Be cautious when updating BIOS/UEFI as incorrect updates can render your system unusable.

  • Hardware Conflicts: Newly installed hardware or changes in hardware configuration can sometimes lead to conflicts and BSODs. If you recently added new hardware, try removing it to see if the problem resolves.

  • Virus and Malware Scan: Although less common, virus or malware infections can sometimes cause system instability and BSODs. Run a full system scan with a reputable antivirus and anti-malware program.

  • Reinstall Windows as a Last Resort: If all else fails, and you’ve exhausted all troubleshooting options, a clean installation of Windows can resolve deeply rooted software or configuration problems. Be sure to back up all your important data before performing a clean installation.

Addressing Error 0x000000F4 Specifically

Error 0x000000F4 (CRITICAL_OBJECT_TERMINATION) often points towards issues with the hard drive or storage subsystem. While the general troubleshooting steps above apply, there are specific checks you can perform focusing on your hard drive when encountering this particular error.

Checking SATA Cables and Hard Drive Connections

Loose or damaged SATA cables connecting your hard drive to the motherboard can cause intermittent connectivity issues, leading to error 0x000000F4.

How to Check SATA Cables:

  1. Power off your computer completely and unplug the power cord.
  2. Open your computer case (desktop) or the hard drive bay (laptop, if accessible).
  3. Locate the SATA cables connecting your hard drive to the motherboard and power supply.
  4. Carefully disconnect and reconnect both ends of each SATA cable to ensure they are firmly seated.
  5. Inspect the SATA cables for any signs of damage, such as kinks, bends, or breaks. If you suspect a cable is damaged, replace it with a new SATA cable.
  6. If you are using a laptop and the hard drive is easily accessible, try reseating the hard drive in its connector.

Testing the Hard Drive on Another PC

To further isolate if the hard drive itself is faulty, you can remove it from your current PC and connect it to a different, working Windows PC as a secondary drive.

How to Test Hard Drive on Another PC:

  1. Power off both computers completely.
  2. Remove the hard drive from the problematic PC.
  3. Open the case of the working PC and connect the removed hard drive as a secondary drive using a spare SATA port and power connector.
  4. Power on the working PC.
  5. Once Windows has booted on the working PC, see if you can access the files on the drive you just connected.
  6. Run ChkDsk on the drive from the working PC (right-click on the drive in File Explorer, go to Properties -> Tools -> Check).
  7. You can also use hard drive diagnostic tools provided by the drive manufacturer to test the drive’s health.

If the hard drive is not recognized or shows errors on the working PC, it’s likely that the hard drive itself is failing and needs to be replaced. If it works fine on another PC, the issue might be with the original computer’s motherboard, SATA controller, or power supply.

Microsoft Hotfix for Stop Errors 0x0000007A, 0x00000077, 0x000000F4

Microsoft has acknowledged an issue related to large SATA hard disks that can cause Stop Error Messages STOP 0x0000007A, STOP 0x00000077, and STOP 0x000000F4 in Windows client or Windows Server environments when resuming from sleep or hibernation. This issue is related to the time it takes for large SATA hard disks to become ready after resuming from a low-power state.

According to Microsoft, SATA hard disk drivers expect the disks to be ready within 10 seconds after resume. However, larger SATA hard disks, especially older models or those in certain configurations, might take longer than 10 seconds to become ready. This timeout can trigger the stop errors.

To address this, Microsoft released a hotfix, referred to as “Fix299433.” While the direct download link for this specific hotfix might no longer be readily available due to its age, it’s important to ensure your Windows system is up to date with the latest service packs and updates. Modern Windows updates often include fixes and improvements that address issues like this, even if not explicitly labeled as “Fix299433.”

Recommendation:

  • Ensure Windows is Up-to-Date: Make sure your Windows 10 or Windows 11 system is fully updated through Windows Update. Install all available updates, including optional updates. This will include a wide range of fixes and improvements, potentially including the fix for the SATA hard disk resume issue.
  • Search Microsoft Support for Relevant KB Articles: Search the Microsoft Support website using keywords like “Stop Error 0x0000007A 0x00000077 0x000000F4 SATA hard disk” to see if there are any relevant Knowledge Base (KB) articles or updated hotfixes that might apply to your specific Windows version.

By keeping your system updated, you benefit from a cumulative set of fixes and improvements, which can often resolve issues that might seem related to specific hotfixes like “Fix299433.”

Troubleshooting blue screen errors can be a complex process, but by systematically working through these steps, you can often identify and resolve the underlying causes of errors 0x0000007A, 0x00000077, and 0x000000F4. Remember to proceed methodically, test after each step, and consider seeking professional help if you are unable to resolve the issue yourself.

If you have successfully resolved these blue screen errors using other methods or have additional tips, please share your experiences in the comments below! Your insights can be valuable to other users facing similar challenges.
