Troubleshooting: DRAM Light On, No Display? Solutions Inside

Table of Contents

• Understanding the DRAM Light Indicator¶
• Initial Troubleshooting Steps¶
• Frequently Asked Questions (FAQ)¶

Motherboards are equipped with LED indicators to signal various hardware problems within a computer system. Among these indicators, the DRAM light specifically points to issues related to your system’s memory, or Dynamic Random-Access Memory. When the DRAM light on your motherboard illuminates orange and your monitor displays nothing, it signifies a potential problem preventing your computer from booting properly. This article provides a comprehensive guide to troubleshooting this specific scenario and offers several solutions to help you resolve the issue and restore your system to working order.

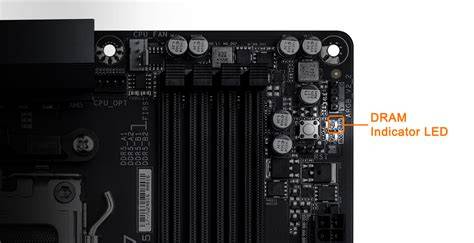

Understanding the DRAM Light Indicator¶

A motherboard serves as the central hub of a computer, integrating and connecting all essential hardware components, including the CPU, RAM, storage drives, and expansion cards. Modern motherboards often incorporate diagnostic LEDs to assist users in identifying hardware malfunctions during the Power-On Self-Test (POST) process. These LEDs are typically labeled with abbreviations like CPU, DRAM, VGA (or BOOT), and sometimes others depending on the manufacturer and model. When a problem is detected with a particular component during boot-up, the corresponding LED will light up, often in a specific color like orange or red, indicating the source of the error. In the context of a lit DRAM light, the motherboard is signaling a problem related to the system’s RAM. This could range from simple issues like improperly seated RAM modules to more complex problems such as RAM incompatibility or hardware failure of the RAM or even the CPU or motherboard itself. Recognizing the DRAM light is the first step towards effective troubleshooting and resolving the no-display issue.

Initial Troubleshooting Steps¶

When confronted with an orange DRAM light and no display, initiating a systematic troubleshooting process is crucial. Before delving into more intricate solutions, several preliminary steps can often resolve the problem quickly. These initial checks are straightforward and address common causes of DRAM-related boot failures.

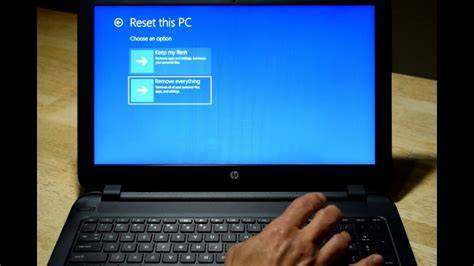

1. Perform a Hard Reset¶

The first and simplest troubleshooting step is to perform a hard reset. This process effectively drains any residual electrical charge from the system’s capacitors, which can sometimes resolve temporary glitches or boot issues. A hard reset is particularly useful when the system is in an unknown state or has encountered a soft lockup. To perform a hard reset correctly, follow these steps meticulously:

1. Power off your computer completely. Ensure that the system is not in sleep or hibernation mode, but fully shut down.
2. Disconnect all peripheral devices. Unplug all external devices connected to your computer, including USB drives, printers, external hard drives, monitors, keyboards, and mice. This isolates the core system components and eliminates potential conflicts from peripherals.
3. Unplug the power cable. Disconnect the power cord from the power supply unit at the back of your computer. This cuts off the power supply and allows for capacitor discharge.
4. Press and hold the power button for 30 to 45 seconds. While the power is disconnected, press and hold the power button on your computer case. This action helps to dissipate any stored electrical charge in the capacitors.
5. Reconnect the power cable and essential peripherals. Plug the power cable back into the power supply. Reconnect only the essential peripherals needed for booting, typically just the monitor, keyboard, and mouse.
6. Turn on your system. Press the power button to turn on your computer.

After performing these steps, observe if the DRAM LED illuminates again. If the system boots successfully, the hard reset has resolved the issue. If the DRAM light persists, proceed to the next troubleshooting steps.

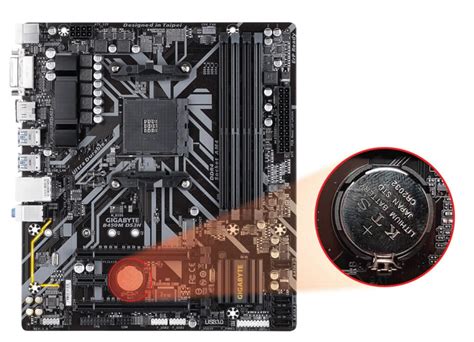

2. Clear CMOS¶

If a hard reset does not resolve the DRAM light issue, clearing the CMOS (Complementary Metal-Oxide-Semiconductor) is the next recommended step. The CMOS is a small memory chip on the motherboard that stores BIOS settings, including boot order, hardware configurations, and system time. Corrupted or incorrect CMOS settings can sometimes lead to boot failures and DRAM-related errors. Clearing the CMOS resets these settings to their default factory values, which can resolve configuration-related issues.

There are a few methods to clear CMOS, but the most common and reliable method involves removing the CMOS battery. Before proceeding, ensure the computer is completely powered off and the power cable is unplugged to avoid electrical shock and potential hardware damage.

Steps to Clear CMOS using the Battery Removal Method:

1. Power off and unplug your computer. Completely shut down your system and disconnect the power cable from the wall outlet.
2. Open your computer case. Access the motherboard by removing the side panel of your computer case. Refer to your case manual for specific instructions on opening your case.
3. Locate the CMOS battery. The CMOS battery is typically a small, circular, coin-shaped battery (CR2032) easily visible on the motherboard. It is usually near the chipset or rear panel connectors.
4. Remove the CMOS battery. Gently press the small clip holding the battery in place to release it. Carefully remove the battery from its socket.
5. Wait for 5-10 minutes. Allow the system to sit without the CMOS battery for at least 5-10 minutes. This ensures that all CMOS settings are fully cleared. Some manuals suggest even longer durations for complete discharge.
6. Reinstall the CMOS battery. After waiting, carefully reinsert the CMOS battery into its socket, ensuring the correct polarity (+ side up). You should hear a slight click when it’s properly seated.
7. Close your computer case. Reassemble the computer case by putting the side panel back on.
8. Reconnect the power cable and peripherals. Plug the power cable back in and reconnect your monitor, keyboard, and mouse.
9. Boot your system. Turn on your computer and check if the DRAM light is still illuminated.

Alternative CMOS Clearing Methods:

Some motherboards offer alternative methods for clearing CMOS, such as a dedicated CMOS clear button on the rear I/O panel or CMOS clear jumpers on the motherboard itself. Consult your motherboard manual to identify if these options are available and follow the manufacturer’s instructions for using them. These methods typically involve powering off the system, pressing the CMOS clear button for a few seconds, or moving the CMOS clear jumper to a different position for a short period and then back to its original position. These methods are generally quicker than battery removal but may not be as effective in all situations.

After clearing the CMOS using any method, attempt to boot your system. If the DRAM light persists, proceed to the next troubleshooting step.

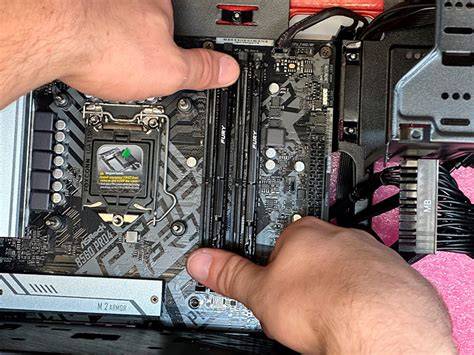

3. Reseat and Test RAM Sticks Individually¶

Issues with RAM modules themselves or their connection to the motherboard are a common cause of DRAM light errors. Reseating the RAM sticks ensures they are properly connected and eliminates potential issues caused by loose connections or oxidation on the contacts. If you have multiple RAM modules, testing them individually helps isolate whether a specific RAM stick is faulty.

Steps to Reseat and Test RAM:

1. Power off and unplug your computer. Ensure your system is completely shut down and disconnected from the power source.
2. Open your computer case. Access the RAM slots on your motherboard by opening the computer case.
3. Locate the RAM slots. RAM slots are typically long, narrow slots with clips at both ends, usually located near the CPU socket.
4. Release the RAM clips. Gently push down or outward on the clips at both ends of each RAM slot to release the RAM module. The RAM stick should pop up slightly.
5. Remove the RAM sticks. Carefully remove each RAM stick from its slot.
6. Inspect RAM contacts and slots. Examine the gold contacts on the bottom edge of each RAM stick for any dirt, dust, or damage. Also, inspect the RAM slots for any debris or bent pins. Gently blow on the slots or use compressed air to remove dust.
7. Reseat RAM sticks. Reinsert each RAM stick firmly into its slot, ensuring it is properly aligned. Push down on both ends of the RAM stick until it clicks into place and the clips on both sides snap back into their locked position. Ensure the RAM is seated evenly and securely.

Testing RAM Sticks Individually:

If you have multiple RAM sticks, test them one at a time to identify a potentially faulty module.

1. Install one RAM stick. Install only one RAM stick into the primary RAM slot (refer to your motherboard manual for the correct slot).
2. Attempt to boot. Power on your computer and see if it boots and if the DRAM light is still on.
3. Repeat with each RAM stick. If the system still doesn’t boot or the DRAM light remains, power off, remove the current RAM stick, and try booting with a different RAM stick in the same primary slot. Repeat this process for each RAM stick you have.

Testing Different RAM Slot Combinations:

If you have multiple RAM slots and multiple RAM sticks, try different slot combinations to rule out a faulty RAM slot.

1. Try different slot combinations. If you have two RAM sticks and four slots, try configurations like slots 1 & 2, slots 2 & 3, etc., referring to your motherboard manual for correct dual-channel configurations if applicable.
2. Test each slot with a single RAM stick. If you have a single RAM stick, try booting with it in each RAM slot one at a time to check if a specific slot is defective.

If, after reseating and individual testing, the DRAM light issue persists, it indicates that the problem might not be a simple connection issue and may involve RAM incompatibility or hardware failure. Proceed to the next troubleshooting steps.

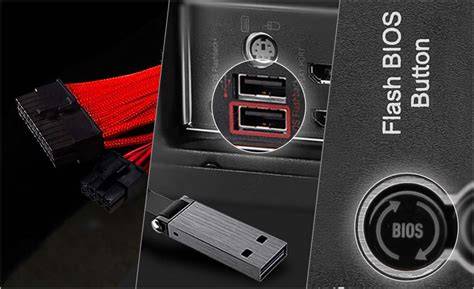

4. Flash BIOS¶

Flashing the BIOS (Basic Input/Output System) is a more advanced troubleshooting step that can resolve boot issues, especially after hardware changes like installing a new CPU or RAM. A BIOS update can address compatibility issues with newer hardware or fix corrupted BIOS firmware that might be causing the DRAM light error. Some modern motherboards support BIOS flashing without a CPU or RAM installed, using a feature often called “BIOS Flashback” or similar.

BIOS Flashback (CPU-less BIOS Flashing):

If your motherboard supports BIOS Flashback, you can attempt to update the BIOS even without a working CPU or RAM. This feature typically uses a dedicated USB port and a button on the motherboard to initiate the BIOS update process.

Steps for BIOS Flashback (General - Refer to your Motherboard Manual for Specific Instructions):

1. Prepare a USB flash drive. You will need a USB flash drive (typically USB 2.0, FAT32 formatted).
2. Download the latest BIOS version. On a working computer, visit the website of your motherboard manufacturer (e.g., ASUS, Gigabyte, MSI, ASRock). Find the support or download section for your specific motherboard model. Download the latest BIOS version available. Avoid beta versions as they might be unstable.
3. Rename the BIOS file. The downloaded BIOS file usually needs to be renamed to a specific name required by your motherboard’s BIOS Flashback utility. Refer to your motherboard manual for the exact renaming instructions. It often involves renaming the file to something like “BIOS.BIN” or a specific model-related name.
4. Copy the renamed BIOS file to the USB drive. Copy the renamed BIOS file to the root directory of the formatted USB flash drive.
5. Insert the USB drive into the BIOS Flashback port. Locate the dedicated BIOS Flashback USB port on your motherboard’s rear I/O panel. This port is often labeled differently and may be a specific color. Consult your motherboard manual to identify the correct port. Insert the USB flash drive into this port.
6. Initiate BIOS Flashback. With the computer powered off but the power supply connected and switched on (receiving power), press the BIOS Flashback button on the motherboard. This button is usually located near the rear I/O panel and is often small and recessed.
7. Wait for the BIOS flashing process to complete. Once you press the button, a BIOS flashing LED indicator on the motherboard should start blinking. This indicates that the BIOS update process is in progress. Do not interrupt the power during this process. The flashing process can take several minutes (5-10 minutes or sometimes longer). Wait until the LED indicator stops blinking or turns off, indicating the process is complete.
8. Attempt to boot. After the BIOS flashing process is complete, try to power on your computer and see if it boots and if the DRAM light is resolved.

Important Notes on BIOS Flashing:

• Consult your motherboard manual. The BIOS Flashback procedure can vary slightly between motherboard manufacturers and models. Always refer to your motherboard’s user manual for precise instructions specific to your board. Incorrectly flashing the BIOS can potentially damage your motherboard, rendering it unusable.
• Use the correct BIOS file. Ensure you download the BIOS file specifically for your motherboard model from the official manufacturer’s website. Using an incorrect BIOS file can lead to serious problems.
• Do not interrupt the process. Never interrupt the power supply or restart the computer while the BIOS is flashing. This can corrupt the BIOS and brick your motherboard.
• Use a reliable USB drive. Use a known working USB 2.0 drive formatted in FAT32. Some USB 3.0 drives or other file systems might not be compatible with the BIOS Flashback process.

If BIOS flashing is successful but the DRAM light issue persists, the problem may lie with the RAM itself, the CPU, or the motherboard.

Related: loading

5. RAM and CPU Compatibility and Issues¶

If the previous steps have not resolved the DRAM light issue, consider the possibility of hardware incompatibility or component failure, particularly with the RAM or CPU.

RAM Compatibility:

• Check RAM specifications. Ensure that the RAM modules you are using are compatible with your motherboard and CPU. Refer to your motherboard’s specification list or compatibility list on the manufacturer’s website. Verify the RAM type (DDR4, DDR5, etc.), speed (MHz), and voltage are supported by your motherboard and CPU.
• Incompatible RAM: Installing incompatible RAM can lead to boot failures and DRAM errors. If you recently upgraded or changed RAM, ensure the new RAM is on the motherboard’s qualified vendor list (QVL) or meets the specified requirements.
• Incorrect RAM speed or timings: While RAM might be physically compatible, using RAM with speeds or timings not officially supported by the motherboard or CPU can sometimes cause instability or boot issues. Try using RAM within the recommended specifications.

CPU Issues:

• CPU Compatibility: If you recently installed a new CPU, ensure it is compatible with your motherboard socket and chipset. Check the motherboard’s CPU support list on the manufacturer’s website. An incompatible CPU will prevent the system from booting.
• CPU Reseating: Similar to RAM, try reseating the CPU. Carefully remove the CPU from its socket and inspect the CPU socket on the motherboard for any bent or damaged pins. Bent CPU socket pins can cause various issues, including DRAM errors. If you find bent pins, they require careful straightening or professional repair. Reinstall the CPU carefully, ensuring it is seated correctly and the retention mechanism is properly engaged.
• CPU Cooler Mounting: An improperly mounted CPU cooler, especially one that is too tightly screwed down, can put excessive pressure on the CPU socket and cause boot failures or RAM-related issues. Ensure the CPU cooler is correctly installed with appropriate pressure, as per the cooler and motherboard manuals.

Testing with Known Good Components (If Possible):

If you have access to spare, known-good RAM modules or a compatible CPU, you can try swapping them into your system to further isolate the problem.

• Test with known good RAM: Replace your current RAM with known working RAM modules that are compatible with your system. If the system boots with the known good RAM, the original RAM modules might be faulty.
• Test with a known good CPU: If possible, test your motherboard with a known working, compatible CPU. If the system boots with the known good CPU, the original CPU might be faulty.

Power Supply Issues (Less Likely but Possible):

While less common, an inadequate or failing power supply unit (PSU) can sometimes cause boot issues that manifest as DRAM errors. Ensure your PSU provides sufficient wattage for all your components and is functioning correctly. If you suspect PSU issues, testing with a known good PSU of sufficient wattage might be necessary.

6. Seek Professional Support¶

If you have exhausted all the above troubleshooting steps and the orange DRAM light and no display issue persist, it is advisable to seek professional help from a qualified computer repair technician. At this point, the problem might be due to a more complex hardware failure that is beyond the scope of basic troubleshooting, such as:

• Motherboard Failure: The motherboard itself could be faulty, with issues in the RAM slots, chipset, or other critical components that are causing the DRAM error.
• RAM Module Failure: One or more of your RAM modules might be genuinely defective and need replacement.
• CPU Failure: Although less frequent than RAM issues, CPU failure can also occur and cause DRAM-related boot problems.
• Subtle Component Damage: There might be subtle damage to components that are not easily visible but are causing malfunctions.

A professional technician has specialized tools and expertise to diagnose hardware problems accurately. They can perform in-depth testing, component-level diagnostics, and potentially identify and repair or replace the faulty component.

When seeking professional support:

• Document your troubleshooting steps: Inform the technician about all the troubleshooting steps you have already performed. This will save time and effort in diagnosing the issue.
• Provide system specifications: Give the technician details about your computer’s components, including motherboard model, CPU, RAM type and model, and PSU wattage.
• Describe the symptoms clearly: Explain the problem clearly, including the orange DRAM light, no display, and any other relevant symptoms you have observed.

Frequently Asked Questions (FAQ)¶

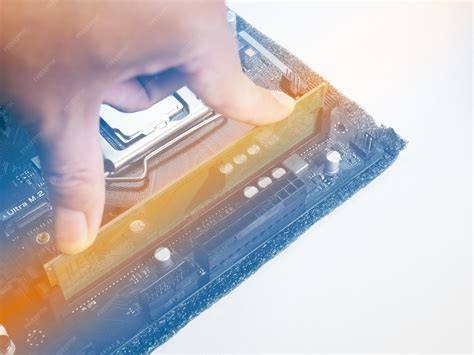

What does the orange light mean on RAM?¶

An orange light associated with RAM on a motherboard typically indicates an issue specifically related to the system’s memory (DRAM). The color orange is often used by motherboard manufacturers as a diagnostic indicator for memory-related problems. This light signifies that the motherboard’s POST process has detected an error or issue during the memory initialization phase. The exact nature of the problem can vary, but common causes include:

• RAM Not Properly Seated: The RAM module may not be fully inserted into the RAM slot, resulting in poor or no electrical contact.
• Dirty RAM Contacts or Slots: Dust, debris, or oxidation on the gold contacts of the RAM module or in the RAM slot can impede proper connection.
• RAM Incompatibility: The installed RAM modules may not be compatible with the motherboard in terms of type (DDR4, DDR5), speed, or voltage.
• Faulty RAM Module: One or more of the RAM modules might be physically damaged or malfunctioning.
• RAM Slot Issue: In rare cases, the RAM slot itself on the motherboard might be defective.
• BIOS Issues: Sometimes, outdated or corrupted BIOS firmware can cause memory detection problems.
• CPU or Motherboard Issues: In more complex scenarios, issues with the CPU’s memory controller or the motherboard’s chipset can also manifest as DRAM light errors.

When you see an orange DRAM light, it is a signal to focus your troubleshooting efforts on the memory subsystem first. Start with basic checks like reseating the RAM and progress to more advanced steps like testing individual RAM modules or flashing the BIOS if necessary.

Why is my DRAM light yellow?¶

The color of the DRAM light indicator can vary slightly depending on the motherboard manufacturer and model. While orange is commonly used, some manufacturers might use yellow or a similar color to indicate DRAM-related issues. If your DRAM light is yellow and illuminated, it essentially conveys the same meaning as an orange DRAM light: there is a problem with your system’s RAM.

The interpretation of a yellow DRAM light is consistent with an orange DRAM light in most contexts. It signals that the motherboard’s diagnostic system has identified a potential fault or issue during the memory initialization process during boot-up. Therefore, the troubleshooting steps for a yellow DRAM light are identical to those for an orange DRAM light. You should follow the same procedures, starting with:

1. Hard Reset
2. Clear CMOS
3. Reseat RAM Sticks and Test Individually
4. Flash BIOS
5. Check RAM and CPU Compatibility
6. Seek Professional Support

The specific color choice (orange vs. yellow) is a design preference of the motherboard manufacturer and does not fundamentally change the diagnostic meaning of the light. Always consult your motherboard’s user manual for the most accurate interpretation of LED indicators and their color codes, as manufacturers may have slight variations in their diagnostic systems. However, in the context of DRAM lights, both orange and yellow typically point to memory-related problems requiring troubleshooting.

---

Have you encountered a DRAM light issue and found a solution not listed here? Share your experiences and tips in the comments below to help other users!
