Troubleshooting: Fixing 'Cannot Load Management Console' Error in Windows 11

Updated: • 0 • 9 min read

Troubleshooting: Fixing 'Cannot Load Management Console' Error in Windows 11

The Trusted Platform Module (TPM) is a critical component in modern computer security. This specialized chip is designed to secure hardware by integrating cryptographic keys into devices. It provides a secure foundation for various security features, including encryption for user data like fingerprints and facial recognition information, and system integrity checks to ensure the boot process is secure. Windows utilizes TPM for features like BitLocker drive encryption and Windows Hello. A key tool for managing this chip is the TPM Management Console. However, users sometimes encounter an error message: “Cannot load management console” when attempting to access it. This issue often arises after modifications to TPM settings within the BIOS, specifically when the TPM has been cleared or disabled. Let’s explore the reasons behind this error and effective solutions to restore access to the TPM Management Console in Windows 11.

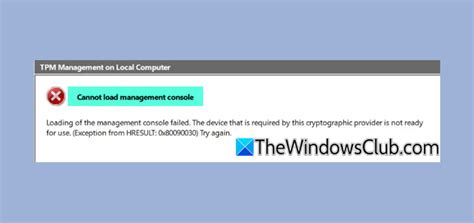

Understanding the ‘Cannot Load Management Console’ Error

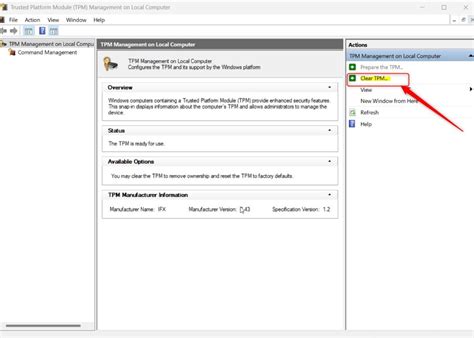

When you attempt to launch the TPM Management Console (typically by running TPM.msc), the system tries to connect to and display the status of the TPM chip. If the console fails to load, it indicates a communication breakdown between Windows and the TPM. This error, “Cannot load management console,” prevents you from managing TPM settings, checking its status, or utilizing features dependent on TPM functionality. Understanding the common causes is the first step towards resolving this frustrating issue and ensuring your system’s security features function correctly.

Common Causes of the Error

Several scenarios can lead to the “Cannot load management console” error. The most frequent causes are related to BIOS settings, particularly those concerning the TPM itself. Let’s delve into the primary reasons:

1] TPM Cleared in BIOS

One of the most common triggers for this error is clearing the TPM through the BIOS settings. The BIOS (Basic Input/Output System) is the firmware that initializes your hardware during startup. Most modern BIOS interfaces provide options to manage security settings, including the TPM. If you intentionally or unintentionally clear the TPM within the BIOS, it essentially resets the TPM to its factory default state. This clearing action can disrupt the TPM Management Console’s ability to communicate with the chip, leading to the error. After clearing TPM in BIOS, the system requires a reboot and re-initialization of the TPM for the changes to take effect and for the Management Console to function correctly.

2] TPM Disabled in BIOS

Another significant reason for the error is when the TPM is disabled in the BIOS. Similar to clearing the TPM, disabling it in BIOS settings prevents the operating system from accessing and utilizing the TPM chip. Disabling TPM effectively turns off the chip, making it unavailable to Windows. This could be done intentionally for specific configurations or accidentally during BIOS modifications. When TPM is disabled, the Management Console naturally cannot load because the underlying hardware component is inactive and unresponsive to system requests. Enabling TPM in BIOS is crucial to restore its functionality and resolve the console loading issue.

Solutions to Fix ‘Cannot Load Management Console’ Error

Fortunately, resolving the “Cannot load management console” error is usually straightforward and involves adjusting TPM settings primarily within the BIOS. Here are effective solutions to get your TPM Management Console working again:

1] Restart TPM Management Console After BIOS Changes

Restart TPM Management Console After BIOS Changes

If you have recently cleared the TPM through your BIOS settings, the simplest first step is to close and restart the TPM Management Console. After clearing TPM in BIOS, the system needs to recognize and reload the new TPM state. Simply restarting the application allows it to re-establish communication with the TPM.

Steps to Restart TPM Management Console:

  1. Close the TPM Management Console: If the console is currently open and displaying the error, close the application completely.
  2. Re-open TPM Management Console: Search for “TPM.msc” in the Windows search bar and run the TPM Management Console again.

This quick restart often resolves the issue because it gives the console a fresh attempt to connect with the TPM after the BIOS-level changes.

2] Enable TPM from BIOS

Enable TPM from BIOS

If restarting the Management Console doesn’t work, or if you suspect TPM might be disabled in BIOS, you need to access your BIOS settings and ensure TPM is enabled. The process to enter BIOS varies depending on your computer manufacturer, but it usually involves pressing a specific key (like Delete, F2, F12, or Esc) during system startup, right after powering on or restarting your computer. Refer to your motherboard or computer manual for the exact key.

Steps to Enable TPM in BIOS:

  1. Restart Your Computer: Completely shut down and then restart your Windows 11 system.
  2. Enter BIOS Settings: As your computer restarts, watch for the prompt indicating which key to press to enter setup (BIOS). Press the designated key repeatedly until you enter the BIOS interface.
  3. Navigate to Security Settings: BIOS interfaces vary, but you’ll typically need to find a section labeled “Security,” “Advanced,” or “Trusted Computing.” Use your keyboard arrow keys to navigate through the BIOS menus.
  4. Locate TPM Settings: Within the security or advanced settings, look for options related to “TPM,” “Trusted Platform Module,” “Security Chip,” or “PTT” (Platform Trust Technology - Intel’s firmware-based TPM). The naming might differ based on your motherboard manufacturer.
  5. Enable TPM: If the TPM setting is disabled or set to “Inactive,” change it to “Enabled” or “Active.”
  6. Enable BIOS Admin Password (If TPM Option is Greyed Out): In some cases, the TPM enable option might be greyed out. This often indicates that a BIOS Administrator Password is required to modify security settings.
    • Set Admin Password: Look for an option to set or change the Administrator Password within the BIOS Security settings. Set a password. Remember this password for future BIOS modifications.
    • Re-check TPM Setting: After setting the Admin password, navigate back to the TPM settings. The enable option should now be available and not greyed out. Enable TPM.
  7. Save and Exit BIOS: After enabling TPM, navigate to the “Exit” menu in BIOS. Choose “Save Changes and Exit” or a similar option. This saves your changes and restarts your computer.
  8. Boot into Windows and Check TPM Management Console: Once Windows restarts, try opening the TPM Management Console again (TPM.msc). The error should now be resolved, and the console should load correctly.

Importance of BIOS Admin Password: Setting a BIOS Administrator Password enhances your system’s security. It prevents unauthorized individuals from altering critical BIOS settings, including security options like TPM, without knowing the password. This adds a layer of protection against malicious modifications to your system’s firmware.

Related: loading

3] Enable TPM Using PowerShell

Enable TPM Using PowerShell

If accessing BIOS is inconvenient, or if you prefer a command-line approach, you can attempt to enable TPM using Windows PowerShell, provided you have administrative privileges. This method utilizes PowerShell commands to send a physical presence request to the TPM, which can trigger its activation.

Steps to Enable TPM Using PowerShell:

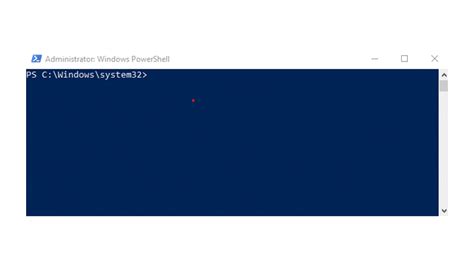

  1. Open PowerShell as Administrator: Press the Windows key, type “PowerShell,” right-click on “Windows PowerShell,” and select “Run as administrator.” Click “Yes” if prompted by User Account Control.

  2. Execute PowerShell Commands: In the elevated PowerShell window, type or paste the following commands, one line at a time, and press Enter after each line:

    $tpm = Get-WmiObject -Namespace root\cimv2\security\microsofttpm -Class Win32_Tpm
$tpm.SetPhysicalPresenceRequest(6)
    • $tpm = Get-WmiObject -Namespace root\cimv2\security\microsofttpm -Class Win32_Tpm: This command retrieves the Win32_Tpm object, which represents the TPM chip, and stores it in the variable $tpm.
    • $tpm.SetPhysicalPresenceRequest(6): This command sends a physical presence request to the TPM with the value 6. This specific request (6) is interpreted by the TPM to enable it. According to Microsoft documentation, value 6 corresponds to “Activate and clear the TPM if it is owned. Otherwise, activate without clearing.”

  3. Restart Your Computer: After executing the commands, restart your Windows 11 system.

  4. Accept BIOS Prompts (If Any): Upon restart, you might encounter BIOS prompts related to TPM activation. Accept any such prompts to allow TPM to be enabled. These prompts are part of the security process to ensure physical presence confirmation for TPM changes.
  5. Check TPM Management Console: After the system restarts and you’ve accepted any BIOS prompts, open the TPM Management Console (TPM.msc) again. The “Cannot load management console” error should be resolved, and the console should now load correctly, showing the TPM status as ready.

Note: PowerShell method relies on the TPM being physically present and functional. If there is a hardware issue with the TPM chip itself, this method, or any software-based method, will not resolve the problem. In such cases, hardware diagnostics or contacting your device manufacturer for support might be necessary.

Troubleshooting Tips and Further Considerations

If the above solutions do not immediately resolve the “Cannot load management console” error, consider these additional troubleshooting tips:

  • Ensure Latest BIOS Updates: Outdated BIOS firmware can sometimes cause compatibility issues with hardware components, including TPM. Check your motherboard manufacturer’s website for the latest BIOS updates for your specific motherboard model. Updating BIOS can resolve various hardware-related issues and improve system stability. Caution: BIOS updates should be performed carefully, following the manufacturer’s instructions, as incorrect updates can cause system instability or failure to boot.
  • Check TPM Driver Status in Device Manager: Open Device Manager (search for “Device Manager” in Windows search). Look for “Security devices” or “Trusted Platform Module” category. Expand it and check the status of your TPM device. If there’s a yellow exclamation mark or error, it indicates a driver issue. Try updating the driver by right-clicking on the TPM device and selecting “Update driver.” You can choose to search automatically for updated drivers or browse your computer for driver software if you have downloaded drivers from the manufacturer’s website.
  • System File Checker (SFC) Scan: Corrupted system files can sometimes interfere with Windows functionalities. Run the System File Checker tool to scan for and repair corrupted system files. Open Command Prompt as administrator (search for “cmd,” right-click, “Run as administrator”) and type sfc /scannow and press Enter. Let the scan complete and restart your computer if SFC finds and repairs any issues.
  • Check for Hardware Malfunctions: While less common, a hardware malfunction of the TPM chip itself could be the cause. If you suspect a hardware issue, consider running hardware diagnostics provided by your computer manufacturer or consult with a hardware technician for further investigation.

Frequently Asked Questions (FAQ)

How to fix TPM cannot load Management Console?

To fix the “TPM cannot load management console” error, start by restarting the TPM Management Console (TPM.msc) after making changes to TPM settings in BIOS, especially after clearing the TPM. Ensure that you have enabled TPM in BIOS settings and that the latest BIOS updates are applied to your system. Verifying these settings is usually sufficient to resolve the issue and restore TPM Management Console functionality.

How to fix TPM error in Windows 11?

To resolve a general TPM error in Windows 11, first, ensure that TPM is enabled within your BIOS settings. Access BIOS during system startup. Once enabled, update your TPM drivers through Windows Update or Device Manager to ensure you have the latest compatible drivers. Additionally, keep your Windows 11 operating system up to date with the latest patches and updates from Windows Update, as these updates often include fixes and improvements for TPM functionality and compatibility. If problems persist, consider checking for BIOS updates and running system file checks as described in the troubleshooting tips above.

Conclusion

The “Cannot load management console” error related to TPM in Windows 11 can be disruptive, hindering access to important security features. However, by understanding the common causes, primarily related to BIOS settings, and applying the solutions outlined, such as restarting the console, enabling TPM in BIOS, or using PowerShell, you can effectively resolve this issue. Regularly ensuring your BIOS and drivers are up-to-date can also prevent such problems and maintain the optimal security posture of your Windows 11 system.

If you have encountered this error and found other solutions, or if you have further questions, please share your experiences and insights in the comments below to help others in the community!
