Unlock Custom Resolutions: A Step-by-Step Guide for Windows 11 Display Settings

Table of Contents

Introduction to Custom Resolutions¶

The Windows operating system is designed to be user-friendly, offering a range of display settings that cater to most users’ needs. Among these settings, screen resolution stands out as a crucial aspect determining the clarity and detail of the visuals displayed on your monitor. While Windows provides preset resolution options, there are instances where users require more tailored display configurations. This is where the concept of custom resolutions becomes relevant. Custom resolutions allow you to go beyond the standard options and define specific screen dimensions, refresh rates, and color depths that best suit your monitor’s capabilities and your personal preferences. This level of control can be particularly beneficial for users with specialized monitors, unique display requirements, or those seeking to optimize their visual experience for specific tasks like gaming or graphic design.

Creating a custom resolution essentially means defining your own set of display parameters that are not automatically offered by the operating system. This can involve adjusting the horizontal and vertical pixel counts, the refresh rate (measured in Hertz, Hz), and even the color depth. The ability to fine-tune these settings opens up possibilities for improving image quality, reducing strain on your eyes, or achieving optimal performance in graphically intensive applications. However, it’s also important to approach custom resolutions with caution, as incorrect settings can lead to display issues or even potential hardware damage in extreme cases. It is generally advisable to stay within the safe operating parameters of your monitor and to understand the implications of each setting you adjust.

Before diving into the technical aspects, it’s worth addressing the safety of using custom resolutions. While generally safe when done correctly, there are potential risks involved. Overclocking your monitor’s refresh rate beyond its specified limits, for example, can lead to instability, flickering, or even damage the monitor over time. Furthermore, not all monitors are designed to handle resolutions outside of their native specifications. Therefore, it is always recommended to start with small adjustments and thoroughly test any new custom resolution to ensure it works correctly and does not negatively impact your display’s performance or longevity. Sticking to the recommended or pre-set resolutions is often the safest approach for most users, but understanding how to create custom resolutions can be a valuable skill for those seeking advanced display customization.

Methods to Create and Set Custom Resolutions¶

Windows 11 and Windows 10 offer several avenues for creating and implementing custom display resolutions. These methods primarily leverage the software provided by your graphics card manufacturer or utilize third-party utilities designed for advanced display configuration. The most common and user-friendly approaches involve using the control panels provided by NVIDIA, AMD, and Intel – the major players in the graphics card market. These control panels, such as NVIDIA Control Panel, AMD Radeon Settings (formerly Catalyst Control Center), and Intel Graphics Command Center, offer graphical interfaces that simplify the process of creating and testing custom resolutions. They typically include built-in safeguards to prevent you from setting resolutions that are incompatible with your monitor, making them relatively safe for experimentation.

In addition to these manufacturer-provided tools, there are also third-party utilities, such as the Custom Resolution Utility (CRU), which provide more advanced control over display settings. CRU, in particular, is a powerful tool for experienced users who require deep customization options and the ability to modify the Extended Display Identification Data (EDID) – a data structure that communicates a monitor’s capabilities to the graphics card. While third-party tools like CRU offer greater flexibility, they also require a higher level of technical understanding and should be used with caution. Choosing the right method depends on your technical expertise, the level of customization you require, and the type of graphics hardware installed in your system. For most users, starting with the control panels provided by NVIDIA, AMD, or Intel is the recommended first step.

The method you choose will largely depend on the type of graphics processing unit (GPU) in your computer. If you have an NVIDIA graphics card, the NVIDIA Control Panel is the most direct and integrated way to manage custom resolutions. Similarly, AMD users will find AMD Radeon Settings (or Catalyst Control Center for older systems) to be the appropriate tool. For systems using integrated Intel graphics, the Intel Graphics Command Center provides the necessary features. Each of these utilities offers a slightly different interface and set of options, but the fundamental process of creating a custom resolution remains similar across them. They all involve defining the desired resolution parameters, testing the new settings, and saving the configuration if it proves to be compatible and satisfactory. Let’s delve into the step-by-step process for each of these methods.

1. NVIDIA Control Panel¶

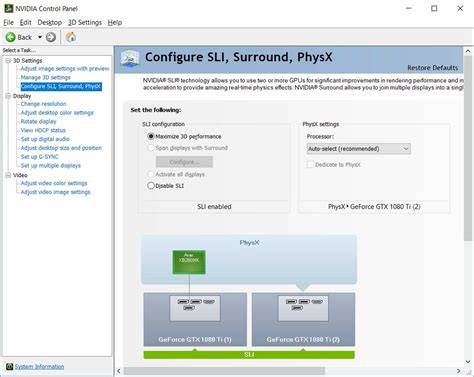

For users with NVIDIA graphics cards, the NVIDIA Control Panel offers a straightforward and integrated method for creating custom display resolutions. This utility is typically pre-installed with NVIDIA drivers and can be easily accessed through the desktop context menu. To begin, right-click on any empty space on your Windows desktop. In the context menu that appears, locate and select NVIDIA Control Panel. This action will launch the NVIDIA Control Panel application, providing access to a range of graphics settings, including display resolution adjustments.

Once the NVIDIA Control Panel is open, navigate to the Display section. Within the Display settings, you will find an option labeled Change resolution. Click on this option to proceed to the resolution settings panel. In this panel, you will see a list of currently available resolutions for your connected displays. Ensure that you have selected the correct monitor for which you wish to create a custom resolution. Below the list of resolutions, you will find a button labeled Customize. Click on this Customize button to open the custom resolution creation window.

In the Customize window, you will typically see a checkbox labeled “Enable resolutions not exposed by the display”. For creating completely new custom resolutions, you generally do not need to check this box. Instead, directly click on the Create Custom Resolution button, usually located at the bottom of the window. A new window will then appear, presenting you with fields to input the specific parameters of your desired custom resolution. These parameters typically include:

• Horizontal pixels: The width of your desired resolution.
• Vertical lines: The height of your desired resolution.
• Refresh rate (Hz): The desired refresh rate in Hertz.
• Color depth: Often automatically determined, but may be adjustable in advanced settings.
• Timing standard: Usually set to “Automatic” or “CVT” (Coordinated Video Timing).

Carefully enter the values for your desired custom resolution. It’s crucial to ensure that these values are within the capabilities of your monitor. Consult your monitor’s specifications if you are unsure about the supported resolution and refresh rate limits. After entering the desired values, click the Test button. This will attempt to apply the custom resolution to your display. If the new mode is compatible, your screen will briefly switch to the custom resolution. A confirmation dialog box will appear, asking if you want to save the new resolution. If the display looks correct and you are satisfied with the new preset, click Yes to save it. If the test fails, or if the display becomes distorted or unreadable, wait for a few seconds, and the system will automatically revert to the previous resolution. In such cases, you may need to adjust the custom resolution parameters and try again, or consult your monitor’s documentation for supported settings. Once saved, the new custom resolution will be available in the resolution list for your display in the NVIDIA Control Panel, ready for you to select and use.

2. AMD Catalyst Control Center (AMD Radeon Settings)¶

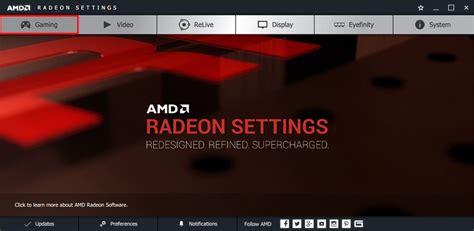

For users equipped with AMD Radeon graphics cards, creating custom resolutions is facilitated through the AMD Radeon Settings software (formerly known as AMD Catalyst Control Center in older versions). This software is typically installed along with the AMD graphics drivers. To access it, right-click on an empty area of your desktop and select AMD Radeon Settings (or AMD Catalyst Control Center if you have an older driver version) from the context menu. This action will launch the Radeon Settings interface, providing access to various graphics configuration options.

Once AMD Radeon Settings is open, navigate to the Display tab. Within the Display settings, locate and click on the Custom Resolutions option. This may be located under a submenu like “Display Options” or “Advanced Display”. In the Custom Resolutions section, you will typically see a list of any previously created custom resolutions, or a message indicating that no custom resolutions have been created yet. To create a new custom resolution, click the Create button, usually positioned near the Custom Resolutions menu. If you have multiple displays connected, you might be prompted to select the specific display for which you want to create the custom resolution. Choose the appropriate monitor from the list.

Clicking the Create button will open the Custom Resolutions creation interface. This interface provides a range of settings that you can customize to define your desired resolution. These settings typically include:

• Resolution (Width x Height): Enter the desired horizontal and vertical pixel dimensions.
• Refresh Rate (Hz): Specify the desired refresh rate in Hertz.
• Timing Standard: Options may include “Automatic,” “CVT,” “CVT-RB” (Reduced Blanking), or “DMT” (Discrete Monitor Timing). “Automatic” is generally recommended for most users.
• Color Depth: Often automatically detected, but may be adjustable in advanced settings.

Input the desired values for each setting, ensuring they are compatible with your monitor’s specifications. After entering the settings, click the Save button, usually located at the bottom of the Custom Resolutions window. Upon clicking Save, Radeon Settings will attempt to test the compatibility of the new settings with your display. If the custom resolution is compatible and successfully applied, it will be saved as a preset under the Custom Resolutions menu. You will then be able to select and apply this custom resolution from the display resolution settings within Windows or through the Radeon Settings interface itself. If the test fails or the display becomes unstable, the system will typically revert to the previous settings. In such cases, review your entered values, consult your monitor’s documentation, and try again with adjusted parameters.

3. Intel Graphics Command Center¶

For systems utilizing integrated Intel graphics, the Intel Graphics Command Center provides the tools necessary to create custom display resolutions. The Intel Graphics Command Center is usually pre-installed on systems with Intel integrated graphics or can be downloaded from the Microsoft Store. To open it, type Intel Graphics Command Center in the Windows Search box (located on the taskbar) and click on the Intel Graphics Command Center icon when it appears in the search results. This will launch the application, providing access to Intel graphics settings.

Once the Intel Graphics Command Center is open, navigate to the Display tab. This tab is typically represented by a monitor icon or labeled as “Display”. Within the Display settings, look for the Resolution setting, usually located under “Display General Settings”. Next to the Resolution setting, you should find a Custom button. Click on this Custom button to proceed to the custom resolution settings.

Upon clicking the Custom button, you might encounter a warning message. This warning typically informs you about the potential risks associated with creating custom resolutions and advises caution. Read the warning message carefully and click Okay or Proceed to continue if you understand the potential risks and wish to proceed. A new window will then appear, presenting you with options for creating a Basic Custom Resolution. For more advanced options, you might find an Advanced Settings link or button within this window. Clicking on Advanced Settings (if available) will reveal additional parameters for customization. The basic and advanced settings typically include:

• Resolution: Fields to enter the desired horizontal and vertical pixel dimensions.
• Refresh Rate (Hz): A dropdown menu or field to specify the desired refresh rate.
• Timing Settings: May offer options for different timing standards, or these may be automatically determined.
• Color Depth: Often automatically detected or may be adjustable in advanced settings.

Enter your desired values for the custom resolution. If you opted for Advanced Settings, you may have more granular control over timing parameters and other display characteristics. After entering your desired settings, click Yes or Apply to accept the changes. The Intel Graphics Command Center will then attempt to apply the custom resolution. If successful, the new resolution will be saved and available for selection in the display resolution settings.

It’s important to note that in recent versions of the Intel Graphics Command Center, the custom resolution setting might not be available, particularly if your hardware or drivers do not fully support this feature. In such cases, you may instead see a button that redirects you to the Windows System Settings display resolution page, which only allows you to select from the pre-set resolutions offered by Windows. If you cannot find the custom resolution option in the Intel Graphics Command Center, it might indicate that your system’s Intel graphics configuration does not support custom resolutions through this utility, or you may need to update your Intel graphics drivers to the latest version.

TIP: For users who prefer command-line interfaces or scripting, it is also possible to change display resolution using the Command Prompt (CMD) or PowerShell in Windows. While this method is more technical, it offers another way to potentially set custom screen resolutions, although its effectiveness in creating truly custom resolutions beyond the pre-set options may be limited depending on the graphics driver and hardware capabilities.

4. Custom Resolution Utility (CRU)¶

For users seeking a more specialized and powerful tool for managing display resolutions, the Custom Resolution Utility (CRU) is an excellent option. CRU is a third-party utility specifically designed for creating and managing custom resolutions and Extended Display Identification Data (EDID) overrides. Unlike the manufacturer control panels, CRU provides direct access to the EDID, allowing for a deeper level of customization and control over how your monitor’s capabilities are recognized and utilized by the operating system. CRU is particularly useful for advanced users, enthusiasts, and those who need to fine-tune display settings beyond what is offered by standard control panels.

CRU operates by creating software EDID overrides in the Windows Registry. It does not modify the monitor’s hardware or firmware itself, making it a safe and reversible tool when used correctly. CRU allows you to add custom resolutions, remove unwanted resolutions that might be causing clutter or confusion, edit FreeSync or G-Sync ranges for variable refresh rate monitors, and adjust other advanced display parameters. To use CRU, you first need to download it from a reputable source, such as the official website or trusted software repositories. CRU is typically distributed as a ZIP archive. Extract the contents of the ZIP file to a folder on your computer. CRU is a portable application, meaning it does not require installation. Simply run the CRU.exe executable to launch the utility.

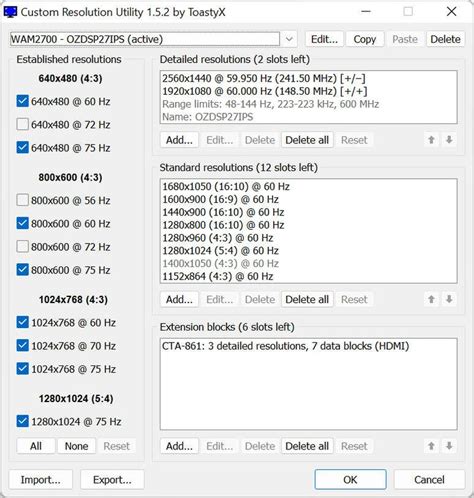

When you launch CRU, it will display a window listing your connected monitors and their currently active and defined resolutions. The interface is structured to show detailed information about each monitor’s EDID, including standard resolutions, extension blocks, and custom resolutions. To create a new custom resolution, select the monitor you want to modify from the top dropdown menu. In the lower section of the CRU window, you will see sections for “Standard resolutions,” “Extension blocks,” and “Detailed resolutions.” To add a custom resolution, typically you would add it under the “Detailed resolutions” section. Click the Add… button within the “Detailed resolutions” section. This will open a new window where you can define the parameters of your custom resolution.

The custom resolution parameters in CRU are quite comprehensive and include:

• Active (Horizontal & Vertical): The pixel dimensions of the resolution.
• Front porch, Sync width, Back porch (Horizontal & Vertical): Timing parameters that control the signal timings. For most standard custom resolutions, you can leave these at their default values or use “Automatic” timing.
• Refresh Rate: The desired refresh rate in Hertz.
• Interlaced/Progressive: Select “Progressive” for standard non-interlaced displays.
• Sync Polarity (Horizontal & Vertical): Usually set to positive or negative based on your monitor’s requirements. “Automatic” is often a safe choice.

Enter your desired resolution parameters. For basic custom resolutions, you primarily need to focus on the “Active (Horizontal & Vertical)” and “Refresh Rate” values. After entering the values, click OK to add the custom resolution to the list. Once you have added all your desired custom resolutions, click OK in the main CRU window to close the utility. For the changes to take effect, you need to restart your graphics driver. CRU provides a convenient way to do this. Run the restart64.exe or restart.exe file (depending on your system architecture, 64-bit or 32-bit) included in the CRU download package. This will restart your graphics driver and apply the EDID overrides you have created with CRU. After the driver restart, your newly created custom resolutions should be available in the Windows display settings and within your graphics card control panel.

What Does Custom Resolution Utility Do?¶

Custom Resolution Utility (CRU) essentially acts as an EDID (Extended Display Identification Data) editor. EDID is a standardized data format that allows a monitor to communicate its capabilities to a computer’s graphics card. This data includes information such as the monitor’s supported resolutions, refresh rates, color characteristics, and other display-related parameters. When you plug in a monitor, the graphics card reads the EDID data from the monitor to determine the available display modes. CRU allows you to modify or override this EDID data at the software level.

By using CRU, you can effectively tell your operating system and graphics card that your monitor supports resolutions or refresh rates that are not originally advertised or detected. This is achieved by creating software-based EDID overrides in the Windows Registry. When Windows boots up, it reads these overrides and uses them to configure the display settings. CRU does not alter the monitor’s hardware or firmware in any way. It simply modifies how the operating system interprets the monitor’s capabilities. This makes it a safe tool for experimentation, as any changes made by CRU can be easily reversed by deleting the created overrides or using the “reset-all.exe” utility included with CRU to restore the default EDID settings. CRU provides a powerful way to unlock the full potential of your monitor, especially for users who need to use resolutions or refresh rates that are not automatically supported or exposed by the standard display drivers.

Considerations and Safety¶

While creating custom resolutions can offer enhanced display customization, it is essential to proceed with caution and be aware of potential considerations and safety aspects. Incorrect custom resolution settings can lead to various display issues, ranging from minor inconveniences to more serious problems. One of the primary concerns is setting resolutions or refresh rates that are beyond your monitor’s capabilities. Monitors are designed to operate within specific ranges of resolutions and refresh rates. Exceeding these limits, particularly the refresh rate (overclocking), can potentially damage the monitor over time or lead to immediate display instability, such as flickering, image distortion, or complete signal loss.

Before creating a custom resolution, always consult your monitor’s specifications documentation. This documentation will typically list the supported resolutions and refresh rates for your monitor. Pay close attention to the native resolution of your monitor, which is the resolution it is designed to display optimally. While custom resolutions can be useful, it is generally advisable to use your monitor at or near its native resolution for the best image quality and clarity. Deviating too far from the native resolution can result in image scaling artifacts and reduced sharpness.

When testing a new custom resolution, start with small, incremental changes. For example, if you are trying to increase the refresh rate, increase it in small steps (e.g., 1Hz or 5Hz increments) and thoroughly test the display for stability at each step. Use a monitor test tool or simply observe the display during normal use and in graphically intensive applications like games to check for any signs of flickering, artifacts, or instability. If you encounter any issues, immediately revert to a safe or previously working resolution. Most graphics card control panels and CRU have built-in test functions and fail-safe mechanisms that will automatically revert to the previous settings if a custom resolution is incompatible or causes problems. Always utilize these test features before permanently applying a new custom resolution.

It’s also important to consider the cable connection between your computer and monitor. Different display cable types (e.g., HDMI, DisplayPort, DVI) have different bandwidth capabilities and may support different maximum resolutions and refresh rates. Ensure that your cable is capable of handling the custom resolution and refresh rate you are trying to set. For high resolutions and refresh rates, DisplayPort is generally recommended as it offers the highest bandwidth. Using an insufficient cable can limit the resolutions and refresh rates you can achieve, even if your monitor and graphics card are capable of more.

Finally, remember that while custom resolutions can be a powerful tool for display customization, they are not always necessary or beneficial for all users. For most everyday tasks and standard monitor setups, sticking to the recommended or pre-set resolutions provided by Windows and your graphics drivers is often the safest and most practical approach. Custom resolutions are best utilized in specific scenarios where you have a clear need for a non-standard display configuration, such as optimizing for specific games, using ultrawide monitors, or addressing compatibility issues with older hardware or software.

Conclusion¶

Creating custom resolutions in Windows 11 and Windows 10 offers a valuable degree of control over your display settings, allowing you to tailor your visual experience to your specific needs and hardware capabilities. Whether you are using the integrated tools provided by NVIDIA, AMD, or Intel, or opting for a more advanced utility like Custom Resolution Utility (CRU), the process involves defining your desired resolution parameters, testing the settings, and applying the configuration. Each method provides a slightly different interface and level of control, but the fundamental goal remains the same: to achieve a display resolution that best suits your monitor and usage scenario.

While the ability to create custom resolutions is powerful, it’s crucial to approach it with caution and awareness of potential risks. Always prioritize the safety and longevity of your monitor by staying within its specified operating limits and thoroughly testing any new settings. For most users, the pre-set resolutions offered by Windows are sufficient and provide a stable and reliable display experience. Custom resolutions are best reserved for situations where you have a clear and specific need for a non-standard configuration, and you understand the implications of the settings you are adjusting. By following the step-by-step guides and considerations outlined in this article, you can safely explore the possibilities of custom resolutions and unlock a more personalized and optimized visual experience on your Windows system.
