Unlock Shapefiles: A Comprehensive Guide to Viewing Shapefiles on Windows 10 & 11

Table of Contents

• What is a Shapefile?¶
• How to View a Shapefile in Windows 10/11¶
• FAQ¶
• Conclusion¶

In today’s data-driven world, geospatial data is becoming increasingly important. Shapefiles are a common format for storing this type of information. If you work with maps, geographic information systems (GIS), or location-based data, you’ll likely encounter shapefiles. This guide will explain what a shapefile is and provide you with comprehensive methods to view shapefiles on your Windows 10 or 11 PC. Understanding how to access and visualize this data is crucial for various applications, from urban planning to environmental analysis.

What is a Shapefile?¶

A shapefile is a digital file format for storing geospatial vector data. Developed by Esri, it has become a widely adopted standard in the GIS industry. Think of it as a container for geographical information, where features are represented using vectors like points, lines, and polygons. These vectors can depict real-world entities such as rivers, roads, buildings, administrative boundaries, and much more. Each geographical feature within a shapefile can also have associated attributes, which provide additional information about that feature. These attributes can include names, classifications, measurements, or any other relevant details.

Shapefiles are not single files but rather a collection of several files, each with a specific role. These component files work together to store the complete geospatial data. Here are the essential components of a shapefile:

• .shp - Main Shapefile: This is the primary and mandatory file that stores the actual geometry of the features. It contains the coordinates of points, lines, and polygons that make up the spatial data.
• .shx - Shape Index File: This is an index file that speeds up spatial queries. It contains an index that links the feature geometry with its attribute records in the .dbf file.
• .dbf - dBASE Table File: This file stores the attribute information for each feature. It’s essentially a database table where each row corresponds to a feature in the .shp file, and columns represent different attributes.
• .prj - Projection File: This file contains information about the coordinate system used in the shapefile. It defines how the geographic coordinates are projected onto a flat surface, ensuring accurate spatial representation.

Besides these core files, there are also optional component files that can accompany a shapefile to provide additional information or functionality. These include:

• .sbn and .sbx - Spatial index files (alternative spatial index format)
• .fbn and .fbx - Spatial index files for read-only shapefiles
• .ain and .aih - Attribute index files
• .ixs - Geocoding index file
• .mxs - Geocoding index for optimized read-write access
• .atx - Attribute index for .dbf file in the form of .columnname.atx
• .xml - Metadata in XML format
• .cpg - Code page file for specifying the character encoding for the .dbf attributes.

Understanding these components is key to working effectively with shapefiles. Now, let’s explore how you can open and view these files on your Windows 10 or 11 system.

How to View a Shapefile in Windows 10/11¶

Viewing shapefiles on Windows 10 and 11 is straightforward, and you have several options to choose from, depending on your needs and preferences. There are primarily two main approaches:

1. Using a Free Online Shapefile Viewer: This method is convenient for quick viewing and basic analysis without installing any software.
2. Using Free Desktop Software: This approach offers more advanced features and functionalities for in-depth analysis and manipulation of shapefiles.

Let’s delve into each of these methods in detail.

1. Open and View a Shapefile Using a Free Website¶

For users who need a quick and easy way to visualize shapefiles without the hassle of software installation, online shapefile viewers are an excellent solution. These web-based tools allow you to upload your shapefiles directly through your browser and render them on a map interface. This is particularly useful for occasional viewing or when you are working on a system where you cannot install new software.

One of the most popular and effective free online shapefile viewers is Mapshaper.

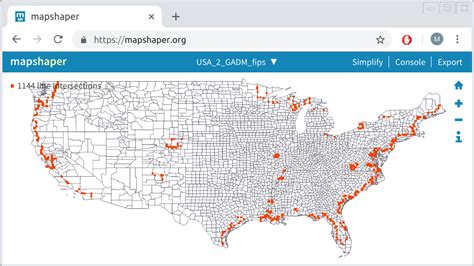

Mapshaper: A Powerful Online Shapefile Viewer¶

Mapshaper is a dedicated online tool specifically designed for viewing and processing shapefiles and other geospatial data formats. It provides a user-friendly interface and a range of features for exploring and manipulating shapefile data directly in your web browser.

Key Features of Mapshaper:

• Easy Upload: Mapshaper supports uploading SHP files individually or as a zipped archive. For complete visualization, it’s recommended to upload all associated files like .prj and .dbf along with the .shp file.
• Drag and Drop Interface: You can simply drag and drop your shapefiles onto the Mapshaper interface, or use the “select” button to browse and import files from your computer.
• Import Options: During import, you have options to detect line intersections and snap vertices, which can be useful for data cleaning and topology correction.
• Geometric Data Display: Mapshaper accurately displays the geometrical spatial data from your imported SHP file, rendering points, lines, and polygons on a map.
• Simplify Tool: The “Simplify” tool is a powerful feature that allows you to reduce the complexity of shapefile geometries. This can be useful for generalization, reducing file size, and improving rendering performance, especially for large and detailed shapefiles. You can customize simplification methods and parameters.
• Inspect Features: By hovering your mouse cursor over a feature (polygon, line, or point), Mapshaper displays the associated attribute data, allowing you to quickly inspect the properties of each geographic entity.
• Zoom and Navigation: Basic zoom in and zoom out functionalities are available, allowing you to navigate and examine your shapefiles at different scales.
• Feature Selection and Manipulation: Mapshaper offers tools for selecting features. You can use “inspect features,” “select features,” or “drag vertices” modes. The “shift-drag box tool” allows for selecting multiple features by drawing a box, enabling batch operations like deletion, splitting, keeping, or clearing selections.
• Attribute Editing: The “edit attributes” option enables you to directly modify the attribute data associated with features within the shapefile.
• Console for Advanced Commands: For users who need more control, Mapshaper includes a console that supports various commands, including I/O, editing, experimental, and informational commands. Typing “help” in the console provides a list of available commands and their usage.
• Export Options: Mapshaper allows you to export your processed or edited shapefiles in various formats, including the native Shapefile format (.shp), GeoJSON, TopoJSON, CSV, SVG, and JSON records, providing flexibility for further use of your data in other GIS applications or web mapping platforms.

To start using this online shapefile viewer, simply visit the Mapshaper website. It’s a readily accessible and powerful tool for anyone needing to quickly view and perform basic operations on shapefiles.

2. Use Free Software to Import and View a Shapefile¶

While online viewers are convenient, desktop software offers more robust features and capabilities for working with shapefiles. Several free and open-source GIS software packages are available for Windows 10 and 11 that can handle shapefiles effectively. For simpler viewing needs, there are also dedicated shapefile viewer applications that are lightweight and easy to use. Here, we will explore three excellent free software options for viewing shapefiles on your Windows PC: Shape Viewer, Avangardo ShapeView, and TNTatlas.

Shape Viewer¶

Shape Viewer, as its name suggests, is a specialized free software designed specifically for viewing SHP files on Windows. It stands out for being portable, meaning you don’t need to install it. You simply download the ZIP file, extract it, and run the ShapeViewer.exe to start viewing shapefiles immediately. This makes it ideal for situations where you need a quick viewer without system installation.

Key Features of Shape Viewer:

• Portable Application: Being portable, Shape Viewer is easy to deploy and use without installation, making it convenient for use from USB drives or in restricted environments.
• Built-in File Explorer: It includes its own file explorer, allowing you to browse your directories directly within the application to locate your SHP files.
• Shapefile Display: Shape Viewer lists all shapefiles in the selected folder, and you can simply double-click on a shapefile to open and view it.
• Zoom Functionality: It provides standard zoom in and zoom out functions to examine the shapefile in detail. You can select the zoom tool and define an area to magnify within the shapefile.
• File Information: Shape Viewer allows you to access file metadata through the “File > File Information” option. This displays important details such as the shapefile type (point, line, polygon), the number of records (features), and bounding box coordinates, which are useful for understanding the spatial extent and nature of the data.
• SHX and DBF Creation: It offers options to create .shx index files and empty .dbf attribute tables, which can be useful in specific data management workflows.
• SHP File Association: You can associate .shp files with Shape Viewer using the “File > Associate shp files with Shape Viewer” option. This makes Shape Viewer the default application for opening SHP files, streamlining your workflow.
• Export Coordinates to Excel: Shape Viewer allows you to export all coordinates from a shapefile into an Excel file using the “File > Export” option. This can be useful for further analysis or data processing in spreadsheet software.

Shape Viewer is a straightforward and essential tool for quickly viewing and analyzing shapefiles on Windows 10/11. You can download it from Shape Viewer Blogspot.

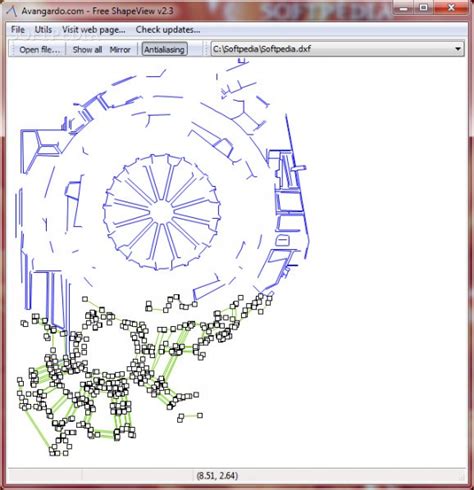

Avangardo ShapeView¶

Avangardo ShapeView is another free and portable shapefile viewer for Windows 10/11. Like Shape Viewer, it does not require installation, making it easy to use right after downloading. In addition to SHP files, Avangardo ShapeView also supports viewing MapInfo files (.MIF) and AutoCAD DXF files, expanding its utility for users working with different geospatial and CAD formats.

Related: loading

Key Features of Avangardo ShapeView:

• Portable and Free: Avangardo ShapeView is both portable and free, offering ease of use and accessibility without any cost or installation process.
• Multi-Format Support: Besides SHP files, it supports viewing MapInfo MIF files and AutoCAD DXF files, making it versatile for users working with different types of spatial data.
• Standard Viewing Features: It provides essential file viewing features, including zoom in, zoom out, mirroring (flipping the view horizontally or vertically), and antialiasing for smoother graphics.
• CSV Export of Map Coordinates: Avangardo ShapeView allows you to select features in a shapefile and export their coordinates to a CSV file using the “Utils > Save selection to file” option. This is useful for extracting coordinate data for analysis or integration with other systems.
• Save Shapefile View as Image: You can save the current shapefile view as a bitmap image (.BMP) using the “File > Save image” option. This can be useful for creating static map images for reports or presentations.

Avangardo ShapeView is a practical and efficient viewer for shapefiles and other vector formats, offering a good balance of features and ease of use. You can download this freeware from avangardo.com.

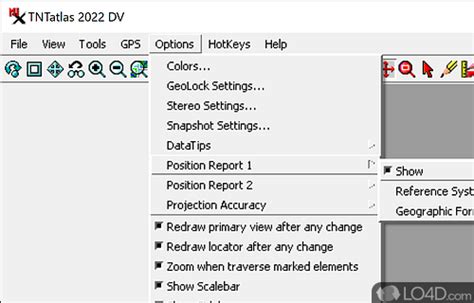

TNTatlas¶

TNTatlas, developed by MicroImages, is a free GIS software package that provides comprehensive capabilities for viewing not only shapefiles but also a wide range of GIS and image file formats. It’s a more feature-rich option compared to dedicated shapefile viewers, offering a broader set of tools for geospatial data visualization and analysis. TNTatlas can open SHP files as well as GeoTIFF, MrSID, JP2, PNG, DXF, and DWG files, making it a versatile tool for users working with diverse data types.

Key Features of TNTatlas:

• Extensive File Format Support: TNTatlas supports a wide array of geospatial and image formats, including SHP, GeoTIFF, MrSID, JP2, PNG, DXF, and DWG, making it a comprehensive viewer for various data types.
• Map Interface: When you import a shapefile using “File > Open Object,” TNTatlas displays the map on its interface, providing a clear and interactive visualization of the spatial data.
• View Options: It offers a variety of view options to enhance shapefile visualization, including zoom, layer transparency control, locator window (for overview and navigation), legend view (to understand symbology), and magnifier (for detailed inspection).
• Annotation Feature: TNTatlas includes an “Annotate” feature accessible from the “Tools” menu. This allows you to add annotations, draw notes, or highlight areas directly on the map using a pen tool, useful for map markup and communication.
• Geo Toolbox and Advanced Features: TNTatlas provides a Geo toolbox with various GIS tools, View-in-view (for inset maps), HyperIndex Navigator (for data exploration), and other advanced features that go beyond simple viewing, offering more analytical capabilities.
• Snapshot of Annotated Map: You can take a snapshot of the annotated map, capturing both the spatial data and your annotations for sharing or documentation.

TNTatlas is a powerful free GIS software that is excellent for viewing shapefiles and exploring more advanced GIS functionalities. While it has a steeper learning curve than dedicated viewers, its extensive features make it a valuable tool for users needing more than just basic shapefile visualization. You can download TNTatlas from MicroImages website.

FAQ¶

How do I view Shapefile online?¶

To view a shapefile online, you can use a dedicated web service like Mapshaper. Mapshaper allows you to upload, view, inspect, and even edit shapefiles directly in your web browser. It supports various features for analyzing and manipulating shapefile data online, as detailed earlier in this guide. Simply navigate to the Mapshaper website and upload your shapefile and associated files to begin viewing.

How do I convert a CSV file to DBF?¶

A DBF file is a crucial component of shapefiles as it stores the attribute information for each feature. If you have attribute data in a CSV file and need to convert it to DBF format to use with a shapefile, you can use online converters. One such free service is AnyConv. AnyConv allows you to upload a CSV file and convert it to DBF format quickly. This is useful when you need to link tabular data from a CSV file with spatial data in a shapefile. Remember to ensure that the attribute fields in your CSV file align with the features in your shapefile for proper data integration.

Conclusion¶

Viewing shapefiles on Windows 10 and 11 is easily achievable with the methods and tools discussed in this guide. Whether you prefer the convenience of online viewers like Mapshaper or the more comprehensive features of desktop software like Shape Viewer, Avangardo ShapeView, or TNTatlas, you have several excellent options to choose from. Each tool offers a unique set of features to help you visualize, analyze, and work with your geospatial data effectively. By understanding these methods, you can confidently unlock the information contained within shapefiles and leverage it for your projects and analyses.

Do you have any preferred methods or software for viewing shapefiles? Share your experiences and tips in the comments below!
