Unlock Windows 11 Virtualization: A Practical Guide to Using Hyper-V
Hyper-V is a powerful virtualization platform built directly into professional editions of Windows. It allows you to create and manage virtual machines (VMs), enabling you to run multiple operating systems simultaneously on a single physical computer. This capability is incredibly useful for software testing across different environments, safely experimenting with new operating systems or applications, and consolidating server workloads. With Hyper-V, you can isolate guest operating systems from your main host system, providing a secure sandbox for various tasks and the flexibility to revert to previous states using checkpoints.
This guide will walk you through the process of configuring Hyper-V on your Windows 11 or Windows 10 PC and creating your first virtual machine. By following these steps, you will gain the knowledge needed to harness the power of hardware virtualization for your computing needs. Understanding the prerequisites and configuration steps is crucial for a successful Hyper-V deployment.
System Requirements for Hyper-V¶
Before you can install and utilize Hyper-V, your system must meet specific hardware and software criteria. Ensuring your computer is compatible is the first and most critical step in setting up your virtual environment. Failure to meet these requirements will prevent the Hyper-V feature from being available or functioning correctly on your system.
Here are the essential system requirements for running Hyper-V on Windows 11 or Windows 10:
- Operating System: You must be running a 64-bit version of Windows 11 or Windows 10 Pro, Enterprise, or Education. Hyper-V is not included with Windows Home edition out of the box.
- Processor: A 64-bit processor is required. The processor must support Second Level Address Translation (SLAT), a technology that enhances the performance of memory-intensive virtualization applications.
- Memory: A minimum of 4 GB of RAM is needed. However, this is the absolute minimum, and you will likely require significantly more RAM depending on the number and resource demands of the virtual machines you plan to run concurrently. Each active VM requires a portion of the host’s RAM.
- CPU Support: Your CPU must support VM Monitor Mode Extension. For Intel processors, this is known as VT-c, and for AMD processors, it is known as AMD-V. This hardware feature is fundamental for the hypervisor to efficiently manage virtual machines.
- BIOS/UEFI Settings: Hardware virtualization support (Intel VT-x or AMD-V) and Data Execution Prevention (DEP) must be enabled in your computer’s BIOS or UEFI firmware settings. These settings are often found under CPU configuration or security settings menus.
It is imperative to verify that hardware virtualization support is enabled in your system’s BIOS or UEFI settings before proceeding with the installation of Hyper-V. Consult your motherboard or computer manufacturer’s documentation for specific instructions on accessing and modifying these settings, as the process varies between different systems. Without these crucial settings enabled, Windows will not be able to leverage the hardware capabilities needed for Hyper-V to function.
Enabling the Hyper-V Feature in Windows¶
Once you have confirmed that your system meets the hardware requirements and that virtualization is enabled in your BIOS/UEFI, you can proceed to enable the Hyper-V feature within Windows. This is done through the Windows Features dialog, where various optional components of the operating system can be turned on or off. Enabling Hyper-V will install the necessary files and services to run the hypervisor.

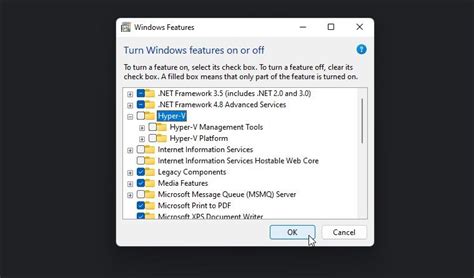

To enable Hyper-V, use the Windows Search bar. Type “turn windows features” and select the “Turn Windows features on or off” option from the search results. This will open a small dialog box containing a list of optional Windows features. Scroll through the list until you find the “Hyper-V” entry.
Check the box next to “Hyper-V.” Expanding the Hyper-V entry will usually show two sub-components: “Hyper-V Management Tools” and “Hyper-V Platform.” Both of these should be selected for a complete installation, allowing you to both manage and run virtual machines. Click “OK” to initiate the installation process. Windows will apply the changes, which may require downloading files from Windows Update and potentially a system restart.
Allow Windows to complete the installation and restart your computer if prompted. After the restart, the Hyper-V feature will be active on your system. You can then access the Hyper-V Manager application from the Start Menu by searching for “Hyper-V Manager.” The Manager is your primary tool for interacting with the Hyper-V environment, creating virtual switches, and managing virtual machines.
Configuring Hyper-V Networking¶
Networking is a fundamental component of any virtual environment, allowing virtual machines to communicate with each other, the host system, and the external network (internet or local network). In Hyper-V, networking is managed through Virtual Switches. Before creating virtual machines, it is highly recommended to set up at least one virtual switch to handle network connectivity for your VMs.

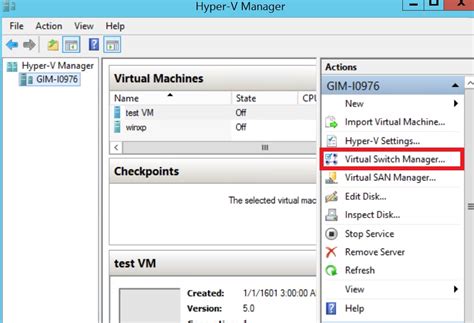

Open the Hyper-V Manager application. In the Actions pane on the right-hand side (or sometimes under the ‘Actions’ menu), locate and click on “Virtual Switch Manager.” This tool allows you to create, configure, and manage virtual switches. You will be presented with options to create different types of virtual switches.
The three main types of virtual switches are:
- External: This type binds the virtual switch to a physical network adapter on your host machine. It allows VMs connected to this switch to access the physical network, including the internet, just like any other physical computer on that network. This is the most common type for general-purpose VMs that need internet access. When creating an External switch, you must select which physical network adapter on your host PC it will use.
- Internal: This switch creates a network that is accessible only by the virtual machines connected to it and the host operating system. VMs on this switch can communicate with each other and the host, but not with the external physical network unless the host acts as a router or NAT device. This is useful for testing environments where VMs need to interact with the host or each other in an isolated network.
- Private: This switch creates a network that is accessible only by the virtual machines connected to it. Neither the host operating system nor the external physical network can communicate with VMs on a Private switch. This is ideal for complete network isolation between a group of VMs for security or specific testing scenarios.
For most users creating VMs that need internet access, an External virtual switch is the appropriate choice. Select “External” from the options in the Virtual Switch Manager and click the “Create Virtual Switch” button. Give your virtual switch a descriptive name (e.g., “External Network Switch”). Ensure that the correct physical network adapter from your host computer is selected under “External network.” If your system has multiple network cards (wired Ethernet, Wi-Fi), choose the one you want your VMs to use for external connectivity.
Click “Apply” and then “OK.” Windows may temporarily lose network connectivity on your host as it configures the virtual switch and binds it to the chosen physical adapter. Confirm any security prompts regarding network changes. Once created, this virtual switch can be assigned to your virtual machines, providing them with network access according to the switch type you selected.
| Virtual Switch Type | Communication Scope | Primary Use Case |
|---|---|---|
| External | VMs, Host, Physical Network, Internet | General internet access, joining physical domain |
| Internal | VMs, Host | Isolated VM-to-VM or VM-to-Host communication |
| Private | VMs Only | Complete network isolation between a group of VMs |
Having a properly configured virtual switch is a prerequisite for setting up network connectivity when you create a virtual machine. Without it, your VMs will be isolated from external networks, limiting their functionality for many common tasks like installing updates or accessing web resources.
Creating a New Virtual Machine¶
With Hyper-V enabled and network configured via a virtual switch, you are ready to create a virtual machine. The process is guided by the New Virtual Machine Wizard within the Hyper-V Manager, simplifying the configuration steps needed to define the virtual hardware and initial settings for your new VM.
In the Hyper-V Manager, go to the Actions pane on the right side (or the ‘Action’ menu) and click on “New” > “Virtual Machine…”. This action will launch the New Virtual Machine Wizard. The wizard will guide you through several pages, prompting you for details about the VM you wish to create.
1. Specify Name and Location:
The first step is to give your virtual machine a name. Choose a descriptive name that helps you identify its purpose or the operating system it will run (e.g., “Windows 10 Test VM”, “Ubuntu Server”). You can also choose a location to store the virtual machine’s files (configuration, virtual hard disk, snapshots). By default, this is usually within your user profile’s “Documents\Hyper-V” folder, but you can browse to a different location if you prefer. Storing VMs on a drive with ample space is important, as virtual hard disks can consume significant disk space.
2. Specify Generation:
Next, you need to choose the generation of the virtual machine. Hyper-V offers two generations:
* Generation 1: Provides virtual hardware that is similar to an older physical computer. It supports 32-bit and 64-bit guest operating systems and uses BIOS-based architecture for booting. Generation 1 VMs support features like legacy network adapters and COM ports.
* Generation 2: Provides virtual hardware that is newer and based on UEFI firmware. It supports 64-bit guest operating systems and offers features like secure boot, SCSI boot, and faster boot times. Generation 2 is generally recommended for modern operating systems (Windows Server 2012 and later, Windows 8 and later, and many Linux distributions) unless specific legacy hardware support is required.
Choose the generation appropriate for the operating system you plan to install and your needs.
3. Assign Memory:
You need to allocate memory (RAM) to the virtual machine. Specify the amount of startup RAM in megabytes (MB) or gigabytes (GB). While the wizard shows a recommended range, allocate enough memory for the guest OS to run smoothly, plus any applications you plan to use within the VM. For example, Windows 10/11 typically needs at least 2 GB for basic operation, but 4 GB or more is recommended for better performance.
You can also configure Dynamic Memory. This feature allows Hyper-V to adjust the amount of memory assigned to the VM while it is running, based on its actual memory usage. This can help optimize memory usage on the host, allowing you to run more VMs simultaneously. If enabled, you can set a minimum and maximum RAM limit.

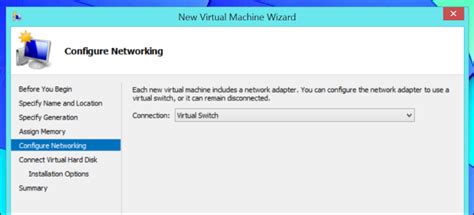

4. Configure Networking:
On this page, select the virtual switch that the virtual machine’s network adapter will connect to. Choose the External virtual switch you created earlier if you want the VM to have access to your physical network and the internet. If you created an Internal or Private switch for specific purposes, select that instead. The VM’s primary network adapter will be connected to the chosen switch.
5. Connect Virtual Hard Disk:
Here, you configure the virtual hard drive for the VM. You have three options:
* Create a virtual hard disk: This is the most common option for a new VM. You specify the name, location, and maximum size of the virtual hard disk file (VHDX format is recommended for modern VMs and offers features like larger sizes and resilience to power failures). Choose a size large enough to install the OS and any applications. You can choose between a fixed-size disk (pre-allocates the full size, offering better performance) or a dynamically expanding disk (starts small and grows as needed, saving disk space on the host).
* Use an existing virtual hard disk: If you have a pre-existing virtual hard disk file from another VM or source, you can attach it here.
* Attach a virtual hard disk later: You can skip creating or attaching a disk now and add one after the VM is created.
Choose to create a virtual hard disk and configure its settings (name, location, size).
6. Installation Options:
Finally, you specify how you plan to install the guest operating system on the VM. Options include:
* Install an operating system later: Configure the VM now and attach installation media (like an ISO file) later.
* Install an operating system from a bootable image file: Browse to an ISO file or virtual floppy disk (.vfd) containing the OS installation media. This is the most common method for installing from a downloaded ISO.
* Copy an operating system from an existing virtual hard disk: Not typically used for fresh installations.
Select the option to install from a bootable image file and browse to the ISO file of the operating system you wish to install.
Review the summary of your settings on the final page and click “Finish” to create the virtual machine. The VM configuration will be saved, and the virtual machine entry will appear in the Hyper-V Manager list.
Advanced Virtual Machine Configuration¶
After creating the basic virtual machine using the wizard, you might need to adjust advanced settings or add specific hardware. You can access these settings by right-clicking the VM in Hyper-V Manager and selecting “Settings.” This opens a detailed configuration window where you can modify various aspects of the VM’s virtual hardware and management options.
In the Settings window, the left pane lists the VM’s hardware components (like Memory, Processor, Network Adapter) and management options (like Checkpoints, Integration Services, Automatic Start/Stop Actions). Selecting a component on the left displays its configuration options on the right.
One common advanced step mentioned in the original text is adding a Legacy Network Adapter, particularly useful for Generation 1 VMs that need to boot using PXE from certain network environments. For Generation 2 VMs, the standard Network Adapter supports PXE boot via UEFI, so a Legacy adapter isn’t usually needed.
To add hardware, select “Add Hardware” from the left pane. This will show a list of virtual hardware devices you can add. Select “Legacy Network Adapter” (if applicable) and click “Add.” Then, configure which virtual switch this new adapter should connect to. You can add multiple network adapters to a single VM, connecting them to different virtual switches as needed.
Other important settings you can configure include:
- Processor: Adjust the number of virtual processors assigned to the VM. More processors can improve performance for multi-threaded applications within the guest OS, but allocating too many can negatively impact the host and other VMs.
- Checkpoints: Configure whether checkpoints are enabled for this VM and their storage location. Checkpoints allow you to save the state of a VM at a specific point in time, making it easy to revert to a previous state. They are invaluable for testing software or configuration changes.
- Integration Services: These are drivers and services installed within the guest operating system that enhance performance and usability by improving communication between the host and the guest. Integration Services include features like time synchronization, data exchange, heartbeat, backup (volume shadow copy), and guest services. Ensure Integration Services are installed in your guest OS after installation (often done automatically with modern Windows guest OSes, but may require manual installation for older OSes or Linux).
- Automatic Start Action: Configure what happens to the VM when the host computer starts (e.g., automatically start, start if it was running when the host stopped, do nothing).
- Automatic Stop Action: Configure what happens to the VM when the host computer shuts down (e.g., Save the state, Shut down the guest OS, Turn off the VM). Saving the state allows for a quick resume, while shutting down is cleaner but takes longer to start back up.
Taking the time to explore these settings allows you to fine-tune the virtual machine to meet your specific requirements for performance, connectivity, and management.
Installing an Operating System on the VM¶
After the virtual machine is created, the next step is to install the guest operating system. If you configured the VM to boot from an ISO file during the creation wizard, the process is straightforward. If you chose to install the OS later, you’ll need to attach the installation media to the VM’s virtual DVD drive before starting it.
To attach an ISO file if you didn’t do so during creation:
1. Right-click the VM in Hyper-V Manager and select “Settings.”
2. Under “IDE Controller 0” or “SCSI Controller” (depending on VM generation and where you want to attach it), select “DVD Drive.”
3. Choose “Image file” and browse to the location of your operating system ISO file.
4. Click “Apply” or “OK.”
Now you can start the virtual machine. In the Hyper-V Manager, select the VM and click the green “Start” button in the Actions pane or right-click the VM and select “Start.” The VM will power on, and if the installation media is correctly attached and the boot order is configured to boot from DVD/ISO (which is the default for new VMs), it will boot from the ISO file.

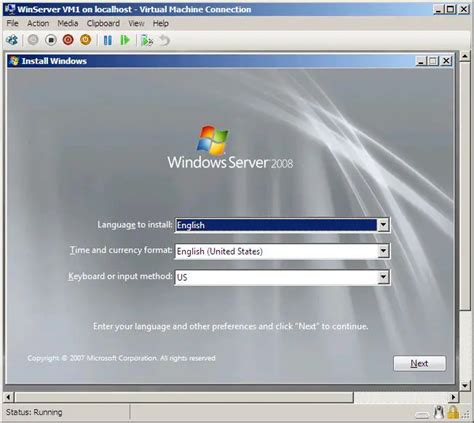

A “Virtual Machine Connection” window will open, displaying the VM’s screen. This window acts like a virtual monitor, keyboard, and mouse for the VM. You will see the standard operating system installation process begin. Follow the on-screen prompts to install the operating system within the virtual machine, just as you would on a physical computer. This includes selecting language, time zone, keyboard layout, entering a product key (if required), accepting license terms, and choosing the installation type (usually custom to select the virtual hard disk you created).
The installation process can take some time, depending on the guest operating system and the performance of your host machine. Once the installation is complete, the VM will restart, and you should boot into the newly installed operating system. Remember to install the Hyper-V Integration Services within the guest OS if they are not installed automatically. This step is vital for optimal performance and features like mouse cursor integration, improved video resolution, and faster networking.
If you chose to install via PXE boot, you would also start the VM and, when prompted (usually by pressing F12), instruct the VM to boot from the network adapter. This requires a configured PXE server on the network your virtual machine is connected to (via the virtual switch).
Interacting with Your Virtual Machines¶
Once the guest operating system is installed and the virtual machine is running, you need a way to interact with it. Hyper-V provides two primary methods for connecting to your VMs:
- Virtual Machine Connection: This is the default connection method and is initiated by selecting the VM in Hyper-V Manager and clicking “Connect.” This opens a console window that provides direct access to the VM’s display output and allows you to send keyboard and mouse input. It’s particularly useful for initial setup, BIOS/UEFI access, troubleshooting boot issues, and situations where the network isn’t configured or working. The Virtual Machine Connection window provides options for sending special key combinations (like Ctrl+Alt+Del), taking checkpoints, and managing virtual media. For enhanced usability, ensure Integration Services are installed in the guest OS, as this enables features like improved mouse integration and higher display resolutions.
- Remote Desktop Connection (RDP): Once the guest operating system is fully booted and configured with network connectivity (via an External or Internal virtual switch), you can connect to it using Remote Desktop Connection, provided the guest OS supports and has RDP enabled. This method often provides a smoother and more responsive user experience, especially over a network connection. To use RDP, you’ll need the VM’s IP address or hostname on the virtual network and valid user credentials for the guest operating system. Connect to the VM from your host machine (or another computer on the network) using the standard Remote Desktop Connection application.
Choose the method that best suits your needs at the time. Virtual Machine Connection is essential for low-level access and initial setup, while RDP is often preferred for day-to-day interaction with a running guest OS.
Hyper-V on Windows Home Edition¶
As previously mentioned, Hyper-V is not officially included or supported on Windows 11 or Windows 10 Home edition. The required Hyper-V Platform component is simply not present in the Home version of the operating system. This is a licensing and feature differentiation between the consumer-focused Home edition and the more professional editions like Pro, Enterprise, and Education.
While there are unofficial workarounds or scripts shared online that attempt to enable Hyper-V on Windows Home by adding the missing components, these methods are not supported by Microsoft. Their reliability and potential impact on system stability can vary. If you require virtualization capabilities on Windows Home, officially supported alternatives like Oracle VirtualBox or VMware Workstation Player are recommended. These third-party hypervisors install as applications on the host OS and do not require the underlying Windows Hyper-V platform. For users who need native Hyper-V and its specific features, upgrading to a Pro or higher edition of Windows is the recommended and supported path.
How to activate Windows Hyper-V?¶
To activate Hyper-V on a supported Windows 11/10 PC (Pro, Enterprise, or Education), ensure your system meets the necessary hardware requirements, particularly regarding processor features (SLAT, VT-x/AMD-V, DEP) and that hardware virtualization support is enabled in your BIOS/UEFI settings. Press the Win + R keys simultaneously to open the Run dialogue box. Type optionalfeatures in the Run box and press Enter. This command opens the “Windows Features” dialogue. In the list of features, locate and check the box next to Hyper-V. Make sure both the “Hyper-V Management Tools” and “Hyper-V Platform” sub-options are selected underneath the main Hyper-V entry. Click OK to begin the installation process. Windows will apply the changes, which may require a system restart to finalize the installation. After the restart, Hyper-V will be successfully activated and ready for use, accessible via the Hyper-V Manager application found in the Start menu.
How does Windows Hyper-V work?¶
Windows Hyper-V functions as a Type 1 or native hypervisor. Unlike Type 2 hypervisors (like VirtualBox or VMware Player) which run as an application on top of the host operating system, a Type 1 hypervisor runs directly on the host hardware, beneath the operating system. When Hyper-V is enabled, it inserts itself between the hardware and the host Windows operating system. The host OS itself then runs in a partitioned space, similar to a privileged virtual machine. Hyper-V creates partitions, with the root partition containing the host OS and child partitions containing the guest virtual machines. The hypervisor directly manages the hardware resources (CPU, memory, devices) and allocates them to these partitions. It leverages hardware-assisted virtualization features (like Intel VT-x/AMD-V and SLAT) to efficiently handle CPU instructions and memory management for the VMs. Virtual machines interact with virtual devices provided by the hypervisor. For optimal performance, guest operating systems use Integration Services, which are specialized drivers that communicate directly with the hypervisor, bypassing the need for emulated hardware and significantly improving performance for things like networking, storage, and video. This architecture allows multiple isolated operating systems to share the underlying hardware resources efficiently and securely.
Conclusion¶
Configuring and using Hyper-V in Windows 11 or Windows 10 opens up a world of possibilities for testing, development, and isolation. By ensuring your system meets the requirements, enabling the feature, setting up virtual networking, and creating virtual machines through the guided wizard, you can quickly get started with hardware virtualization. Remember to install integration services in your guest operating systems for the best performance and user experience. Whether you use the Virtual Machine Connection console for low-level access or RDP for a smoother remote desktop experience, you now have the tools to run diverse operating systems side-by-side on your single machine.
Have you successfully set up Hyper-V on your Windows PC? What operating systems are you planning to run in your virtual machines? Share your experiences or ask any questions about the process in the comments below!
