Unlocking Your AD: A Step-by-Step Guide to Finding Your Active Directory Schema Version

Updated: • 0 • min read
Table of Contents

In managing a Windows Server environment, understanding the Active Directory (AD) schema version is crucial for compatibility, upgrades, and troubleshooting. The schema dictates the structure of the directory, defining the classes of objects and their attributes that can be stored within Active Directory. Knowing your schema version ensures that new applications, services, or domain controllers are compatible with your existing infrastructure. This guide provides a comprehensive walkthrough on how to identify your Active Directory schema version and the Exchange schema version using various built-in Windows tools.

How to Find Schema Version of Active Directory

There are several methods to determine the schema version of your Active Directory. Each method leverages different tools available within Windows Server, providing flexibility based on your preferred approach or the tools readily accessible. Below are three primary methods: using ADSIEDIT, Command Prompt, and PowerShell.

1] Using ADSIEDIT

ADSIEDIT (Active Directory Service Interfaces Editor) is a powerful MMC snap-in that allows you to view and edit Active Directory objects and attributes directly. It provides a graphical interface for navigating the directory structure, making it a user-friendly option for administrators familiar with GUI tools.

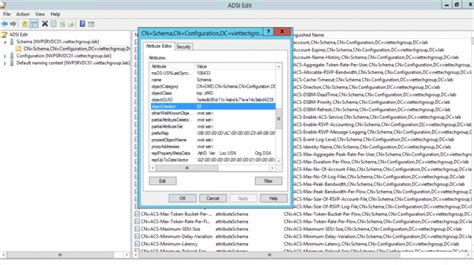

Using ADSIEDIT

To find the schema version using ADSIEDIT, follow these steps:

  1. Open ADSIEDIT: Press Win + R to open the Run dialog box. Type ADSIEdit.msc and press Enter. This will launch the ADSIEDIT tool.
  2. Connect to Schema Naming Context: In the ADSIEDIT console, right-click on ADSI Edit in the left pane and select Connect to….
  3. Select Schema Partition: In the Connection Settings dialog, under the Select a well known Naming Context dropdown menu, choose Schema. This specifies that you want to connect to the schema partition of Active Directory.
  4. Confirm Connection: Click the OK button to establish the connection to the Schema naming context.
  5. Navigate to Schema Container: Expand the Schema container in the left pane. Then, expand the DC=Schema,CN=Configuration,DC=… container.
  6. Access Schema Properties: Right-click on the object CN=Schema,CN=Configuration,… and select Properties. This will open the Properties dialog for the schema object.
  7. Locate objectVersion Attribute: In the Properties dialog, scroll through the list of attributes or use the filter to find the attribute named objectVersion. The value of the objectVersion attribute represents the current Active Directory schema version. Note down this numerical value for your records.

2] Using Command Prompt

The Command Prompt provides a command-line interface for interacting with Windows. It is a versatile tool for system administration, and you can use the dsquery command to query Active Directory and retrieve the schema version. This method is efficient for administrators who prefer command-line operations or need to script the process.

Using Command Prompt

To find the schema version using Command Prompt, follow these steps:

  1. Open Command Prompt: Press Win + R, type cmd, and press Enter to open the Command Prompt window.

  2. Execute dsquery Command: Type or paste the following command into the Command Prompt window and press Enter:

    dsquery * "cn=schema,cn=configuration,dc=contoso,dc=local" -scope base -attr objectVersion

    Note: Replace dc=contoso,dc=local with the actual domain components of your Active Directory domain. For example, if your domain is example.com, it would be dc=example,dc=com. If you are unsure, you can use dsquery * "cn=schema,cn=configuration,$(FOR /F "tokens=*" %i IN ('dsquery naming context') DO @echo %i)" -scope base -attr objectVersion to dynamically determine the domain naming context.
    3. Interpret the Output: The command will query Active Directory and return the objectVersion attribute of the schema object. The output will display the attribute name and its corresponding numerical value, which is your Active Directory schema version.

3] Using PowerShell

PowerShell is a powerful scripting language and command-line shell designed for system administration. It offers robust cmdlets for interacting with Active Directory, making it an efficient and scriptable method for retrieving the schema version. PowerShell is particularly useful for automation and integration with other management tasks.

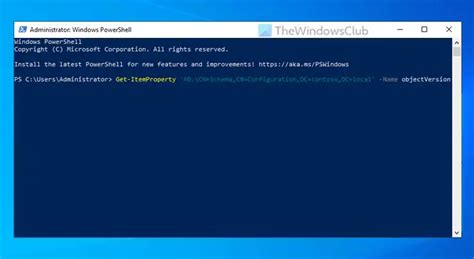

Using PowerShell

To find the schema version using PowerShell, follow these steps:

  1. Open PowerShell: Click on the Start button, type powershell, and click on Windows PowerShell to open the PowerShell console. You can also right-click and select “Run as administrator” for elevated privileges if needed, though it’s generally not required for this specific task.

  2. Execute Get-ItemProperty Cmdlet: Type or paste the following command into the PowerShell window and press Enter:

    Get-ItemProperty 'AD:\CN=Schema,CN=Configuration,DC=contoso,DC=local' -Name objectVersion | Select-Object objectVersion

    Note: Similar to the Command Prompt method, replace DC=contoso,DC=local with your actual domain components. To make it dynamic and work in any domain, you can use:

    Get-ItemProperty "AD:\CN=Schema,CN=Configuration,$((Get-ADDomain).DistinguishedName)" -Name objectVersion | Select-Object objectVersion

    This command uses Get-ADDomain to automatically retrieve the domain’s distinguished name, making the script portable across different domains.
    3. View the Output: The command will retrieve the objectVersion property of the schema object and display it in the PowerShell console. The output will directly show the numerical schema version.

How to Find Exchange Schema Version of Active Directory

Besides the core Active Directory schema, Exchange Server extends the schema to support its functionalities. Knowing the Exchange schema version is essential for managing Exchange deployments and ensuring compatibility during upgrades or when integrating Exchange with other applications. The methods for finding the Exchange schema version are similar to those for the core schema, but they target a specific object related to Exchange within the schema partition.

1] Using ADSIEDIT for Exchange Schema Version

The process for finding the Exchange schema version using ADSIEDIT is largely the same as finding the general schema version, with a slight variation in the object you need to inspect.

Using ADSIEDIT for Exchange Schema Version

Follow steps 1-5 from the “Using ADSIEDIT” section above to connect to the Schema naming context and navigate to the Schema container. Then:

  1. Navigate to ms-Exch-Schema-Version-Pt Object: Expand the DC container (if not already expanded from the previous steps). Locate and click on the object CN=ms-Exch-Schema-Version-Pt,CN=Schema,CN=Configuration,….
  2. Access Properties: Right-click on CN=ms-Exch-Schema-Version-Pt,CN=Schema,CN=Configuration,… and select Properties.
  3. Locate rangeUpper Attribute: In the Properties dialog, find the attribute named rangeUpper. The value of the rangeUpper attribute for this object represents the current Exchange schema version. Record this value.

2] Using Command Prompt for Exchange Schema Version

Similar to finding the core schema version, you can use the dsquery command in Command Prompt to retrieve the Exchange schema version.

Using Command Prompt for Exchange Schema Version

  1. Open Command Prompt: Open Command Prompt as described earlier (Win + R, type cmd, Enter).

  2. Execute dsquery Command for Exchange Schema: Type or paste the following command and press Enter:

    dsquery * "CN=ms-Exch-Schema-Version-Pt,cn=schema,cn=configuration,dc=contoso,dc=local" -scope base -attr rangeUpper

    Note: Again, replace dc=contoso,dc=local with your domain components. A dynamic version can be used similarly as before.
    3. Interpret Output: The command will return the rangeUpper attribute for the Exchange schema version object. The output will show the attribute name and its numerical value, which is the Exchange schema version.

3] Using PowerShell for Exchange Schema Version

PowerShell provides a convenient and scriptable way to find the Exchange schema version as well.

Using PowerShell for Exchange Schema Version

  1. Open PowerShell: Open PowerShell as described earlier (Start Menu, type powershell, Windows PowerShell).

  2. Execute Get-ItemProperty Cmdlet for Exchange Schema: Type or paste the following command and press Enter:

    Get-ItemProperty "AD:\CN=ms-Exch-Schema-Version-Pt,cn=schema,cn=configuration,$((get-addomain).DistinguishedName)" -Name rangeUpper | Select-Object rangeUpper

    This command dynamically retrieves the domain name and queries the Exchange schema version object for the rangeUpper attribute.
    3. View Output: The PowerShell console will display the rangeUpper value, representing the Exchange schema version.

What is Active Directory Schema Level?

The Active Directory schema level is a version number that represents the set of object classes, attributes, and syntax rules defined in the Active Directory forest. Think of it as the blueprint for your directory service. Each schema level introduces new features and capabilities to Active Directory. When you raise the forest or domain functional level, you are essentially enabling a newer schema level, which unlocks these new features.

In simpler terms, the schema level dictates:

  • Available Object Classes: What types of objects (users, computers, groups, etc.) can be created in the directory.
  • Object Attributes: What properties (name, description, email address, etc.) can be associated with each object type.
  • Syntax Rules: How data is stored and formatted within the directory.

Raising the schema level is generally a one-way process. While you can raise the functional level of domains and forests to enable newer features, you typically cannot revert to an older schema level without significant effort and potential data loss. Therefore, it’s crucial to understand the implications of schema upgrades and ensure all domain controllers in your environment are compatible with the target schema level before proceeding with an upgrade.

How do I find the Schema Master in Active Directory?

The Schema Master is one of the five Flexible Single Master Operations (FSMO) roles in Active Directory. It is the domain controller responsible for all schema updates within the Active Directory forest. Identifying the Schema Master is important when you need to perform schema modifications or troubleshoot schema-related issues.

Finding Schema Master

Here’s how to find the Schema Master using the MMC snap-in:

  1. Open MMC (Microsoft Management Console): Press Win + R, type mmc, and press Enter. This will open an empty MMC console.
  2. Add Active Directory Schema Snap-in: In the MMC console, click on File in the menu bar and select Add/Remove Snap-in….
  3. Select Active Directory Schema: In the Add or Remove Snap-ins dialog, locate Active Directory Schema in the list of available snap-ins and click Add >. Then, click OK. If you do not see “Active Directory Schema” in the list, you may need to register the schema snap-in DLL by running regsvr32 schmmgmt.dll in an elevated Command Prompt.
  4. Connect to Schema Master: In the left pane of the MMC console, right-click on Active Directory Schema and select Operations Master….
  5. Identify Schema Master: The Operations Master dialog will display the current Schema Master domain controller for the forest. The name of the server holding the Schema Master role will be listed.

By following these steps, you can effectively determine both the Active Directory schema version and the Exchange schema version, as well as identify the Schema Master. This knowledge is invaluable for managing, upgrading, and maintaining a healthy and functional Active Directory environment.

If you have any questions or further insights on finding the Active Directory schema version, feel free to share your comments below!
