Windows 11 Core Isolation: Should You Enable Memory Integrity for Enhanced Security?

Updated: • 0 • 14 min read

Cyber-attacks have evolved significantly over recent years, becoming increasingly sophisticated and destructive. Today, malicious actors frequently employ tactics like ransomware, which can seize control of a computer system and encrypt critical files, demanding payment for their release. These advanced threats often exploit vulnerabilities at the core of the operating system, specifically targeting kernel-level processes to gain the highest possible privileges. Notable examples include infamous ransomware strains like WannaCry and Petya, which demonstrated the devastating potential of such kernel-level exploits. To counteract these potent threats and fortify the security posture of its operating system, Microsoft has introduced and promoted security features designed to protect the most critical parts of Windows by enabling Core Isolation and Memory Integrity.

What is Core Isolation?

Core Isolation is a fundamental security feature integrated into modern Windows operating systems, including Windows 11 and Windows 10. Its primary function is to safeguard vital core processes of Windows from malicious software by isolating them within a secure, virtualized environment. This virtualization-based security (VBS) creates a protective barrier, ensuring that even if malware manages to infiltrate the system, it cannot easily interfere with or compromise these critical core components. By running core processes in isolation, Windows significantly reduces the attack surface available to threats attempting to gain deep system access.

This robust security layer encompasses several specific features working in concert. Key among them is Memory Integrity, which focuses on validating the integrity of code running in the kernel. Another component often associated with Core Isolation is Kernel-mode Hardware-enforced Stack Protection, which helps prevent certain types of memory corruption attacks that could be used to execute malicious code. Together, these features represent a proactive defense strategy against sophisticated, low-level malware.

What is Memory Integrity?

Memory Integrity, also formally known as Hypervisor-protected Code Integrity (HVCI), is a critical security feature operating as a core component of Core Isolation. Its purpose is to make it substantially more difficult for malicious programs to exploit vulnerabilities, particularly those involving low-level drivers, to hijack control of your computer system. HVCI achieves this by running the Code Integrity (CI) service within the secure virtualized environment created by Virtualization-Based Security (VBS).

In this protected environment, HVCI rigorously checks and validates the code that is attempting to run in kernel mode. It specifically ensures that device drivers and other Windows binaries are properly signed and trustworthy before they are allowed to execute. By enforcing these stringent code integrity checks from within the isolated VBS environment, HVCI prevents malware running in the main operating system from modifying or disabling the code integrity process itself, thereby maintaining a high level of security for the Windows kernel.

Windows 11 Core Isolation and Memory Integrity

Device Security and Hardware Requirements

These advanced security features, including Core Isolation and Memory Integrity, are managed and reported through the Windows Security application, often found under the section labeled “Device Security”. This dedicated area within Windows Security provides users with status reporting and management capabilities for various built-in hardware-dependent security features, allowing users to toggle them on or off to enhance protection. However, it is crucial to understand that these features do not operate purely at the software level; they rely heavily on specific underlying hardware capabilities to function correctly and effectively.

For Core Isolation and Memory Integrity to be enabled and provide their intended protection, your device’s hardware must meet certain baseline requirements for standard hardware security. This means that the physical components of your computer, along with its firmware (like UEFI), must support the necessary technologies. Key hardware prerequisites typically include the following components, which work together to provide the secure foundation required for virtualization-based security features:

  • TPM 2.0: Also referred to as the Security Processor, the Trusted Platform Module (TPM) is a secure cryptoprocessor designed to carry out cryptographic operations securely. TPM 2.0 is essential for providing hardware-based security functions, including storing cryptographic keys and verifying the integrity of the system boot process. It serves as a root of trust for the system.
  • Secure Boot Enabled: Secure Boot is a security standard developed by members of the PC industry to help ensure that a device boots using only software that is trusted by the Original Equipment Manufacturer (OEM). When enabled in the system’s UEFI firmware, Secure Boot prevents malicious rootkits or other unauthorized low-level software from loading during the startup sequence before the operating system fully initializes.
  • DEP (Data Execution Prevention): DEP is a system-level memory protection feature that marks certain areas of memory used by applications as non-executable. Its primary purpose is to prevent code execution from data segments of memory, which is a common technique used by exploits involving buffer overflows or other memory corruption vulnerabilities. Hardware support for DEP (like NX bit or XD bit) is necessary for its full functionality.
  • UEFI MAT (Memory Attribute Table): UEFI Memory Attribute Table provides information to the operating system about the expected memory attributes for different regions of system memory. This table helps VBS and HVCI understand which regions of memory are executable and which are not, enhancing the system’s ability to prevent unauthorized code execution in protected memory areas.

Without the presence and proper configuration of these hardware components, the option to enable Core Isolation and Memory Integrity may be greyed out or the features may not function correctly, significantly limiting the device’s ability to defend against advanced kernel-level threats.

Enabling Core Isolation & Memory Integrity in Windows 11/10 via UI

Enabling these crucial security features through the Windows Security application is the recommended and most straightforward method for most users, provided their hardware meets the necessary requirements. The process is integrated seamlessly into the operating system’s security interface.

Here are the general steps to enable Core Isolation and Memory Integrity:

  1. Ensure you are signed into your Windows 11 or Windows 10 PC with an account that has administrator privileges. This is necessary because changing system-wide security settings requires elevated permissions.
  2. Open the Windows Security application. You can typically find this by searching for “Windows Security” in the Start menu.
  3. Within the Windows Security application, navigate to the Device Security section. This area aggregates information and controls related to hardware-based security features.
  4. Under the “Core isolation” section within Device Security, you should see an option indicating whether Core Isolation is currently enabled or disabled on your PC. Core isolation provides the virtualization-based security features essential for protecting the device’s core components.
  5. Click on Core isolation details. This will take you to a dedicated page providing more information about Core Isolation and its related features.

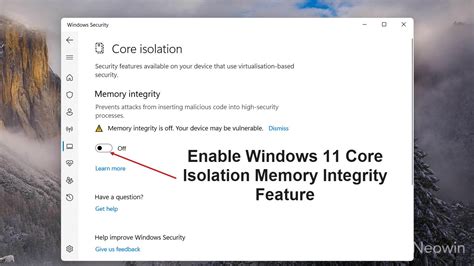

  6. On the Core isolation details page, you will find the option to enable Memory integrity. There is typically a toggle switch associated with this setting. Click or slide the toggle to turn it “On”.
  7. Once you enable Memory Integrity, the system will prompt you that a restart is required for the changes to take full effect. Save any open work and click the prompt or manually restart your computer.

After the restart, Memory Integrity should be active, providing enhanced protection against kernel-level malware. If you encounter issues enabling it (e.g., the toggle is greyed out or it turns itself off), it might indicate hardware incompatibility or driver conflicts, which may require further investigation or troubleshooting. Should you experience application compatibility issues after enabling the feature, you might need to temporarily turn it off while you identify the conflicting software or driver.

Enabling or Disable Core Isolation and Memory Integrity using Registry

For advanced users or system administrators, Core Isolation and Memory Integrity can also be managed directly through the Windows Registry. This method offers an alternative way to control the feature, which can be useful in specific scenarios, such as scripting the deployment of security settings or troubleshooting situations where the UI method is not working correctly.

Precaution: Modifying the Windows Registry incorrectly can cause serious system problems, including instability or the inability to boot the operating system. It is strongly recommended to back up the registry or create a System Restore point before making any changes.

Follow these steps to enable or disable Memory Integrity using the Registry Editor:

  1. Open the Run dialog box by pressing the Win + R keys simultaneously on your keyboard.
  2. Type regedit into the Run dialog box and press Enter or click OK.
  3. If the User Account Control (UAC) prompt appears, click Yes to grant permission for the Registry Editor to run with administrative privileges.
  4. Navigate to the following path in the Registry Editor. You can copy and paste the path into the address bar at the top of the window for quicker access: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\DeviceGuard\Scenarios
  5. Under the Scenarios key, look for a subkey named HypervisorEnforcedCodeIntegrity. If this key does not exist, you will need to create it. Right-click on the Scenarios key, select New, and then select Key. Name the new key HypervisorEnforcedCodeIntegrity.
  6. Inside the HypervisorEnforcedCodeIntegrity key, you need to create a DWORD (32-bit) Value. Right-click in the right-hand pane (the empty space or list of values), select New, and then select DWORD (32-bit) Value.
  7. Name the new DWORD value Enabled.
  8. Double-click on the Enabled DWORD value to modify its data. To enable Memory Integrity, set the Value data to 1. To disable Memory Integrity, set the Value data to 0.
  9. Click OK to save the changes to the DWORD value.
  10. Close the Registry Editor.
  11. For the changes to take effect, you must restart your computer.

After restarting, the Memory Integrity setting will reflect the value you set in the registry. Remember that the underlying hardware requirements still apply regardless of whether you enable the feature via the UI or the Registry.

Beyond Core Isolation and Memory Integrity, Windows incorporates several other hardware-dependent security features that collectively contribute to a more secure computing environment. Understanding these related features provides a more complete picture of the defense layers available in Windows 11 and modern Windows 10 systems.

  • Security Processor (TPM): As mentioned earlier regarding hardware requirements, the presence and activation of a Trusted Platform Module (TPM), specifically TPM 2.0, is foundational for many advanced Windows security features. TPM chips are typically soldered directly onto the computer’s motherboard by the OEM. They provide secure storage for cryptographic keys and enable hardware-backed authentication and integrity checks. The effectiveness of TPM relies on careful integration between the system’s hardware, firmware, and the TPM chip itself. Newer TPM versions offer enhanced security and privacy benefits extending to the system hardware. When purchasing a new PC, verifying the presence and version of the TPM is a key consideration for security-conscious users.
  • Secure Boot: Operating within the system’s UEFI firmware, Secure Boot is designed to prevent the loading of malicious code early in the boot process. Before the operating system starts, Secure Boot verifies the digital signature of the boot loader and other critical startup files. If the signatures are valid and trusted by the OEM’s stored keys, the boot process continues. If any file has been tampered with or is unsigned, Secure Boot will block its execution, effectively preventing many types of persistent malware like rootkits that attempt to embed themselves deep within the system startup sequence. Secure Boot provides a critical line of defense before the operating system’s own security features have a chance to load.

Modern Windows installations, particularly clean installs of Windows 11, often have Hypervisor Protected Code Integrity (HVCI - Memory Integrity) enabled by default when the hardware supports it. For systems that were upgraded or running on older hardware configurations, the ability to opt-in to these features is provided through the Windows Security interface (WDSC). This enhancement ensures that the vital kernel process responsible for verifying code integrity runs within a protected runtime environment, isolated from the main operating system instance where malware might reside.

Memory Integrity Scan Tool

Determining whether your specific computer hardware configuration is fully compatible with Memory Integrity (HVCI) and identifying potential conflicts, such as incompatible drivers, can sometimes be challenging. To assist users and administrators with this, Microsoft provides a dedicated utility known as the Memory Integrity Scan Tool.

Related: loading

The Memory Integrity Scan Tool is a free command-line tool from Microsoft designed to check your computer’s readiness and compatibility with Memory Integrity or HVCI (Hypervisor-protected code integrity). Running this tool can help pinpoint specific drivers or system components that might be preventing Memory Integrity from being enabled or causing issues if it is already active.

You can download the appropriate version of the hvciscan.exe executable for your system architecture (typically AMD64 for most modern PCs or ARM64 for ARM-based devices) from the Microsoft Download Center. Once downloaded, you should run the tool from an elevated command prompt or PowerShell window (Run as administrator). Executing hvciscan.exe will perform a compatibility check and generate output that details any identified incompatibilities, often listing problematic drivers or other conflicts. Reviewing this resulting output is crucial for troubleshooting why Memory Integrity might be greyed out, won’t turn on, or causes system instability.

What is Memory Access Protection?

Another related hardware-assisted security feature in Windows is Kernel DMA Protection, also referred to as Memory access protection. This feature is designed to protect your device against a specific type of attack known as DMA (Direct Memory Access) attacks, which can occur when a malicious peripheral device is physically connected to a high-speed port, such as a Thunderbolt, PCIe, or FireWire port.

DMA allows certain hardware devices to access system memory directly without involving the CPU. While this is essential for high-performance peripherals, it can be exploited by malicious devices to read sensitive data from memory or inject malicious code into the system’s RAM. Kernel DMA Protection mitigates this risk by implementing strict policies that deny direct memory access to peripherals through these ports under most circumstances, especially when the PC is locked or the user is signed out. This ensures that untrusted or malicious devices cannot simply plug in and immediately access or manipulate system memory, adding another layer of defense against physical attacks.

Benefits and Importance of Enabling Core Isolation and Memory Integrity

Enabling Core Isolation and Memory Integrity offers significant security benefits in today’s complex threat landscape. The primary advantage is the creation of a robust barrier between critical operating system processes (like the kernel and code integrity service) and potential malware running in the user space or standard kernel space. By isolating the code integrity verification process using virtualization, HVCI makes it exceptionally difficult for even highly sophisticated malware, including many types of rootkits and kernel-level exploits, to tamper with or disable Windows’ security checks.

This protection is particularly effective against attacks that attempt to load unsigned or malicious drivers or inject code into the Windows kernel to gain elevated privileges. Ransomware and other file-encrypting malware often rely on such deep system access to operate unimpeded. By enabling Core Isolation and Memory Integrity, you are directly mitigating these types of threats, making your system a much less attractive target for attackers aiming for high-privilege compromise. The enhanced security layer provided goes beyond the capabilities of traditional antivirus software, offering defense at a more fundamental level of the operating system. While no security measure is foolproof, these features represent a substantial improvement in defending against modern, fileless, and kernel-targeting malware.

Potential Drawbacks and Compatibility Issues

While the security benefits of Core Isolation and Memory Integrity are substantial, it is important to be aware of potential drawbacks, primarily related to application and driver compatibility. Because Memory Integrity enforces strict code integrity checks and runs them in an isolated environment, some older or niche software, particularly those that install low-level drivers (like some older peripheral drivers, virtualization software, or certain gaming anti-cheat systems), might not be fully compatible.

If a driver or program attempts to perform actions that are flagged as unsafe or attempts to load an unsigned binary in a way that conflicts with HVCI’s enforcement, it can lead to system instability, application crashes, or prevent the feature from being enabled in the first place. If you encounter issues after enabling Memory Integrity, such as devices not working correctly or specific applications failing to launch, this might be the cause. Troubleshooting often involves ensuring all drivers are up-to-date, checking the Event Viewer for specific error messages related to HVCI or Code Integrity, and potentially identifying and updating or replacing the conflicting software or hardware. In some cases, if a critical application or driver is incompatible and cannot be updated, you may have to disable Memory Integrity.

Conclusion: Should You Enable It?

Considering the ever-increasing sophistication of cyber threats, particularly those targeting the operating system kernel and utilizing techniques like ransomware and rootkits, enabling Core Isolation and Memory Integrity in Windows 11 and Windows 10 is a highly recommended security measure. These features provide a critical layer of protection by isolating core Windows processes and enforcing strict code integrity checks from within a secure, virtualized environment.

While there is a potential for encountering compatibility issues with certain older drivers or software, the enhanced defense against modern, low-level attacks often outweighs these risks for most users. For systems meeting the necessary hardware requirements (TPM 2.0, Secure Boot, DEP, UEFI MAT), the process is usually straightforward via the Windows Security application. For those facing issues or requiring advanced control, the Registry method offers an alternative. Utilizing the Memory Integrity Scan Tool can also help diagnose compatibility problems.

Ultimately, enabling Core Isolation and Memory Integrity significantly hardens your Windows system against some of the most dangerous types of malware prevalent today. It is a proactive step towards building a more resilient and secure computing environment.

Have you enabled Core Isolation and Memory Integrity on your Windows PC? Have you encountered any compatibility issues? Share your experiences and questions in the comments below!
