Booting Blues: Fixing System Reserved/EFI Partition on the Wrong Drive

Table of Contents

The System Reserved Partition (SRP) or EFI System Partition (ESP) is a critical component on your storage drive, typically created during the Windows installation process. These small partitions house essential system files required to boot the operating system, including the Boot Configuration Database (BCD), Boot Manager code, and the Windows Recovery Environment (WinRE). Their primary function is to initiate the boot sequence, locate the Windows operating system, and hand over control to it.

The SRP is traditionally used with legacy BIOS systems, storing bootloader files that point to the main Windows installation. Conversely, the ESP is utilized in modern Unified Extensible Firmware Interface (UEFI) systems. It serves a similar purpose but interacts directly with the UEFI firmware, holding boot applications like the Windows Boot Manager (bootmgfw.efi) in a standardized FAT32 file system. Although their underlying technologies differ (BIOS vs. UEFI), both partitions are vital for the computer to start up correctly and load Windows.

Understanding the Problem: Boot Partition on the Incorrect Drive¶

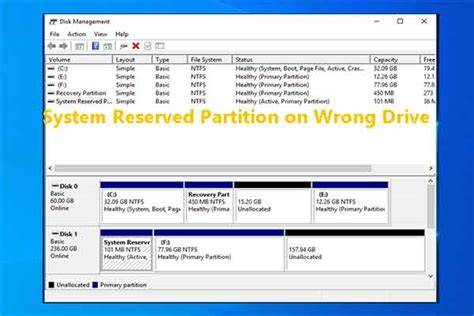

A common scenario where users encounter issues with the SRP or ESP is when these partitions are inadvertently created on a secondary or non-primary storage device during Windows installation. This situation frequently arises when multiple physical hard drives or Solid State Drives (SSDs) are connected to the computer during the OS setup process. The Windows installer requires unallocated space to create these essential partitions. If the primary drive (where Windows is intended to be installed) does not have suitable unallocated space at the beginning, or if another drive is prioritized by the system’s boot order or simply happens to have the first available unallocated space, the installer might place the SRP or ESP there instead.

Other factors contributing to this issue can include incorrect boot order settings configured in the system’s BIOS or UEFI firmware, or complications arising from previous failed Windows installation attempts. In some cases, users performing manual partitioning might also unintentionally direct the installer to create the boot partition on a separate drive. While the operating system itself functions normally after installation (as it can still access the boot files on the other drive), the problematic placement often goes unnoticed during everyday use. The system boots fine because all necessary boot components are accessible, albeit from a location different from the main OS drive.

The critical problem emerges when the user needs to remove, disconnect, or format the secondary storage device that contains the SRP or ESP. Because the boot information is physically located on that specific drive, its removal renders the system unbootable. The BIOS or UEFI firmware can no longer find the required boot files (BCD, Boot Manager) to initiate the Windows loading sequence on the primary drive, resulting in boot errors such as “Boot Device Not Found,” “Operating System Not Found,” or automatic entry into Windows Recovery Environment failure loops. Rectifying this involves ensuring the boot files are correctly placed on the intended primary system drive and configuring the system to boot from that drive.

Prerequisites and Preparation Before Attempting a Fix¶

Before proceeding with any steps to correct the location of your System Reserved or EFI System Partition, it is absolutely imperative to perform a full backup of your data. This includes all critical files and, ideally, a system image backup of your primary C: drive. Modifying boot-critical partitions carries inherent risks, including the potential for data loss or rendering your system unbootable if steps are performed incorrectly. A recent backup serves as a safety net, allowing you to restore your system to its previous state if something goes wrong.

Furthermore, the upcoming process involves using command-line tools and potentially interacting with system-level disk utilities. These operations require a certain level of familiarity with the Windows environment and its hidden files and folders. The System Reserved or EFI partitions are typically hidden from standard view in File Explorer to prevent accidental modification or deletion. Accessing and manipulating files within these partitions, or reconfiguring boot managers via the command line, demands precision. Proceed only if you are comfortable working outside the standard graphical interface and understand the commands being executed. If you are unsure or uncomfortable, it is advisable to seek assistance from a qualified IT professional.

You will need administrative privileges to execute the necessary commands and access Disk Management. Ensure you are logged into an account with administrator rights. Having access to a Windows installation media (USB drive or DVD) might also be beneficial as a fallback option if the system fails to boot after the process, as it can be used to access the Windows Recovery Environment and Command Prompt for troubleshooting.

Correcting the Boot Partition Location¶

The primary goal of this procedure is to replicate the necessary boot files onto the intended primary system drive (usually the one containing your Windows installation, typically C:) and configure the system’s boot process to correctly locate and use these files from the primary drive. The bcdboot command-line tool is the standard utility provided by Windows for this purpose.

Step 1: Accessing Elevated Command Prompt or Windows Terminal¶

To begin, you need to open a command-line interface with administrative privileges. This elevated access is necessary because you will be executing commands that modify system-level configurations and potentially access protected areas of the disk.

1. Press the Windows key on your keyboard to open the Start menu search bar.
2. Type Command Prompt or Windows Terminal into the search box.
3. From the search results, right-click on Command Prompt or Windows Terminal.
4. Select Run as administrator from the context menu that appears.
5. If prompted by User Account Control (UAC), click Yes to grant the necessary permissions.

A new command prompt window will open, displaying “Administrator” in the title bar, indicating that you have successfully launched it with elevated privileges.

Step 2: Using BCDBoot to Create Boot Configuration Data on the Primary Drive¶

The bcdboot utility is a powerful command-line tool specifically designed for managing boot files and creating new Boot Configuration Data (BCD) stores. It can copy boot environment files from the installed Windows operating system to a specified partition, thereby making that partition bootable. In this scenario, we will use it to copy the boot files from your existing Windows installation on the C: drive to the C: drive itself (or the partition designated to hold boot files), effectively creating a new, correct boot configuration.

The basic syntax for the bcdboot command is BCDBOOT <source> [/s <volume-letter>] [/l <locale>].
- <source>: Specifies the location of the Windows system folder (e.g., C:\Windows).
- /s <volume-letter>: Specifies the drive letter of the system partition where the boot files should be copied. This is the crucial part for redirecting the boot process.
- /l <locale>: Optionally specifies the language locale for the boot environment.

In your elevated Command Prompt window, type the following command and press Enter:

bcdboot C:\Windows /s C:

Let’s break down this specific command:
- bcdboot: Invokes the utility.
- C:\Windows: Specifies that the source of the boot files should be taken from the Windows installation located in the C:\Windows directory on your primary drive.
- /s C:: This switch tells bcdboot to copy the boot files to the partition assigned the drive letter C:. This is the intended target partition for the boot files in this specific method outlined in the article. This action essentially creates a new BCD store and copies the necessary boot manager files onto the C: partition, configuring it to be bootable.

Upon successful execution, bcdboot will report that the boot files were successfully created.

Important Distinction (BIOS vs. UEFI and /s switch):

• UEFI Systems: On a UEFI system, the /s switch with a drive letter like C: will typically cause bcdboot to attempt to copy the boot files to the EFI System Partition (ESP) on the disk containing drive C:, provided the ESP is discoverable and writable. If no separate ESP is found on that disk, the behavior can be unpredictable or the command might fail. The standard practice is to use /s targeting the ESP’s drive letter (which might need to be assigned temporarily using diskpart) or to omit /s entirely if the command is run from the Windows Recovery Environment on the target disk, letting bcdboot find the ESP automatically. The command bcdboot C:\Windows /s C: as presented might work differently depending on your disk configuration and whether C: is the ESP or contains it, or if it’s the target for a different reason (perhaps consolidating boot files onto the OS partition itself, though this is less standard for UEFI).
• Legacy BIOS Systems: On a Legacy BIOS system, the /s switch specifies the partition that should be marked as active and receive the boot files. The command bcdboot C:\Windows /s C: would copy the boot files to the C: partition and potentially mark it as active, making the system attempt to boot directly from the C: drive. This is often necessary if the original SRP was on another drive and you want the main OS partition (C:) to handle the boot process directly.

Given the ambiguity in the original article’s command bcdboot C:\Windows /s C: regarding its effect on standard UEFI setups vs. BIOS, it’s important to understand that this command targets the partition assigned the letter C:. In a standard setup, boot files go on a separate small partition (SRP or ESP). This command deviates slightly by targeting C:. However, it is a valid method to make the current C: drive bootable if the system’s firmware is configured to look there or if the C: drive itself contains the necessary boot structures.

Step 3: Setting the C: Drive Partition as Active (Primarily for BIOS Systems)¶

In Legacy BIOS systems, the firmware looks for an active partition on the primary boot drive to find the bootloader. If your system uses Legacy BIOS and the C: drive partition is not currently marked as active, you need to set it this way. This step is generally not required for UEFI systems, as UEFI firmware uses specific flags (like ‘System’) on the EFI System Partition (ESP) rather than the ‘Active’ flag used by BIOS.

If you are using a UEFI system, you can likely skip this step. If you are unsure or know you are using Legacy BIOS, proceed with caution.

1. Launch the Start Search Box again by pressing the Windows key.
2. Search for Disk Management.
3. Select the result that says “Create and format hard disk partitions”.
4. The Disk Management utility window will open, displaying all connected drives and their partitions. Locate the disk containing your C: drive.
5. Identify the partition assigned the drive letter C:.
6. Right-click on the C: drive partition.
7. From the context menu, select the option Mark Partition as Active.

Note: If you are on a UEFI system, the ‘Mark Partition as Active’ option might be grayed out or not present for the C: drive partition itself, as the ESP handles booting and has different flags. If you are trying to make the C: drive bootable in a BIOS system and this option is available, proceed. If you are on UEFI and this option isn’t available for C:, it confirms you likely need to ensure the ESP on the correct disk is the primary boot target (which bcdboot should help with, even if the command syntax was slightly non-standard for UEFI).

Once you have successfully executed the bcdboot command and, if necessary for BIOS, marked the C: partition as active, you should reboot your computer. After rebooting, the system should now be configured to load the boot files from the C: drive. You can potentially verify this by checking the boot order in your BIOS/UEFI settings, ensuring the drive containing the C: partition is the primary boot device. You may also be able to remove the secondary drive (which previously held the boot partition) to confirm the system now boots correctly from the primary drive.

This process effectively moves the functionality of the boot partition to your primary drive’s C: partition, allowing your system to start without relying on the secondary drive where the boot files were mistakenly placed initially.

Deep Dive into Boot Partitions and Processes¶

To fully appreciate the steps taken, it’s helpful to understand the components involved in the Windows boot process and the role of these special partitions.

System Reserved Partition (SRP) - For Legacy BIOS¶

Used by older BIOS systems, the SRP is typically a small (around 100MB) NTFS partition located at the beginning of the hard drive. It contains:
* Boot Manager (BOOTMGR): A small program that reads the BCD and presents boot options.
* Boot Configuration Data (BCD): A database that stores boot options, including information about installed operating systems, boot menus, and boot parameters. It replaced the older boot.ini file.
* Windows Recovery Environment (WinRE): Files needed to access recovery options if Windows fails to start.

When a BIOS computer starts, it executes the Master Boot Record (MBR) on the boot disk. The MBR contains a small piece of code that looks for the active partition. It then loads the Boot Manager (BOOTMGR) from the active partition (usually the SRP), which in turn reads the BCD to find the Windows installation on the C: drive and start it.

EFI System Partition (ESP) - For UEFI¶

Used by modern UEFI systems, the ESP is a small (typically 100-500MB) FAT32 partition. It is marked with specific flags (like ‘System’ and ‘Hidden’) that the UEFI firmware recognizes. It contains:
* Boot Applications: UEFI boot loaders for installed operating systems, most importantly the Windows Boot Manager (\EFI\Microsoft\Boot\bootmgfw.efi).
* Boot Configuration Data (BCD): Similar to BIOS, but accessed differently by UEFI.
* Windows Recovery Environment (WinRE): Files for recovery options.

When a UEFI computer starts, the firmware directly reads boot entries stored in NVRAM (non-volatile memory) on the motherboard. These entries point to specific boot applications located on the ESP of a particular disk. The firmware executes the specified boot application (e.g., Windows Boot Manager), which then reads the BCD located on the ESP to find and load the Windows operating system on the C: drive. UEFI does not rely on the ‘Active’ partition flag used by BIOS.

The issue addressed in this guide arises when the SRP or ESP is created on a disk different from the one holding the main Windows installation (C:). The bcdboot command, particularly when using /s C:, attempts to consolidate the necessary boot components onto the C: partition or a partition associated with it on the same physical disk, allowing the system to boot independently of the formerly used secondary drive.

Using bcdedit for Verification¶

After running bcdboot and potentially marking the partition active, you can use the bcdedit command in an elevated Command Prompt to inspect the BCD store that was created or modified.

Type bcdedit and press Enter. Look at the output.
* Under “Windows Boot Manager,” the device and path entries should point to the partition and file location on the primary drive (or the C: partition itself) where bcdboot copied the files.
* Under “Windows Boot Loader,” the device and osdevice entries should point to the partition where your Windows installation is located (likely C:).

This can help confirm that the BCD has been updated to reference the correct boot location on your primary drive.

Potential Issues and Troubleshooting¶

• bcdboot command fails: This could be due to incorrect syntax, insufficient privileges (ensure you ran as administrator), issues with the source Windows directory path, or problems with the target partition (e.g., not having a drive letter assigned temporarily if targeting a separate ESP/SRP, or filesystem issues).
• Cannot Mark Partition as Active: If this option is grayed out in Disk Management for your C: drive, you are likely using a UEFI system where the Active flag is not used for the OS partition. You should ensure the separate ESP (if one exists on the primary drive) is correctly formatted (FAT32) and has the necessary flags (System, Hidden). bcdboot with /s pointing to that ESP or without /s run from WinRE usually targets the correct ESP.
• System Still Doesn’t Boot:
  • Verify the boot order in your BIOS/UEFI settings. Ensure the drive containing your C: partition (or the drive containing the correctly configured ESP/SRP) is set as the first boot device.
  • Boot from your Windows installation media, select “Repair your computer,” and access the Command Prompt. From there, you can use diskpart to check partitions and their states, and run bcdboot C:\Windows /s <drive_letter_of_boot_partition> targeting the correct boot partition (ESP or SRP on the primary drive) or bcdboot C:\Windows /s C: again if you are targeting the C: drive itself. You might also need to run bootrec /fixmbr, bootrec /fixboot, or bootrec /rebuildbcd in WinRE, although bcdboot is often the preferred modern tool.
  • Ensure the target partition (C: or a separate SRP/ESP on the primary drive) has enough free space for the boot files.

Expanding on FAQs¶

Can I delete the system-reserved partition?¶

While technically possible, deleting the System Reserved or EFI System Partition is generally strongly discouraged on a working system. These partitions are essential for the boot process. Deleting them directly will immediately prevent Windows from starting. The only scenario where you might consider deleting an SRP or ESP is if you are migrating to a completely new primary drive and have successfully created new boot partitions on the new drive, or if you are repurposing a drive that previously contained a Windows installation and its associated boot partitions. Even then, it’s safer to clean the drive entirely if it’s no longer needed for booting.

If you accidentally delete it or intentionally do so without proper preparation, you will need to use a Windows installation or recovery media to access the Command Prompt and recreate the boot files using tools like bcdboot and potentially diskpart to recreate the partition structure if necessary. This process can be complex and carries the risk of data loss if not performed correctly.

Can I move the system reserved partition to a different drive?¶

Physically moving the System Reserved or EFI System Partition data file-by-file or sector-by-sector using standard tools is not officially supported or recommended. These partitions contain critical boot managers and data linked to the specific disk and Windows installation. Attempting to move the partition itself using third-party tools is risky and can easily corrupt the boot data, rendering the system unbootable.

As demonstrated in this guide, the correct approach is not to move the partition itself, but to recreate or copy the necessary boot files and configuration (the BCD) onto the intended primary boot drive or its associated system partition (SRP/ESP). The bcdboot command effectively achieves this goal by generating new boot files and BCD data based on your existing Windows installation and placing them on the target partition (in this guide’s specific method, the C: drive). This makes the target partition bootable and allows the system to bypass the original, incorrectly located boot partition. The original partition can then potentially be safely removed or the drive repurposed after you have confirmed the system boots correctly from the new location.

What if I have multiple OS installations?¶

If you have a dual-boot or multi-boot setup, the presence of boot partitions on multiple drives becomes even more complex. The BCD store dictates which operating systems are available in the boot menu. Using bcdboot as described will likely make the specified target partition bootable for the Windows installation it sourced (C:\Windows). For managing multi-boot scenarios, more advanced usage of bcdedit or graphical boot managers might be required to add other operating systems to the BCD menu on the primary boot partition. However, fixing the location of the primary Windows boot partition as described here is often the first step.

Here is a relevant YouTube video that demonstrates using bcdboot to fix boot issues, which is applicable to the problem discussed:

Please note: The steps and commands in the video might vary slightly from this article, but the core concept of using bcdboot to write boot files to a target partition is the same.

Conclusion¶

The presence of the System Reserved or EFI System Partition on the wrong drive is a common issue that can lead to significant problems if the secondary drive is ever removed. Understanding the role of these partitions and how Windows boots is crucial for resolving the error. By using the bcdboot command, you can effectively copy the necessary boot files and configuration to your primary C: drive (or its associated boot partition), making it independently bootable and ensuring your system can start correctly even if other drives are disconnected.

Always remember the importance of backing up your data before undertaking system-level repairs. While the steps outlined using bcdboot and Disk Management are standard procedures, incorrect execution can have serious consequences. Proceed with caution and double-check each command and setting. With careful application of these steps, you can successfully resolve the ‘System Reserved/EFI Partition on wrong drive’ error and ensure the robustness of your Windows boot configuration.
