Hybrid Drive, SSD, or HDD: Which Storage Solution is Right for You?

Table of Contents

In the realm of computer storage, users are presented with several distinct options, each offering a unique balance of speed, capacity, cost, and durability. The choice of storage device significantly impacts the overall performance and responsiveness of a computer system. As flash storage technologies have matured and become more accessible, the landscape has evolved beyond the traditional mechanical hard drive. This article delves into the characteristics of Hard Disk Drives (HDD), Solid State Drives (SSD), and Solid-State Hybrid Drives (SSHD), providing a comprehensive comparison to help you determine the best fit for your specific needs.

Understanding the Core Technologies¶

At the heart of your computer’s data storage is the drive where the operating system, applications, and personal files reside. The three main types of internal storage drives commonly encountered today are HDDs, SSDs, and SSHDs. While they all serve the same fundamental purpose of storing and retrieving data, the underlying technology employed by each type leads to vastly different performance profiles and cost structures. Understanding these differences is crucial when making an informed decision about upgrading your system or purchasing a new device.

Hard Disk Drives (HDD)¶

Hard Disk Drives represent the oldest and most established form of mass storage in personal computers. Their technology dates back several decades and relies on mechanical parts to store and access data. An HDD contains one or more rigid, rapidly spinning platters coated with magnetic material. Data is written to and read from these platters by magnetic heads mounted on a movable arm, similar to how a record player works.

The mechanical nature of HDDs dictates their operational characteristics. To access data, the platters must spin up to speed (typically 5,400 or 7,200 revolutions per minute), and the read/write head must move physically to the correct track and sector on the platter. This physical movement introduces latency and significantly limits the speed at which data can be accessed compared to electronic methods. The time taken for the platter to rotate to the correct position is called rotational delay, and the time for the head to move is called seek time.

A key advantage of HDD technology is its maturity and cost-effectiveness. Manufacturing HDDs is relatively inexpensive compared to flash-based storage, allowing manufacturers to offer very large capacities (measured in terabytes) at a low price per gigabyte. This makes HDDs an attractive option for storing vast amounts of data where speed is not the primary concern, such as for archiving files, storing multimedia libraries, or performing backups.

Despite their robustness for long-term storage under stable conditions, the mechanical components make HDDs susceptible to physical shock and vibration. A drop or hard bump, especially while the drive is operating, can easily cause damage to the platters or heads, leading to data loss or drive failure. While modern HDDs are built with protective mechanisms, they are inherently less durable than drives with no moving parts. The mechanical activity also generates heat, consumes more power than SSDs, and produces audible noise from spinning platters and head movements. Furthermore, HDDs often provide warning signs before complete failure, such as clicking sounds or declining performance, which can sometimes allow users to back up data before total loss, although failure can also be sudden.

Solid State Drives (SSD)¶

Solid State Drives represent a significant leap forward in storage technology, replacing mechanical components with flash memory. Unlike HDDs, SSDs have no moving parts. Data is stored electronically in NAND flash memory chips. This fundamental difference eliminates the physical constraints of spinning platters and moving heads, resulting in dramatically faster data access times. Reading and writing data on an SSD involves sending electrical signals to the memory cells, a process that is orders of magnitude quicker than mechanical retrieval.

The speed advantage of SSDs translates into noticeably faster boot times for operating systems, quicker loading of applications, and faster file transfers. Tasks that are heavily dependent on storage performance, such as gaming, video editing, and software development, benefit immensely from the responsiveness of an SSD. The absence of mechanical parts also makes SSDs far more durable and resistant to physical shock and vibration, making them ideal for laptops and other portable devices that may be subjected to movement. They also consume less power, generate less heat, and operate silently.

However, SSDs are not without their limitations. The primary drawback has historically been their cost per gigabyte, which is significantly higher than that of HDDs, though prices have been decreasing steadily. While SSD capacities are increasing, getting very large storage sizes (e.g., 8TB or more) on an SSD remains considerably more expensive than on an HDD. Another characteristic of NAND flash memory is that it has a finite number of write cycles. Each time data is written to a memory cell, it degrades slightly. SSDs employ sophisticated wear-leveling algorithms and over-provisioning to distribute writes evenly across the drive and extend its lifespan, but they will eventually wear out from excessive writes. For typical consumer use, an SSD’s lifespan is generally more than adequate for the life of the computer it’s installed in.

Unlike HDDs, SSDs tend to fail suddenly and without warning once they reach the end of their write endurance or if a critical component fails. This sudden failure mode means there’s often no opportunity to recover data once the drive stops functioning, highlighting the importance of regular backups when using an SSD as the primary storage device. SSDs come in various form factors (like 2.5-inch SATA, M.2 SATA, and M.2 NVMe) and utilize different interfaces (SATA or PCIe), with NVMe drives offering significantly higher performance by leveraging the PCIe bus directly.

Solid-State Hybrid Drives (SSHD)¶

Solid-State Hybrid Drives, or SSHDs, attempt to bridge the gap between the capacity and cost-effectiveness of HDDs and the speed of SSDs. An SSHD is essentially a traditional Hard Disk Drive with a small amount of NAND flash memory built into it, acting as a cache. The mechanical components and platters provide the bulk storage capacity, while the integrated flash memory is used to store frequently accessed data.

The intelligence within an SSHD lies in its firmware. This firmware monitors data access patterns over time. It identifies the files and programs that are used most often, such as operating system files, application executables, and frequently opened documents. These frequently accessed items are then automatically copied or stored in the faster NAND flash cache. When the system needs to access this cached data, it retrieves it from the fast flash memory instead of the slower mechanical platters.

The benefit of this approach is that operations involving cached data, such as booting the operating system, launching frequently used applications, and accessing common files, become significantly faster than on a standard HDD. However, data that is not frequently accessed or that exceeds the size of the flash cache must still be retrieved from the mechanical part of the drive, which remains as slow as a standard HDD. This means the performance improvement is adaptive and improves over time as the drive “learns” your usage patterns. It also means SSHDs do not offer the consistent, high-speed performance across all operations that a pure SSD provides.

SSHDs typically offer storage capacities comparable to HDDs and are more affordable than equivalent-capacity SSDs, though they cost slightly more than standard HDDs. They are a good compromise for users who need both significant storage space and improved performance over a basic HDD but cannot afford or justify the cost of a large-capacity SSD. They are often found in laptops and some desktop systems as a single-drive solution. However, because they still contain mechanical parts, they share some of the vulnerabilities of HDDs regarding physical shock, noise, and heat generation, although they are generally more power-efficient during cached operations than a constantly seeking HDD. The flash cache also has finite write endurance, but it’s used differently (often for caching and write buffering) than the main storage on an SSD, making wear less of a primary concern for the user compared to the mechanical reliability.

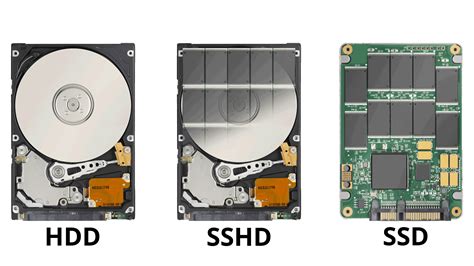

Detailed Comparison: HDD vs SSD vs SSHD¶

Let’s break down the comparison across several key factors to better understand the trade-offs involved with each storage type.

Performance¶

Performance is perhaps the most significant differentiator among these three technologies.
* SSDs are vastly superior in terms of speed. They offer extremely low access times (measured in microseconds) and very high sequential and random read/write speeds. NVMe SSDs, leveraging the PCIe interface, push performance boundaries even further, achieving speeds several times greater than SATA SSDs. This results in rapid boot times, instantaneous application launches, and quick handling of large files.
* HDDs are the slowest due to the inherent limitations of mechanical movement. Access times are measured in milliseconds, and read/write speeds are significantly lower than SSDs. Performance can also degrade as the drive fills up or data becomes fragmented.
* SSHDs fall in between. Their performance for frequently accessed data is significantly better than HDDs, approaching SSD speeds for cached items. However, performance for uncached data remains at HDD levels. The overall perceived speed is better than an HDD but not as consistently fast as an SSD.

Cost¶

Cost is a major factor for many consumers.
* HDDs offer the lowest cost per gigabyte. This is their primary advantage when large capacity is needed on a budget.
* SSDs are the most expensive per gigabyte, although prices have fallen dramatically over the years. The price difference is less noticeable at lower capacities (e.g., 250GB or 500GB) but becomes significant at higher capacities (1TB and above). NVMe SSDs are typically more expensive than SATA SSDs of the same capacity.
* SSHDs are positioned between HDDs and SSDs in terms of cost per gigabyte. They are more expensive than HDDs due to the added flash memory but significantly cheaper than equivalent-capacity SSDs.

Capacity¶

When it comes to maximum available capacity, HDDs still lead the market, particularly at consumer price points.
* HDDs are readily available in capacities ranging from 500GB up to 20TB or even more for enterprise-grade drives. It’s relatively inexpensive to acquire 4TB or 8TB HDDs for consumer use.
* SSDs are commonly found in capacities from 120GB up to 4TB, with higher capacities available but at a premium price. Achieving capacities of 8TB or more on an SSD is still considerably more expensive than on an HDD.
* SSHDs generally match the capacity range of HDDs, offering large storage options like 1TB, 2TB, or 4TB, as the mechanical platters provide the bulk storage. The flash cache size is typically small, ranging from 8GB to 32GB, and does not add significantly to the overall reported capacity.

Durability and Lifespan¶

Durability refers to resistance to physical stress, while lifespan relates to how long the drive is expected to function under normal use.
* SSDs are significantly more durable against physical shocks and vibrations because they have no moving parts. Their lifespan is measured by the amount of data that can be written to them (Total Bytes Written - TBW). While flash cells degrade with writes, modern SSDs have high endurance ratings suitable for years of typical usage.
* HDDs are vulnerable to damage from drops and impacts, especially when operating. Their lifespan is more related to the mechanical components eventually wearing out or failing. Under stable conditions, they can last for many years, but mechanical failure is always a risk.
* SSHDs inherit the mechanical vulnerability of HDDs. While the flash cache is durable, the spinning platters and moving head are still susceptible to physical damage. Their overall lifespan is largely dependent on the reliability of the mechanical components.

Power Consumption, Heat, and Noise¶

These factors contribute to the overall efficiency and user experience.
* SSDs consume the least power, generate minimal heat, and operate silently. This makes them ideal for battery-powered devices like laptops and for building quiet desktop systems.
* HDDs consume more power, generate more heat due to the motor spinning the platters and head movement, and produce audible noise (spinning sounds, clicking/seeking sounds).
* SSHDs consume slightly less power and generate less heat than HDDs when accessing data from the flash cache but are comparable to HDDs when accessing data from the platters. They still produce the mechanical noise associated with HDDs.

Failure Modes¶

How a drive fails affects the potential for data recovery.
* SSDs often fail suddenly and without warning. When an SSD fails, it usually stops working entirely, making data recovery difficult or impossible without specialized tools.
* HDDs often exhibit warning signs before failing, such as increasing noise, file errors, or slowing performance. While not guaranteed, these signs can sometimes provide an opportunity to back up data. However, sudden mechanical failure is also possible.
* SSHDs can fail either due to mechanical issues (like an HDD) or, less commonly, failure of the flash component. Mechanical failure modes are similar to HDDs.

Choosing the Right Drive for You¶

Selecting the optimal storage solution depends heavily on your primary needs, budget, and how you plan to use the computer.

• For Maximum Speed and Responsiveness: An SSD is the clear winner. If you prioritize fast boot times, rapid application loading, and overall system snappiness, an SSD (especially an NVMe SSD if your system supports it) is the best choice for your operating system and frequently used programs. For users who primarily game or run demanding applications, an SSD dramatically improves loading times.
• For Large Storage Capacity on a Budget: A HDD is the most cost-effective solution for storing large amounts of data that don’t require constant, high-speed access. This includes media files (movies, music, photos), backups, or large archives. Many users opt for a combination: a smaller, fast SSD for the operating system and applications, paired with a large, inexpensive HDD for bulk data storage. This configuration offers the best of both worlds.
• For a Balance of Speed and Capacity without Two Drives: An SSHD can be a good compromise. If you need a single drive that offers more capacity than an affordable SSD and better performance than a pure HDD, an SSHD is worth considering. They are particularly popular in laptops where space for multiple drives is limited. The performance boost is noticeable for common tasks once the drive learns your usage patterns.
• For Portability and Durability: An SSD is preferred for laptops and external drives that might be moved frequently, thanks to their resistance to shock and vibration.

Consider the following scenarios:

• Desktop User with Budget: Often best served by a combination of a modest-sized SSD (e.g., 250GB-500GB) for the OS and core applications, and a large HDD (e.g., 2TB-4TB) for data storage.
• High-Performance Desktop User (Gamers, Content Creators): May benefit from a fast NVMe SSD for the OS, key applications, and frequently played games/active projects, potentially supplemented by a second SSD or a large HDD for less frequently accessed files or larger libraries.
• Laptop User: An SSD is often highly recommended for improved battery life, durability, and responsiveness. If capacity is a major concern and budget is limited, an SSHD can be a viable alternative to a pure HDD.
• Server or Network Attached Storage (NAS): HDDs are typically used here due to the need for very large capacities at the lowest possible cost per terabyte. Enterprise-grade HDDs are designed for continuous operation in these environments.

Feature	Hard Disk Drive (HDD)	Solid State Drive (SSD)	Solid-State Hybrid Drive (SSHD)
Technology	Magnetic platters, mechanical heads	NAND flash memory, no moving parts	HDD platters + small NAND flash cache
Performance	Slowest (mechanical latency)	Fastest (electronic access)	Medium (faster for cached data, slow for uncached)
Cost/GB	Lowest	Highest	Medium (higher than HDD, lower than SSD)
Capacity	Highest available at lowest price	High, but expensive for very large sizes	High, similar to HDD capacity range
Durability	Vulnerable to shock/vibration	Highly resistant to shock/vibration	Vulnerable to shock/vibration (due to HDD part)
Lifespan	Mechanical wear (often predictable)	Write cycles (can be sudden failure)	Mechanical wear (often predictable)
Noise	Audible (spinning, seeking)	Silent	Audible (spinning, seeking)
Power	Highest	Lowest	Medium (closer to HDD)
Failure	Often shows signs	Often sudden	Can show signs (mechanical) or be sudden (flash, less likely)
Best Use	Bulk storage, backups, budget	OS/apps, gaming, performance, portability	Balance of speed/capacity, single-drive solution

This table provides a quick overview, but remember that real-world performance can vary depending on specific drive models, manufacturers, and workload types.

Ultimately, the right storage solution is the one that best aligns with your priorities. Do you need sheer speed for demanding tasks, massive storage for media, or a balanced approach? By considering the trade-offs between performance, cost, capacity, and durability, you can make an informed decision that optimizes your computing experience.
