Master Excel: Effortlessly Extract Data from Other Sheets - A Step-by-Step Guide

Table of Contents

Working with data often involves managing information across multiple worksheets within a single Excel workbook. While simply copying and pasting data might seem straightforward, it creates static snapshots of information. A more dynamic and efficient approach is to pull or extract data using formulas or built-in Excel features that create links between sheets. This ensures that when the source data is updated, the corresponding data in other sheets automatically reflects those changes, saving considerable time and minimizing errors associated with manual updates.

This guide will explore several powerful methods to pull data from one sheet to another in Excel, ranging from simple direct references to more advanced lookup functions and features. Understanding these techniques is crucial for building robust, interconnected, and easily maintainable spreadsheets.

Understanding Data Linking in Excel¶

At its core, pulling data from another sheet typically involves establishing a connection using formulas. Instead of storing the data directly in the destination cell, you store a formula that instructs Excel where to find the data (the source sheet and cell/range) and, sometimes, how to retrieve it (based on criteria or position). This creates a dynamic link.

Benefits of Linked Data¶

The primary advantage of linking data is automation. Any modification to the original data in the source sheet is immediately reflected in the destination sheet upon recalculation (which often happens automatically). This eliminates the need for repetitive manual copying and pasting, significantly reducing the risk of inconsistencies and outdated information. Linked data also promotes data integrity by ensuring that all connected representations of the data are synchronized with the single source of truth. Finally, it improves efficiency, especially when dealing with large or frequently updated datasets.

Contrasting with Static Copy/Paste¶

In contrast, copying and pasting data simply places a static copy of the values at that moment in time. If the source data changes, the pasted data does not update. Maintaining consistency across sheets requires manually repeating the copy/paste process every time the source data is modified, a process prone to human error and inefficiency.

Choosing the right method for pulling data depends on your specific needs: whether you need a direct mirror of a cell, a lookup based on a unique identifier, a dynamic list based on criteria, or a more complex data transformation.

Method 1: Using Simple Cell References¶

The most basic way to pull data from another sheet is by using a direct cell reference. This method is like telling Excel, “Whatever is in this specific cell on that sheet, put it here.” It’s straightforward and best suited for mirroring small amounts of data or linking specific cells directly.

How it Works¶

A cell reference formula connects a cell in your current sheet to a specific cell in another sheet within the same workbook. The basic syntax is =SheetName!CellAddress.

• SheetName: The exact name of the sheet you want to pull data from. If the sheet name contains spaces or special characters, you must enclose it in single quotes, like 'My Data Sheet'!.
• CellAddress: The specific cell (e.g., A1, B5, C10) you want to reference.

Step-by-Step Guide¶

Let’s assume you have data in ‘Sheet1’ from cells A2 to C11, and you want to display this exact data structure in ‘Sheet2’.

1. Prepare the Destination Sheet: Open your Excel workbook and navigate to ‘Sheet2’. Set up the column headers (e.g., in cells A1, B1, C1) if needed, mirroring those in ‘Sheet1’.
2. Enter the First Reference: In cell A2 of ‘Sheet2’, where you want the data from ‘Sheet1’!A2 to appear, type the formula:


   =Sheet1!A2



   Press Enter. Cell A2 in ‘Sheet2’ should now display the value from cell A2 in ‘Sheet1’.

3. Reference Adjacent Cells: In cell B2 of ‘Sheet2’, type the formula:


   =Sheet1!B2



   In cell C2 of ‘Sheet2’, type the formula:


   =Sheet1!C2



   Press Enter after each. You have now linked the first row of data.
4. Copy the Formulas Down: To pull the data for the remaining rows, select the cells A2, B2, and C2 in ‘Sheet2’.
5. Use the Fill Handle: Locate the small square box (the fill handle) at the bottom-right corner of the selection. Click and drag this handle downwards to the last row where you want the data to appear (in our example, down to row 11). Excel will automatically adjust the row numbers in the formulas (e.g., =Sheet1!A3, =Sheet1!B3, =Sheet1!C3, and so on) because cell references are relative by default.
6. Verify and Update: ‘Sheet2’ will now display the data from ‘Sheet1’. If you change any value in the range A2:C11 on ‘Sheet1’, the corresponding cell in ‘Sheet2’ will update instantly.

Important Consideration: Absolute vs. Relative References

In the example above, we used relative references (A2, B2, etc.). When copied down, the row number changes. If you needed to always reference a specific cell on ‘Sheet1’ regardless of where you copy the formula in ‘Sheet2’, you would use absolute references by adding dollar signs ($). For example, =$Sheet1!$A$2 would always pull the value from Sheet1!A2, even if you copy the formula to cell B10. This is less common when mirroring a block of data but essential when linking to a single value like a summary total or a constant.

Advantages and Limitations¶

• Advantages: This method is incredibly simple and fast for direct cell-to-cell linking or mirroring contiguous blocks of data. It requires no knowledge of complex functions.
• Limitations: It’s not suitable for looking up data based on criteria. If you insert or delete rows or columns in the source sheet (Sheet1 in the example), the references in Sheet2 might become incorrect (#REF! error) or shift, requiring manual correction. It creates many individual links, which can sometimes impact performance on extremely large scales, though for most uses, this is negligible.

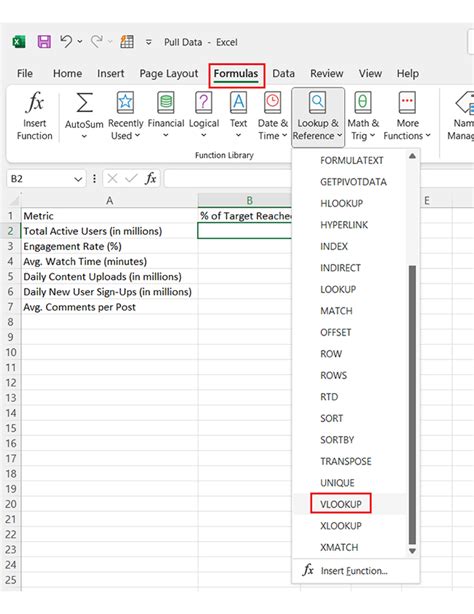

Method 2: Leveraging the VLOOKUP Function¶

When you need to find specific data in one sheet based on a value you have in another sheet, VLOOKUP is a classic tool. It stands for ‘Vertical Lookup’ and is designed to search for a value in the first column of a table and return a value from a specified column in the same row.

How it Works¶

VLOOKUP works by taking a value (the lookup_value), searching for it in the first column of a defined data range (table_array), and then returning the corresponding value from a column you specify (col_index_num) in the same row where the lookup_value was found. You can specify whether you need an exact match or an approximate match (range_lookup).

The syntax is: =VLOOKUP(lookup_value, table_array, col_index_num, [range_lookup])

• lookup_value: The value you want to search for (e.g., an Employee ID).
• table_array: The range of cells on the source sheet that contains the data you want to look up within. Crucially, the column containing the lookup_value must be the first column in this range.
• col_index_num: The column number within the table_array from which you want to return a value. The first column in the table_array is column 1, the second is column 2, and so on.
• [range_lookup]: (Optional) A logical value (TRUE or FALSE).
  • TRUE or omitted: Finds an approximate match. Requires the first column of table_array to be sorted in ascending order.
  • FALSE: Finds an exact match. The first column does not need to be sorted. This is the most common option when pulling specific data based on unique identifiers.

Step-by-Step Guide¶

Let’s use the example from the original text: you have ‘Sheet1’ with employee data (Employee ID, Name, Gender) and ‘Sheet2’ where you have a list of Employee IDs and want to pull the corresponding Gender for each ID.

Sheet1 Data Example:
| Employee ID | Name | Gender |
| :---------- | :------ | :----- |
| 101 | Alice | Female |
| 102 | Bob | Male |
| 103 | Charlie | Male |
| … | … | … |

Sheet2 Data Example (Before VLOOKUP):
| Employee ID | Gender |
| :---------- | :----- |
| 103 | |
| 101 | |
| 105 | |
| … | … |

1. Identify Source Data: Your source data is in ‘Sheet1’. The Employee IDs are in column B, and Gender is in column C.
2. Identify Destination and Lookup Value: In ‘Sheet2’, the Employee IDs you want to look up are in column A, starting from A2. You want the result (Gender) in column B, starting from B2.
3. Construct the table_array: In ‘Sheet1’, your data range for the lookup needs to include the Employee ID (the lookup column) and the Gender (the return column). So, the range is B2:C11 (assuming data goes down to row 11).
   • Crucially, use absolute references for the table_array! When you copy the formula down, you want it to always look in the same range on ‘Sheet1’. The correct reference will be Sheet1!$B$2:$C$11.
4. Determine the col_index_num: Within the table_array (Sheet1!$B$2:$C$11), Employee ID is the 1^st column, and Gender is the 2^nd column. You want to return the Gender, so the col_index_num is 2.
5. Determine range_lookup: You need to find the exact Employee ID, so use FALSE.
6. Write the Formula: In cell B2 of ‘Sheet2’, enter the formula:


   =VLOOKUP(A2,Sheet1!$B$2:$C$11,2,FALSE)


   • A2: This is your lookup_value. It’s a relative reference because you want it to change as you copy the formula down (A3, A4, etc.).
   • Sheet1!$B$2:$C$11: This is your table_array. It’s an absolute reference so it stays fixed when copied.
   • 2: This is the col_index_num, telling VLOOKUP to return the value from the 2^nd column of the table_array.
   • FALSE: This specifies an exact match.
7. Copy the Formula Down: Select cell B2 in ‘Sheet2’. Click and drag the fill handle down to the last row where you have an Employee ID listed in column A.

8. Results and Updates: Column B in ‘Sheet2’ will now display the Gender corresponding to each Employee ID listed in column A, pulled from ‘Sheet1’. If you change a Gender in ‘Sheet1’, the corresponding cell in ‘Sheet2’ will update automatically. If an Employee ID is not found in ‘Sheet1’, VLOOKUP will return #N/A.

Advantages and Limitations¶

• Advantages: VLOOKUP is widely known and relatively easy to understand for simple lookups. It’s efficient for finding specific data based on a key.
• Limitations: The major limitation is that VLOOKUP can only look up values in the first column of the table_array and return values from columns to the right. If your lookup column is not the leftmost column of your source data, you might need to rearrange your source data or use a different function like INDEX and MATCH or XLOOKUP. It can also become slow with extremely large datasets (hundreds of thousands of rows) in older Excel versions.

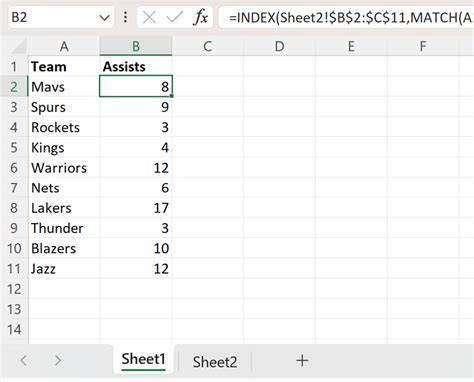

Method 3: Utilizing the INDEX and MATCH Functions¶

The combination of INDEX and MATCH functions provides a more flexible and powerful alternative to VLOOKUP, especially when your lookup column is not the first column of your data range, or when you need to perform more complex lookups.

How it Works¶

• MATCH Function: Searches for a specified item in a range of cells (a single row or a single column) and then returns the relative position of that item within the range.
  • Syntax: =MATCH(lookup_value, lookup_array, [match_type])
  • lookup_value: The value you want to find.
  • lookup_array: The single row or column range where you want to search for the lookup_value.
  • [match_type]: (Optional) -1, 0, or 1.
    • 0: Exact match (most common for lookups). lookup_array does not need to be sorted.
    • 1: Less than (finds the largest value less than or equal to lookup_value). Requires lookup_array sorted in ascending order.
    • -1: Greater than (finds the smallest value greater than or equal to lookup_value). Requires lookup_array sorted in descending order.
• INDEX Function: Returns the value in a table or range based on the row and/or column number you specify.
  • Syntax (Array form): =INDEX(array, row_num, [column_num])
  • array: The range of cells (can be multiple rows and columns) where the result data is located.
  • row_num: The row number within the array from which to return a value.
  • [column_num]: (Optional) The column number within the array from which to return a value. (If array is a single column, this is not needed).

When combined, MATCH finds the row number of the lookup_value, and INDEX uses that row number to pull the corresponding value from a different column.

Syntax: =INDEX(return_range, MATCH(lookup_value, lookup_range, 0))

• return_range: The column containing the values you want to retrieve (e.g., the Gender column).
• lookup_value: The value you are searching for (e.g., Employee ID in ‘Sheet2’).
• lookup_range: The column where you are searching for the lookup_value (e.g., the Employee ID column in ‘Sheet1’).

Step-by-Step Guide¶

Using the same example: pull Gender from ‘Sheet1’ based on Employee ID in ‘Sheet2’.

Sheet1 Data Example:
| Employee ID | Name | Gender |
| :---------- | :------ | :----- |
| 101 | Alice | Female |
| 102 | Bob | Male |
| 103 | Charlie | Male |
| … | … | … |

Sheet2 Data Example (Before INDEX/MATCH):
| Employee ID | Gender |
| :---------- | :----- |
| 103 | |
| 101 | |
| 105 | |
| … | … |

1. Identify lookup_value: In ‘Sheet2’, this is the Employee ID in cell A2.
2. Identify lookup_range: In ‘Sheet1’, this is the column containing the Employee IDs (B2:B11). Use absolute references: Sheet1!$B$2:$B$11.
3. Write the MATCH part: This finds the row number where the Employee ID from A2 exists within Sheet1!$B$2:$B$11.


   MATCH(A2, Sheet1!$B$2:$B$11, 0)



   This part of the formula will return a number (e.g., if A2 is 103, and 103 is the 2^nd item in the lookup_range Sheet1!B2:B11, it returns 2).
4. Identify return_range: In ‘Sheet1’, this is the column containing the data you want to retrieve – the Gender column (C2:C11). Use absolute references: Sheet1!$C$2:$C$11.
5. Write the INDEX part: This uses the result of the MATCH function as the row_num to pull the value from the return_range.


   INDEX(Sheet1!$C$2:$C$11, ...)


6. Combine the Formula: Place the MATCH formula inside the INDEX formula as the row_num argument. In cell B2 of ‘Sheet2’, enter:


   =INDEX(Sheet1!$C$2:$C$11, MATCH(A2, Sheet1!$B$2:$B$11, 0))


   • Sheet1!$C$2:$C$11: The range where the result is (Gender column).
   • MATCH(A2, Sheet1!$B$2:$B$11, 0): Finds the relative row number of the lookup_value (A2) within the lookup_range (Employee ID column). The 0 ensures an exact match.
7. Copy the Formula Down: Select cell B2 in ‘Sheet2’ and drag the fill handle down to apply the formula to the other rows.

8. Results and Updates: Column B in ‘Sheet2’ will populate with the correct Gender for each Employee ID, dynamically linked to ‘Sheet1’.

Advantages and Limitations¶

• Advantages: INDEX/MATCH is very flexible. The lookup_range (Employee ID) does not need to be the first column relative to the return_range (Gender). This is a significant advantage over VLOOKUP. It can also be slightly more efficient than VLOOKUP on very large datasets in older Excel versions. It’s highly versatile and can be used for both row and column lookups, and even two-way lookups with nested MATCH functions.
• Limitations: The syntax is generally considered less intuitive than VLOOKUP or XLOOKUP, requiring a better understanding of how INDEX and MATCH work independently.

Alternative and Advanced Methods¶

Excel offers even more powerful tools for pulling and transforming data across sheets, especially in newer versions.

Using XLOOKUP (Excel 365 / Excel 2021+)¶

XLOOKUP is the modern successor to VLOOKUP and HLOOKUP, designed to be simpler and more capable.

• How it Works: Searches for a value in one range (lookup_array) and returns a corresponding value from a second range (return_array). It doesn’t require the lookup column to be first and can look left or right. It also has built-in functionality for handling “not found” errors.
• Syntax: =XLOOKUP(lookup_value, lookup_array, return_array, [if_not_found], [match_mode], [search_mode])
  • lookup_value: The value to look for.
  • lookup_array: The range to search within (e.g., Sheet1!$B$2:$B$11 for Employee IDs).
  • return_array: The range containing the results (e.g., Sheet1!$C$2:$C$11 for Gender).
  • [if_not_found]: (Optional) Value to return if a match is not found (e.g., "Not Found").
  • [match_mode]: (Optional) 0 for exact match (default), -1 for exact match or next smaller, 1 for exact match or next larger, 2 for wildcard match.
  • [search_mode]: (Optional) 1 for search from first to last (default), -1 for search from last to first, 2 for binary search ascending, -2 for binary search descending.
• Example (Pulling Gender): In cell B2 of ‘Sheet2’:


  =XLOOKUP(A2, Sheet1!$B$2:$B$11, Sheet1!$C$2:$C$11, "Not Found")


• Advantages: Simpler syntax than INDEX/MATCH, more flexible than VLOOKUP (can look left), built-in error handling, supports different match and search modes. It dynamically spills results if looking up multiple values at once in newer Excel versions.

Using FILTER Function (Excel 365 / Excel 2021+)¶

The FILTER function allows you to dynamically extract rows from a range based on criteria you define. This is excellent for automatically copying specific rows that meet certain conditions to another sheet.

• How it Works: Takes an array of data (array), an array of TRUE/FALSE values representing which rows to include (include), and an optional value to return if no rows match (if_empty). It returns a dynamic array that “spills” the results onto the sheet.
• Syntax: =FILTER(array, include, [if_empty])
  • array: The entire range of data you want to filter (e.g., Sheet1!A2:C11).
  • include: A logical expression that evaluates to TRUE or FALSE for each row in the array. This expression must have the same number of rows as the array. For example, to include rows where Gender is “Female”: Sheet1!C2:C11="Female".
  • [if_empty]: (Optional) Value to return if no rows meet the criteria.
• Example: To automatically pull all data rows from ‘Sheet1’ where the Gender is ‘Female’ into ‘Sheet2’, starting in cell A2:


  =FILTER(Sheet1!A2:C11, Sheet1!C2:C11="Female", "No Female Employees Found")



  This single formula in A2 of ‘Sheet2’ will pull all matching rows and spill the columns (Employee ID, Name, Gender). If data in ‘Sheet1’ changes or new female employees are added within the range, ‘Sheet2’ updates automatically.
• Advantages: Extremely powerful for creating dynamic reports or lists based on criteria. The results update automatically as the source data changes. Much simpler than using IF statements and AutoFilter manually.

Using Power Query (Get & Transform Data)¶

Power Query is a powerful ETL (Extract, Transform, Load) tool integrated into Excel (found under the ‘Data’ tab). It’s suitable for more complex scenarios, like cleaning data, merging data from multiple sources (including other sheets, files, databases, etc.), and performing transformations before loading the final data into a sheet.

• How it Works: You define a query that connects to your source data (e.g., a table in ‘Sheet1’). You then use the Power Query Editor interface to define steps for transforming that data (filtering, sorting, merging, adding columns, etc.). Finally, you load the transformed data into a new sheet. The connection remains, and you can refresh the data whenever the source changes.
• Steps (General Idea):
  1. Ensure your source data in ‘Sheet1’ is formatted as an Excel Table (Insert > Table).
  2. Go to ‘Data’ tab > ‘Get Data’ > ‘From Other Sources’ > ‘From Table/Range’.
  3. Select the table from ‘Sheet1’. This opens the Power Query Editor.
  4. Perform any necessary transformations (e.g., filter rows, remove columns).
  5. Go to ‘Home’ tab in Power Query Editor > ‘Close & Load’ > ‘Close & Load To…’.
  6. Choose ‘Table’ and specify where to load the data in ‘Sheet2’.
  7. Right-click the resulting table in ‘Sheet2’ and select ‘Refresh’ whenever the source data in ‘Sheet1’ is updated.
• Advantages: Handles very large datasets efficiently. Provides a graphical interface for complex data manipulation without writing formulas. Creates repeatable data import/transformation processes. Can pull data from external sources easily. Data refresh is simple.
• Limitations: Can be overkill for simple lookups. Requires understanding the Power Query Editor interface. Data does not update instantly like formula-based methods; it requires a manual or scheduled refresh.

Simple Linking via Paste Special¶

For a non-formula approach that still creates links, you can use Paste Special Link.

• How it Works: Copy a cell or range of cells. Go to the destination sheet. Instead of regular paste, use ‘Paste Special’ and select the ‘Paste Link’ option.
• Steps:
  1. Select the cell(s) in the source sheet you want to link.
  2. Copy the selected cell(s) (Ctrl+C).
  3. Go to the destination sheet and select the top-left cell where you want the data to appear.
  4. Right-click and choose ‘Paste Special’ > ‘Paste Link’. Alternatively, use the Paste dropdown on the Home tab and select the ‘Paste Link’ icon (looks like a chain).
• Result: Excel will create cell reference formulas (e.g., =Sheet1!A1, =Sheet1!B1) in the destination cells.
• Advantages: Quick and easy for creating simple direct links.
• Limitations: Creates direct cell references, inheriting the same limitations as Method 1 (fragile if rows/columns are added/deleted in the source range copied) and is not suitable for lookups or conditional pulling.

Troubleshooting Common Errors¶

When linking data between sheets, you might encounter errors. Here’s what some common ones mean and how to address them:

• #REF!: This indicates an invalid cell reference. This often happens if you delete rows, columns, or an entire sheet that your formula was referencing.
  • Fix: Check the formula and ensure the sheet name, range, and cell references are still valid. If you deleted a sheet, you might need to restore it or update the formula to reference a different source.
• #N/A: This typically means a lookup value was not found in the lookup range.
  • Fix: Double-check that the lookup_value in your destination sheet exactly matches a value in the lookup_range in your source sheet (case and extra spaces matter, especially with exact matches). Ensure your lookup_range and table_array correctly cover all the data you expect to search within. If using VLOOKUP with TRUE for approximate match, ensure the lookup column is sorted ascending. If using INDEX/MATCH or XLOOKUP with an exact match, check the lookup_range.
• #VALUE!: This error usually means a function is using the wrong type of argument (e.g., trying to perform a mathematical operation on text, or providing a range where a single value is expected).
  • Fix: Review your formula arguments. Ensure that ranges are correctly specified and that values being compared or used in calculations are of the expected data type (numbers, text, etc.). In lookup functions, this can sometimes happen if the col_index_num in VLOOKUP is less than 1 or greater than the number of columns in the table_array.
• #SPILL!: (For FILTER, XLOOKUP, and other dynamic array functions in Excel 365/2021+). This means the function result is a dynamic array that needs to spill into multiple cells, but something is blocking the spill range (e.g., other data, merged cells).
  • Fix: Clear the cells in the range where the formula result is trying to spill. The formula is only in the top-left cell of the spill range.

Best Practices¶

To make your cross-sheet data pulling more robust and easier to manage:

• Use Excel Tables: Convert your source data into Excel Tables (Insert > Table). When using formulas (VLOOKUP, INDEX/MATCH, XLOOKUP, FILTER), reference the Table and column names (e.g., Table1[Employee ID]) instead of static ranges (Sheet1!B2:B11). This makes your formulas dynamic; if you add data to the source table, the table reference automatically expands, and your formulas will include the new data without needing manual range updates.
• Name Ranges: For critical lookup ranges that are not tables, consider defining Named Ranges (‘Formulas’ tab > ‘Define Name’). This makes formulas more readable (e.g., =VLOOKUP(A2,EmployeeIDsAndGenders,2,FALSE)).
• Use Absolute References ($) Wisely: Understand when to fix a reference ($) and when to allow it to change (A2 vs. $A2 vs. A$2 vs. $A$2) when copying formulas. For lookup ranges (table_array, lookup_range, return_range), absolute references are almost always necessary.
• Keep Source Data Clean: Ensure the lookup column in your source data has consistent values with no extra spaces, leading zeros (unless formatted as text and consistently applied), or typos.

Conclusion¶

Pulling data from other sheets in Excel is a fundamental skill for building dynamic and interconnected workbooks. Whether you need simple cell mirroring, powerful data lookups based on criteria, or dynamic filtering of rows, Excel provides multiple methods to achieve this. Simple cell references are quick for direct links, while VLOOKUP, INDEX/MATCH, and the newer XLOOKUP offer sophisticated ways to find and retrieve corresponding data. For extracting entire rows based on conditions or handling complex data transformations, FILTER and Power Query are invaluable tools. By choosing the right method for your task and applying best practices, you can significantly enhance the efficiency and accuracy of your data management in Excel.

Which of these methods do you find most useful, or are there specific challenges you encounter when pulling data between sheets? Share your thoughts and questions in the comments below!
