Mastering Windows Server: A Step-by-Step Guide to Configuring Your Domain Controller

Table of Contents

Setting up a Domain Controller (DC) in a Windows server is a fundamental step in establishing a secure and manageable network environment. The Domain Controller serves as the central authority for authentication and authorization, enforcing security policies and facilitating efficient user and device management across an Active Directory Domain. By centralizing control, administrators can streamline tasks like deploying software, managing user accounts, and applying security configurations uniformly. This guide provides a comprehensive walkthrough of the configuration process, from the initial installation of Active Directory Domain Services (ADDS) to verifying the DC’s operational status, ensuring a robust foundation for your network infrastructure.

What is a Domain Controller in Windows Server?¶

At its core, a Domain Controller (DC) in Windows Server is a server responsible for responding to security authentication requests within a Windows domain. It acts as the gatekeeper for network access, verifying user identities and permissions when they attempt to log in or access resources. Beyond authentication, DCs are critical for implementing group policies, managing user accounts, computer accounts, and other network objects. This centralized model simplifies network administration, enhances security by enforcing consistent policies, and allows for efficient resource allocation based on defined user and group requirements. Every Windows domain must have at least one Domain Controller to function, and in most production environments, multiple DCs are deployed for redundancy and load balancing.

How to Configure a Domain Controller in Windows Server Step by Step¶

Configuring a Domain Controller on a Windows Server involves several distinct phases, each requiring careful execution. Following a structured approach ensures that the installation and configuration are completed correctly, laying a solid foundation for your Active Directory environment.

Here are the primary steps involved in setting up a Domain Controller:

1. Ensure that prerequisites are met.
2. Install the Active Directory Domain Services (ADDS) server role.
3. Promote the server to a Domain Controller.
4. Verify the Domain Controller configuration and functionality.

Let’s delve into each step with detailed instructions and explanations.

1] Ensure that Prerequisites Are Met¶

Before you begin the process of installing and configuring Active Directory Domain Services and promoting a server to a Domain Controller, it is essential to ensure that several foundational prerequisites are in place. Skipping these steps can lead to installation failures or operational issues later on.

First, the server must have a supported version of the Windows Server operating system installed (e.g., Windows Server 2016, 2019, 2022). The operating system should be fully updated with the latest security patches and cumulative updates from Microsoft. A clean installation is often recommended to avoid potential conflicts with existing software or configurations.

Crucially, the server must be configured with a static IP address. Domain Controllers rely heavily on DNS, and having a static IP ensures that the server’s address is stable and predictable for client lookups and inter-server communication. Configure the static IP address, subnet mask, default gateway, and DNS server addresses carefully. For the first Domain Controller in a new forest, the DNS server address should typically point to itself once DNS is installed and configured during the promotion process, or to another DNS server that will host the zone for the new domain.

The server’s hostname should also be configured to a meaningful and static name before promotion. Changing the hostname after promoting the server to a DC is not supported and can cause significant problems. Ensure the name complies with naming conventions and is unique on the network.

Consider the hardware requirements. While a basic DC can run on modest hardware, production environments require sufficient CPU, RAM, and disk space to handle authentication requests, replicate data, and host the Active Directory database (NTDS.DIT). Microsoft provides recommended minimums, but sizing depends heavily on the number of users, computers, and the volume of authentication traffic expected. Disk performance is particularly important for the NTDS.DIT file and log files.

Finally, verify network connectivity. The server should be able to communicate with other servers and clients that will eventually join the domain. Ensure firewalls (both Windows Firewall and network firewalls) are configured to allow necessary Active Directory and DNS traffic (e.g., TCP/UDP ports 53, 88, 135, 389, 445, 3268, 3269).

2] Install the Active Directory Domain Services (ADDS)¶

Once the prerequisites are satisfied, the next major step is to install the Active Directory Domain Services role on the Windows Server. This role provides the necessary binaries and components to turn the server into a Domain Controller. There are several methods to install server roles, including using the Server Manager GUI, Windows PowerShell, or the Deployment Image Servicing and Management (DISM) tool. For this guide, we will focus on the commonly used Server Manager graphical interface.

Begin by signing in to the Windows Server using an account that has administrative privileges. The Server Manager console typically opens automatically upon login; if not, you can launch it from the Start menu.

In the Server Manager console, navigate to the Dashboard. From the Dashboard, click on Manage in the upper right corner, and then select Add Roles and Features. This will launch the Add Roles and Features Wizard. Click Next on the “Before you begin” page if it appears.

On the “Installation Type” page, select Role-based or feature-based installation. This is the standard method for adding roles like ADDS to a single server. Click Next.

On the “Server Selection” page, choose Select a server from the server pool. Select the local server from the list presented. Ensure the correct server is highlighted before clicking Next.

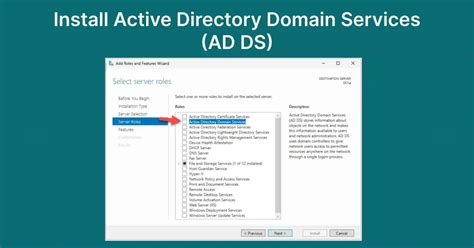

On the “Server Roles” page, check the box next to Active Directory Domain Services. When prompted to add features required for Active Directory Domain Services, click the Add Features button in the dialog box that appears. This automatically selects necessary components like Group Policy Management. After adding the features, click Next.

The “Features” page lists additional features that can be installed. The necessary features were automatically selected in the previous step. You typically do not need to select any additional features here unless you have specific requirements. Click Next.

The “AD DS” page provides information about the Active Directory Domain Services role. Read through this information, which highlights key aspects of AD DS. Click Next.

On the “Confirmation” page, review the roles and features that will be installed. You can optionally check the box Restart the destination server automatically if required. This can save a manual reboot later, although a restart is usually needed only after the promotion process, not just the role installation. Click the Install button to begin the installation process.

The installation process will take some time to complete, depending on the server’s performance. A progress bar will indicate the status. Once the installation finishes, the wizard will show “Installation succeeded”. Close the wizard. At this point, the ADDS role is installed, but the server is not yet a Domain Controller.

3] Promote the Server to a Domain Controller¶

Installing the ADDS role is only the first half of the process. The server must then be “promoted” to become an active Domain Controller within a domain. This involves configuring the ADDS database, setting up DNS, and defining the domain structure.

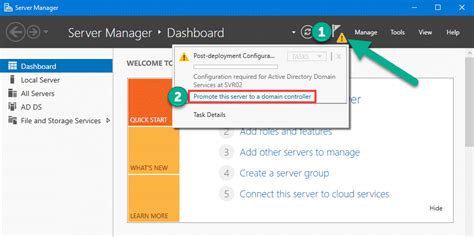

After the ADDS installation is complete, you will typically see a notification flag in the Server Manager title bar. Click this flag, and you will find an option that says Promote this server to a domain controller. Click this link to start the Active Directory Domain Services Configuration Wizard.

On the “Deployment Configuration” page, you must choose the deployment operation. You have three main options:
- Add a domain controller to an existing domain: Used to add a replica DC to a domain that already exists.
- Add a new domain to an existing forest: Used to create a new child domain or tree in an existing Active Directory forest.
- Add a new forest: Used to create the very first domain in a completely new Active Directory structure.

For the purpose of setting up a new, independent domain from scratch, select Add a new forest.

Enter the Root domain name for your new forest. This will be the name of your first domain, which also defines the forest name. Choose a name carefully, preferably using a standard DNS naming convention (e.g., yourcompany.local or yourcompany.com if it’s not internet-facing, or a subdomain like ad.yourcompany.com). Click Next.

On the “Domain Controller Options” page, you will configure the core settings for this DC.
- Select the Functional level for the new forest and new domain. The functional level determines which Windows Server operating system versions are supported for other Domain Controllers in the forest and domain, and enables specific Active Directory features. Choose the highest functional level supported by all future DCs you plan to introduce. For a new environment with only modern servers, select the latest version (e.g., Windows Server 2022).
- Under “Domain Controller Capabilities”, ensure Domain Name System (DNS) server and Global Catalog (GC) are checked. The first DC in a forest must be a GC. Installing DNS during promotion is highly recommended as AD relies heavily on DNS and the wizard will configure the DNS zone automatically.
- Leave Read-only domain controller (RODC) unchecked. An RODC is typically used in branch offices and is not suitable for the first, primary DC.
- Enter and confirm a strong password for Directory Services Restore Mode (DSRM). This password is crucial for performing maintenance or restoring Active Directory in case of a failure. Store this password securely.

Click Next.

The “DNS Options” page will typically warn you about the delegation for the DNS server. This warning is expected when creating a new forest because there is no existing DNS infrastructure to delegate authority to the new DNS server. You can safely ignore this warning for the first DC in a new forest. Click Next.

The “Additional Options” page allows you to verify or change the NetBIOS domain name. The wizard proposes a NetBIOS name based on the root domain name. In most cases, the default is acceptable. This name is primarily used for backward compatibility with older clients and applications. Click Next.

On the “Paths” page, specify the locations for the NTDS database file, the AD DS log files, and the SYSVOL folder. The SYSVOL folder stores domain-wide public files, including Group Policy objects and login scripts, and is replicated among DCs. Default locations are usually acceptable (typically within C:\Windows\NTDS and C:\Windows\SYSVOL), but you might change them for performance or redundancy reasons if you have multiple drives. Click Next.

The “Review Options” page summarizes your configuration choices. Review them carefully. You have the option to View script which generates a PowerShell script of the configuration. This script can be useful for automating future DC deployments. Click Next.

The wizard will perform Prerequisite Checks. It verifies that all necessary conditions are met before proceeding with the promotion. If checks pass, you will see a confirmation that prerequisites were validated successfully. If any checks fail, address the reported issues before continuing.

Once prerequisite checks pass, click the Install button. The promotion process will begin. This involves configuring AD DS, setting up DNS, creating the domain, and setting the server’s role. This process will take some time. The server will automatically restart upon completion of the promotion process.

4] Verify the Domain Controller Configuration¶

After the server restarts and you log in using the domain administrator credentials (which will now be DOMAIN_NETBIOS_NAME\Administrator or administrator@yourdomain.com), it’s crucial to verify that the Domain Controller is functioning correctly. Several tools are available for this purpose.

One of the primary tools is the DCDIAG command-line utility. Open Command Prompt or PowerShell as an administrator and run dcdiag. This command runs a series of tests to check the health and functionality of the Domain Controller, including connectivity, replication, DNS, and other critical services. A successful run should show “Passed” for most or all tests. For more detailed output, use dcdiag /v (verbose) or dcdiag /q (quiet, shows only failures).

You can also use the graphical tools available in Server Manager. Navigate to Tools in the upper right corner. You should now see several Active Directory-related snap-ins installed:
- Active Directory Users and Computers: Use this to verify that the domain structure was created correctly and to manage users, groups, and computer accounts. Check the default containers (Users, Computers, Domain Controllers).
- Active Directory Sites and Services: Used to manage the physical structure of your network and AD replication. For a single DC, the default site should be created correctly.
- Active Directory Domains and Trusts: Used to manage forest and domain trusts and functional levels.
- Active Directory Administrative Center: A newer interface for managing AD objects.
- DNS: Open the DNS Manager console. Verify that the forward lookup zone for your domain was created and populated with necessary records (like SRV records for AD services).
- Group Policy Management: Open this console to verify that the default domain policies were created.

Use the nslookup command to verify DNS functionality. Open Command Prompt and type nslookup. Then type the domain name (e.g., yourdomain.com). The output should show the name and IP address of your DC as the DNS server, and the IP address of your domain. You can also test looking up SRV records crucial for AD, such as _ldap._tcp.dc._msdcs.yourdomain.com.

Finally, verify Group Policy functionality. While not strictly necessary for the DC to be a DC, GPOs are a core function of AD. Open Group Policy Management. You will see the forest and domains listed. The default domain policy and default domain controllers policy should exist. You can create a test Organizational Unit (OU) and a simple test GPO (e.g., setting a desktop background or a simple security option) and link it to the OU or domain to ensure policies are being processed.

Once these checks pass, your Domain Controller is successfully configured and ready to manage your network resources.

Understanding Active Directory Structure¶

To fully appreciate the role of a Domain Controller, it helps to understand the basic structure of Active Directory.

• Domain: A security boundary and a logical grouping of users, computers, and other resources that share a common directory database, security policies, and trust relationships.
• Organizational Unit (OU): A container within a domain used to organize objects (users, computers, groups, other OUs) for administrative purposes, such as applying Group Policies or delegating administrative control.
• Tree: A hierarchical collection of one or more domains that share a contiguous DNS namespace (e.g., parent.com and child.parent.com).
• Forest: A collection of one or more Active Directory trees that share a common Global Catalog, schema, configuration, and trust relationships. Domains in different trees within the same forest do not necessarily share a contiguous namespace but trust each other transitively.

The Domain Controller hosts a replica of the Active Directory database for its domain and authenticates requests for that domain. In a forest with multiple domains, Global Catalog servers (which are also DCs) hold a partial replica of all objects in the forest, allowing users to search for resources anywhere in the forest without knowing which domain they reside in.

The Critical Role of DNS in Active Directory¶

Active Directory is inextricably linked with DNS. AD uses DNS to locate services (like LDAP, Kerberos) and other Domain Controllers. When a client joins a domain or a user logs in, they query DNS to find a DC. The SRV records registered by DCs in DNS are essential for this discovery process.

Ensuring DNS is correctly configured and healthy is paramount for a functional AD environment. The integrated DNS zone created during the DC promotion is hosted on the DC itself and automatically updated by AD services, simplifying management. Clients joining the domain should be configured to use the AD-integrated DNS server for name resolution.

Common Issues and Troubleshooting¶

Even with careful steps, issues can arise. Some common problems include:

• DNS Resolution Failures: The most frequent cause of AD issues. Use ipconfig /all on the client and server to verify DNS server addresses. Use nslookup to test forward and reverse lookups and SRV records. Use dcdiag /test:dns to check DNS health from the DC’s perspective.
• Firewall Blocks: Ensure necessary AD ports are open between clients, DCs, and other servers.
• Incorrect Static IP Configuration: Verify IP address, subnet mask, gateway, and DNS entries.
• DSRM Password Forgotten: If you forget the DSRM password, it can be reset using ntdsutil.
• Prerequisite Check Failures: The promotion wizard provides specific error messages. Address the underlying issue (e.g., problematic network configuration, insufficient permissions).

Difference Between Active Directory and Domain Controller¶

This is a common point of confusion. Think of it this way:

• Active Directory (AD) is the service or the system. It is a directory service developed by Microsoft for Windows domain networks. AD stores information about objects on the network, such as users, computers, shared resources, etc., and makes this information available to administrators and users. It’s the central database and the rules governing access and policy within the domain/forest.
• Domain Controller (DC) is the server that runs the Active Directory service. It hosts a copy of the AD database and performs the core functions of AD, such as authenticating users, enforcing security policies (Group Policy), and handling queries about network resources. You can’t have Active Directory without at least one Domain Controller, and a Domain Controller’s primary purpose is to provide the Active Directory service.

In essence, AD is the conceptual framework and database, while the DC is the physical or virtual server hardware and operating system software that hosts and delivers that service.

Next Steps¶

Once your Domain Controller is successfully configured and verified, you can begin populating your Active Directory environment. This includes:

• Creating Organizational Units (OUs) to structure your domain.
• Creating user accounts and groups.
• Joining client computers and member servers to the domain.
• Configuring and linking Group Policies to manage user and computer settings.
• Setting up file shares and printers and managing access via AD security groups.
• Planning for additional Domain Controllers for redundancy and better performance across different sites.

Configuring a Domain Controller is a foundational task in Windows Server administration. By following these steps and understanding the underlying concepts, you can build a secure, centralized, and efficient network environment.

---

What are your experiences with setting up Domain Controllers? Did you encounter any specific challenges, or do you have tips to share? Let us know in the comments below!
