Missing Draw Tab in Office Ribbon? Here's How to Restore It

Table of Contents

The Draw tab in Microsoft Office is a valuable feature, particularly for users who wish to incorporate digital inking into their documents, spreadsheets, or presentations. While incredibly useful, this tab does not always appear by default in the Office Ribbon. Often, its visibility is automatically controlled based on whether the system detects a touchscreen display. Users without a touchscreen may find the tab hidden, leading to the assumption that the feature is unavailable to them.

Fortunately, if you find the Draw tab missing from your Office Ribbon, it is a simple process to restore it. There is no need to resort to alternative software or complex workarounds. This guide will walk you through the straightforward steps required to make the Draw tab accessible in your preferred Microsoft Office application.

Adding the Draw Tab to the Office Ribbon¶

Adding the Draw tab back to your Ribbon is a quick task that requires only a few clicks within the application’s options. This process is consistent across most Microsoft Office applications, including Word, Excel, and PowerPoint. Since the Draw tab is available suite-wide, the steps outlined here will work regardless of which specific Office program you are using.

Open Your Microsoft Office Application¶

Begin by launching the Microsoft Office application where you want to restore the Draw tab. This could be Microsoft Word if you’re working on a document, Excel for adding diagrams to a spreadsheet, or PowerPoint for annotating slides. Ensure you have a document or presentation open, even if it’s a blank one, to access the application interface.

Access Ribbon Customization Options¶

There are two primary ways to open the window that allows you to customize the Ribbon. The quickest method is to right-click anywhere on the blank space of the existing Ribbon tabs. From the context menu that appears, select the Customize the Ribbon option. This action will immediately open the relevant settings window.

Alternatively, you can navigate through the application’s menu system. Click on the File tab in the upper-left corner of the window. Then, select Options from the sidebar menu; this will open the main Options dialog box. Within the Options window, choose the Customize Ribbon category from the left-hand pane. Both methods lead you to the same destination for modifying your Ribbon display.

Locate and Enable the Draw Tab¶

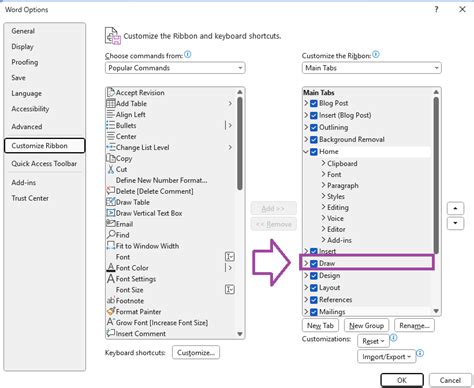

Once the “Customize Ribbon” window is open, you will see two main columns. The left column lists available commands and tabs, while the right column shows the tabs currently displayed on your Ribbon. In the right-hand column, under the “Customize the Ribbon” dropdown (which is typically set to “Main Tabs”), scroll through the list of available tabs. Look for the entry labeled Draw.

In many cases where the tab is missing, the Draw entry will already be present in the list of “Main Tabs” but will simply be unchecked. If this is the case, simply click the checkbox next to Draw to enable it. If the Draw tab is not present in the list of “Main Tabs” on the right, you will need to add it from the left column. In the left column, change the “Choose commands from” dropdown menu to Main Tabs. Then, scroll through the list in the left column, find Draw, select it, and click the Add >> button located in the center between the two columns. This will move Draw to your list of active “Main Tabs” on the right.

Finalize and Apply Changes¶

After you have checked the box next to Draw (or added it from the left column), confirm your selection. Look at the bottom of the “Customize Ribbon” window and click the OK button. This action saves your changes and closes the customization window. Immediately upon closing the window, you should see the Draw tab appear on your Ribbon, ready for use.

Exploring the Capabilities of the Draw Tab¶

Restoring the Draw tab unlocks a suite of powerful tools for digital inking directly within your Office documents. This tab provides everything needed to draw, annotate, highlight, and even convert handwritten input into digital text or shapes. Understanding the tools available will help you leverage this feature effectively across different Office applications.

The Draw tab is typically organized into several groups:

• Tools: This group contains various pens, pencils, and highlighters. You can customize the thickness and color of each tool. There’s often an “Add Pen” option to save your preferred tool configurations. An Eraser tool is also present, often with options for stroke or segment erasing.
• Convert: This group houses features that convert your ink strokes into more conventional digital elements. “Ink to Shape” transforms hand-drawn shapes (like circles or squares) into perfect geometric figures. “Ink to Text” converts handwritten words into typed text. “Ink to Math” recognizes handwritten mathematical equations and converts them into a professional-looking digital format.
• Insert: Depending on the Office application, this group might include options related to drawing, such as inserting a drawing canvas or accessing other inking-related features.
• Replay: In applications like PowerPoint, this group includes the “Ink Replay” feature, which allows you to animate your drawings stroke by stroke, ideal for demonstrating concepts during a presentation.
• Select: The Lasso Select tool in this group lets you draw a freeform shape around ink strokes or other objects to select them for editing, moving, or resizing.

Utilizing these tools allows for a more dynamic and personal way of interacting with your digital content, bridging the gap between traditional pen-and-paper methods and digital document creation.

Available Drawing Tools¶

Within the Tools group, you have several options to choose from:

• Pens: These are the primary drawing tools, allowing you to create solid lines. You can select from a variety of default pens or add your own customized pens with specific colors and thicknesses. This is perfect for sketching, writing, or underlining.
• Pencils: Pencils offer a more textured line, mimicking the look of a graphite pencil on paper. They are suitable for sketching or adding a softer, more artistic touch.
• Highlighters: Highlighters are used to mark text or areas with transparent color. They work just like physical highlighters, allowing the underlying content to remain visible while drawing attention to specific points.
• Eraser: The eraser removes ink strokes. You can often choose between erasing entire strokes or just segments of strokes, offering precise control over your corrections.
• Ruler: The digital ruler helps you draw straight lines at any angle. You can rotate the ruler to the desired angle and then draw along its edge with a pen or pencil.

Customizing your pens and highlighters by adjusting their color and thickness allows you to create a personalized set of drawing tools tailored to your specific needs. This customization is often saved within your Office profile.

Converting Ink Input¶

The Convert group provides powerful features that integrate your handwritten input with the standard digital format:

• Ink to Shape: Draw a rough circle, square, triangle, or other common geometric shape, and this tool will automatically convert it into a perfect, editable digital shape. This is incredibly useful for creating diagrams or flowcharts quickly without needing to use the standard Shapes menu.
• Ink to Text: Write notes or sentences with your digital pen, and “Ink to Text” will attempt to convert your handwriting into standard typed text. While recognition accuracy depends on the clarity of your handwriting, this feature can be a significant time-saver for jotting down notes.
• Ink to Math: For students, educators, or anyone working with equations, “Ink to Math” is invaluable. Write out complex mathematical expressions using your pen, and the tool will convert them into a properly formatted equation that can be inserted into your document. This eliminates the need to use equation editors for handwritten formulas.

These conversion tools demonstrate Office’s ability to understand and process natural ink input, making the digital writing experience more intuitive and efficient.

The Lasso Select Tool¶

Located in the Select group, the Lasso Select tool is essential for managing multiple ink strokes. Instead of selecting individual strokes one by one, you can draw a freeform loop around a collection of strokes, shapes, or other objects. Once selected, you can move, resize, group, or delete the entire selection as a single unit. This is particularly helpful when rearranging complex drawings or annotations within your document.

Using the Draw Tab Across Office Applications¶

While the core tools in the Draw tab are similar across applications, their specific utility varies depending on the context of the software.

Inking in Word¶

In Microsoft Word, the Draw tab is excellent for document review, adding marginal notes, sketching illustrations, or even signing documents. You can easily mark up a draft with a digital pen, highlight important passages, or insert small diagrams directly onto the page. The ability to convert ink to text or shapes is also useful for quickly inserting handwritten notes or simple diagrams that you want to tidy up digitally.

Inking in Excel¶

Adding ink to Excel might seem less intuitive, but it can be effective for annotating data tables, drawing attention to specific cells or ranges, or sketching out simple diagrams related to your data. You can use the pen tools to circle important figures, add handwritten comments next to calculations, or draw arrows connecting different parts of a spreadsheet. The Ink to Shape feature is useful for adding basic flowcharts or diagrams directly onto a sheet.

Inking in PowerPoint¶

The Draw tab shines in PowerPoint, especially for presentations where you want to engage your audience with live drawing. During a slideshow, you can select a pen or highlighter and draw directly on the slides to emphasize points, sketch ideas collaboratively, or work through examples. The Ink Replay feature is fantastic for creating dynamic visuals that build stroke by stroke, ideal for explaining complex concepts. You can also use inking tools during the design phase to sketch out slide layouts or doodle ideas.

Inking in OneNote¶

OneNote is perhaps where the Draw tab feels most at home, as it is designed as a digital notebook. Freeform inking is a primary method of input in OneNote. The Draw tab provides all the necessary tools for taking handwritten notes, sketching diagrams, doodling, and annotating web clippings or other inserted content. The conversion tools are particularly powerful in OneNote for turning handwritten notes into searchable text or tidying up sketched diagrams.

Troubleshooting: Draw Tab Still Missing?¶

If you followed the steps to customize the Ribbon but the Draw tab still doesn’t appear, consider these additional troubleshooting steps:

• Check Office Version and Updates: Ensure your Microsoft Office installation is up to date. Sometimes, features may require specific updates. Go to File > Account > Update Options > Update Now.
• Verify Office Installation: Make sure the drawing features were included during the Office installation. While this is usually standard, custom installations might exclude components. A repair of your Office installation might resolve this. You can typically do this via the Windows “Apps & Features” (or “Programs and Features”) settings.
• Document Compatibility Mode: In older documents saved in compatibility mode, certain newer features, including advanced inking options, might be limited. Try saving the document in the latest Office format (.docx, .xlsx, .pptx) and see if the tab appears.
• Touch Screen Detection: While the customization option overrides the automatic detection, sometimes driver issues or system configurations might interfere. Ensuring your system recognizes any connected pen or touch input device can sometimes help, though it’s not strictly necessary once the tab is manually enabled.
• Corrupted Office Profile: In rare cases, a corrupted user profile within Office might cause issues. This is a more advanced troubleshooting step and might involve resetting Office settings or profiles.

By systematically checking these potential issues, you can usually identify why the Draw tab might not be displaying as expected even after attempting to enable it via Ribbon customization.

Benefits of Using Digital Inking¶

Incorporating digital inking into your workflow offers several advantages:

• Natural Input: Writing or drawing with a pen feels more natural and intuitive than typing or using a mouse for certain tasks like sketching or annotating.
• Improved Communication: Adding handwritten notes, highlights, or diagrams can make documents and presentations clearer and more engaging.
• Efficiency: Quickly sketching ideas, signing documents digitally, or converting handwritten notes can save time compared to traditional methods or relying solely on keyboard/mouse input.
• Enhanced Creativity: Digital inking provides a flexible medium for brainstorming, mind mapping, and adding a personal touch to your digital creations.
• Accessibility: For users who find typing difficult, digital handwriting can be a more accessible way to interact with digital content.

The Draw tab is a powerful tool that enhances the functionality and flexibility of the Microsoft Office suite, making it easier to work in ways that feel most comfortable and productive for you.

We hope this guide helped you restore the Draw tab and start leveraging the power of digital inking in your Office applications. What are your favorite ways to use the Draw tab? Share your thoughts and tips in the comments below!
