Optimize Your Audio: A Guide to Testing Surround Sound on Windows 11
Setting up a surround sound system on a PC can seem complicated, especially with multiple speakers requiring precise placement. Fortunately, Windows 11 and Windows 10 include a convenient, built-in tool designed to simplify this process. This guide will walk you through how to effectively test your surround sound speakers using this feature, ensuring your audio setup is configured for the best possible experience. Proper testing is crucial not just for initial setup, but also for troubleshooting potential issues that may arise over time.
Testing helps verify that each speaker in your setup is correctly connected, functional, and assigned to the appropriate channel. Without this verification, you might miss out on the immersive audio intended for movies, games, and music. The Windows test provides a simple yet effective way to check the channel mapping, ensuring sounds designated for the front-left speaker, for example, are indeed played by that specific speaker. This is fundamental to achieving the directional audio effects that define surround sound.
Getting Started: Accessing the Sound Settings¶
The first step in testing your surround sound system on Windows 11 or 10 is to access the sound configuration settings. This is where Windows manages all audio input and output devices connected to your computer. The fastest way to get there is by using a keyboard shortcut combined with a specific command. This method bypasses navigating through multiple menus, providing direct access to the necessary window.
Press the Windows key + R simultaneously on your keyboard. This action will open the small “Run” dialog box, a utility used for quickly opening files, folders, or programs using their names or paths. In the text field provided within the Run dialog, you need to type the command that directs Windows to open the sound configuration panel. There are a couple of common commands you can use for this purpose, both leading to the same destination.
You can type either control mmsys.cpl sounds or simply mmsys.cpl. The mmsys.cpl file is the control panel applet specifically for managing multimedia devices, including sound. Typing this command and hitting Enter or clicking OK will immediately launch the Sound settings window, also known as Sound Properties. This window serves as the central hub for managing all audio-related aspects of your system, from playback and recording devices to sound schemes and communications settings.
Navigating the Sound Properties Window¶
Once the Sound Properties window opens, you will see several tabs across the top: Playback, Recording, Sounds, and Communications. To test your speakers, you need to focus on the devices responsible for outputting audio from your computer. Therefore, select the Playback tab if it is not already the active tab. This tab lists all audio output devices currently recognized by your Windows system, such as internal speakers, external speakers, headphones, and digital audio outputs (like HDMI or S/PDIF).
In the list of playback devices displayed, locate the audio device that corresponds to your surround sound setup. On many standard PC configurations using desktop speakers or external audio interfaces, this device is often labeled simply as “Speakers.” However, depending on your audio hardware and drivers, it might have a more specific name, such as the name of your sound card (e.g., “Realtek High Definition Audio”), a virtual audio device, or the name of your external audio receiver or interface. Ensure you select the correct device that is configured to output surround sound.
After selecting the appropriate playback device in the list, you need to access its specific configuration options. With the device highlighted, look for the Configure button, typically located near the bottom-left corner of the Sound Properties window. Clicking this button will launch a separate window specifically designed for setting up and testing the speaker configuration of the selected device. Alternatively, you can right-click on the selected device in the list. From the context menu that appears, choose the option that says Configure [Device Name], where [Device Name] is the name of the audio device you selected. Both methods will take you to the same configuration window.
Performing the Surround Sound Test¶

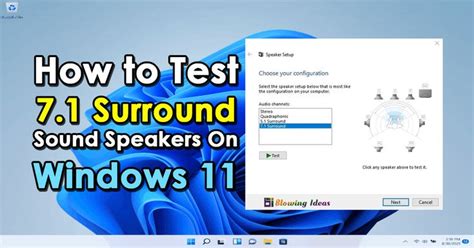

The Speaker Setup window is where you will select your specific speaker configuration and initiate the test. At the top of this window, you will find a list or dropdown menu allowing you to select the type of audio configuration you have installed. Common options include Stereo, 5.1 Surround, and 7.1 Surround, among others. Select the configuration that accurately reflects the number and arrangement of speakers in your surround sound system. Choosing the correct configuration here is essential for the test to map the audio channels properly to your physical speakers.
Below the list of audio channels, you will find the Test button. Clicking this button will start the automated surround sound test. Windows will play a distinct test chime or tone through each speaker in your selected configuration, one by one. The order typically follows a standard sequence, such as Left Front, Center, Right Front, Right Surround, Left Surround, Subwoofer (for 5.1), and then adding Rear Center, Right Rear, and Left Rear for 7.1 setups.
As each speaker plays its test tone, a visual diagram on the right side of the Speaker Setup window will highlight the corresponding speaker. This visual feedback is incredibly helpful in confirming which speaker is currently outputting sound according to Windows’ mapping. You should listen carefully and observe the diagram to ensure that the sound is coming from the correct physical speaker that is being highlighted on the screen. This is the primary way to verify your speaker wiring and Windows configuration match.
If you need to interrupt the test sequence at any point, perhaps to adjust a speaker or check a connection, simply click the Stop button that appears while the test is running. The test will immediately halt. You can then restart the test from the beginning by clicking the Test button again once you are ready. This allows you to pause and troubleshoot without having to wait for the entire sequence to finish.
Testing Individual Speakers¶
Beyond the automated sequence, the Speaker Setup window offers another valuable testing feature: the ability to test individual speakers on demand. On the right side of the window, the diagram visually represents your chosen speaker configuration. Each speaker in the diagram is interactive. You can click directly on any individual speaker icon within this diagram.
When you click on a specific speaker icon (e.g., the icon for the “Center” speaker or the “Left Surround” speaker), Windows will play the test chime only through that particular speaker. This feature is extremely useful for isolating potential issues with a single speaker or verifying the correct physical placement of each speaker in your room. For example, if you click the “Left Surround” icon but hear sound from the speaker on your right side, you know there is a wiring or configuration issue that needs to be addressed.
Using the individual speaker test helps pinpoint exactly where a problem lies. If the automated test reveals an issue, clicking individual speakers allows you to systematically check each one. This makes troubleshooting much more efficient than simply re-running the full test repeatedly. You can click on each speaker in the diagram in any order you choose, repeating the test tone for a specific speaker as many times as needed to verify its functionality and correct mapping.
Further Configuration and Troubleshooting¶
After running the test, the Speaker Setup window might offer further options depending on your audio hardware and the chosen configuration. Clicking the Next button often leads to a wizard that allows you to refine your setup. For instance, for configurations like 7.1 surround, the wizard might ask you to specify which “surround” speakers you actually have connected (e.g., side or rear surrounds) if your setup doesn’t include all possible channels. This helps Windows optimize the audio mix for your specific speaker arrangement, preventing sound from being directed to speakers that aren’t present.
If the test reveals that sounds are coming from the wrong speakers, or if certain speakers produce no sound at all, there are several common troubleshooting steps you should take. First, physically check all speaker cables and connections. Ensure they are securely plugged into the correct ports on your sound card or audio receiver. Speaker wires are often color-coded or labeled (e.g., Front Left, Center), and matching these labels to the output ports on your audio hardware is critical.
Next, verify that your audio drivers are correctly installed and up to date. Outdated or corrupt audio drivers are a frequent cause of sound issues, including incorrect channel mapping. You can usually find the latest drivers on the website of your sound card manufacturer (e.g., Realtek, Creative, NVIDIA/AMD for integrated HDMI audio) or your computer’s manufacturer. Uninstalling and reinstalling the drivers can often resolve persistent problems.
Also, check the volume levels for each channel in your audio control panel, if your sound card provides one. Sometimes, individual channels might be muted or set to a very low volume within the manufacturer’s specific audio software, overriding the Windows settings. Ensure that the correct output device is set as the default playback device in the Windows Sound Properties window (indicated by a green checkmark).
Beyond the Built-in Test¶
While the built-in Windows tool is excellent for verifying basic channel mapping and speaker functionality, it’s primarily a diagnostic tool. For a more immersive and realistic test of your surround sound, you should use actual multi-channel audio content.
Media players like VLC, PotPlayer, or the built-in Movies & TV app in Windows can play video files with surround sound audio tracks (e.g., Dolby Digital, DTS). Playing a scene with distinct directional sound effects is a great way to experience how well your system handles complex audio mixing and panning. Look for test videos specifically designed for surround sound testing, often available online. These videos typically play specific tones or spoken channel identifications (like “Front Left,” “Rear Right”) coupled with visual cues.
Many modern video games also feature sophisticated surround sound engines. Playing a game that supports your surround sound configuration can provide an excellent real-world test. Listen for positional audio cues, such as footsteps approaching from a specific direction or explosions occurring behind you. If the audio matches the on-screen or in-game action accurately in terms of direction and distance, your surround sound is likely working correctly.
Online surround sound tests are also available via websites. These tests typically require a compatible web browser and might use technologies like Web Audio API to play multi-channel audio. While convenient, their effectiveness can sometimes depend on browser compatibility and streaming quality compared to dedicated software or local media files.
Optimizing Speaker Placement¶
Testing your speakers using the methods described also highlights the importance of physical speaker placement. Even if all speakers are connected and mapped correctly in Windows, their position in your room significantly impacts the perceived surround sound effect. The test tone allows you to confirm that the speaker labeled “Left Surround” is physically located to your left and slightly behind you, as is standard for a 5.1 setup.
For a 5.1 system, the ideal placement typically involves front-left, center, and front-right speakers positioned near your display. The surround-left and surround-right speakers should be placed to your sides or slightly behind you, at or slightly above ear level when seated. The subwoofer placement is less critical for directionality but affects bass response throughout the room. A 7.1 system adds rear-left and rear-right speakers, typically positioned directly behind the listener. Using the individual speaker test helps you fine-tune these placements by confirming that the sound source matches your intended setup relative to your listening position.
While the Windows tool confirms basic connectivity and channel assignment, achieving optimal surround sound often requires experimentation with placement, angles, and potentially calibration features provided by your audio receiver or sound card software. Think of the Windows test as the foundational step to ensure the signal is reaching the correct speaker before you start fine-tuning the physical arrangement.
Windows Sonic and Spatial Sound¶
It’s worth briefly mentioning Windows Sonic for Headphones and other spatial sound technologies like Dolby Atmos and DTS Sound Unbound. While the built-in Speaker Setup test focuses on traditional physical speaker configurations (5.1, 7.1), Windows Sonic is a spatial sound solution that can create virtual surround sound, often for headphones. When you enable Windows Sonic or another spatial sound format in the Sound settings (under device properties), it processes the audio before it reaches your physical speakers or headphones.
The built-in test primarily verifies the routing to physical channels. If you are using a spatial sound format over your speakers (which some advanced audio systems can do), the test might still play through the physical speakers according to the selected configuration, but the actual audio experience in applications might be enhanced by the spatial processing. For testing spatial sound effects themselves, you would typically rely on content specifically mastered for Dolby Atmos or DTS:X, rather than the simple channel identification chime. However, ensuring your base physical speaker setup is correctly mapped using the built-in tool is a prerequisite for any higher-level spatial processing to function correctly.
Maintaining Your Audio Setup¶
Once you have successfully tested and configured your surround sound speakers, regular maintenance can help ensure continued optimal performance. Periodically re-checking cable connections can prevent issues caused by loose plugs. Dust and debris can sometimes accumulate in speaker drivers or ports, potentially affecting sound quality; gentle cleaning can help. While you don’t need to run the Windows test daily, performing it again after making any changes to your system hardware (like adding a new component) or updating audio drivers is a good practice.
Understanding the flow of audio from the application, through Windows, via drivers, and out to your speakers empowers you to troubleshoot effectively. The built-in test is a fundamental part of this understanding, providing a clear diagnostic check of the signal path to each speaker.
Conclusion¶
Testing your surround sound speakers on Windows 11 or 10 is a straightforward process thanks to the integrated configuration tool. By following the steps outlined – accessing Sound settings, selecting your playback device, choosing the correct configuration, and running the automated or individual speaker tests – you can quickly verify that your system is set up correctly. This ensures that audio intended for each specific channel reaches the appropriate speaker, providing the immersive, directional sound experience that surround sound is designed to deliver. Should you encounter issues, the tests provide vital diagnostic information, guiding you towards troubleshooting connection problems, driver issues, or incorrect settings. Utilize the built-in test as your first line of defense in ensuring your surround sound system performs optimally.
Have you used the built-in Windows surround sound test before? What challenges did you face when setting up your system, and how did testing help you resolve them? Share your experiences and tips in the comments below!
