Recover Unallocated Space USB SD Card Windows

Encountering unallocated space on your USB drive or SD card can be a frustrating issue. This problem typically manifests when the storage device unexpectedly shows a portion or all of its capacity as “Unallocated” within Windows Disk Management, rendering it unusable for storing data. This guide aims to help you understand the common causes behind this error and provides detailed steps on how to potentially recover this space and make your device functional again on your Windows 10 or Windows 11 PC. We will explore several methods, ranging from built-in Windows tools to third-party utilities and command-line options.

Unallocated space on a storage device signifies an area of the disk that has not been formatted with a file system (like NTFS, FAT32, or exFAT) and therefore cannot be used by the operating system to store files. Think of it as raw, unused potential storage. This issue can arise unexpectedly, turning a previously working drive into a non-functional one from the user’s perspective. While the data on the device might still technically exist in the unallocated area, accessing it directly is not possible without first creating a partition and formatting it. However, performing these recovery steps will likely erase any data currently on the drive, so data recovery should be considered before attempting these fixes if the data is important.

Several factors can contribute to a USB drive or SD card becoming unallocated. One frequent cause is the incorrect or abrupt removal of the device from the computer while it is still being accessed or written to. This can corrupt the partition table, leading the system to see the space as unallocated. Another common culprit is partition deletion, which might happen accidentally by the user or potentially by malicious software. Virus attacks are known to damage or delete partition information, making the drive appear as raw or unallocated.

Furthermore, using certain third-party tools for formatting or partitioning incorrectly, or experiencing interruptions during these processes, can also result in unallocated space. Attempting to “burn” an operating system image (like for Linux or ChromeOS) onto a USB drive often reformats the device in a specific way that might leave a significant portion of the drive as unallocated or inaccessible when viewed back on a standard Windows system. Understanding these potential causes is the first step in effectively troubleshooting and resolving the unallocated space issue on your removable media.

Common Causes of Unallocated Space on USB Drives and SD Cards

The appearance of unallocated space on a seemingly healthy USB drive or SD card can be perplexing. Beyond simple accidental deletion, several technical reasons can lead to this state. Often, the issue stems from corruption or errors within the device’s partition table or Master Boot Record (MBR) or GUID Partition Table (GPT), which are critical structures that tell the operating system how the storage space is organized.

One significant cause is improper device handling. Ejecting a USB drive or SD card without using the “Safely Remove Hardware” option can interrupt write operations or file system journal updates, corrupting the data structures that define partitions. While Windows often caches writes for performance, abrupt removal prevents these cached writes from being committed and file system structures from being properly finalized, potentially leading to a corrupted state where partitions are no longer recognized.

Software-related issues are also frequent contributors. Formatting errors, particularly if the process is interrupted or encounters bad sectors, can leave sections of the drive unpartitioned. Similarly, using unreliable or incompatible formatting tools can sometimes damage the partition structure. Malicious software, such as viruses or ransomware, can deliberately corrupt or delete partition information to render data inaccessible or demand payment. These attacks target the fundamental ways the operating system interacts with the storage device.

Certain specialized operations, like creating bootable media for installing operating systems, can also alter the drive’s partition layout in ways that are not standard for typical data storage. When you use tools to write an ISO image to a USB drive, the tool might create specific partitions required for booting, potentially leaving the remaining space unallocated or formatted in a way Windows doesn’t immediately recognize as a standard data partition. ChromeOS installation media, for instance, is known to repartition drives in a complex manner that can make the remaining space appear unallocated upon returning the drive to a Windows environment.

Understanding these underlying causes helps contextualize the repair methods. Since the core problem is often related to the partition table or file system structure, the solutions involve re-establishing a correct partition layout and applying a standard file system so Windows can recognize and use the storage area.

Fixing Unallocated Hard Disk Space Error on USB drive or SD card

When your USB drive or SD card appears as unallocated space, there are several methods you can attempt to recover the storage capacity. These methods typically involve re-initializing or re-partitioning the drive, which will unfortunately erase any data currently stored on it. Therefore, if data recovery is a priority, you should explore data recovery options before proceeding with these fixes. The following solutions are presented in increasing order of complexity and power.

Here are the primary methods we will cover:

  1. Using Windows Disk Management
  2. Using a dedicated third-party formatting tool (like HP USB Disk Storage Format Tool)
  3. Using the DiskPart command-line utility

Let’s delve into each method with detailed steps.

1] Use Disk Management

Disk Management is a built-in Windows utility that allows you to manage hard drives and partitions. It’s often the first tool to try for disk-related issues because it’s readily available and relatively user-friendly for basic tasks like creating and formatting partitions.

To attempt to fix the unallocated space using Disk Management:

  1. Connect the USB drive or SD card exhibiting the unallocated space issue to your Windows 10 or Windows 11 PC.
  2. Open Disk Management. The quickest way to do this is by pressing Windows key + X to open the Power User Menu, and then selecting Disk Management from the list. Alternatively, you can search for “Disk Management” in the Windows search bar and click on the result.
  3. In the Disk Management window, carefully locate your USB drive or SD card. Disks are usually listed by number (Disk 0, Disk 1, etc.). Pay close attention to the disk size to identify the correct drive. Your main system drive is typically Disk 0. The USB or SD card is likely listed as another disk number.
  4. Observe the visual representation of the disk’s space. You should see a section marked as “Unallocated,” usually depicted with a black bar above it.

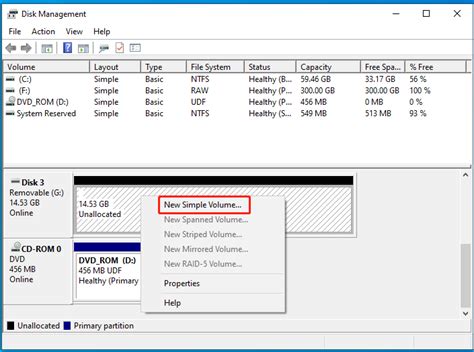

  5. Right-click on the area marked as Unallocated space on the problematic disk.
  6. From the context menu that appears, select New Simple Volume…. This launches the New Simple Volume Wizard, which will guide you through creating a new partition using the unallocated space.
  7. Click Next on the welcome screen of the wizard.
  8. The wizard will ask you to specify the volume size. By default, it will suggest using the maximum available unallocated space, which is usually what you want to do to recover the full capacity of the drive. Accept the default size or specify a smaller size if you intend to create multiple partitions (though for USB drives/SD cards, a single partition is common). Click Next.
  9. You will then be prompted to assign a drive letter to the new volume. Select any available drive letter from the dropdown list. Click Next.
  10. Next, the wizard will ask you to format the partition. This step is crucial as it prepares the partition for use by the operating system.
    • Choose a File system. For general compatibility, FAT32 is a common choice for smaller drives (up to 32GB), while NTFS or exFAT are better suited for larger drives or if you need to store files larger than 4GB. exFAT is often preferred for USB drives and SD cards as it is compatible with both Windows and macOS and supports large files and volumes.
    • You can usually leave the Allocation unit size set to Default.
    • Enter a Volume label (e.g., “MyUSB” or “SDCARD”) if you wish.
    • Ensure the Perform a quick format option is checked (this is much faster than a full format).
  11. Click Next.
  12. Review the summary of your choices and click Finish to create and format the new volume.

Disk Management will now format the unallocated space and assign it a drive letter. Once the process is complete, the unallocated space should disappear, replaced by a formatted partition with the drive letter you assigned. You should now be able to access and use the USB drive or SD card normally in File Explorer. If this method fails (e.g., “New Simple Volume” is greyed out or the formatting process encounters an error), the corruption might be more severe, and you should proceed to the next methods.

2] Use HP USB Disk Storage Format Tool

Sometimes, Windows’ built-in formatting utility in Disk Management might not be sufficient to repair severely corrupted drives. In such cases, a dedicated third-party formatting tool can be more effective. The HP USB Disk Storage Format Tool (often referred to simply as HPUSBDisk) is a small, free utility that has long been popular for its ability to forcefully format USB drives, even those that Windows has trouble with.

While I cannot provide a direct download link due to the rules, you can typically find this tool by searching for “HP USB Disk Storage Format Tool” on reputable software download websites. Always download software from trusted sources to avoid malware.

Once you have obtained the tool:

  1. Insert the problematic USB drive or SD card into your computer.
  2. Locate the downloaded HP USB Disk Storage Format Tool executable file.
  3. Right-click on the executable file and select Run as administrator. Running it with administrator privileges is often necessary for it to have full access to the disk.
  4. In the HP USB Disk Storage Format Tool window, select the correct USB drive or SD card from the Device dropdown list. Double-check that you have selected the correct drive, as formatting the wrong drive will result in data loss on that drive.
  5. Choose the desired File system (e.g., FAT32, NTFS, or exFAT). Again, exFAT or FAT32 are good choices for compatibility and typical removable storage use.
  6. You can optionally enter a Volume Label.
  7. It is recommended to check the Quick Format option for speed. If the drive is suspected of having bad sectors, you might uncheck this option to perform a full format, which includes a scan for bad sectors, but this process takes significantly longer.
  8. Click the Start button.
  9. The tool will warn you that all data on the drive will be erased. Confirm that you wish to proceed by clicking Yes.
  10. Wait for the formatting process to complete. A progress bar will indicate the status.
  11. Once finished, the tool will report the result.

After the HP tool completes the format, check Disk Management and File Explorer to see if the unallocated space is gone and the drive is accessible as a formatted partition. This tool is often successful when Disk Management fails because it might handle low-level formatting and partition table reconstruction more robustly.

3] Use DiskPart

DiskPart is a powerful command-line utility built into Windows that provides extensive control over disk, partition, and volume management. It can perform operations that are not available through the graphical Disk Management interface, making it a valuable tool for resolving complex disk issues, including stubborn unallocated space problems. Using DiskPart requires caution, as incorrect commands can easily lead to data loss on any connected drive.

Crucially, before using DiskPart, ensure you have identified the correct disk number for your USB drive or SD card. Accidental selection of your main system drive and running the clean command will erase everything on that drive, including your Windows installation. If data on the USB drive or SD card is important, attempt data recovery before proceeding, as the clean command will erase the partition table, making standard data recovery much more difficult.

Here are the steps to use DiskPart to fix unallocated space:

  1. Connect the USB drive or SD card that shows unallocated space to your computer.
  2. Open the Command Prompt with administrator privileges. The easiest way is to search for “Command Prompt” in the Windows search bar, right-click on the result, and select Run as administrator. Alternatively, you can press Windows key + R, type cmd, and press CTRL + SHIFT + ENTER.
  3. Once the Command Prompt window opens, type diskpart and press Enter. You will see DISKPART> prompt appear, indicating that the utility is ready to receive commands.
  4. Type list disk and press Enter. This command displays a list of all disks connected to your computer, along with their size. Carefully examine the list to identify your USB drive or SD card based on its size. Note its disk number (e.g., Disk 1, Disk 2).
  5. Type select disk X (replace X with the number of your USB drive or SD card you identified in the previous step) and press Enter. DiskPart will confirm that the selected disk is now the chosen disk. For example, if your USB is Disk 1, you would type select disk 1.
  6. Type clean and press Enter. This command is irreversible and will erase the partition table and all data on the selected disk. DiskPart will report success once the cleaning is complete. This effectively removes all partitions and volume information, turning the entire drive into unallocated space from DiskPart’s perspective, ready to be re-partitioned.
  7. Now, you need to create a new primary partition on the cleaned disk. Type create partition primary and press Enter. DiskPart will confirm that it successfully created the specified partition. This command tells DiskPart to create a standard primary partition using the available unallocated space.
  8. (Optional: Specifying Partition Size) If you only want to use a portion of the drive, you can specify the size in megabytes (MB) when creating the partition. For example, to create a partition of 3000MB, you would type create partition primary size=3000 and press Enter. If you omit the size parameter, DiskPart will create a partition using the maximum available contiguous unallocated space, typically the entire drive after the clean command.
  9. After creating the partition, you need to format it with a file system and assign a drive letter to make it accessible. Type format fs=XXXX quick (replace XXXX with the desired file system, e.g., ntfs, fat32, or exfat) and press Enter. For example, format fs=exfat quick. The quick parameter performs a quick format; omit it for a full format. Wait for the formatting process to reach 100%.
  10. Type assign letter=Y (replace Y with a desired available drive letter, e.g., G or F) and press Enter. This command assigns the specified drive letter to the newly formatted partition, making it visible in File Explorer. You can also simply type assign and DiskPart will assign the next available drive letter.
  11. Type exit and press Enter to close the DiskPart utility.
  12. Close the Command Prompt window.

Now, open File Explorer and check if your USB drive or SD card is recognized with the assigned drive letter and the correct capacity. This DiskPart sequence is very effective for resolving various partition and formatting issues that simpler tools might fail to address.

Here is a summary of the DiskPart commands for reference:

DISKPART> list disk
DISKPART> select disk X  (Replace X with your disk number)
DISKPART> clean
DISKPART> create partition primary (or create partition primary size=n)
DISKPART> format fs=exfat quick (or fat32, ntfs)
DISKPART> assign letter=Y (or just assign)
DISKPART> exit

Using DiskPart provides the most granular control over the disk and is often the last resort before assuming hardware failure. Its ability to clean the disk entirely and rebuild the partition structure from scratch can overcome many types of software-related corruption.

Additional Troubleshooting and Considerations

If the above methods do not resolve the unallocated space issue:

  • Try on another computer: Sometimes, the problem might be with the computer’s USB controller or drivers rather than the drive itself. Test the USB drive or SD card on a different computer to see if it’s recognized correctly.
  • Check for Hardware Failure: If the drive is not recognized by any computer or if the formatting processes consistently fail with errors unrelated to software (like device not ready, I/O errors), the drive might have a physical defect or has failed completely. In this case, it likely needs to be replaced.
  • Consider Data Recovery: As reiterated throughout this guide, the repair methods discussed will erase data. If the data on the drive is critical, consult with professional data recovery services or use specialized data recovery software that can potentially recover data from corrupted or unallocated partitions before attempting to fix the partition structure. Many data recovery tools can scan the raw unallocated space for recoverable files.

Preventing Future Unallocated Space Issues

While it’s impossible to guarantee that you’ll never encounter this issue again, adopting good practices can significantly reduce the risk:

  • Always Use Safely Remove Hardware: Before physically disconnecting a USB drive or SD card, click the “Safely Remove Hardware and Eject Media” icon in the Windows notification area and wait for the confirmation message.
  • Run Antivirus Scans: Keep your computer’s antivirus software updated and run scans regularly to prevent malicious software from corrupting your drives.
  • Be Cautious with Third-Party Tools: Only use disk management or formatting tools from reputable sources and ensure you understand their functions before using them.
  • Avoid Abrupt Power Loss: Do not disconnect external storage during file transfers or formatting processes, and ensure your computer has stable power.
  • Check Drive Health Periodically: While less common for USB drives, tools exist that can check the basic health status of flash memory.

Video Tutorial Example (Placeholder)

For a visual step-by-step guide on using DiskPart, you might find a video tutorial helpful. Search on platforms like YouTube for guides titled “Fix Unallocated Space Diskpart” or “Format USB Using Diskpart”.

Example: A video titled “How to Fix Unallocated Space on USB Drive Using Diskpart Command Prompt” could walk you through opening Command Prompt as admin, typing diskpart, list disk, select disk X, clean, create partition primary, format fs=exfat quick, assign, and exit, showing the commands and the expected output in the command window.

[Simulated Video Placeholder - Not a real link or embed]

**Title:** How to Fix Unallocated Space on USB Drive Using Diskpart Command Prompt

**Description:** This video demonstrates the step-by-step process of using the Windows DiskPart utility via the command prompt to reclaim unallocated space on a USB flash drive or SD card. Learn how to select the correct disk, clean its existing partition structure, create a new primary partition, format it with a desired file system (like exFAT or FAT32), and assign a drive letter to make the drive accessible in Windows File Explorer. This method is useful for fixing drives that Windows Disk Management cannot format.

**Keywords:** DiskPart, unallocated space, fix USB, format SD card, command prompt, Windows 10, Windows 11, partition, clean disk, tutorial

Remember that this is just a description of what a relevant video might contain, formatted for this output. You would typically search for such videos yourself on platforms like YouTube.

Conclusion

Unallocated space errors on USB drives and SD cards are common issues that can often be resolved using Windows’ built-in tools or command-line utilities. Disk Management provides a simple graphical interface for creating new volumes on unallocated space, while the DiskPart command-line tool offers a more powerful and often more effective method for dealing with stubborn cases by completely cleaning and re-initializing the disk’s partition structure. Third-party tools like the HP USB Disk Storage Format Tool can also provide an alternative formatting engine.

Always remember that these methods will erase all data on the affected drive. If data recovery is needed, attempt it before proceeding with re-partitioning and formatting steps. By understanding the causes and applying these solutions carefully, you can often recover the full usability of your USB drives and SD cards. Adopting safe removal practices and staying vigilant against malware can help prevent these issues from recurring in the future.

Have you encountered unallocated space on your USB drives or SD cards? Which of these methods have you tried, and which one worked for you? Do you have any other tips for fixing this issue? Share your experiences and questions in the comments below!
