Secure Your Setup: A Pro Guide to Backing Up & Restoring Windows Taskbar Toolbars

Table of Contents

Windows 10 offers a convenient feature allowing users to add various toolbars to the taskbar. These toolbars, such as Address, Links, Desktop, or custom folders, provide quick access to websites, files, or specific directories directly from the taskbar area. For users who heavily customize their taskbar with multiple toolbars, losing these configurations can be frustrating and time-consuming to rebuild. This guide provides a detailed, professional approach to backing up these valuable taskbar toolbar settings and restoring them whenever necessary.

The configuration for taskbar toolbars, like many Windows shell settings, is stored within the system’s Registry. The Registry is a hierarchical database that stores low-level settings for the Microsoft Windows operating system and for applications that opt to use the Registry. By exporting the specific Registry key responsible for these toolbar settings, users can create a snapshot of their current setup. This snapshot, saved as a .reg file, can then be used to easily reapply the configuration in the future, whether due to accidental removal, user profile issues, or even when migrating settings to a new machine. This process is analogous to backing up other user-specific preferences stored in the Registry, offering a simple yet powerful built-in backup solution.

Understanding Taskbar Toolbars and Their Configuration¶

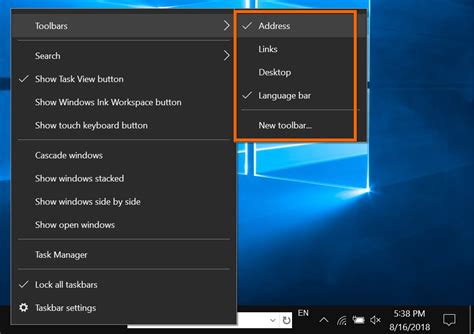

Taskbar toolbars offer a dynamic way to enhance productivity by placing frequently accessed items or functions right on the taskbar. The built-in options include the Address toolbar for quickly navigating to URLs or file paths, the Links toolbar for accessing Internet Explorer Favorites (though less common now), and the Desktop toolbar for browsing desktop contents directly. Additionally, Windows allows users to add toolbars linked to any folder on their system, providing unparalleled customization for quick access to project folders, utility scripts, or frequently used applications not pinned directly. These configurations, including which toolbars are enabled, their order, and any paths specified for custom toolbars, are persistently stored by the Windows Explorer shell.

The critical piece of the puzzle for understanding and managing these toolbars is the Windows Registry. Specifically, the settings for the standard taskbar toolbars (Address, Links, Desktop, and custom folder toolbars) are primarily managed within a specific branch of the Registry associated with the current user’s shell configuration. This ensures that toolbar preferences are unique to each user profile on a computer. Accessing and manipulating this key allows for the export and import required for backup and restoration. While it might seem complex, the process is straightforward once the correct location within the Registry is identified.

Locating Taskbar Toolbar Settings in the Registry¶

All user-specific settings in the Windows Registry are stored under the HKEY_CURRENT_USER root key. This key contains the configuration information for the user who is currently logged on. Within HKEY_CURRENT_USER, settings related to the Windows shell, including Explorer and the taskbar, are typically found under the SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer path. This branch is a treasure trove of customizations, from file associations to desktop icons and, crucially for our purpose, taskbar configurations.

The specific key holding the configuration for the toolbars added via the “Toolbars” right-click menu on the taskbar is located slightly deeper within the Explorer branch, under Streams\Desktop. This path, HKEY_CURRENT_USER\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Streams\Desktop, contains binary data (REG_BINARY value) that defines the state and order of the toolbars associated with the “Desktop” context, which in this case refers to the taskbar’s toolbar area. Exporting this entire key effectively saves all the settings related to the toolbars you have enabled and configured. It’s important to target this specific key for toolbar backups, as other keys within the Explorer branch handle different aspects of the shell.

Here is a visual representation of the Registry path:

mermaid graph TD A[HKEY_CURRENT_USER] --> B[SOFTWARE] B --> C[Microsoft] C --> D[Windows] D --> E[CurrentVersion] E --> F[Explorer] F --> G[Streams] G --> H[Desktop]

Navigating to this precise location is the first technical step in performing the backup operation. Accuracy is paramount when working with the Registry to avoid inadvertently modifying or deleting critical system settings. The process involves launching the Registry Editor tool, which is built into Windows and accessible via a simple command.

Step-by-Step Guide: Backing Up Taskbar Toolbars¶

Creating a backup of your taskbar toolbar configuration involves exporting the specific Registry key we identified. This process is safe as long as you are only exporting the key and not attempting to modify anything within the Registry Editor interface itself during the backup process. Follow these steps carefully:

1. Open Registry Editor: Press the Windows key + R simultaneously to open the Run dialog box. Type regedit into the box and press Enter, or click “OK.” You may be prompted by User Account Control (UAC); click “Yes” to allow the app to make changes to your device.
2. Navigate to the Target Key: In the left-hand pane of the Registry Editor window, navigate through the hierarchical structure to reach the Desktop key. Expand the folders by clicking the arrow next to each one in the following sequence: HKEY_CURRENT_USER -> SOFTWARE -> Microsoft -> Windows -> CurrentVersion -> Explorer -> Streams -> Desktop. Ensure the Desktop folder is selected (highlighted).
3. Export the Key: With the Desktop key selected, right-click on it in the left-hand pane. A context menu will appear. From this menu, select the “Export” option. This action is designed to create a copy of the selected key and all its contents in a transportable file format.
4. Save the .reg File: An “Export Registry File” dialog box will open. This is a standard “Save As” dialog. Choose a location on your computer where you want to save the backup file. It’s recommended to save it in a safe and easily accessible place, perhaps in your Documents folder or a dedicated backup directory. Give the file a descriptive name, such as Windows_Taskbar_Toolbars_Backup.reg. Ensure that “Registry files (*.reg)” is selected in the “Save as type” dropdown. Click “Save.”

Action	Backup Steps
Tool	Registry Editor (regedit)
Key	HKEY_CURRENT_USER\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Streams\Desktop
Process	1. Open Regedit 2. Navigate to the specified key 3. Right-click the key in the left pane 4. Select ‘Export’ 5. Choose save location and filename (.reg extension) 6. Click ‘Save’
Result	Creates a .reg file containing the toolbar configuration.

You have now successfully created a backup of your taskbar toolbar configuration. This .reg file is a small text file containing the instructions for Windows to recreate the Registry entries related to your toolbars. You can even open this file in a simple text editor like Notepad to see its contents, which start with Windows Registry Editor Version 5.00 followed by the key path and its associated values. Keeping this file safe is key to ensuring you can restore your setup quickly.

Step-by-Step Guide: Restoring Taskbar Toolbars¶

Restoring your taskbar toolbars from a backup file is even simpler than creating the backup. The .reg file format is designed to be easily imported back into the Registry. When you import a .reg file, Windows merges the data contained within the file into the existing Registry structure. If the key already exists, the values within the file will overwrite or add to the existing values as specified in the .reg file.

Follow these steps to restore your backed-up taskbar toolbars:

1. Locate the Backup File: Find the .reg file you created during the backup process. This is the file you saved with a name like Windows_Taskbar_Toolbars_Backup.reg.
2. Import the .reg File: Double-click on the .reg file. Windows will recognize the file type and understand that you want to import its contents into the Registry.
3. Confirm Registry Import: A “Registry Editor” warning dialog box will appear. This is a standard security prompt asking if you are sure you want to allow the program to add information to the Registry. Since you created this file yourself and know its purpose, click “Yes” to proceed.
4. Confirmation of Success: You will receive another small “Registry Editor” dialog box confirming that the keys and values contained in the file have been successfully added to the Registry. Click “OK.”
5. Restart File Explorer: The changes you just made to the Registry might not take effect immediately because the Windows File Explorer process (explorer.exe), which manages the taskbar, typically loads its settings when it starts. To force it to read the new Registry values, you need to restart the File Explorer process.

Action	Restore Steps
Tool	Exported .reg file
File	The .reg file created during the backup (e.g., Windows_Taskbar_Toolbars_Backup.reg)
Process	1. Locate and double-click the .reg backup file. 2. Click ‘Yes’ on the User Account Control (if prompted). 3. Click ‘Yes’ on the Registry Editor confirmation prompt. 4. Click ‘OK’ on the success message. 5. Restart the File Explorer process.
Result	The toolbar configuration is reapplied to the Registry.

You can restart File Explorer in several ways:

• Using Task Manager: Press Ctrl + Shift + Esc to open Task Manager. In the “Processes” tab, find “Windows Explorer.” Right-click on “Windows Explorer” and select “Restart.”
• Using Command Prompt/PowerShell: Open Command Prompt or PowerShell. Type taskkill /f /im explorer.exe and press Enter (this kills the process). Then type start explorer.exe and press Enter (this restarts it). Your desktop icons and taskbar will disappear briefly and then reappear.

Once File Explorer has restarted, your taskbar should refresh, and all the toolbars that were present when you created the backup should reappear exactly as they were configured. This provides a very quick and efficient way to recover your customized taskbar layout.

Beyond Toolbars: Backing Up Pinned Taskbar Items¶

While this guide focuses on the Address, Links, Desktop, and custom folder toolbars managed by the Streams\Desktop key, it’s worth noting that the items pinned directly to the taskbar are managed separately in the Registry. Users often want to back up their pinned applications as well. This information is stored in a different Registry key: HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\Taskband.

If you wish to create a backup of your pinned taskbar items, you can follow a similar process:

1. Open Registry Editor (regedit).
2. Navigate to HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\Taskband.
3. Right-click on the Taskband key and select “Export.”
4. Save the .reg file with a descriptive name like Windows_Taskbar_Pinned_Items_Backup.reg.

Restoring pinned items involves double-clicking this Taskband backup file and restarting File Explorer, just like with the toolbar backup. However, it’s important to understand that these are two distinct sets of configurations stored in different locations. Backing up both keys ensures a more complete restoration of your taskbar layout if needed.

Alternatives: Preventing Changes to Taskbar Toolbars¶

For situations where preventing any changes to the taskbar toolbars is desired, such as in a managed environment or on a shared computer, Windows offers policy-based methods rather than simple backup and restore. These methods involve configuring specific Registry values (which can often be managed via Group Policy in Pro and Enterprise editions) to disable the “Toolbars” option in the taskbar context menu or to prevent users from adding, removing, or rearranging toolbars.

Using Registry Editor for this purpose requires navigating to paths like HKEY_CURRENT_USER\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\Explorer or HKEY_LOCAL_MACHINE\... depending on whether the policy is user-specific or machine-wide. Within these keys, you would create or modify values like NoToolbarsOnTaskbar. While this approach locks down the configuration, it sacrifices the flexibility of easily adding or removing toolbars. The backup and restore method, conversely, allows users to make changes freely while having the safety net of a saved configuration to revert to. The choice between these methods depends entirely on the user’s needs and environment.

Troubleshooting Common Issues¶

While the backup and restore process using .reg files is generally reliable, occasional issues might arise. Here are a few common problems and their potential solutions:

• Toolbars don’t appear after restoring and restarting Explorer:
  • Check the Registry Key: Re-open Registry Editor and navigate to HKEY_CURRENT_USER\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Streams\Desktop. Verify that the key and its values are present after the import. If not, the import might have failed without a clear error; try importing the .reg file again.
  • Ensure Correct File: Double-check that you double-clicked the correct .reg file that corresponds to the toolbar backup, not another .reg file you might have.
  • Proper Explorer Restart: Make sure you correctly restarted the explorer.exe process. Sometimes simply logging out and logging back in, or even restarting the computer, is the most surefire way to ensure the new Registry settings are loaded by Explorer.
  • User Permissions: Ensure your user account has the necessary permissions to modify the HKEY_CURRENT_USER branch of the Registry. This is usually the case for standard user accounts regarding their own HKCU hive, but it’s worth considering in restricted environments.
• Double-clicking .reg file doesn’t prompt for import:
  • The .reg file association might be broken. Right-click the .reg file, select “Open with,” choose “Registry Editor,” and ensure “Always use this app to open .reg files” is checked.
• Received an error during import:
  • The .reg file might be corrupted. Try exporting the key again and save it with a new name, then attempt to import the new file. Ensure the disk where the file is saved is healthy.

For visual learners, searching for videos on platforms like YouTube showing “how to add custom taskbar toolbars windows 10” or “how to restart windows explorer task manager” can provide helpful context for the actions described in this guide, even though the core backup/restore involves Registry steps not always covered in basic toolbar tutorials.

Conclusion¶

Maintaining a customized Windows environment significantly enhances productivity and user experience. Taskbar toolbars, when configured thoughtfully, provide rapid access to essential resources. By understanding that these configurations reside within the Windows Registry, users gain the power to easily back up and restore their settings. The method described here, utilizing the built-in Registry Editor to export and import the relevant HKEY_CURRENT_USER\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Streams\Desktop key, offers a simple, free, and effective way to protect your personalized taskbar layout against accidental loss or system changes. Combined with the ability to back up pinned taskbar items from the Taskband key, you can achieve a comprehensive backup strategy for your taskbar. Taking a few moments to create this backup today can save significant time and frustration in the future.

Have you ever lost your taskbar settings and had to recreate them manually? Do you use taskbar toolbars frequently? Share your experiences or ask any questions about the backup and restore process in the comments below! Your insights can help others in the community secure their own Windows setups.
