Streamline Windows Deployment: A Comprehensive Guide to Installing and Configuring WDS

Updated: • 0 • min read
Table of Contents

Windows Deployment Services (WDS) is a powerful server role designed to facilitate network-based installation of Windows operating systems. It allows administrators to deploy Windows images to client computers without the need for physical media like DVDs or USB drives. This capability is crucial for efficiently managing large-scale deployments and ensuring consistency across an organization’s computers. By leveraging network resources, WDS streamlines the entire deployment process, reducing manual effort and potential errors.

Windows Deployment Services Installation

This guide provides a comprehensive walkthrough for installing and configuring WDS on a Windows server. We will cover the necessary prerequisites, the step-by-step installation of the role, initial server configuration, and the crucial process of adding boot and install images. Mastering these steps is key to unlocking the full potential of WDS for rapid and standardized operating system deployment.

Essential Prerequisites for WDS

Before you begin the installation and configuration of Windows Deployment Services, it is absolutely critical to ensure that certain prerequisites are already in place and functioning correctly within your network environment. Overlooking any of these can lead to significant issues during deployment or prevent WDS from working altogether. Verifying these components upfront saves considerable troubleshooting time later.

Active Directory Domain Services

The server designated for WDS must be either a domain controller or a member server joined to an Active Directory domain. WDS relies heavily on Active Directory for managing client computer accounts, deploying images to specific groups, and integrating security settings. While a standalone mode exists, the full capabilities and scalability of WDS are best realized when integrated with AD DS.

DHCP Server

A Dynamic Host Configuration Protocol (DHCP) server is essential because WDS uses PXE (Preboot Execution Environment) booting to initiate the installation process on client computers. DHCP provides the necessary IP address and crucial PXE boot information to the client machines when they start up. This allows the client to locate and connect to the WDS server on the network.

DNS Server

A properly configured and operational Domain Name System (DNS) server is vital for name resolution within your network. Both the WDS server and the client machines need to be able to resolve each other’s hostnames to IP addresses. This is fundamental for the communication required during the PXE boot process and the subsequent image deployment.

NTFS Partition

The WDS server requires a partition formatted with the NTFS file system to store the operating system images and other deployment files. This partition must have sufficient free space to accommodate the potentially large image files you plan to deploy. It is often recommended to use a dedicated drive or partition for the RemoteInstall folder where these files will reside.

Step-by-Step WDS Role Installation

Once you have confirmed that all the prerequisites are met and properly configured on your network and the target server, the next phase is to install the Windows Deployment Services role. This role transforms a standard Windows server into a WDS server capable of deploying operating systems. The installation process is straightforward and is performed using the Server Manager console.

  1. Launch Server Manager from the Start menu or taskbar.
  2. Navigate to the Manage tab in the top right corner.
  3. Select Add Roles and Features to open the wizard.
  4. Click Next on the “Before you begin” page (assuming you have reviewed the prerequisites).
  5. On the “Select installation type” page, choose Role-based or feature-based installation and click Next. This is the standard method for adding server roles and features.
  6. In the “Select destination server” window, ensure that Select a server from the server pool is chosen and that your target server is highlighted. Click Next to proceed.

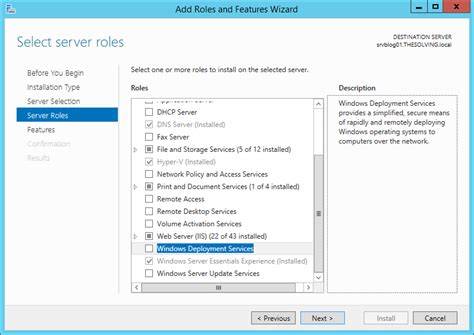

  7. On the “Select server roles” page, locate and tick the checkbox next to Windows Deployment Services. This initiates the process of adding the WDS role to the selected server.
  8. A dialog box titled “Add features that are required for Windows Deployment Services” will appear. Click Add Features to include the necessary components that WDS depends on.
  9. Click Next on the “Select features” page, as the required features are usually automatically selected when adding the role.
  10. Review the information on the “Windows Deployment Services” page and click Next. This page provides a brief overview of the WDS role.
  11. The “Select role services” window will show two components: Deployment Server and Transport Server. Both should be ticked by default, and they are generally required for full WDS functionality. Click Next. The Deployment Server handles client interactions and image deployment, while the Transport Server handles multicasting.
  12. On the “Confirm installation selections” page, review the roles and features that will be installed. Click Install to begin the installation process.
  13. The installation progress will be shown. Once it completes, click Close to exit the wizard.

The WDS role is now installed on your server, but it is not yet configured to deploy images. The next step involves configuring the server settings, which is equally important as the installation itself.

Configuring the WDS Server

After successfully installing the Windows Deployment Services role, the server needs to be configured to specify how it will operate and interact with clients. This configuration phase involves setting up the location for storing deployment files, deciding how the server responds to PXE boot requests, and integrating with Active Directory if desired. Proper configuration ensures WDS functions correctly within your network environment.

  1. Open Server Manager and go to the Tools menu in the upper right corner.
  2. Select Windows Deployment Services from the dropdown list to launch the WDS management console.
  3. In the WDS console, expand the Servers node in the left pane.
  4. Right-click on the name of your WDS server (it might show a warning icon initially) and select Configure Server. This will start the Windows Deployment Services Configuration Wizard.
  5. Click Next on the welcome page of the wizard.
  6. The “Remote Installation Folder Location” page prompts you to specify where WDS will store its boot images, install images, WDS tools, and other deployment files. You should select a path on an NTFS partition with sufficient space. It is highly recommended to use a location other than the system drive (C:) if possible for performance and organization. Enter the path or use the Browse button, then click Next.
  7. If the folder does not exist, you will be prompted to create it. Click Yes.
  8. On the “PXE Server Initial Settings” page, you configure how the WDS server responds to PXE boot requests from clients. You have several options:
    • Do not respond to any client computers: WDS is active but won’t respond to PXE requests. Useful for initial setup or maintenance.
    • Respond to known client computers only: WDS will only respond to computers that have been prestaged in Active Directory. This provides more control over which machines can use WDS.
    • Respond to all client computers (known and unknown): WDS will respond to any computer that sends a PXE boot request. This is often used in initial deployments but can be risky if you don’t want unauthorized machines accessing WDS.
    • Respond to all client computers (known and unknown) and require administrator approval for unknown computers: WDS responds to all, but for unknown machines, an administrator must approve the request in the WDS console before the deployment proceeds. This offers a balance between ease of use and security.
      Choose the option that best suits your environment. For initial testing, “Respond to all client computers” might be convenient, but for production, using known clients or requiring approval is generally more secure. Click Next.
  9. The configuration process will run. This may take a few moments.
  10. Once the configuration is complete, the wizard will show a summary page. Uncheck the box that says “Add images to the server now” if you are not ready to add images immediately (we will cover this in the next steps).
  11. Click Finish.

Your WDS server is now installed and basic configuration is complete. However, it cannot deploy anything until you add operating system images.

Preparing and Adding Boot and Install Images

The core of Windows Deployment Services lies in the boot and install images it hosts. These images are essential files derived from Windows installation media. The boot image (boot.wim) is a minimal Windows environment (Windows PE) used to boot the client machine and connect it to the WDS server. The install image (install.wim) contains the actual operating system files that will be installed on the client. You will need access to your Windows installation media (ISO, DVD, or extracted files) to obtain these images.

Obtaining Images from Installation Media

Insert the Windows installation DVD, mount the Windows installation ISO file on your server, or connect a bootable USB drive containing the Windows installation files. Navigate to the sources folder on this media. You will find boot.wim and usually install.wim or install.esd.

Handling install.esd

Sometimes, instead of install.wim, you will find install.esd in the sources folder, particularly on newer Windows installation media. ESD (Electronic Software Distribution) files are more compressed than WIM (Windows Imaging Format) files, which is great for distribution but WDS typically requires the WIM format for installation images. If you have an install.esd file and need to convert it to install.wim, you can use the Deployment Image Servicing and Management (DISM) command-line tool.

Open Command Prompt as administrator and follow these steps:

  1. Navigate to the directory where your install.esd file is located using the cd command. For example, if it’s in a folder called C:\temp\wininstall\sources, you would type:
    cd c:\temp\wininstall\sources
  2. To see the available operating system editions (images) within the install.esd file and find their index numbers, run the following command:
    dism /Get-WimInfo /WimFile:install.esd

    This command lists details for each image within the ESD file, including its name and a numerical index (e.g., Index : 1, Index : 2, etc.). Note the index number for the specific Windows edition you want to deploy (e.g., Windows 10 Pro, Windows Server 2019 Standard).
  3. To convert a specific image (identified by its index number) from install.esd to install.wim, use the /export-image command. Replace SourceIndex with the actual index number you found in the previous step (e.g., 1, 2, 3, etc.). You can also specify a destination path and filename for the new .wim file.
    dism /export-image /SourceImageFile:install.esd /SourceIndex:1 /DestinationImageFile:c:\WDS_Images\install.wim /Compress:max /CheckIntegrity
    • /SourceImageFile:install.esd: Specifies the input file.
    • /SourceIndex:1: Specifies which image within the ESD file to export (change 1 to the desired index).
    • /DestinationImageFile:c:\WDS_Images\install.wim: Specifies the output path and filename for the WIM file. Make sure this directory exists.
    • /Compress:max: Applies maximum compression to the resulting WIM file.
    • /CheckIntegrity: Verifies the integrity of the source and destination files.

This process can take a significant amount of time depending on the size of the image and the speed of your storage. Once complete, you will have an install.wim file ready to be added to WDS. You will also need the boot.wim file from the original media’s sources folder.

Adding the Boot Image to WDS

The boot image (boot.wim) is the first image a client machine downloads via PXE boot. It contains Windows PE (Preinstallation Environment), which provides a minimal operating system environment where the client can run setup programs and access the WDS server to select and download the installation image. Adding the boot image is a fundamental step in making your WDS server functional for deployment.

  1. Launch the Windows Deployment Services console from Server Manager > Tools.
  2. In the console tree, expand the Servers node, and then expand the name of your WDS server.
  3. Right-click on the Boot Images folder under your server name.
  4. Select Add Boot Image from the context menu. This opens the Add Image Wizard.
  5. On the “Image File” page, click the Browse button.
  6. Navigate to the location where you copied or have access to the boot.wim file (usually found in the sources folder of Windows installation media). Select the boot.wim file and click Open.
  7. Click Next.
  8. On the “Image Metadata” page, you can customize the Image name and description. It is good practice to give it a descriptive name, such as “Windows 10 Pro/Enterprise Setup (x64)” or “Windows Server 2022 Setup”. This name is what clients will see when they boot from the network and choose which image to load. Provide a relevant description if desired. Click Next.
  9. Review the summary on the “Summary” page and click Next to begin adding the image to the WDS server.
  10. The wizard will show the progress of adding the boot image. This process is usually relatively quick.
  11. Once the image has been successfully added, click Finish.

The boot image is now listed under the “Boot Images” node in the WDS console. When a client computer is configured to boot from the network (PXE boot) and contacts this WDS server, it will download and run this boot image, presenting the user with a basic Windows PE environment and the initial setup options.

Adding the Install Image to the Server

With the boot image in place, the client can enter the Windows PE environment. The next crucial step is to add the install image (install.wim or the converted file) which contains the actual operating system files needed to install Windows onto the client’s hard drive. WDS can host multiple install images, allowing you to offer different Windows versions or editions for deployment.

  1. Launch the Windows Deployment Services console from Server Manager > Tools.
  2. In the console tree, expand the Servers node, and then expand the name of your WDS server.
  3. Right-click on the Install Images folder under your server name.
  4. Select Add Install Image from the context menu. This opens the Add Image Wizard.
  5. The first step in adding an install image is often to select an image group. An image group is simply a folder or container within WDS used to organize install images. For the first install image you add, you will likely need to Create a new image group. Provide a name for the group, such as “Windows 10 Images”, “Server OS Images”, or “Production Images”. If you have already created image groups, you can select an existing one from the dropdown list instead. Click Next.
  6. On the “Image File” page, click the Browse button.
  7. Navigate to the location where you copied or saved the install.wim file (either the original from the media or the one you converted from install.esd). Select the install.wim file and click Open.
  8. Click Next.
  9. The wizard will scan the .wim file and list all the operating system editions contained within it. This is based on the index numbers we saw earlier when using DISM. You can select which specific images you want to add to WDS by ticking the checkboxes next to their names. It’s usually best to add only the editions you intend to deploy. Click Next.
  10. On the “Image Metadata” page, you can review and customize the names and descriptions for the selected install images. These names will be presented to the client during the installation process. It’s important to use clear and descriptive names so users (or scripts) can easily identify the correct OS image. Click Next.
  11. Review the summary on the “Summary” page and click Next to begin adding the selected install images to the WDS server.
  12. The wizard will show the progress of adding the install images. This process can take a significant amount of time, especially for large images or if you selected multiple editions, as the files are being copied and processed by WDS into the RemoteInstall folder.
  13. Once the image import is complete, click Finish.

The selected install images will now appear under the image group you specified within the “Install Images” node in the WDS console. Your WDS server is now populated with the necessary images to perform network-based installations of the Windows operating system.

Troubleshooting Common WDS Issues

While the installation and configuration process is generally straightforward, you might encounter issues. Here are some common problems and troubleshooting tips:

  • PXE Boot Fails: This is frequently a DHCP or network configuration issue. Ensure DHCP options 66 (Boot Server Host Name - set to WDS server IP or hostname) and 67 (Bootfile Name - usually boot\x64\wdsmgfw.efi for UEFI or boot\x86\wdsnbp.com for legacy BIOS, depending on your environment) are correctly set on your DHCP server scope. Verify that the WDS server is running and accessible on the network. Check firewall rules on the WDS server (UDP ports 69 and 4011 must be open).
  • Client Connects but No Images Appear: This usually indicates a problem with the WDS server itself or the image files. Check the WDS server logs for errors. Ensure that boot and install images have been successfully added in the WDS console. Verify that the RemoteInstall folder permissions are correct (SYSTEM and Administrators need full control).
  • Installation Fails After Selecting Image: This could be an issue with the install image itself (corruption, incorrect format) or a driver issue. Ensure the install.wim file was correctly converted/copied. Try adding the image again. Make sure the boot image contains drivers compatible with the client’s network card and storage controller. You might need to add drivers to the boot image or the install image using DISM.
  • WDS Server Not Starting: Check the server’s event logs for specific error messages related to the WDS service. This could indicate configuration problems, port conflicts, or issues with dependent services.

Best Practices for WDS Deployment

To ensure a reliable and efficient deployment system using WDS, consider implementing these best practices:

  • Use a Dedicated Volume for Images: Store your RemoteInstall folder on a separate physical disk or logical volume from the operating system. This improves performance during deployments and simplifies management and backup of your image repository.
  • Keep Images Updated: Regularly update your install images with the latest Windows updates and patches. This reduces the time and effort required to update clients after deployment. You can use tools like DISM or MDT (Microsoft Deployment Toolkit) to service WIM files.
  • Organize Image Groups: Use image groups effectively to categorize your install images by OS version, architecture (x86/x64), edition, or even pre-configured images (though pre-configured images are better managed with MDT or SCCM).
  • Test Thoroughly: Before deploying an image widely, test it on a few different hardware configurations. Ensure all necessary drivers are included and that the installation proceeds without errors.
  • Document Your Configuration: Keep detailed records of your WDS server configuration, image group structure, image sources, and any customizations. This is invaluable for troubleshooting and future maintenance.
  • Consider Integration with MDT: For more advanced scenarios, such as task sequences, driver management, application installation, and user state migration, integrate WDS with Microsoft Deployment Toolkit (MDT). WDS handles the network boot, and MDT takes over the complex deployment process.

By following this guide and implementing best practices, you can effectively install, configure, and utilize Windows Deployment Services to streamline your operating system deployment workflow. This centralizes your imaging process, saves valuable time, and ensures consistency across your deployed machines.

Have you used WDS for deployments? What challenges or successes have you experienced? Share your thoughts and questions in the comments below!
